Amplifier

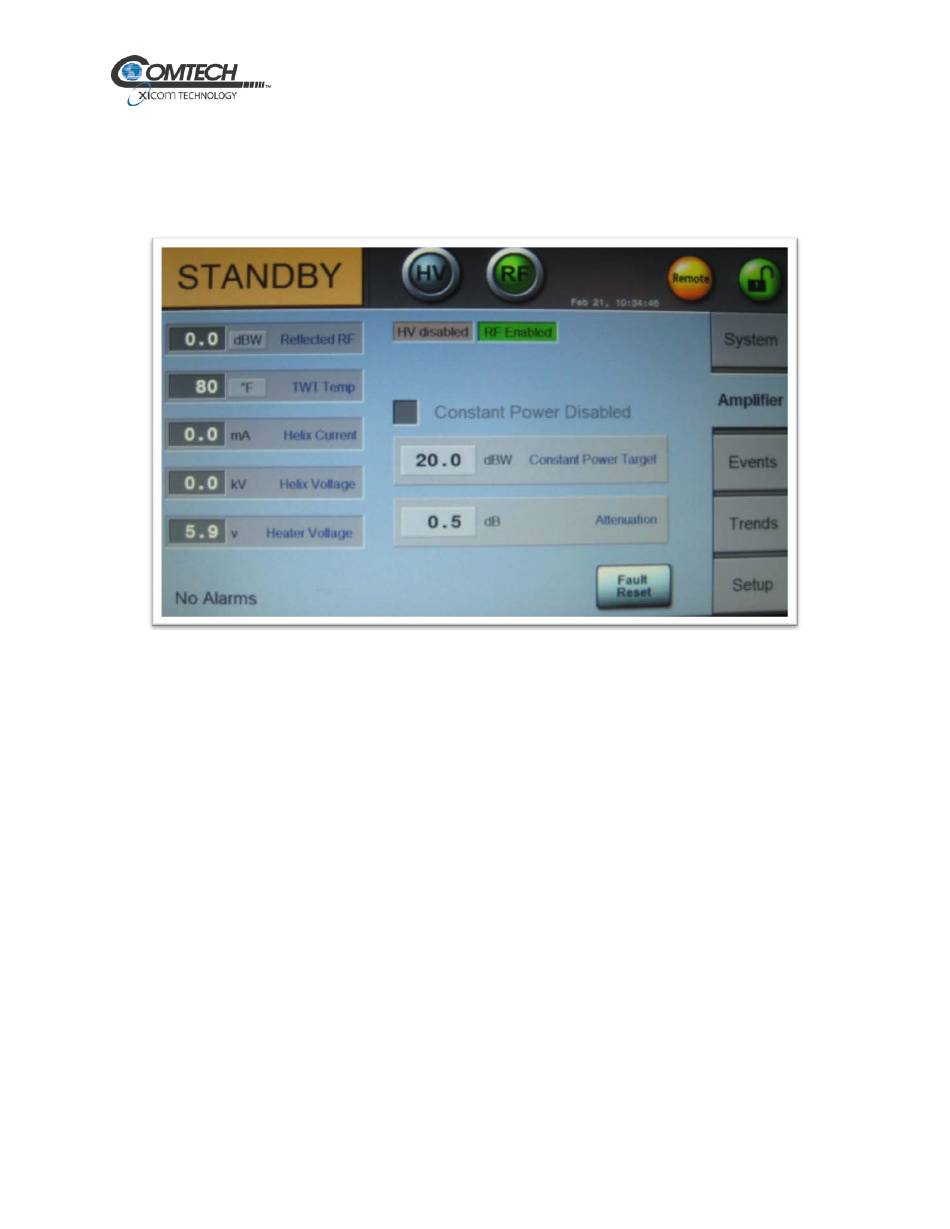

Figure 18 Amplifier Screen
Amplifier Screen
The Amplifier screen is used to monitor and control the various RF and high voltage
power supply parameters essential to the operation of the amplifier. The left side of the
screen displays the amplifier analog parameters. The top center displays the high
voltage state and the RF state. The center section of the screen allows the user control
of constant power mode and attenuation. Bottom right includes the Fault Reset which
will reset any latched and resettable faults.
