TI01225D/06/EN/04.18
71402617
2018-06-01

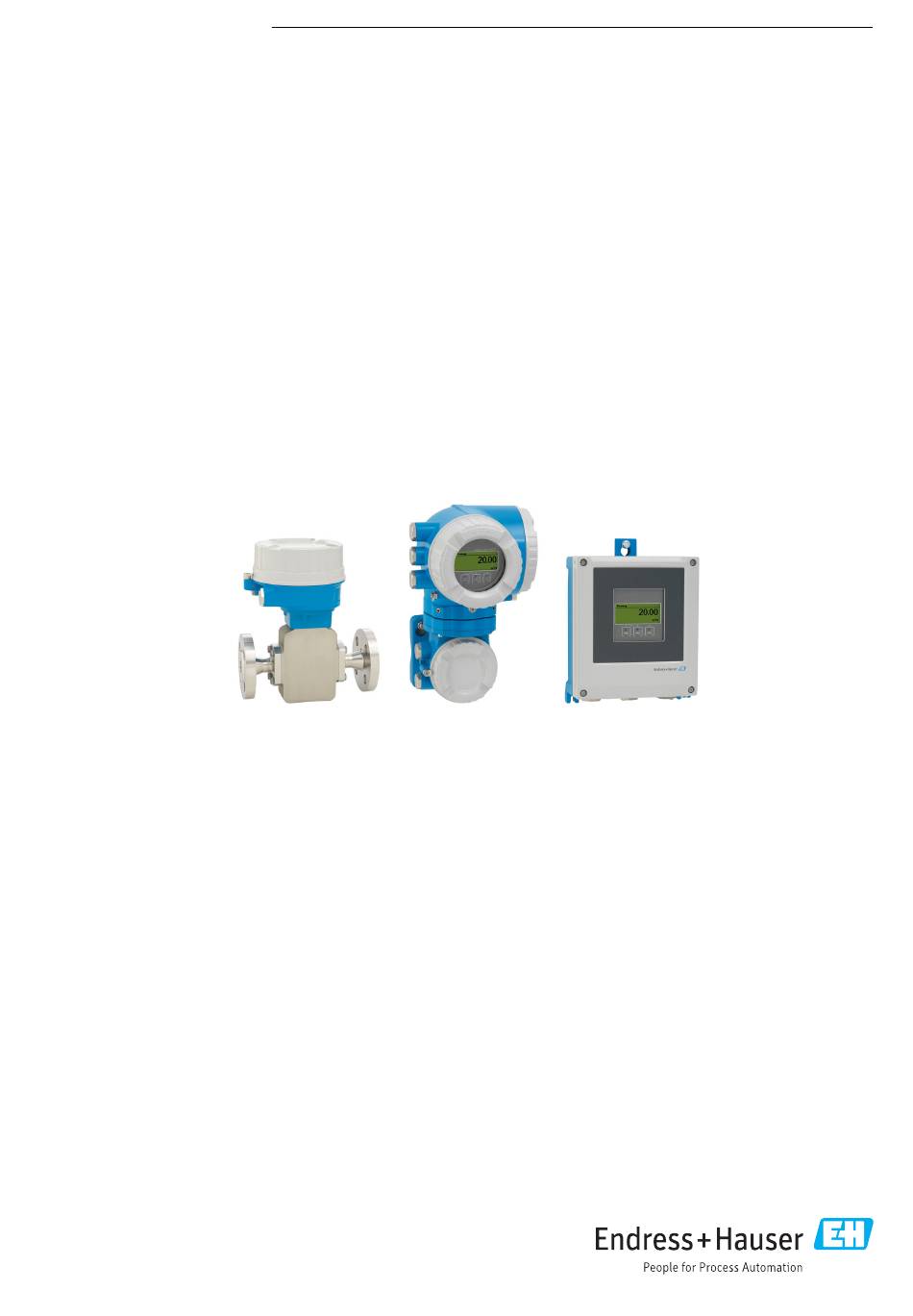

The specialist for hygienic applications, as remote version with up to 4 I/Os
Application
• The bidirectional measuring principle is virtually
independent of pressure, density, temperature and viscosity
• Dedicated to demanding applications in the food and
beverage as well as in life sciences industries
Device properties
• Liner made of PFA
• Sensor housing made of stainless steel (3-A, EHEDG)
• Wetted materials CIP/SIP cleanable
• Remote version with up to 4 I/Os; hygienic sensor
connection housing with IP69
• Backlit display with touch control and WLAN access
• Standard cable between sensor and transmitter
Products
Technical Information
Proline Promag H 500
Electromagnetic flowmeter
Solutions
Your benefits
• Multivariable measurement for flow, temperature and
conductivity
• Flexible installation concept – numerous hygienic process
connections
• Energy-saving flow measurement – no pressure loss due to
cross-section constriction
• Maintenance-free – no moving parts
• Full access to process and diagnostic information –
numerous, freely combinable I/Os and fieldbuses
• Reduced complexity and variety – freely configurable I/O
functionality
• Integrated verification – Heartbeat Technology
Services

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Proline Promag H 500

Summary of Contents for Endress+Hauser Proline Promag H 500

  • Page 1 Solutions Services TI01225D/06/EN/04.18 71402617 2018-06-01 Technical Information Proline Promag H 500 Electromagnetic flowmeter The specialist for hygienic applications, as remote version with up to 4 I/Os Application Your benefits • The bidirectional measuring principle is virtually • Multivariable measurement for flow, temperature and...

  • Page 2: Table Of Contents

    Proline Promag H 500 Table of contents About this document ......Vibration resistance ......55 Shock resistance .
  • Page 3 Proline Promag H 500 Application packages ..... . 119 Diagnostics functions ......119 Heartbeat Technology .

  • Page 4: About This Document

    Proline Promag H 500 About this document Symbols used Electrical symbols Symbol Meaning Direct current Alternating current Direct current and alternating current Ground connection A grounded terminal which, as far as the operator is concerned, is grounded via a grounding system.

  • Page 5: Function And System Design

    Proline Promag H 500 Symbols in graphics Symbol Meaning 1, 2, 3, ... Item numbers , … Series of steps A, B, C, ... Views A-A, B-B, C-C, ... Sections Hazardous area Safe area (non-hazardous area) Flow direction Function and system design...

  • Page 6: Measuring System

    Proline Promag H 500 Measuring system The measuring system consists of a transmitter and a sensor. The transmitter and sensor are mounted in physically separate locations. They are interconnected by connecting cables. Transmitter Two versions of the transmitter are available.
  • Page 7 Proline Promag H 500 Sensor connection housing Different versions of the connection housing are available. Order code for "Sensor connection housing", option A, "Aluminum, coated": Aluminum, AlSi10Mg, coated  This device version is only available in conjunction with the Proline 500 –...

  • Page 8: Equipment Architecture

    Proline Promag H 500 Equipment architecture A0027512  1 Possibilities for integrating measuring devices into a system Control system (e.g. PLC) Connecting cable (0/4 to 20 mA HART etc.) Fieldbus Segment coupler Non-hazardous area Hazardous area: Zone 2; Class I, Division 2 Hazardous area: Zone 1;...
  • Page 9 Proline Promag H 500 Protecting access via hardware write protection Write access to the device parameters via the local display, Web browser or operating tool (e.g. FieldCare, DeviceCare) can be disabled via a write protection switch (DIP switch on the motherboard).

  • Page 10: Input

    Proline Promag H 500 The device can communicate with OPC UA clients using the "OPC UA Server" application package. The OPC UA server integrated in the device can be accessed via the WLAN access point using the WLAN interface - which can be ordered as an optional extra - or the service interface (CDI- RJ45) via Ethernet network.

  • Page 11: Operable Flow Range

    Proline Promag H 500 Nominal Recommended Factory settings diameter flow Full scale value current min./max. full scale value Pulse value Low flow cut off output (v ~ 0.3/10 m/s) (~ 2 pulse/s) (v ~ 0.04 m/s) (v ~ 2.5 m/s)

  • Page 12: Input Signal

    Proline Promag H 500 Input signal Input and output versions →  13 External measured values To increase the accuracy of certain measured variables or to calculate the corrected volume flow, the automation system can continuously write different measured values to the measuring device: •...

  • Page 13: Output

    Proline Promag H 500 Output Output and input variants Depending on the option selected for output/input 1, different options are available for the other outputs and inputs. Only one option can be selected for each output/input 1 to 4. The table must be read vertically (↓).

  • Page 14: Output Signal

    Proline Promag H 500 Output signal HART current output Current output 4 to 20 mA HART Current span Can be set to: 4 to 20 mA (active/passive)  Ex-i, passive Open-circuit voltage DC 28.8 V (active) Maximum input voltage DC 30 V (passive) Load 250 to 700 Ω...
  • Page 15 Proline Promag H 500 Modbus RS485 Physical interface RS485 in accordance with EIA/TIA-485 standard Terminating resistor Integrated, can be activated via DIP switches Current output 0/4 to 20 mA Current output 0/4 to 20 mA Maximum output values 22.5 mA...
  • Page 16 Proline Promag H 500 Maximum input values DC 30 V, 250 mA (passive) Maximum output current 22.5 mA (active) Open-circuit voltage DC 28.8 V (active) Output frequency Adjustable: end value frequency 2 to 10 000 Hz (f = 12 500 Hz)

  • Page 17: Signal On Alarm

    Proline Promag H 500 Pulse/pause ratio Assignable measured • Volume flow variables • Mass flow • Corrected volume flow • Flow velocity • Conductivity • Corrected conductivity • Temperature • Electronic temperature Relay output Function Switch output Version Relay output, galvanically isolated...
  • Page 18 Proline Promag H 500 PROFIBUS PA Status and alarm Diagnostics in accordance with PROFIBUS PA Profile 3.02 messages Error current FDE (Fault 0 mA Disconnection Electronic) PROFIBUS DP Status and alarm Diagnostics in accordance with PROFIBUS PA Profile 3.02 messages...
  • Page 19 Proline Promag H 500 Pulse/frequency/switch output Pulse output Failure mode Choose from: • Actual value • No pulses Frequency output Failure mode Choose from: • Actual value • 0 Hz • Defined value (f 2 to 12 500 Hz) Switch output...

  • Page 20: Ex Connection Data

    Proline Promag H 500 Light emitting diodes (LED) Status information Status indicated by various light emitting diodes The following information is displayed depending on the device version: • Supply voltage active • Data transmission active • Device alarm/error has occurred •...

  • Page 21: Low Flow Cut Off

    Proline Promag H 500 Intrinsically safe values Order code for Output type Intrinsically safe values "Output; input 1" "Output; input 1" 26 (+) 27 (–) Option CA Current output = 30 V 4 to 20 mA HART Ex i = 100 mA = 1.25 W...
  • Page 22 Proline Promag H 500 PROFIBUS PA Manufacturer ID 0x11 Ident number 0x156C Profile version 3.02 Device description files (GSD, Information and files under: DTM, DD) • www.endress.com • www.profibus.org Supported functions • Identification & Maintenance Simplest device identification on the part of the control system and nameplate •...
  • Page 23 Proline Promag H 500 Configuration of the device • DIP switches on the I/O electronics module address • Via operating tools (e.g. FieldCare) System integration Information regarding system integration: Operating Instructions →  124. • Cyclic data transmission • Block model •...
  • Page 24 Proline Promag H 500 Media Redundancy Protocol (MRP) Device profile Application interface identifier 0xF600 Generic device Manufacturer ID 0x11 Device type ID 0x843C Device description files (GSD, Information and files under: DTM, DD) • www.endress.com On the product page for the device: Documents/Software → Device drivers •...
  • Page 25 Proline Promag H 500 Node address Factory setting: 247 (0xF7) Supported functions The following methods are supported: • Restart • ENP Restart • Diagnostic • Set to OOS • Set to AUTO • Read trend data • Read event logbook...

  • Page 26: Power Supply

    Proline Promag H 500 Supported baud rate • 1 200 BAUD • 2 400 BAUD • 4 800 BAUD • 9 600 BAUD • 19 200 BAUD • 38 400 BAUD • 57 600 BAUD • 115 200 BAUD Data transfer mode •...

  • Page 27: Device Plugs Available

    Proline Promag H 500 PROFIBUS DP Supply voltage Input/output Input/output Input/output Input/output 1 (+) 2 (–) 26 (B) 27 (A) 24 (+) 25 (–) 22 (+) 23 (–) 20 (+) 21 (–) The terminal assignment depends on the specific device version ordered →  13.

  • Page 28: Pin Assignment, Device Plug

    Proline Promag H 500 Order code for "Input; output 1", option GA "PROFIBUS PA" Order code for Cable entry/connection →  32 "Electrical connection" L, N, P, U Connector M12 × 1 – Order code for "Input; output 1", option RA "PROFINET"...
  • Page 29 Proline Promag H 500 PROFIBUS PA – Not assigned PROFINET Assignment TD + RD + TD – RD – Coding Plug/socket A0032047 Socket  Recommended plug: • Binder, series 763, part no. 99 3729 810 04 • Phoenix, part no. 1543223 SACC-M12MSD-4Q •...

  • Page 30: Power Consumption

    Proline Promag H 500 Order code for terminal voltage Frequency range "Power supply" DC24 V ±20% – Option I AC100 to 240 V –15…+10% 50/60 Hz, ±4 Hz Power consumption Transmitter Max. 10 W (active power) Current consumption Transmitter • Max. 400 mA (24 V) •...

  • Page 31: Electrical Connection

    Proline Promag H 500 Electrical connection Connection of connecting cable: Proline 500 – digital – 61 62 63 64 61 62 63 64 – A0028198 Cable entry for cable on transmitter housing Protective ground (PE) Connecting cable ISEM communication Grounding via ground connection; on device plug versions grounding is through the plug itself...
  • Page 32 Proline Promag H 500 E2 S2 n.c. n.c. n.c. E1 E2 A0029444 Protective ground (PE) Cable entry for coil current cable on transmitter connection housing Coil current cable Cable entry for signal cable on transmitter connection housing Signal cable Cable entry for signal cable on sensor connection housing...
  • Page 33 Proline Promag H 500 Connecting the Proline 500 transmitter A0026781 Terminal connection for supply voltage Terminal connection for signal transmission, input/output Terminal connection for signal transmission, input/output or terminal for network connection (DHCP client) via service interface (CDI-RJ45); optional: terminal connection for external WLAN antenna...
  • Page 34 Proline Promag H 500 Transmitter: Proline 500 A0026781 Terminal connection for supply voltage Terminal connection for signal transmission: PROFINET or EtherNet/IP (RJ45 connector) Terminal connection to service interface (CDI-RJ45) Protective ground (PE) If the device has additional inputs/outputs, these are routed in parallel via the cable entry for connection to the service interface (CDI-RJ45).
  • Page 35 Proline Promag H 500 HART input 4...20 mA A0028763  4 Connection example for HART input with a common negative (passive) Automation system with HART output (e.g. PLC) Active barrier for power supply (e.g. RN221N) Cable shield: the cable shield must be grounded at both ends to comply with EMC requirements; observe cable...
  • Page 36 Proline Promag H 500 PROFIBUS DP A0028765  6 Connection example for PROFIBUS DP, non-hazardous area and Zone 2/Div. 2 Control system (e.g. PLC) Cable shield: the cable shield must be grounded at both ends to comply with EMC requirements; observe cable...
  • Page 37 Proline Promag H 500 EtherNet/IP: DLR (Device Level Ring) A0027544 Control system (e.g. PLC) Ethernet switch Observe cable specifications →  43 Connecting cable between the two transmitters Transmitter PROFINET A0016805  8 Connection example for PROFINET Control system (e.g. PLC)
  • Page 38 Proline Promag H 500 FOUNDATION Fieldbus A0028768  9 Connection example for FOUNDATION Fieldbus Control system (e.g. PLC) Power Conditioner (FOUNDATION Fieldbus) Cable shield: the cable shield must be grounded at both ends to comply with EMC requirements; observe cable...
  • Page 39 Proline Promag H 500 Current output 4-20 mA 4...20 mA A0028758  11 Connection example for 4-20 mA current output (active) Automation system with current input (e.g. PLC) Analog display unit: observe maximum load Transmitter 4...20 mA A0028759  12 Connection example for 4-20 mA current output (passive) Automation system with current input (e.g.
  • Page 40 Proline Promag H 500 Switch output A0028760  14 Connection example for switch output (passive) Automation system with switch input (e.g. PLC) Power supply Transmitter: Observe input values →  15 Double pulse output A0029280  15 Connection example for double pulse output (active) Automation system with double pulse input (e.g.

  • Page 41: Potential Equalization

    Proline Promag H 500 Relay output A0028760  17 Connection example for relay output (passive) Automation system with relay input (e.g. PLC) Power supply Transmitter: Observe input values →  17 Current input A0028915  18 Connection example for 4 to 20 mA current input...
  • Page 42 • Grounding rings can be ordered separately as an accessory from Endress+Hauser . When ordering make sure that the grounding rings are compatible with the material used for the electrodes, as otherwise there is the danger that the electrodes could be destroyed by electrochemical corrosion! •...

  • Page 43: Terminals

    Proline Promag H 500 Potential equalization via grounding electrodes on process connection A0028972 Hexagonal-headed bolts of process connection Integrated grounding electrodes O-ring seal Sensor terminals Spring-loaded terminals: Suitable for strands and strands with ferrules. Conductor cross-section 0.2 to 2.5 mm (24 to 12 AWG).
  • Page 44 Proline Promag H 500 PROFIBUS DP The IEC 61158 standard specifies two types of cable (A and B) for the bus line which can be used for every transmission rate. Cable type A is recommended. Cable type Characteristic impedance 135 to 165 Ω at a measuring frequency of 3 to 20 MHz Cable capacitance <...
  • Page 45 Proline Promag H 500 Current output 0/4 to 20 mA Standard installation cable is sufficient. Pulse/frequency/switch output Standard installation cable is sufficient. Double pulse output Standard installation cable is sufficient. Relay output Standard installation cable is sufficient. Current input 0/4 to 20 mA Standard installation cable is sufficient.
  • Page 46 Proline Promag H 500 Design 4 cores (2 pairs); uninsulated stranded CU wires; pair-stranded with common shield Shielding Tin-plated copper-braid, optical cover ≥ 85 % Cable length Maximum 300 m (1 000 ft), see the following table. Cable lengths for use in Non-hazardous area, Hazardous area: Zone 1;...

  • Page 47: Performance Characteristics

    Proline Promag H 500 Cable length (max.) Depends on the medium conductivity, max. 200 m (656 ft) Cable lengths (available 5 m (15 ft), 10 m (32 ft), 20 m (65 ft) or variable length up to max. for order)

  • Page 48: Repeatability

    Proline Promag H 500 0.5 % 0.2 % 10 [m/s] 32 [ft/s] A0028974  21 Maximum measured error in % o.r. Temperature ±3 °C (±5.4 °F) Electrical conductivity Max. measured error not specified. Accuracy of outputs The outputs have the following base accuracy specifications.

  • Page 49: Installation

    Proline Promag H 500 Installation No special measures such as supports etc. are necessary. External forces are absorbed by the construction of the device. Mounting location A0029343 Preferably install the sensor in an ascending pipe, and ensure a sufficient distance to the next pipe elbow: h ≥...

  • Page 50: Inlet And Outlet Runs

    Proline Promag H 500 Orientation Recommendation Vertical orientation A0015591 Horizontal orientation, transmitter at A0015589 2) 3) Horizontal orientation, transmitter at bottom A0015590 Horizontal orientation, transmitter at side A0015592 Applications with low process temperatures may decrease the ambient temperature. To maintain the minimum ambient temperature for the transmitter, this orientation is recommended.

  • Page 51: Adapters

    Proline Promag H 500 Adapters Suitable adapters to DIN EN 545 (double-flange reducers) can be used to install the sensor in larger- diameter pipes. The resultant increase in the rate of flow improves measuring accuracy with very slow-moving fluids. The nomogram shown here can be used to calculate the pressure loss caused by reducers and expanders: •...
  • Page 52 Proline Promag H 500 [ S/cm] µ L max L max A0029158  23 Permitted length of connecting cable = permitted range Colored area = length of connecting cable in [m] ([ft]) = fluid conductivity [µS/cm] Endress+Hauser...

  • Page 53: Mounting The Transmitter Housing

    Proline Promag H 500 Mounting the transmitter Proline 500 – digital transmitter housing Post mounting ø 20…70 TX 25 ø ( 0.79…2.75) SW 10 A0029051  24 Engineering unit mm (in) Wall mounting 17 (0.67) 5.8 (0.23) 5.8 (0.23) 149 (5.85) A0029054 ...

  • Page 54: Environment

    Proline Promag H 500 Proline 500 transmitter Post mounting 20 70 … ( 0.79 to 2.75) SW 13 A0029057  26 Engineering unit mm (in) Wall mounting 18 (0.71) 10 (0.39) 20 (0.79) 100 (3.94) A0029068  27 Engineering unit mm (in)

  • Page 55: Storage Temperature

    Proline Promag H 500 Sensor –20 to +60 °C (–4 to +140 °F) Mount the transmitter separately from the sensor if both the ambient and fluid temperatures are high. Liner Do not exceed or fall below the permitted temperature range of the liner .

  • Page 56: Process

    Proline Promag H 500 Process Medium temperature range –20 to +150 °C (–4 to +302 °F) [°F] [°C] 40 60 80 100 120 140 160 [°C] [°F] A0027806  28 Promag 500 – digital Ambient temperature range Fluid temperature [°F] [°C]...
  • Page 57 Proline Promag H 500 Process connections with O-ring seal, DN 2 to 25 (1/12 to 1") Process connection: weld-in nipple according to DIN EN ISO 1127, ODT/SMS, ISO 2037; coupling according to ISO 228 / DIN 2999, NPT [psi] [bar] PN 40 -40 -20 0 20 40 60 80 100120140160180 [°C]...
  • Page 58 Proline Promag H 500 [psi] [bar] PN 16 -60 -40 -20 0 20 40 60 80 100120140160180 [°C] 360 [°F] A0028934-EN  33 Process connection material: PVC-U Process connection: flange according to ASME B16.5 [psi] [bar] Cl 150 -40 -20 0 20 40 60 80 100120140160180 [°C] 360 [°F]...
  • Page 59 Proline Promag H 500 Process connection: flange according to JIS B2220 [psi] [bar] -40 -20 0 20 40 60 80 100120140160180 [°C] 360 [°F] A0028938-EN  36 Process connection material: stainless steel, 1.4404 (F316L) [psi] [bar] -40 -20 0 20 40 60 80 100120140160180 [°C] 360 [°F]...
  • Page 60 Proline Promag H 500 Process connections with aseptic gasket seal, DN 40 to 150 (1 ½ to 6") Process connection: coupling according to SMS 1145 [psi] [bar] PN 16 -60 -40 -20 0 20 40 60 80 100120140160180 [°C] 360 [°F] A0028940-EN ...
  • Page 61 Proline Promag H 500 Process connection: weld-in nipple according to ASME BPE [psi] [bar] PN 40 DN 40 1 ½") PN 25 DN 50...100 2...4") PN 1 DN 150 6") -40 -20 0 20 40 60 80 100 180 [°C] 360 [°F]...

  • Page 62: Pressure Tightness

    Proline Promag H 500 Process connection: coupling according to DIN 11864-1, ISO 2853 [psi] [bar] PN 40 DN 40 1 ½" PN 2 DN 50...100 2...4" -40 -20 0 20 40 60 80 100 180 [°C] 360 [°F] A0028944-EN  43 Process connection material: stainless steel, 1.4404 (F316L)

  • Page 63: System Pressure

    Proline Promag H 500 [psi] [mbar] DN50 DN65 (2") (2½") DN80 (3") [m /h] ³ 20 30 40 50 60 70 80 90 100 110 120 [gal/min] A0032667-EN  45 Pressure loss DN 50 to 80 (2 to 3") in the case of order code for "Design", option C "Insertion length short ISO/DVGW to DN300, without inlet/outlet runs, constricted meas.tube"...

  • Page 64: Vibrations

    Proline Promag H 500 Never install the sensor on the pump suction side in order to avoid the risk of low pressure, and thus damage to the liner. Furthermore, install pulse dampers if reciprocating, diaphragm or peristaltic pumps are used.
  • Page 65 Proline Promag H 500 Order code for "Transmitter housing", option D "Polycarbonate" and order code for "Integrated ISEM electronics", option A "Sensor" [mm] [mm] [mm] [mm] [mm] [mm] Housing of Proline 500 transmitter Hazardous area: Zone 2; Class I, Division 2 or Zone 1; Class I, Division 1 A0033788 Order code for "Transmitter housing", option A "Aluminum, coated"...
  • Page 66 Proline Promag H 500 [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] 9.00 16.0 26.0 34.8 47.5 60.2 72.9 97.4 120.0 146.9 Total length depends on the process connections.→  68 Order code for "Sensor connection housing", option B "Stainless, hygienic"...
  • Page 67 Proline Promag H 500 [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] 97.4 120.0 146.9 Total length depends on the process connections.→  68 Sensor flange connection E – E – A0017657  48 Front view without process connections...
  • Page 68 Proline Promag H 500 90° ±0.5° 60° ±0.5° [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] Tapped holes 99.7 85.8 71.0 48.3 34.8 – 112.7 98.8 83.5 60.3 47.5 – 127.7 114.8 100.0 76.1 60.2 – 140.7 133.5 114.0 88.9...
  • Page 69 Proline Promag H 500 Flange DIN 11864-2, aseptic flange with notch, Form A 1.4404 (316L) Order code for "Process connection", option DES Suitable for pipe EN 10357 (DIN 11850) [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] 104 × 2 8 ×...
  • Page 70 Proline Promag H 500 Flange according to JIS B2220: 20K 1.4404 (316L) Order code for "Process connection", option N4S [mm] [mm] [mm] [mm] [mm] [mm] [mm] 2 to 8 4 × ⌀15 4 × ⌀15 4 × ⌀19 Surface roughness: R ≤...
  • Page 71 Proline Promag H 500 Lap joint flange according to ASME B16.5: Class 150 PVDF Order code for "Process connection", option A1P [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] 2 to 8 60.3 4 × ⌀ 15.7 35.1 15.7 60.3 4 ×...
  • Page 72 Proline Promag H 500 Welding nipple Welding nipple with aseptic gasket seal A0027510 Welding nipple according to EN 10357 (DIN 11850) 1.4404 (316L) Order code for "Process connection", option DAS Suitable for pipe EN 10357 (DIN 11850) [mm] [mm] [mm]...
  • Page 73 Proline Promag H 500 Welding nipple according to ASME BPE 1.4404 (316L) Order code for "Process connection", option AAS Suitable for pipe ASME BPE [mm] [mm] [mm] [mm] [mm] 2 to 8 12.7 × 1.65 12.7 118.2 19.1 × 1.65 19.1...
  • Page 74 Proline Promag H 500 Welding nipple according to ISO 2037 1.4404 (316L) Order code for "Process connection", option I1S Suitable for pipe ISO 2037 [mm] [mm] [mm] [mm] [mm] 2 to 8 13.5 × 2.3 13.5 126.6 21.3 × 2.65 21.3...
  • Page 75 Proline Promag H 500 Tri-Clamp 1.4404 (316L) Order code for "Process connection", option FAS Suitable for pipe as per ASME BPE [mm] [mm] [mm] [mm] [mm] 25.4 × 1.65 50.4 22.1 38.1 × 1.65 50.4 34.8 50.8 × 1.65 63.9 47.5...
  • Page 76 Proline Promag H 500 Coupling SC DIN 11851, thread 1.4404 (316L) Order code for "Process connection", option DCS Suitable for pipe EN 10357 (DIN 11850) [mm] [mm] [mm/in] [mm] [mm] 2 to 8 12 × 1 (DN 10) Rd 28 × ¹⁄₈...
  • Page 77 Proline Promag H 500 Coupling SMS 1145, thread 1.4404 (316L) Order code for "Process connection", option SAS Suitable for pipe ODT [mm] [mm] SMS 1145 [mm/in] [mm] [mm] [mm] Rd40 × ¹⁄₆ 22.6 147.6 38.1 × 1.65 Rd 60 × ¹⁄₆...
  • Page 78 Proline Promag H 500 Hose adapter Hose adapter with O-ring seal A0027511 Hose adapter 1.4404 (316L) Order code for "Process connection", options O1S, O2S, O3S Suitable for internal diameter [mm] [mm] [mm] [mm] 2 to 8 12.6 Surface roughness: R ≤...
  • Page 79 Proline Promag H 500 Mounting kits Wall mounting kit A0005537 Ø D [mm] [mm] [mm] [mm] [mm] [mm] Accessories Protective cover 213 (8.4) 203 (8.0) A0029552  51 Weather protection cover for Proline 500 – digital Endress+Hauser...
  • Page 80 Proline Promag H 500 280 (11.0) 255 (10.0) 146 (5.75) 134 (5.3) 12 (0.47) 30 (1.18) A0029553  52 Weather protection cover for Proline 500 External WLAN antenna The external WLAN antenna is not suitable for use in hygienic applications.
  • Page 81 Proline Promag H 500 A0033606  54 Engineering unit mm (in) Proline 500 External WLAN antenna mounted on device 105 (4.1) 68 (2.7) 173 (6.8) A0028923  55 Engineering unit mm (in) External WLAN antenna mounted with cable The external WLAN antenna can be mounted separately from the transmitter if the transmission/ reception conditions at the transmitter mounting location are poor.
  • Page 82 Proline Promag H 500 Spacer A0017294 Order code: DK5HB-**** [mm] [mm] [mm] [mm] [mm] 72.9 140.7 97.4 166.7 Clamp connections with aseptic gasket seal available for order A0015625 Tri-Clamp 1.4404 (316L) Order code: DKH**-HF** Suitable for pipe in accordance with ASME BPE (reduction)

  • Page 83: Dimensions In Us Units

    Proline Promag H 500 External thread 1.4404 (316L) Order code: DKH**-GD** Suitable for NPT internal thread [mm] [in] [mm/in] [mm] [mm] 2 to 8 NPT 3/8 R 15.5 × 3/8 NPT ½ R 20 × ½ NPT 1 R 25 × 1 Surface roughness: R ≤...
  • Page 84 Proline Promag H 500 A0033789 Order code for "Transmitter housing", option A "Aluminum, coated" and order code for "Integrated ISEM electronics", option A "Sensor" [in] [in] [in] [in] [in] [in] 6.57 9.13 3.15 7.36 0.94 0.83 Order code for "Transmitter housing", option D "Polycarbonate" and order code for "Integrated ISEM electronics", option A "Sensor"...
  • Page 85 Proline Promag H 500 Sensor connection housing A0035761 Order code for "Sensor connection housing", option A "Aluminum, coated" [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] ¹⁄₁₂ 5.83 3.70 2.13 2.17 7.01 9.17 5.35 0.09 3.39 1.69 ¹⁄₈...
  • Page 86 Proline Promag H 500 Order code for "Sensor connection housing", option C "Ultra-compact hygienic, stainless" [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] ¹⁄₁₂ 4.88 2.68 2.20 2.17 6.81 8.98 4.41 0.09 3.39 1.69 ¹⁄₈ 4.88 2.68 2.20...
  • Page 87 Proline Promag H 500 Z–Z A0005528  58 Front view without process connections 90° ±0.5° 60° ±0.5° [in] [in] [in] [in] [in] [in] [mm] [in] [in] Tapped holes 1 ½ 3.93 3.38 2.80 1.90 1.37 0.47 0.67 – 4.44 3.89 3.29...
  • Page 88 Proline Promag H 500 Flange according to ASME B16.5: Class 150 1.4404 (316L) Order code for "Process connection", option A1S [in] [in] [in] [in] [in] [in] [in] 4.25 3.12 4 × ⌀ 0.62 0.56 1.05 9.05 Surface roughness: R ≤ 63 µin DN ¹⁄₁₂...
  • Page 89 Proline Promag H 500 Welding nipple Welding nipple with aseptic gasket seal A0027510 Welding nipple according to ISO 2037 1.4404 (316L) Order code for "Process connection", option IAS Suitable for pipe ISO 2037 [in] [in] [in] [in] [in] ¹⁄₁₂ to ³⁄₈...
  • Page 90 Proline Promag H 500 Welding nipple with O-ring seal A0027510 Welding nipple according to ODT/SMS 1.4404 (316L) Order code for "Process connection", option A2S Suitable for pipe ODT/SMS [in] [in] [in] [in] [in] ¹⁄₁₂ to ³⁄₈ 0.53 × 0.09 0.53 0.35...
  • Page 91 Proline Promag H 500 Clamp according to ISO 2852, Fig. 2 1.4404 (316L) Order code for "Process connection", option IBS Suitable for pipe ISO 2037 [in] [in] Clamp ISO 2852 [in] [in] [in] [in] 0.96 × 0.06 2.00 0.89 6.87 1 ½...
  • Page 92 Proline Promag H 500 Coupling ISO 2853, thread 1.4404 (316L) Order code for "Process connection", option ICS Suitable for pipe EN 10357 (DIN 11850) [in] [in] Clamp ISO 2853 [in] [in] [in] [in] 1 ½ 1.50 × 0.06 1.50 Tr 2.00 × 0.13 1.40...
  • Page 93 Proline Promag H 500 Internal thread according to ISO 228/DIN 2999 1.4404 (316L) Order code for "Process connection", option I3S Suitable for external thread ISO 228/DIN 2999 [in] [in] [in] [in] [in] ¹⁄₁₂ to ³⁄₈ Rp ³⁄₈ Rp 0.51 × ³⁄₈...
  • Page 94 Proline Promag H 500 Mounting kits Wall mounting kit A0005537 Ø D [in] [in] [in] [in] [in] [in] 5.39 4.33 4.72 0.28 4.92 3.46 Accessories Protective cover 213 (8.4) 203 (8.0) A0029552  59 Weather protection cover for Proline 500 – digital...
  • Page 95 Proline Promag H 500 280 (11.0) 255 (10.0) 146 (5.75) 134 (5.3) 12 (0.47) 30 (1.18) A0029553  60 Weather protection cover for Proline 500 External WLAN antenna The external WLAN antenna is not suitable for use in hygienic applications.
  • Page 96 Proline Promag H 500 A0033606  62 Engineering unit mm (in) Proline 500 External WLAN antenna mounted on device 105 (4.1) 68 (2.7) 173 (6.8) A0028923  63 Engineering unit mm (in) External WLAN antenna mounted with cable The external WLAN antenna can be mounted separately from the transmitter if the transmission/ reception conditions at the transmitter mounting location are poor.
  • Page 97 Proline Promag H 500 Spacer A0017294 Order code: DK5HB-**** [in] [in] [in] [in] [in] 2.87 5.54 5.55 1.30 3.83 6.56 6.38 1.30 Clamp connections with aseptic gasket seal available for order A0015625  65 Hygienic clamp adapter connection suitable for pipes with connection according to ASME BPE (reduction) Tri-Clamp 1.4404 (316L)

  • Page 98: Weight

    Proline Promag H 500 External thread 1.4404 (316L) Order code: DKH**-GD** Suitable for NPT internal thread [in] [in] [in] [in] [in] ¹⁄₁₂ to ³⁄₈ NPT 3/8 R 0.61 × 3/8 0.39 7.39 ½ NPT ½ R 0.79 × ½ 0.63 7.39...

  • Page 99: Measuring Tube Specification

    Proline Promag H 500 Nominal diameter Weight [mm] [in] [kg] [lbs] 1/12 2.00 4.41 5/32 2.00 4.41 5/16 2.00 4.41 ½ 1.90 4.19 2.80 6.17 1 ½ 4.10 9.04 4.60 10.1 – 5.40 11.9 6.00 13.2 7.30 16.1 12.7 28.0 15.1...
  • Page 100 Proline Promag H 500 Cable entries/cable glands A0028352  66 Possible cable entries/cable glands Female thread M20 × 1.5 Cable gland M20 × 1.5 Adapter for cable entry with internal thread G ½" or NPT ½" Device plugs Cable entries and adapters Material Cable gland M20 ×...

  • Page 101: Fitted Electrodes

    Proline Promag H 500 Connecting cable for sensor - Proline 500 transmitter • Standard cable: PVC cable with copper shield • Reinforced cable: PVC cable with copper shield and additional steel wire braided jacket UV rays can impair the cable outer sheath. Protect the cable from exposure to sun as much as possible.

  • Page 102: Process Connections

    Proline Promag H 500 Process connections With O-ring seal: • Welding nipple (DIN EN ISO 1127, ODT/SMS, ISO 2037) • Flange (EN (DIN), ASME, JIS) • Flange from PVDF (EN (DIN), ASME, JIS) • External thread • Internal thread • Hose connection •...

  • Page 103: Local Operation

    Proline Promag H 500 Local operation Via display module Two display modules are available: • Order code for "Display; operation", option F "4-line, illuminated, graphic display; touch control" • Order code for "Display; operation", option G "4-line, illuminated, graphic display; touch control + WLAN"...
  • Page 104 Proline Promag H 500 A0028747  68 Options for remote operation via HART protocol (active) Control system (e.g. PLC) Field Communicator 475 Computer with Web browser (e.g. Internet Explorer) for access to the integrated device Web server or computer with an operating tool (e.g. FieldCare, DeviceCare, AMS Device Manager, SIMATIC PDM) with COM DTM "CDI Communication TCP/IP"...
  • Page 105 Proline Promag H 500 A0028837  70 Options for remote operation via FOUNDATION Fieldbus network Automation system Computer with FOUNDATION Fieldbus network card Industry network High Speed Ethernet FF-HSE network Segment coupler FF-HSE/FF-H1 FOUNDATION Fieldbus FF-H1 network Power supply FF-H1 network...
  • Page 106 Proline Promag H 500 A0028838  72 Options for remote operation via PROFIBUS PA network Automation system Computer with PROFIBUS network card PROFIBUS DP network Segment coupler PROFIBUS DP/PA PROFIBUS PA network T-box Measuring device Via Modbus RS485 protocol This communication interface is available in device versions with a Modbus-RS485 output.
  • Page 107 Proline Promag H 500 Star topology A0032078  74 Options for remote operation via EtherNet/IP network: star topology Automation system, e.g. "RSLogix" (Rockwell Automation) Workstation for measuring device operation: with Custom Add-On Profile for "RSLogix 5000" (Rockwell Automation) or with Electronic Data Sheet (EDS) Computer with Web browser (e.g.
  • Page 108 Proline Promag H 500 Star topology A0026545  76 Options for remote operation via PROFINET network: star topology Automation system, e.g. Simatic S7 (Siemens) Computer with Web browser (e.g. Internet Explorer) for accessing the integrated device Web server or computer with operating tool (e.g. FieldCare, DeviceCare, SIMATIC PDM) with COM DTM "CDI Communication TCP/IP"...

  • Page 109: Service Interface

    Proline Promag H 500 Service interface Via service interface (CDI-RJ45) A point-to-point connection can be established to configure the device onsite. With the housing open, the connection is established directly via the service interface (CDI-RJ45) of the device. An adapter for RJ45 and the M12 connector is optionally available: Order code for "Accessories", option NB: "Adapter RJ45 M12 (service interface)"...

  • Page 110: Network Integration

    Proline Promag H 500 A0034569 Transmitter with integrated WLAN antenna Transmitter with external WLAN antenna LED lit constantly: WLAN reception is enabled on measuring device LED flashing: WLAN connection established between operating unit and measuring device Computer with WLAN interface and Web browser (e.g. Microsoft Internet Explorer, Microsoft Edge) for accessing the integrated device Web server or with operating tool (e.g.

  • Page 111: Supported Operating Tools

    Proline Promag H 500 accessed any time from the control station. The measured values are processed separately via the inputs and outputs through the automation system. A0033618 Automation system, e.g. Simatic S7 (Siemens) Ethernet switch Edge Gateway Cloud Measuring device...

  • Page 112: Historom Data Management

    Proline Promag H 500 Supported operating Operating unit Interface Additional information tools FieldCare SFE500 Notebook, PC or tablet • CDI-RJ45 service →  123 with Microsoft Windows interface system • WLAN interface • Fieldbus protocol Device Xpert Field Xpert SFX...
  • Page 113 Proline Promag H 500 Additional information on the data storage concept There are different types of data storage units in which device data are stored and used by the device: Device memory T-DAT S-DAT Available data • Event logbook such as diagnostic events for example •...

  • Page 114: Certificates And Approvals

    The device meets the legal requirements of the applicable EU Directives. These are listed in the corresponding EU Declaration of Conformity along with the standards applied. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. C-Tick symbol The measuring system meets the EMC requirements of the "Australian Communications and Media...
  • Page 115 Proline Promag H 500 IS (Ex nA, Ex i) Transmitter Sensor Class I Division 2 Groups A - D Class I, II, III Division 1 Groups A-G NI (Ex nA) Transmitter Sensor Class I Division 2 Groups A - D...
  • Page 116 Proline Promag H 500 cCSAus Currently, the following versions for use in hazardous areas are available: IS (Ex i), XP (Ex d) Transmitter Sensor Class I, III, III Division 1 Groups A-G NI (Ex nA) Transmitter Sensor Class I Division 2 Groups A - D...

  • Page 117: Sanitary Compatibility

    Proline Promag H 500 Ex d Transmitter Sensor Class I, Zone 1 AEx/ Ex d ia IIC T6…T4 Gb Class I, Zone 1 AEx/Ex e ia IIC T6…T1 Gb Ex nA Transmitter Sensor Class I, Zone 2 AEx/ Ex nA IIC T5...T4 Gc Class I, Zone 2 AEx/Ex nA ic IIC T5...T1 Gc...

  • Page 118: Certification Profibus

    Directive equal to DN 25 (1"), this is neither possible nor necessary. • With the identification PED/G1/x (x = category) on the sensor nameplate, Endress+Hauser confirms conformity with the "Essential Safety Requirements" specified in Appendix I of the Pressure Equipment Directive 2014/68/EU.

  • Page 119: Ordering Information

    The application packages can be ordered with the device or subsequently from Endress+Hauser. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com.

  • Page 120: Heartbeat Technology

    →  125. Accessories Various accessories, which can be ordered with the device or subsequently from Endress+Hauser, are available for the device. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com.

  • Page 121: Device-Specific Accessories

    Proline Promag H 500 Device-specific accessories For the transmitter Accessories Description Transmitter Transmitter for replacement or storage. Use the order code to define the following • Proline 500 – digital specifications: • Proline 500 • Approvals • Output • Input •...

  • Page 122: Communication-Specific Accessories

    Proline Promag H 500 Connecting cable The connecting cable can be ordered directly with the measuring device (order code Proline 500 – digital for "Cable, sensor connection) or as an accessory (order number DK5012). Sensor – The following cable lengths are available: order code for "Cable, sensor connection"...

  • Page 123: Service-Specific Accessories

    Accessories Description Applicator Software for selecting and sizing Endress+Hauser measuring devices: • Choice of measuring devices for industrial requirements • Calculation of all the necessary data for identifying the optimum flowmeter: e.g. nominal diameter, pressure loss, flow velocity and accuracy.

  • Page 124: System Components

    For an overview of the scope of the associated Technical Documentation, refer to the following: • W@M Device Viewer (www.endress.com/deviceviewer): Enter the serial number from nameplate • Endress+Hauser Operations App: Enter the serial number from the nameplate or scan the 2D matrix code (QR code) on the nameplate Standard documentation...

  • Page 125: Registered Trademarks

    Proline Promag H 500 Contents Documentation code cCSAus Ex e ia/Ex d ia XA01525D cCSAus Ex nA XA01526D INMETRO Ex i XA01527D INMETRO Ex ec XA01528D NEPSI Ex i XA01529D NEPSI Ex nA XA01530D Special Documentation Contents Documentation code Information on the Pressure Equipment Directive...
  • Page 126 www.addresses.endress.com...

Table of Contents
