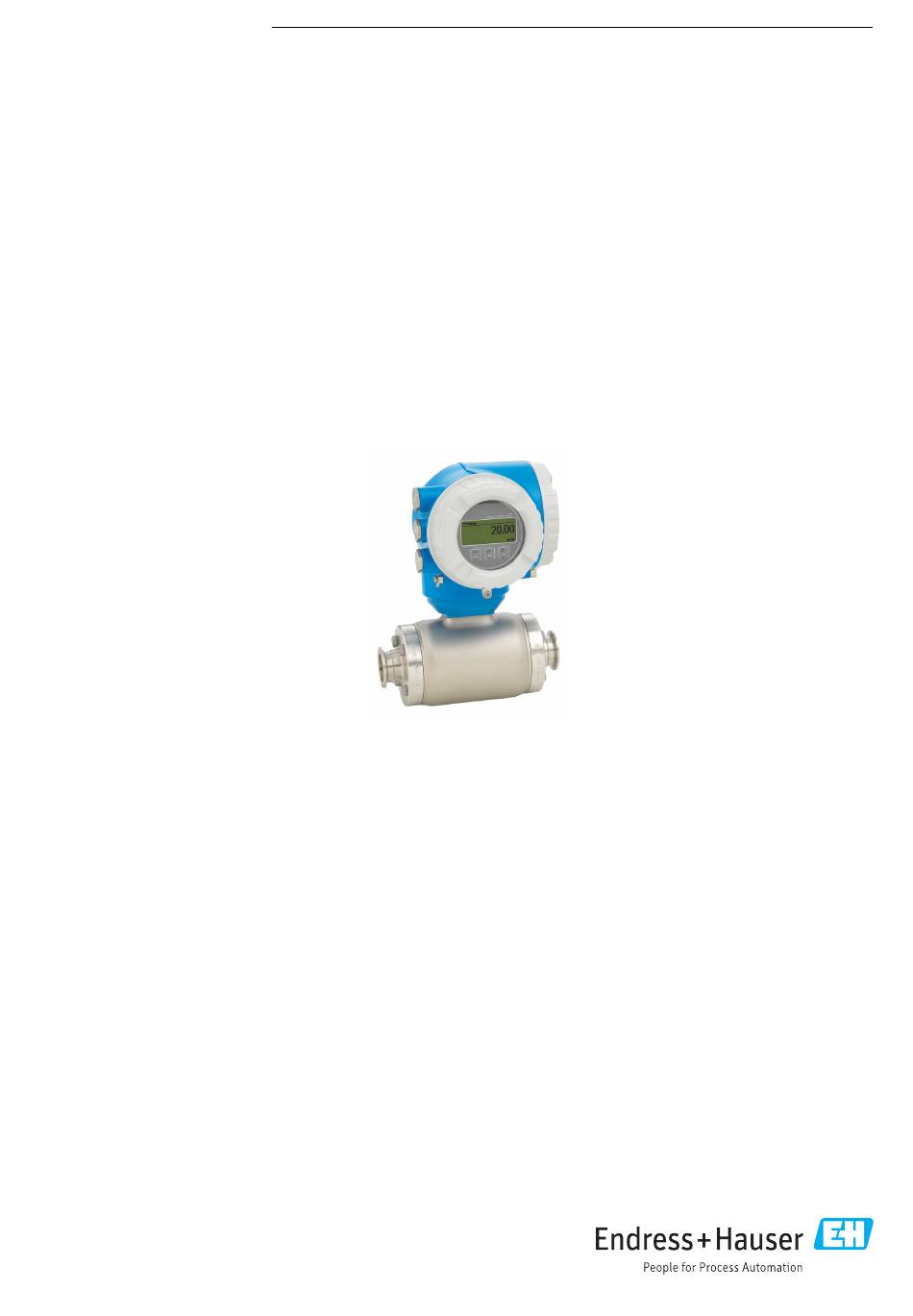

Endress+Hauser Proline Promag H 300 Technical Information

Electromagnetic flowmeter
Hide thumbs Also See for Proline Promag H 300:

Advertisement

Quick Links

Download this manual
TI01223D/06/EN/01.16
71303575
The flowmeter for smallest flow rates with a compact, easily accessible
transmitter
Application
• The measuring principle is virtually independent of pressure,
density, temperature and viscosity
• For the smallest flow quantities and demanding hygienic
applications
Device properties
• Liner made of PFA
• Sensor housing made of stainless steel (3-A, EHEDG)
• Wetted materials CIP/SIP cleanable
• Compact dual‐compartment housing with up to 3 I/Os
• Backlit display with touch control and WLAN access
• Remote display available
Products
Technical Information
Proline Promag H 300
Electromagnetic flowmeter
Solutions
Your benefits
• Flexible installation concept – numerous hygienic process
connections
• Energy-saving flow measurement – no pressure loss due to
cross-section constriction
• Maintenance-free – no moving parts
• Full access to process and diagnostic information –
numerous, freely combinable I/Os and fieldbuses
• Reduced complexity and variety – freely configurable I/O
functionality
• Integrated verification – Heartbeat Technology
Services

Advertisement

loading

Related Manuals for Endress+Hauser Proline Promag H 300

Summary of Contents for Endress+Hauser Proline Promag H 300

  • Page 1 Products Solutions Services TI01223D/06/EN/01.16 71303575 Technical Information Proline Promag H 300 Electromagnetic flowmeter The flowmeter for smallest flow rates with a compact, easily accessible transmitter Application Your benefits • The measuring principle is virtually independent of pressure, • Flexible installation concept – numerous hygienic process...
  • Page 2 Proline Promag H 300 Table of contents Document information ..... . . 4 Shock resistance ......41 Impact resistance .
  • Page 3 Proline Promag H 300 Communication-specific accessories ....92 Service-specific accessories ..... . 93 System components .
  • Page 4 Proline Promag H 300 Document information Symbols used Electrical symbols Symbol Meaning Direct current Alternating current Direct current and alternating current Ground connection A grounded terminal which, as far as the operator is concerned, is grounded via a grounding system.
  • Page 5 Proline Promag H 300 Symbols in graphics Symbol Meaning 1, 2, 3,... Item numbers … Series of steps A, B, C, ... Views A-A, B-B, C-C, ... Sections Hazardous area Safe area (non-hazardous area) Flow direction Function and system design...
  • Page 6 Proline Promag H 300 Measuring system The device consists of a transmitter and a sensor. The device is available as a compact version: The transmitter and sensor form a mechanical unit. Transmitter Promag 300 Device versions and materials: • Transmitter housing Aluminum, coated: aluminum, AlSi10Mg, coated •...
  • Page 7 Proline Promag H 300 Equipment architecture A0027512  1 Possibilities for integrating measuring devices into a system Control system (e.g. PLC) Connecting cable (0/4 to 20 mA HART etc.) Fieldbus Segment coupler Non-hazardous area Non-hazardous area and Zone 2/Div. 2 Hazardous area and Zone 1/Div.
  • Page 8 Proline Promag H 300 When the device is delivered, the device does not have an access code and is equivalent to 0000 (open). WLAN passphrase A connection between an operating unit (e.g. notebook or tablet) and the device via the WLAN interface which can be ordered as an option is protected by the network key.
  • Page 9 Proline Promag H 300 Flow characteristic values in SI units Nominal Recommended Factory settings diameter flow Current output full scale min./max. full scale value Pulse value Low flow cut off value (v ~ 0.3/10 m/s) (~ 2 pulse/s) (v ~ 0.04 m/s) (v ~ 2.5 m/s)
  • Page 10 Proline Promag H 300 Operable flow range Over 1000 : 1 Input signal Input and output versions →  11 External measured values To increase the accuracy of certain measured variables or to calculate the corrected volume flow, the automation system can continuously write different measured values to the measuring device: •...
  • Page 11 Proline Promag H 300 Output Output and input variants Depending on the option selected for output/input 1, different options are available for the other outputs and inputs. Only one option can be selected for each output/input 1 to 3. The table must be read vertically (↓).
  • Page 12 Proline Promag H 300 Output signal HART current output Current output 4 to 20 mA HART Current span Can be set to: 4 to 20 mA (active/passive) Open-circuit voltage DC 28.8 V (active) Maximum input voltage DC 30 V (passive) Load 250 to 700 Ω...
  • Page 13 Proline Promag H 300 Load 0 to 700 Ω Resolution 0.38 µA Damping Adjustable: 0.07 to 999 s Assignable measured • Volume flow variables • Mass flow • Corrected volume flow • Flow velocity • Conductivity • Corrected conductivity • Temperature •...
  • Page 14 Proline Promag H 300 Switching delay Adjustable: 0 to 100 s Number of switching Unlimited cycles Assignable functions • Off • On • Diagnostic behavior • Limit value: – Off – Volume flow – Mass flow – Corrected volume flow –...
  • Page 15 Proline Promag H 300 Maximum switching • DC 30 V, 0.1 A capacity (passive) • AC 30 V, 0.5 A Assignable functions • Off • On • Diagnostic behavior • Limit value: – Off – Volume flow – Mass flow –...
  • Page 16 Proline Promag H 300 Current output 0/4 to 20 mA 4 to 20 mA Failure mode Choose from: • 4 to 20 mA in accordance with NAMUR recommendation NE 43 • 4 to 20 mA in accordance with US • Min. value: 3.59 mA •...
  • Page 17 Proline Promag H 300 Plain text display With information on cause and remedial measures Additional information on remote operation →  82 Web server Plain text display With information on cause and remedial measures Light emitting diodes (LED) Status information...
  • Page 18 Proline Promag H 300 Intrinsically safe values Order code for Output type Intrinsically safe values "Output; input 1" "Output; input 1" 26 (+) 27 (–) Option CA Current output 4 to 20 = 30 V mA HART Ex i = 100 mA = 1.25 W...
  • Page 19 Proline Promag H 300 Dynamic variables Read out the dynamic variables: HART command 3 The measured variables can be freely assigned to the dynamic variables. Measured variables for PV (primary dynamic variable) • Off • Volume flow • Mass flow •...
  • Page 20 Proline Promag H 300 Output values Heartbeat Technology Application Package (from measuring device to Additional measured variables are available with the Heartbeat Technology automation system) application package: Analog input 1 to 4 • Volume flow • Mass flow • Corrected volume flow •...
  • Page 21 Proline Promag H 300 FOUNDATION Fieldbus Manufacturer ID 0x452B48 Ident number 0x103C Device revision DD revision Information and files under: • www.endress.com CFF revision • www.fieldbus.org Interoperability Test Kit (ITK) Version 6.1.2 ITK Test Campaign Number Information: • www.endress.com •...
  • Page 22 Proline Promag H 300 Block Contents Output values Diagnostic Transducer Diagnostics information. Process variables (AI Channel) Block • Temperature (7) (TRDDIAG) • Volume flow (9) • Mass flow (11) • Corrected volume flow (13) • Flow velocity (37) • Electronic temperature (39) •...
  • Page 23 Proline Promag H 300 Function blocks Block Number Execution times Process variables (Channel) blocks Resource Block This Block (extended functionality) contains – (RB) all the data that uniquely identify the device; it is the equivalent of an electronic nameplate for the device.
  • Page 24 Proline Promag H 300 Function codes • 03: Read holding register • 04: Read input register • 06: Write single registers • 08: Diagnostics • 16: Write multiple registers • 23: Read/write multiple registers Broadcast messages Supported by the following function codes: •...
  • Page 25 Proline Promag H 300 Modbus RS485 Supply voltage Input/output 1 Input/output 2 Input/output 3 1 (+) 2 (–) 26 (B) 27 (A) 24 (+) 25 (–) 22 (+) 23 (–) The terminal assignment depends on the specific device version ordered →  11.
  • Page 26 Proline Promag H 300 Power consumption Transmitter Max. 10 W (active power) Current consumption Transmitter • Max. 400 mA (24 V) • Max. 200 mA (110 V, 50/60 Hz; 230 V, 50/60 Hz) Power supply failure • Totalizers stop at the last value measured.
  • Page 27 Proline Promag H 300 Connection examples Current output 4 to 20 mA HART 4...20 mA A0029055  2 Connection example for 4 to 20 mA HART current output (active) Automation system with current input (e.g. PLC) Cable shield: the cable shield must be grounded at both ends to comply with EMC requirements; observe cable specifications →...
  • Page 28 Proline Promag H 300 HART input 4...20 mA A0028763  4 Connection example for HART input with a common negative (passive) Automation system with HART output (e.g. PLC) Active barrier for power supply (e.g. RN221N) Cable shield: the cable shield must be grounded at both ends to comply with EMC requirements; observe cable...
  • Page 29 Proline Promag H 300 FOUNDATION Fieldbus A0028768  6 Connection example for FOUNDATION Fieldbus Control system (e.g. PLC) Power Conditioner (FOUNDATION Fieldbus) Cable shield: the cable shield must be grounded at both ends to comply with EMC requirements; observe cable...
  • Page 30 Proline Promag H 300 Current output 4-20 mA 4...20 mA A0028758  8 Connection example for 4-20 mA current output (active) Automation system with current input (e.g. PLC) Analog display unit: observe maximum load Transmitter 4...20 mA A0028759  9 Connection example for 4-20 mA current output (passive) Automation system with current input (e.g.
  • Page 31 Proline Promag H 300 Switch output A0028760  11 Connection example for switch output (passive) Automation system with switch input (e.g. PLC) Power supply Transmitter: Observe input values →  13 Double pulse output A0029280  12 Connection example for double pulse output (active) Automation system with double pulse input (e.g.
  • Page 32 Proline Promag H 300 Relay output A0028760  14 Connection example for relay output (passive) Automation system with relay input (e.g. PLC) Power supply Transmitter: Observe input values →  14 Current input A0028915  15 Connection example for 4 to 20 mA current input...
  • Page 33 • Grounding rings can be ordered separately as an accessory from Endress+Hauser . When ordering make sure that the grounding rings are compatible with the material used for the electrodes, as otherwise there is the danger that the electrodes could be destroyed by electrochemical corrosion! •...
  • Page 34 Proline Promag H 300 Potential equalization via grounding electrodes on process connection A0028972 Hexagonal-headed bolts of process connection Integrated grounding electrodes O-ring seal Sensor Terminals Transmitter Spring terminals for conductor cross-section 0.2 to 2.5 mm (24 to 12 AWG) Cable entries •...
  • Page 35 Proline Promag H 300 FOUNDATION Fieldbus Twisted, shielded two-wire cable. For further information on planning and installing FOUNDATION Fieldbus networks see: • Operating Instructions for "FOUNDATION Fieldbus Overview" (BA00013S) • FOUNDATION Fieldbus Guideline • IEC 61158-2 (MBP) Modbus RS485 The EIA/TIA-485 standard specifies two types of cable (A and B) for the bus line which can be used for every transmission rate.
  • Page 36 Proline Promag H 300 Cable length for use in non-hazardous area, Cross-section Ex Zone 2, Class I, Division 2 Ex Zone 1, Class I, Division 1 0.34 mm (22 AWG) 80 m (270 ft) 0.50 mm (20 AWG) 120 m (400 ft) 0.75 mm...
  • Page 37 Proline Promag H 300 0.5 % 0.2 % 10 [m/s] 32 [ft/s] A0028974  17 Maximum measured error in % o.r. Temperature ±3 °C (±5.4 °F) Electrical conductivity Max. measured error not specified. Accuracy of outputs The outputs have the following base accuracy specifications.
  • Page 38 Proline Promag H 300 Installation No special measures such as supports etc. are necessary. External forces are absorbed by the construction of the device. Mounting location A0029343 Preferably install the sensor in an ascending pipe, and ensure a sufficient distance to the next pipe elbow: h ≥...
  • Page 39 Proline Promag H 300 Orientation The direction of the arrow on the sensor nameplate helps you to install the sensor according to the flow direction (direction of medium flow through the piping). An optimum orientation position helps avoid gas and air accumulations and deposits in the measuring tube.
  • Page 40 Proline Promag H 300 The nomogram shown here can be used to calculate the pressure loss caused by reducers and expanders: • Calculate the ratio of the diameters d/D. • From the nomogram read off the pressure loss as a function of flow velocity (downstream from the reduction) and the d/D ratio.
  • Page 41 • Install the measuring device in a shady location. • Avoid direct sunlight, particularly in warm climatic regions. • Avoid direct exposure to weather conditions. You can order a weather protection cover from Endress+Hauser : →  91 Storage temperature –50 to +80 °C (–58 to +176 °F) •...
  • Page 42 Proline Promag H 300 [°F] [°C] 40 60 80 100 120 140 160 [°C] [°F] A0027450 Ambient temperature range Fluid temperature Conductivity ≥ 5 μS/cm for liquids in general. Stronger filter damping is required for very low conductivity values. Pressure-temperature...
  • Page 43 Proline Promag H 300 Process connection: flange according to EN 1092-1 (DIN 2501), adhesive sleeve [psi] [bar] PN 40 -40 -20 0 20 40 60 80 100120140160180 [°C] 360 [°F] A0028928-EN  20 Process connection material: stainless steel, 1.4404 (F316L)
  • Page 44 Proline Promag H 300 Process connection: flange according to ASME B16.5 [psi] [bar] Cl 150 -40 -20 0 20 40 60 80 100120140160180 [°C] 360 [°F] A0028936-EN  23 Process connection material: stainless steel, 1.4404 (F316L) [psi] [bar] Cl 150 -40 -20 0 20 40 60 80 100120140160180 [°C]...
  • Page 45 Proline Promag H 300 [psi] [bar] -40 -20 0 20 40 60 80 100120140160180 [°C] 360 [°F] A0028939-EN  26 Process connection material: PVDF Process connections with aseptic molded seal, DN 2 to 25 (1/12 to 1") Process connection: weld-in nipple according to EN 10357 (DIN 11850), ASME BPE, ISO 2037; Clamp according to ISO 2852, DIN 32676, L14 AM7;...
  • Page 46 Proline Promag H 300 Process connection: weld-in nipple according to EN 10357 (DIN 11850); coupling according to SC DIN 11851 [psi] [bar] PN 40: DN 40 (1 ½") PN 25: DN 50...100 (2...4") PN 16: DN 125...150 (5...6") -40 -20 0 20 40 60 80 100 180 [°C]...
  • Page 47 Proline Promag H 300 Process connection: weld-in nipple according to ISO 2037 [psi] [bar] PN 40: DN 40 (1 ½") PN 25: DN 50...100 (2...4") PN 16: DN 125...150 (5...6") -40 -20 0 20 40 60 80 100 180 [°C] 360 [°F]...
  • Page 48 Proline Promag H 300 Process connection: flange according to DIN 11864-2 [psi] [bar] PN 25 DN 40 1 ½") PN 16 DN 50...100 2...4") PN 10 DN 125...150 5...6") -40 -20 0 20 40 60 80 100 180 [°C] 360 [°F] A0028945-EN ...
  • Page 49 Proline Promag H 300 A0029004  34 Measures to avoid device vibrations (L > 10 m (33 ft)) Mechanical construction Dimensions in SI units Compact version A0029789 Order code for "Housing", option A "Aluminum, coated" [mm] [mm] [mm] [mm] [mm]...
  • Page 50 Proline Promag H 300 Order code for "Housing", option A "Aluminum, coated"; Ex d [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] 2.25 34.8 47.5 60.2 72.9 97.4 120.0 146.9 For version without local display: values - 30 mm Depending on the cable gland used: values up to + 30 mm Total length (L) depends on the process connections.
  • Page 51 Proline Promag H 300 Sensor flange connection E – E – A0017657  35 Front view without process connections [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] 41.6 41.6 41.6 41.6 50.2 Z–Z A0005528  36 Front view without process connections 90°...
  • Page 52 Proline Promag H 300 90° ±0.5° 60° ±0.5° [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] Tapped holes 166.7 159.5 141.0 114.3 97.4 – 198.7 191.5 171.0 139.7 120.0 – 226.7 219.5 200.0 168.3 146.9 – Flanges Flanges with aseptic molded seal A0015627 ...
  • Page 53 Proline Promag H 300 Flanges with O-ring seal A0015621 Flange according to EN 1092-1 (DIN 2501), Form B: PN 40 1.4404 (316L) Order code for "Process connection", option D5S [mm] [mm] [mm] [mm] [mm] [mm] [mm] 2 to 8 4 × ⌀14 17.3...
  • Page 54 Proline Promag H 300 A0022221 Lap joint flange according to EN 1092-1 (DIN 2501): PN 16 PVDF Order code for "Process connection", option D3P [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] 2 to 8 4 x ⌀14 14.5 17.3 4 x ⌀14...
  • Page 55 Proline Promag H 300 Lap joint flange with grounding electrode according to ASME B16.5: Class 150 PVDF Order code for "Process connection", option A4P [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] 2 to 8 60.3 4 × ⌀ 15.7 35.1...
  • Page 56 Proline Promag H 300 Welding nipple according to EN 10357 (DIN 11850) 1.4404 (316L) Order code for "Process connection", option DAS Suitable for pipe EN 10357 (DIN 11850) [mm] [mm] [mm] [mm] [mm] 2 to 8 13 × 1.5 132.6 19 ×...
  • Page 57 Proline Promag H 300 Welding nipple according to ASME BPE 1.4404 (316L) Order code for "Process connection", option AAS Suitable for pipe ASME BPE [mm] [mm] [mm] [mm] [mm] 76.2 × 1.65 76.2 72.9 101.6 × 1.65 101.6 97.4 152.4 × 2.77 149.9...
  • Page 58 Proline Promag H 300 Welding nipple according to ISO 2037 1.4404 (316L) Order code for "Process connection", option I1S Suitable for pipe ISO 2037 [mm] [mm] [mm] [mm] [mm] 33.7 × 3.25 33.7 27.2 126.6 Surface roughness: R ≤ 1.6 µm...
  • Page 59 Proline Promag H 300 Tri-Clamp for L14 AM7 1.4404 (316L) Order code for "Process connection", option FAS Suitable for pipe as per ASME BPE [mm] [mm] [mm] [mm] [mm] 50.8 × 1.65 63.9 47.5 63.5 × 1.65 77.4 60.2 76.2 × 1.65 90.9...
  • Page 60 Proline Promag H 300 Coupling SC DIN 11851, threaded adapter 1.4404 (316L) Order code for "Process connection", option DCS Suitable for pipe EN 10357 (DIN 11850) [mm] [mm] [mm/in] [mm] [mm] 2 to 8 12 × 1 (DN 10) Rd 28 × ¹⁄₈...
  • Page 61 Proline Promag H 300 Coupling SMS 1145, threaded adapter 1.4404 (316L) Order code for "Process connection", option SAS Suitable for pipe ODT [mm] [mm] SMS 1145 [mm/in] [mm] [mm] [mm] Rd40 × ¹⁄₆ 22.6 147.6 38.1 × 1.65 Rd 60 × 1/6"...
  • Page 62 Proline Promag H 300 Hose adapter Hose adapter with O-ring seal A0027511 Hose adapter 1.4404 (316L) Order code for "Process connection", options O1S, O2S, O3S Suitable for internal diameter [mm] [mm] [mm] [mm] 2 to 8 12.6 Surface roughness: R ≤...
  • Page 63 Proline Promag H 300 Mountings sets Wall mounting kit A0005537 Ø D [mm] [mm] [mm] [mm] [mm] [mm] Accessories Remote display and operating module DKX001 78 (3.07) 136 (5.35) 114 (4.49) 103 (4.06) 7.0 (0.27) A0028921  38 Engineering unit mm (in)
  • Page 64 Proline Promag H 300 External WLAN antenna 93 (3.6) 68 (2.7) 161 (6.3) A0028923  39 Engineering unit mm (in) Clamp connections with aseptic molded seal available for order A0015625 Tri-Clamp for L14 AM17 1.4404 (316L) Order code: DKH**-HF** Suitable for pipe in accordance with ASME BPE (reduction)
  • Page 65 Proline Promag H 300 External thread 1.4404 (316L) Order code: DKH**-GD** Suitable for NPT internal thread [mm] [in] [mm/in] [mm] [mm] 2 to 8 NPT 3/8 R 15.5 × 3/8 NPT ½ R 20 × ½ NPT 1 R 25 × 1 Surface roughness: R ≤...
  • Page 66 Proline Promag H 300 Dimensions in US units Compact version A0029789 Order code for "Housing", option A "Aluminum, coated" [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] 1/12 7.87 5.55 2.32 6.65 2.68 3.98 0.09 9.53 11.7...
  • Page 67 Proline Promag H 300 [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] 8.54 6.26 2.28 3.35 4.06 4.72 12.7 16.8 4.06 7.87 8.54 6.26 2.28 3.35 4.06 5.78 13.2 17.8 4.61 7.87 For version without local display: values - 1.18 in Depending on the cable gland used: values up to + 1.18 in...
  • Page 68 Proline Promag H 300 [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] [mm] 1/12 2.44 1.64 1.34 0.35 0.94 1.65 1.69 0.33 0.24 0.16 2.44 1.64 1.34 0.35 0.94 1.65 1.69 0.33 0.24 0.16 2.44 1.64 1.34 0.35...
  • Page 69 Proline Promag H 300 Flange according to ASME B16.5: Class 150 1.4404 (316L) Order code for "Process connection", option A1S [in] [in] [in] [in] [in] [in] [in] ¹⁄₁₂ to ³⁄₈ 3.50 2.38 4 × ⌀ 0.62 0.44 0.62 8.59 ½...
  • Page 70 Proline Promag H 300 Welding nipple Welding nipple with aseptic molded seal A0027510 Welding nipple according to ISO 2037 1.4404 (316L) Order code for "Process connection", option IAS Suitable for pipe ISO 2037 [in] [in] [in] [in] [in] ¹⁄₁₂ to ³⁄₈...
  • Page 71 Proline Promag H 300 Welding nipple with O-ring seal A0027510 Welding nipple according to ODT/SMS 1.4404 (316L) Order code for "Process connection", option A2S Suitable for pipe ODT/SMS [in] [in] [in] [in] [in] ¹⁄₁₂ to ³⁄₈ 0.53 × 0.09 0.53 0.35...
  • Page 72 Proline Promag H 300 Clamp according to ISO 2852, Fig. 2 1.4404 (316L) Order code for "Process connection", option IBS Suitable for pipe ISO 2037 [in] [in] Clamp ISO 2852 [in] [in] [in] [in] ¹⁄₁₂ to ³⁄₈ 0.96 × 0.06 2.00...
  • Page 73 Proline Promag H 300 Coupling ISO 2853, threaded adapter 1.4404 (316L) Order code for "Process connection", option ICS Suitable for pipe EN 10357 (DIN 11850) [in] [in] Clamp ISO 2853 [in] [in] [in] [in] 1 ½ 1.50 × 0.06 1.50 Tr 2.00 ×...
  • Page 74 Proline Promag H 300 Internal thread according to ISO 228/DIN 2999 1.4404 (316L) Order code for "Process connection", option I3S Suitable for external thread ISO 228 / DIN 2999 [in] [in] [in] [in] [in] ¹⁄₁₂ to ³⁄₈ Rp 3/8 Rd 0.51 × 3/8 0.35...
  • Page 75 Proline Promag H 300 Ø D [in] [in] [in] [in] [in] [in] 4.92 3.46 4.72 0.28 4.33 5.51 Accessories Remote display and operating module DKX001 78 (3.07) 136 (5.35) 114 (4.49) 103 (4.06) 7.0 (0.27) A0028921  42 Engineering unit mm (in) External WLAN antenna 93 (3.6)
  • Page 76 Proline Promag H 300 Clamp connections with aseptic molded seal available for order A0015625  44 Hygienic clamp adapter connection suitable for pipes with connection according to ASME BPE (reduction) Tri-Clamp for L14 AM17 1.4404 (316L) Order code: DKH**-HF** Suitable for pipe in accordance with ASME BPE (reduction)
  • Page 77 Proline Promag H 300 Internal thread 1.4404 (316L) Order code: DKH**-GC** Suitable for NPT external thread [in] [in] [in] [in] [in] NPT 1 R 0.67 × 1 1.07 7.41 Surface roughness: R ≤ 63 µin Grounding rings A0017673 For lap joint flange made of PVDF and PVC adhesive sleeve 1.4435 (316L), Alloy C22, tantalum...
  • Page 78 Proline Promag H 300 Nominal diameter Weight [mm] [in] [kg] [lbs] 15.4 34.0 17.8 39.3 Measuring tube specification Nominal diameter Pressure rating Process connection internal diameter EN (DIN) [mm] [in] [bar] [mm] [in] 1/12 PN 16/40 2.25 0.09 PN 16/40 0.18...
  • Page 79 Proline Promag H 300 Cable entry/cable gland Material Adapter for cable entry with internal thread NPT ½" Device plug coupling Plug M12 × 1 • Socket: Stainless steel, 1.4404 (316L) • Contact housing: Polyamide • Contacts: Gold-plated brass Device plug...
  • Page 80 Proline Promag H 300 Spacer 1.4435 (F316L) Fitted electrodes • 2 measuring electrodes for signal detection • 1 empty pipe detection electrode for empty pipe detection/temperature measurement (only DN 15 to 150 (½ to 6")) With O-ring seal Process connections •...
  • Page 81 Proline Promag H 300 Languages Can be operated in the following languages: • Via local operation English, German, French, Spanish, Italian, Dutch, Portuguese, Polish, Russian, Turkish, Chinese, Japanese, Korean, Arabic, Bahasa (Indonesian), Thai, Vietnamese, Czech, Swedish • Via Web browser...
  • Page 82 Proline Promag H 300 Display and operating elements The display and operating elements correspond to those of the display module →  81. • The measuring device is always supplied with a dummy cover when the remote display and operating module DKX001 is used. Display or operation at the transmitter is not possible in this case.
  • Page 83 Proline Promag H 300 A0028746  49 Options for remote operation via HART protocol (passive) Control system (e.g. PLC) Transmitter power supply unit, e.g. RN221N (with communication resistor) Connection for Commubox FXA195 and Field Communicator 475 Field Communicator 475 Computer with Web browser (e.g. Internet Explorer) for accessing the integrated device Web server or computer with operating tool (e.g.
  • Page 84 Proline Promag H 300 Via PROFIBUS PA network This communication interface is available in device versions with PROFIBUS PA. A0028838  51 Options for remote operation via PROFIBUS PA network Automation system Computer with PROFIBUS network card PROFIBUS DP network...
  • Page 85 Proline Promag H 300 Service interface Via service interface (CDI-RJ45) A0027563  53 Connection via service interface (CDI-RJ45) Computer with Web browser (e.g. Microsoft Internet Explorer, Microsoft Edge) for accessing the integrated device Web server or with "FieldCare", "DeviceCare" operating tool with COM DTM "CDI Communication TCP/IP"...
  • Page 86 Proline Promag H 300 Supported operating tools Different operating tools can be used for local or remote access to the measuring device. Depending on the operating tool used, access is possible with different operating units and via a variety of interfaces.
  • Page 87 Proline Promag H 300 Additional information on the data storage concept There are different types of data storage units in which device data are stored and used by the device: Device memory T-DAT S-DAT Available data • Event history, such as diagnostic events •...
  • Page 88 Directives. These are listed in the corresponding EU Declaration of Conformity along with the standards applied. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. C-Tick symbol The measuring system meets the EMC requirements of the "Australian Communications and Media Authority (ACMA)".
  • Page 89 Proline Promag H 300 Sanitary compatibility • 3A approval and EHEDG-certified • Seals → FDA-compliant (apart from Kalrez seals) Functional safety The measuring device can be used for flow monitoring systems (min., max., range) up to SIL 2 (single-channel architecture; order code for "Additional approval", option LA) and SIL 3 (multichannel architecture with homogeneous redundancy) and is independently evaluated and certified by the TÜV in accordance with IEC 61508.
  • Page 90 The application packages can be ordered with the device or subsequently from Endress+Hauser. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com.
  • Page 91 (typical of magnetite). Accessories Various accessories, which can be ordered with the device or subsequently from Endress+Hauser, are available for the device. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com.
  • Page 92 Proline Promag H 300 WLAN antenna External WLAN antenna for a range of up to 50 m (165 ft). Wide range  Further information on the WLAN interface →  85. Protective cover Is used to protect the measuring device from the effects of the weather: e.g.
  • Page 93 For an overview of the scope of the associated Technical Documentation, refer to the following: • The W@M Device Viewer : Enter the serial number from the nameplate (www.endress.com/deviceviewer) • The Endress+Hauser Operations App: Enter the serial number from the nameplate or scan the 2-D matrix code (QR code) on the nameplate. Standard documentation...
  • Page 94 Proline Promag H 300 Part 2 of 2: Transmitter Documentation code FOUNDATION Measuring device HART Fieldbus PROFIBUS PA Modbus RS485 Proline 300 KA01226D KA01229D KA01227D KA01228D Operating Instructions Measuring device Documentation code HART FOUNDATION Fieldbus PROFIBUS PA Modbus RS485 Promag H 300...
  • Page 95 Registration-pending trademark of the FieldComm Group, Austin, Texas, USA Modbus ® Registered trademark of SCHNEIDER AUTOMATION, INC. Applicator ® , FieldCare ® , DeviceCare ® , Field Xpert , HistoROM ® , Heartbeat Technology Registered or registration-pending trademarks of the Endress+Hauser Group Endress+Hauser...
