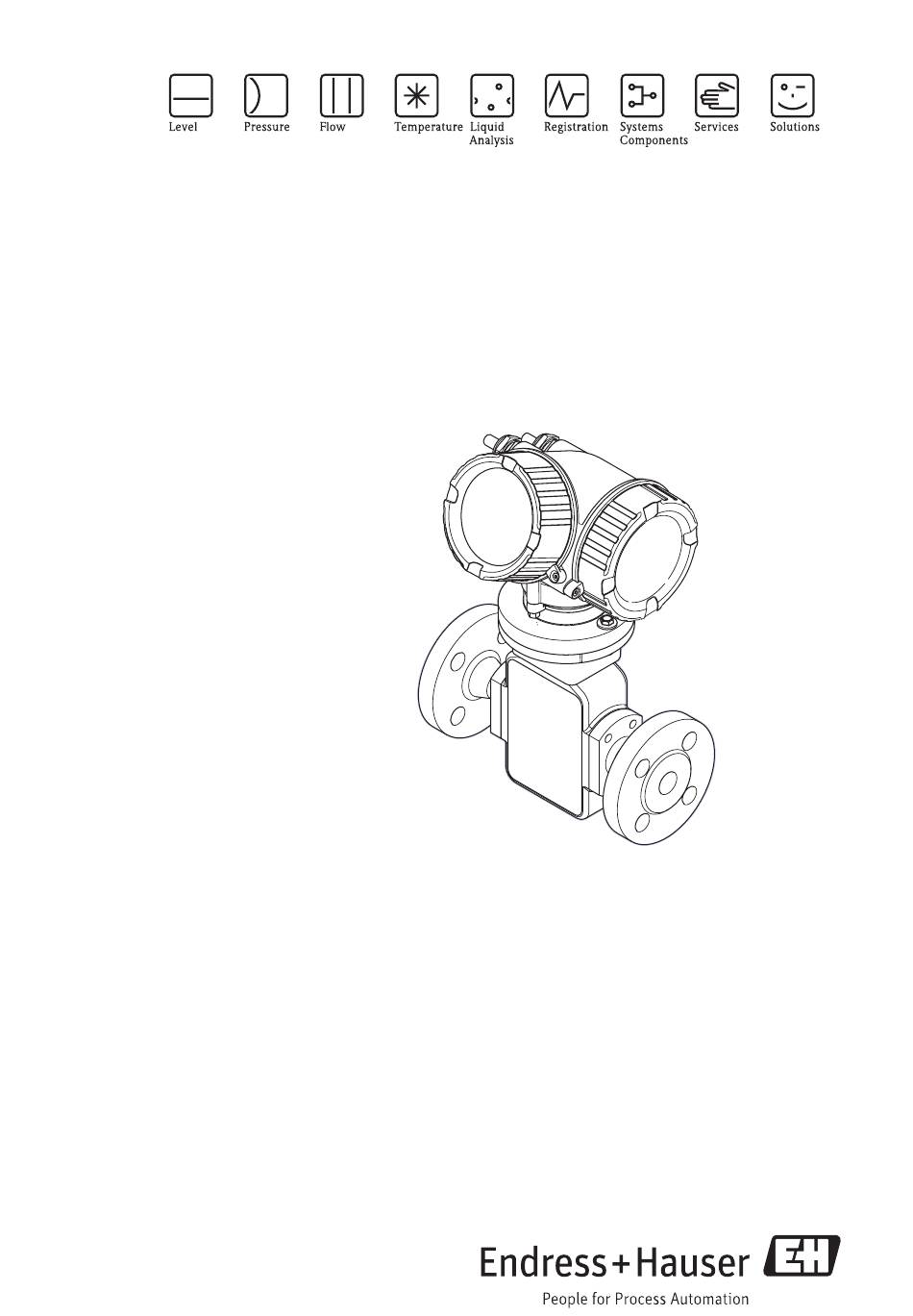

Brief Operating Instructions
Proline Promag H 200
Electromagnetic flow measuring system
These Instructions are Brief Operating Instructions; they do not replace the
Operating Instructions included in the scope of supply.
For detailed information, refer to the Operating Instructions and other
documentation on the CD-ROM provided or visit "www.endress.com/
deviceviewer".
KA01120D/06/EN/01.12
71185893

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Proline Promag H 200

Summary of Contents for Endress+Hauser Proline Promag H 200

  • Page 1 Brief Operating Instructions Proline Promag H 200 Electromagnetic flow measuring system These Instructions are Brief Operating Instructions; they do not replace the Operating Instructions included in the scope of supply. For detailed information, refer to the Operating Instructions and other documentation on the CD-ROM provided or visit "www.endress.com/...

  • Page 2: Table Of Contents

    Table of contents Proline Promag H 200 Table of contents 1 Document information ........3 1.1 Symbols used .

  • Page 3: Document Information

    Proline Promag H 200 Document information Document information Symbols used 1.1.1 Safety symbols Symbol Meaning DANGER! DANGER This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in serious or fatal injury. A0011189-EN WARNING! WARNING This symbol alerts you to a dangerous situation.
  • Page 4 Document information Proline Promag H 200 Allen key A0011221 Open-ended wrench A0011222 1.1.4 Symbols for certain types of information Symbol Meaning Allowed Indicates procedures, processes or actions that are allowed. A0011182 Preferred Indicates procedures, processes or actions that are preferred.

  • Page 5: Basic Safety Instructions

    Proline Promag H 200 Basic safety instructions Symbol Meaning Hazardous area Indicates a hazardous area. A0011187 Safe area (non-hazardous area) Indicates a non-hazardous area. A0011188 Basic safety instructions Requirements for the personnel The personnel must fulfill the following requirements for its tasks: Trained, qualified specialists must have a relevant qualification for this specific function and ►...

  • Page 6: Workplace Safety

    Observe the specified maximum process pressure. ► Verification for borderline cases: For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in ► verifying the corrosion resistance of fluid-wetted materials, but does not accept any warranty or liability as minute changes in the temperature, concentration or level of contamination in the process can alter the corrosion resistance properties.

  • Page 7: Product Description

    Proline Promag H 200 Product description Product description Product design A0014056 å 1 Important components of a measuring device Electronics compartment cover Display module Main electronics module Cable glands Transmitter housing I/O electronics module Terminals (spring loaded terminals, pluggable) Connection compartment cover...

  • Page 8: Incoming Acceptance And Product Identification

    Incoming acceptance and product identification Proline Promag H 200 Incoming acceptance and product identification Incoming acceptance A0015502 A0013843 A0013695 A0015502 A0013698 A0015502 A0013699 Endress+Hauser...

  • Page 9: Product Identification

    Proline Promag H 200 Incoming acceptance and product identification A0015502 A0013697 If one of the conditions is not satisfied, contact your Endress+Hauser Sales Center. Product identification The following options are available for identification of the measuring device: • Nameplate specifications •...
  • Page 10 Incoming acceptance and product identification Proline Promag H 200 4.2.1 Transmitter nameplate 3 4 5 Order code: Ser. no.: Ext. ord. cd.: Patents Date: 322540-0001 A0013906 å 2 Example of a transmitter nameplate Manufacturing location Name of the transmitter Order code...
  • Page 11 Proline Promag H 200 Incoming acceptance and product identification 4.2.2 Sensor nameplate Order Code: Ser.No.: Ext. ord. cd.: Material: Patents Date: A0017186 å 3 Example of sensor nameplate Name of the sensor Manufacturing location Order code Serial number (Ser. no.) Extended order code (Ext.

  • Page 12: Storage And Transport

    Storage and transport Proline Promag H 200 Order code The measuring device is reordered using the order code. Extended order code • The device type (product root) and basic specifications (mandatory features) are always listed. • Of the optional specifications (optional features), only the safety and approval-related specifications are listed (e.g.

  • Page 13: Transporting The Product

    Proline Promag H 200 Storage and transport Transporting the product WARNING Center of gravity of the measuring device is higher than the suspension points of the webbing slings. Risk of injury if the measuring device slips. Secure the measuring device from rotating or slipping.

  • Page 14: Installation

    Installation Proline Promag H 200 Installation Installation conditions No special measures such as supports are necessary. External forces are absorbed by the construction of the device. 6.1.1 Mounting position Mounting location h = ³ 2 × DN A0017061 Installation in down pipes Install a siphon or a vent valve downstream of the sensor in down pipes whose length h ³...
  • Page 15 Proline Promag H 200 Installation Installation in partially filled pipes A partially filled pipe with a gradient necessitates a drain-type configuration. The empty pipe detection (EPD) function offers additional protection by detecting empty or partially filled pipes. • Do not install the sensor at the lowest point in the drain: risk of solids accumulating.
  • Page 16 Installation Proline Promag H 200 A0016260 å 5 Horizontal orientation EPD electrode for empty pipe detection Measuring electrodes for signal detection Reference electrode for potential equalization Inlet and outlet runs 5 × DN ³ 2 × DN ³ A0016275 For the dimensions and installation lengths of the device, see the "Technical Information"...
  • Page 17 Proline Promag H 200 Installation –40 to +60 °C (–40 to +140 °F) Sensor Liner Do not exceed or fall below the permitted temperature range of the liner. If operating outdoors: • Install the measuring device in a shady location.

  • Page 18: Mounting The Measuring Device

    Installation Proline Promag H 200 Adapters [mbar] 8 m/s 7 m/s 6 m/s 5 m/s 4 m/s max. 8° 3 m/s 2 m/s 1 m/s d / D A0016359 6.1.3 Special mounting instructions Weather protection cover To ensure that the optional weather protection cover can be easily opened, maintain the ►...
  • Page 19 The sensor might require support or additional attachments, depending on the application and the length of the piping run. When plastic process connections are used, the sensor must be additionally supported mechanically. A wall-mounting kit can be ordered separately from Endress+Hauser as an accessory . Endress+Hauser...
  • Page 20 Installation Proline Promag H 200 DN 2…25 (1/12…1 ) " A0018782 å 7 Seals process connections Process connections with O-ring seal Process connections with aseptic gasket seal Welding the sensor into the piping (weld nipples) WARNING Risk of destroying the measuring electronics! Make sure that the welding machine is not grounded via the sensor or the transmitter.
  • Page 21 • Ground rings can be ordered separately from Endress+Hauser as accessories . When placing the order, make certain that the ground ring is compatible with the material used for the electrodes.
  • Page 22 Installation Proline Promag H 200 A0002651 å 8 Installing ground rings Hexagonal-headed bolts (process connection) O-ring seals Ground ring or plastic disk (spacer) Sensor 1. Loosen the 4 or 6 hexagonal headed bolts (1) and remove the process connection from the sensor (4).

  • Page 23: Post-Installation Check

    Proline Promag H 200 Installation max. 350° 8 mm 8 mm A0013713 6.2.5 Turning the display module 3 mm A0013905 Post-installation check Is the device undamaged (visual inspection)? Does the measuring device conform to the measuring point specifications? For example: •...
  • Page 24 Installation Proline Promag H 200 Have the fixing screws been tightened with the correct tightening torque? Endress+Hauser...

  • Page 25: Electrical Connection

    Proline Promag H 200 Electrical connection Electrical connection Connection conditions 7.1.1 Required tools • For cable entries: Use corresponding tools • For securing clamp: Allen key 3 mm • Wire stripper • When using stranded cables: Crimping tool for wire end ferrule •...
  • Page 26 Electrical connection Proline Promag H 200 Transmitter A0018179 4-20 mA HART connection version with additional outputs, without integrated overvoltage protection 1.1 Output 1 (passive): 4-20 mA HART 1.2 Output 2 (passive): no assignment, pulse/frequency/switch output or 4-20 mA 1.3 Ground terminal for cable shield 4-20 mA HART connection version with additional outputs, with integrated overvoltage protection 2.1 Output 1 (passive): 4-20 mA HART...

  • Page 27: Connecting The Measuring Device

    Proline Promag H 200 Electrical connection £ (U - 18 V) : 0.0036 A • For U = 18 to 18.9 V: R £ (U - 13.5 V) : 0.022 A • For U = 18.9 to 24.5 V: R £...
  • Page 28 Electrical connection Proline Promag H 200 7.2.1 Connecting the transmitter 3 mm 20 mm 10 (0.4) mm (in) A0013836 Connect the cable in accordance with the terminal assignment (® ä 25). For HART ► communication: When connecting the cable shielding to the ground terminal, observe the grounding concept of the facility.
  • Page 29 • Ground rings can be ordered separately from Endress+Hauser as accessories. When placing the order, make certain that the ground rings are compatible with the material used for the electrodes.
  • Page 30 Electrical connection Proline Promag H 200 Potential equalization via additional ground ring A0002651 Allen screw (process connection) O-ring seals Plastic washer (spacer) or ground ring Sensor Endress+Hauser...

  • Page 31: Ensuring The Degree Of Protection

    Proline Promag H 200 Electrical connection Potential equalization via ground electrodes on process connection A0017293 Allen screw (process connection) Integrated ground electrodes O-ring seal Sensor Ensuring the degree of protection The measuring device fulfills all the requirements for the IP66/67 degree of protection, Type 4X enclosure.

  • Page 32: Post-Connection Check

    Electrical connection Proline Promag H 200 Ã A0013960 5. Insert dummy plugs into unused cable entries. Post-connection check Are cables or the device undamaged (visual inspection)? Do the cables comply with the requirements (® ä 25)? Do the cables have adequate strain relief? Are all the cable glands installed, firmly tightened and leak-tight? Cable run with "water trap"...

  • Page 33: Operation Options

    Proline Promag H 200 Operation options Operation options Structure and function of the operating menu 8.1.1 Structure of the operating menu Operating menu for operators and maintenances Language Display/operat. Setup Diagnostics Operating menu for experts Expert A0014058-EN 8.1.2 Operating philosophy The individual parts of the operating menu are assigned to certain user roles.

  • Page 34: Access To The Operating Menu Via The Local Display

    Operation options Proline Promag H 200 Access to the operating menu via the local display X X X X X X 19.184 mA 12.5 X X X X X X Language à 20.50 English Deutsch Español Français User ABC_ DEFG...
  • Page 35 Proline Promag H 200 Operation options 8.2.1 Operational display Status area Status signals A0013956 A0013959 A0013958 A0013957 Failure Function check Out of specification Maintenance required Diagnostic behavior Locking Communication A0013961 A0013962 A0013965 A0013963 Alarm Warning Device locked Remote operation enabled...
  • Page 36 Operation options Proline Promag H 200 8.2.2 Navigation view Status area The following appears in the status area of the navigation view in the top right corner: • Of the submenu – The direct access code for the parameter you are navigating to (e.g. 0022-1) –...
  • Page 37 Proline Promag H 200 Operation options Correction symbols under A0013990 A0013991 A0013989 A0013988 Clears all entered characters. Moves the input position one Moves the input position one Deletes one character position to the left. position to the right. immediately to the left of the input position.
  • Page 38 Operation options Proline Promag H 200 Meaning Escape key combination (press keys simultaneously) In a menu, submenu • Pressing the key briefly: – Exits the current menu level and takes you to the next higher level. – If help text is open, closes the help text of the parameter.
  • Page 39 Proline Promag H 200 Operation options 8.2.6 User roles and related access authorization The two user roles "Operator" and "Maintenance" have different write access to the parameters if the customer defines a user-specific access code. This protects the device configuration via the local display from unauthorized access (®...

  • Page 40: Access To The Operating Menu Via The Operating Tool

    Operation options Proline Promag H 200 A0016215-EN Access to the operating menu via the operating tool For detailed information about access to the operating menu via operating tool, refer to the Operating Instructions for the device on the CD-ROM provided 8.3.1...

  • Page 41: System Integration

    System integration 8.3.2 Via service interface (CDI) A0014019 Service interface (CDI = Endress+Hauser Common Data Interface) of the measuring device Commubox FXA291 Computer with "FieldCare" operating tool with COM DTM "CDI Communication FXA291" System integration For system integration: See Operating Instructions for the device on the CD-ROM provided.

  • Page 42: Setting The Operating Language

    Commissioning Proline Promag H 200 After a successful startup, the local display switches automatically from the startup display to the operational display. If nothing appears on the local display or a diagnostic message is displayed, refer to the device's operating instructions which can be found on the CD-ROM supplied with the device.

  • Page 43: Defining The Tag Name

    Proline Promag H 200 Commissioning Pulse/frequency/switch output Configuring the selected output type Display Configuring the measured value display Output conditioning Defining the output conditioning Low flow cut off Configuring the low flow cut off 10.5 Defining the tag name To enable quick identification of the measuring point within the system, you can enter a unique designation using the Device tag parameter and thus change the factory setting.
  • Page 44 Commissioning Proline Promag H 200 Ã The -symbol appears in front of all write-protected parameters. The device automatically locks the write-protected parameters again if a key is not pressed for 10 minutes in the navigation and editing view. The device locks the write-protected parameters automatically after 60 s if the user skips back to the operational display mode from the navigation and editing view.

  • Page 45: Diagnostic Information

    Proline Promag H 200 Diagnostic information 3. Pull out the display module with a gentle rotational movement. To make it easier to access the lock switch, attach the display module to the edge of the electronics compartment. Ã 4. Setting the write protection switch (WP) on the main electronics module to the ON position enables the hardware write protection.
  • Page 46 Diagnostic information Proline Promag H 200 Ã The message for the remedial measures for the diagnostic event opens. 2. Press S + O simultaneously. Ã The message about the remedial measures closes. Endress+Hauser...
  • Page 48 KA01120D/06/EN/01.12 71185893...
