Page 1 Products Solutions Services BA01866D/06/EN/01.18 71402607 2018-06-01 Valid as of version 01.00.zz (Device firmware) Operating Instructions Proline Promag H 500 PROFIBUS DP Electromagnetic flowmeter...
Page 2 • The manufacturer reserves the right to modify technical data without prior notice. Your Endress+Hauser Sales Center will supply you with current information and updates to these instructions. Endress+Hauser...
Page 3: Table Of Contents
5.2.3 Transporting with a fork lift ..22 Packaging disposal ..... 22 Endress+Hauser...
Page 4 Block model ....96 conditions ......154 Endress+Hauser...
Page 5 13.2 Measuring and test equipment ... 201 13.3 Endress+Hauser services ....201 Repairs ......202 14.1 General notes .
Page 6: About This Document
• Inner ground terminal: Connects the protectiv earth to the mains supply. • Outer ground terminal: Connects the device to the plant grounding system. 1.2.3 Communication symbols Symbol Meaning Wireless Local Area Network (WLAN) Communication via a wireless, local network. Light emitting diode is off. Endress+Hauser...
Page 7: Tool Symbols
Result of a step. Help in the event of a problem. Visual inspection. 1.2.6 Symbols in graphics Symbol Meaning 1, 2, 3, ... Item numbers , … Series of steps A, B, C, ... Views A-A, B-B, C-C, ... Sections Hazardous area Endress+Hauser...
Page 8: Documentation
• W@M Device Viewer (www.endress.com/deviceviewer): Enter the serial number from nameplate • Endress+Hauser Operations App: Enter the serial number from the nameplate or scan the 2D matrix code (QR code) on the nameplate Detailed list of the individual documents along with the documentation code →...
Page 9: Basic Safety Instructions
Danger of breakage due to corrosive or abrasive fluids and ambient conditions! ‣ Verify the compatibility of the process fluid with the sensor material. ‣ Ensure the resistance of all fluid-wetted materials in the process. ‣ Keep within the specified pressure and temperature range. Endress+Hauser...
Page 10: Workplace Safety
Verification for borderline cases: ‣ For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of fluid-wetted materials, but does not accept any warranty or liability as minute changes in the temperature, concentration or level of contamination in the process can alter the corrosion resistance properties.
Page 11: It Security
Proline Promag H 500 PROFIBUS DP Basic safety instructions It meets general safety standards and legal requirements. It also complies with the EU directives listed in the device-specific EU Declaration of Conformity. Endress+Hauser confirms this by affixing the CE mark to the device. IT security Our warranty is valid only if the device is installed and used as described in the Operating Instructions.
Page 12: Access Via Web Server
(e.g. after commissioning) via the Web server functionality parameter. The device and status information can be hidden on the login page. This prevents unauthorized access to the information. For detailed information on device parameters, see: The "Description of Device Parameters" document →  232. Endress+Hauser...
Page 13: Access Via Service Interface (Cdi-Rj45)
The use of relevant industrial standards and guidelines that have been defined by national and international safety committees, such as IEC/ISA62443 or the IEEE, is recommended. This includes organizational security measures such as the assignment of access authorization as well as technical measures such as network segmentation. Endress+Hauser...
Page 14: Product Description
• A standard cable can be used as the connecting cable. • Not sensitive to external EMC interference. A0029593  1 Important components of a measuring device Electronics compartment cover Display module Transmitter housing Sensor connection housing with integrated ISEM electronics: connecting cable connection Sensor Endress+Hauser...
Page 15 I/ O – A0029589  2 Important components of a measuring device Connection compartment cover Display module Transmitter housing with integrated ISEM electronics Electronics compartment cover Sensor Sensor connection housing: connecting cable connection Connection compartment cover: connecting cable connection Endress+Hauser...
Page 16: Incoming Acceptance And Product
Technical Documentation present? • If one of the conditions is not satisfied, contact your Endress+Hauser Sales Center. • Depending on the device version, the CD-ROM might not be part of the delivery! The Technical Documentation is available via the Internet or via the Endress+Hauser Operations App, see the "Product identification"...
Page 17: Transmitter Nameplate
 8 sections • The W@M Device Viewer: enter the serial number from the nameplate (www.endress.com/deviceviewer) • The Endress+Hauser Operations App: Enter the serial number from the nameplate or scan the 2-D matrix code (QR code) on the nameplate. 4.2.1 Transmitter nameplate Proline 500 –...
Page 18 Firmware version (FW) and device revision (Dev.Rev.) from the factory Space for additional information in the case of special products Permitted temperature range for cable Permitted ambient temperature (T Information on cable gland Available inputs and outputs, supply voltage Electrical connection data: supply voltage Endress+Hauser...
Page 19: Sensor Nameplate
(e.g. LA). If other optional specifications are also ordered, these are indicated collectively using the # placeholder symbol (e.g. #LA#). • If the ordered optional specifications do not include any safety and approval-related specifications, they are indicated by the + placeholder symbol (e.g. XXXXXX-ABCDE Endress+Hauser...
Page 20: Symbols On Measuring Device
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in serious or fatal injury. Reference to documentation Refers to the corresponding device documentation. Protective ground connection A terminal which must be connected to ground prior to establishing any other connections. Endress+Hauser...
Page 21: Storage And Transport
Center of gravity of the measuring device is higher than the suspension points of the webbing slings. Risk of injury if the measuring device slips. ‣ Secure the measuring device against slipping or turning. ‣ Observe the weight specified on the packaging (stick-on label). A0029214 Endress+Hauser...
Page 22: Measuring Devices With Lifting Lugs
– Wooden crate treated in accordance with ISPM 15 standard, confirmed by IPPC logo – Cardboard box in accordance with European packaging guideline 94/62EC, recyclability confirmed by Resy symbol • Carrying and securing materials – Disposable plastic pallet – Plastic straps – Plastic adhesive strips • Filler material Paper pads Endress+Hauser...
Page 23: Installation
This measure also prevents the system losing prime. A0028981  6 Installation in a down pipe Vent valve Pipe siphon Length of down pipe Installation in partially filled pipes A partially filled pipe with a gradient necessitates a drain-type configuration. A0029257 Endress+Hauser...
Page 24 In this case, empty pipe detection is performed via the measuring electrodes. Inlet and outlet runs If possible, install the sensor upstream from fittings such as valves, T-pieces or elbows. Observe the following inlet and outlet runs to comply with accuracy specifications: Endress+Hauser...
Page 25: Environment- And Process-Related Requirements
• Information on the liner' s resistance to partial vacuum →  220 • Information on the shock resistance of the measuring system →  218 • Information on the vibration resistance of the measuring system →  218 Endress+Hauser...
Page 26 2. From the nomogram read off the pressure loss as a function of flow velocity (downstream from the reduction) and the d/D ratio. [mbar] 8 m/s 7 m/s 6 m/s 5 m/s 4 m/s 3 m/s max. 8° 2 m/s 1 m/s d / D A0029002 Endress+Hauser...
Page 27: Special Mounting Instructions
– Open-ended wrench AF 10 – Torx screwdriver TX 25 • Proline 500 transmitter Open-ended wrench AF 13 For wall mounting: Drill with drill bit ⌀ 6.0 mm For sensor For flanges and other process connections: Corresponding mounting tools Endress+Hauser...
Page 28: Preparing The Measuring Device
If using plastic process connections: It is absolutely essential to secure the sensor. An appropriate wall mounting kit can be ordered separately as an accessory from Endress+Hauser →  232. Welding the sensor into the pipe (welding connections) WARNING Risk of destroying the electronics! ‣...
Page 29 • Grounding rings can be ordered separately as an accessory from Endress+Hauser →  232. When ordering make sure that the grounding rings are compatible with...
Page 30: Mounting The Transmitter Housing: Proline 500 - Digital
The transmitter can be mounted in the following ways: • Post mounting • Wall mounting Post mounting WARNING Excessive tightening torque applied to the fixing screws! Risk of damaging the plastic transmitter. ‣ Tighten the fixing screws as per the tightening torque: 2 Nm (1.5 lbf ft) Endress+Hauser...
Page 31 1. Drill the holes. 2. Insert wall plugs into the drilled holes. 3. Screw in the securing screws slightly at first. 4. Fit the transmitter housing over the securing screws and mount in place. 5. Tighten the securing screws. Endress+Hauser...
Page 32: Mounting The Transmitter Housing: Proline 500
1. Drill the holes. 2. Insert wall plugs into the drilled holes. 3. Screw in the securing screws slightly at first. 4. Fit the transmitter housing over the securing screws and mount in place. 5. Tighten the securing screws. Endress+Hauser...
Page 33: Turning The Transmitter Housing: Proline 500
6. Screw on the connection compartment cover 7. Depending on the device version: Attach the securing clamp of the connection compartment cover. 6.2.7 Turning the display module: Proline 500 The display module can be turned to optimize display readability and operability. Endress+Hauser...
Page 34: Post-Installation Check
Does the arrow on the sensor nameplate match the direction of flow of the fluid through the  piping ? Are the measuring point identification and labeling correct (visual inspection)?  Have the fixing screws been tightened with the correct tightening torque?  Endress+Hauser...
Page 35: Electrical Connection
Cable type A is recommended. Cable type Characteristic impedance 135 to 165 Ω at a measuring frequency of 3 to 20 MHz Cable capacitance < 30 pF/m Wire cross-section > 0.34 mm (22 AWG) Cable type Twisted pairs Loop resistance ≤110 Ω/km Endress+Hauser...
Page 36 • Spring-loaded terminals: Suitable for strands and strands with ferrules. Conductor cross-section 0.2 to 2.5 mm (24 to 12 AWG). Choice of connecting cable between the transmitter and sensor Depends on the type of transmitter and the installation zones Endress+Hauser...
Page 37 1.00 mm (AWG 17) 240 m (800 ft) 120 m (400 ft) 1.50 mm (AWG 15) 300 m (1 000 ft) 180 m (600 ft) 2.50 mm (AWG 13) 300 m (1 000 ft) 300 m (1 000 ft) Endress+Hauser...
Page 38 5 m (15 ft), 10 m (32 ft), 20 m (65 ft) or variable length up to max. for order) 200 m (656 ft) Operating temperature –20 to +80 °C (–68 to +176 °F) Test voltage for cable ≤ AC 1433 V rms 50/60 Hz or ≥ DC 2026 V insulation Endress+Hauser...
Page 39: Terminal Assignment
The sensor and transmitter, which are mounted in separate locations, are interconnected by a connecting cable. The cable is connected via the sensor connection housing and the transmitter housing. Terminal assignment and connection of the connecting cable: • Proline 500 – digital→  44 • Proline 500 →  51 Endress+Hauser...
Page 40: Shielding And Grounding
In systems without potential matching, the multiple grounding of the cable shield causes mains frequency equalizing currents! Damage to the bus cable shield. ‣ Only ground the bus cable shield to either the local ground or the protective ground at one end. Insulate the shield that is not connected. Endress+Hauser...
Page 41: Preparing The Measuring Device
1. Remove dummy plug if present. 2. If the measuring device is supplied without cable glands: Provide suitable cable gland for corresponding connecting cable. 3. If the measuring device is supplied with cable glands: Observe requirements for connecting cables →  35. Endress+Hauser...
Page 42: Preparing The Connecting Cable: Proline 500 - Digital
2. In the case of the coil current cable: Insulate one core of the three-core cable at the level of the core reinforcement. You only require two cores for the connection. 3. For cables with fine-wire cores (stranded cables): Fit the cores with ferrules. Endress+Hauser...
Page 43 A0029439 Engineering unit mm (in) A = Terminate the cable B = Fit ferrules on cables with fine-wire cores (stranded cables) 1 = Red ferrules,  1.0 mm (0.04 in) 2 = White ferrules,  0.5 mm (0.02 in) Endress+Hauser...
Page 44: Connecting The Measuring Device: Proline 500 - Digital
Option B "Stainless, hygienic" →  46 • Connection via connectors with order code for "Sensor connection housing": Option C "Ultra-compact hygienic, stainless"→  47 Connecting the connecting cable to the transmitter The cable is connected to the transmitter via terminals →  48. Endress+Hauser...
Page 45 Housing degree of protection voided due to insufficient sealing of the housing. ‣ Screw in the thread on the cover without using any lubricant. The thread on the cover is coated with a dry lubricant. 8. Screw on the housing cover. 9. Tighten the securing clamp of the housing cover. Endress+Hauser...
Page 46 6. Connect the cable in accordance with the connecting cable terminal assignment. 7. Firmly tighten the cable glands.  This concludes the process for connecting the connecting cable. 8. Close the housing cover. 9. Tighten the securing screw of the housing cover. Endress+Hauser...
Page 47 Proline Promag H 500 PROFIBUS DP Electrical connection Connecting the sensor connection housing via the connector For the device version with the order code for "Sensor connection housing": Option C "Ultra-compact hygienic, stainless" A0029615 1. Connect the protective ground. 2. Connect the connector. Endress+Hauser...
Page 48  This concludes the process for connecting the connecting cable. 9. Close the housing cover. 10. Tighten the securing screw of the housing cover. 11. After connecting the connecting cable: Connect the signal cable and the supply voltage cable →  49. Endress+Hauser...
Page 49: Connecting The Signal Cable And The Supply Voltage Cable
Supply voltage terminal assignment: Adhesive label in the terminal cover or →  39. 8. Firmly tighten the cable glands.  This concludes the cable connection process. 9. Close the terminal cover. 10. Close the housing cover. Endress+Hauser...
Page 50 A0029598  16 Engineering unit mm (in) 1. To remove a cable from the terminal, use a flat-blade screwdriver to push the slot between the two terminal holes 2. while simultaneously pulling the cable end out of the terminal. Endress+Hauser...
Page 51: Connecting The Measuring Device: Proline 500
Connecting the connecting cable to the sensor connection housing Connection via terminals with order code for "Sensor connection housing": Option B "Stainless, hygienic"→  52 Connecting the connecting cable to the transmitter The cable is connected to the transmitter via terminals →  53. Endress+Hauser...
Page 52 6. Connect the cable in accordance with the connecting cable terminal assignment. 7. Firmly tighten the cable glands.  This concludes the process for connecting the connecting cables. 8. Close the housing cover. 9. Tighten the securing screw of the housing cover. Endress+Hauser...
Page 53: Ensuring Potential Equalization
Connect the signal cable and the supply voltage cable . Ensuring potential equalization 7.4.1 Requirements CAUTION Electrode damage can result in the complete failure of the device! ‣ Same electrical potential for the fluid and sensor ‣ Company-internal grounding concepts ‣ Pipe material and grounding Endress+Hauser...
Page 54: Connection Example, Standard Scenario
• Grounding rings can be ordered separately as an accessory from Endress+Hauser . When ordering make sure that the grounding rings are compatible with the material used for...
Page 55: Special Connection Instructions
Cable shield: the cable shield must be grounded at both ends to comply with EMC requirements; observe cable specifications Distribution box Transmitter If baud rates > 1.5 MBaud an EMC cable entry must be used and the cable shield must continue as far as the terminal wherever possible. Endress+Hauser...
Page 56 Active barrier for power supply (e.g. RN221N) Analog display unit: observe maximum load Transmitter Pulse/frequency output 12345 A0028761  20 Connection example for pulse/frequency output (passive) Automation system with pulse/frequency input (e.g. PLC) Power supply Transmitter: Observe input values →  211 Endress+Hauser...
Page 57 Power supply Transmitter: Observe input values →  212 Current input A0028915  23 Connection example for 4 to 20 mA current input Power supply Terminal box External measuring device (for reading in pressure or temperature, for instance) Transmitter Endress+Hauser...
Page 58: Hardware Settings
1 and 126. In a PROFIBUS DP/PA network, each address can only be assigned once. If an address is not configured correctly, the device is not recognized by the master. All measuring devices are delivered from the factory with the device address 126 and with the software addressing method. Endress+Hauser...
Page 59 ‣ To switch addressing from hardware addressing to software addressing: set DIP switch No. 4 to Off.  The device address configured in the Device address parameter (→  110) takes effect after 10 seconds. The device is restarted. Endress+Hauser...
Page 60: Enabling The Terminating Resistor
Due to the capacitance load of the user and the line reflections generated as a result, ensure that an external bus terminator is used. It is generally advisable to use an external bus terminator as the entire segment can fail if a device that is terminated internally is defective. Endress+Hauser...
Page 61: Activating The Default Ip Address
The default IP address 192.168.1.212 can be activated by DIP switch. Activating the default IP address by DIP switch: Proline 500 - digital Risk of electric shock when opening the transmitter housing. ‣ Before opening the transmitter housing: ‣ Disconnect the device from the power supply. Endress+Hauser...
Page 62 3. Set DIP switch No. 2 on the I/O electronics module from OFF → ON. 4. Reverse the removal procedure to reassemble the transmitter. 5. Reconnect the device to the power supply.  The default IP address is used once the device is restarted. Endress+Hauser...
Page 63: Ensuring The Degree Of Protection
Do the cables used meet the requirements?  Do the cables have adequate strain relief?  Are all the cable glands installed, firmly tightened and leak-tight? Cable run with "water trap"  →  63? Is the potential equalization established correctly ?  Endress+Hauser...
Page 64: Operation Options
Local operation via display module Computer with Web browser (e.g. Internet Explorer) or with operating tool (e.g. FieldCare, DeviceCare, AMS Device Manager, SIMATIC PDM) Field Xpert SFX350 or SFX370 Field Xpert SMT70 Mobile handheld terminal Control system (e.g. PLC) Endress+Hauser...
Page 65: Structure And Function Of The Operating
Submenu 1 Submenu n Diagnostics Parameter 1 Parameter n Submenu 1 Submenu n Operating menu for experts Expert Access status display Parameter n System Sensor Input Output Communication Application Diagnostics A0018237-EN  25 Schematic structure of the operating menu Endress+Hauser...
Page 66: Operating Philosophy
• Data logging submenu with "Extended HistoROM" order option Storage and visualization of measured values • Heartbeat The functionality of the device is checked on demand and the verification results are documented. • Simulation Is used to simulate measured values or output values. Endress+Hauser...
Page 67: Access To The Operating Menu Via The Local Display
– S: Out of specification – M: Maintenance required • Diagnostic behavior→  165 – : Alarm – : Warning • : Locking (the device is locked via the hardware ) • : Communication (communication via remote operation is active) Endress+Hauser...
Page 68 The diagnostic behavior pertains to a diagnostic event that is relevant to the displayed measured variable. For information on the symbols →  165 The number and display format of the measured values can be configured via the Format display parameter (→  125). Endress+Hauser...
Page 69: Navigation View
If a diagnostic event is present, the diagnostic behavior and status signal • For information on the diagnostic behavior and status signal →  164 • For information on the function and entry of the direct access code →  75 Endress+Hauser...
Page 70 • By a user-specific access code • By the hardware write protection switch Wizard operation Symbol Meaning Switches to the previous parameter. Confirms the parameter value and switches to the next parameter. Opens the editing view of the parameter. Endress+Hauser...
Page 71: Editing View
Operating elements Move entry position Delete entry Reject or confirm entry Using the operating elements in the editing view Operating key(s) Meaning Minus key Move the entry position to the left. Plus key Move the entry position to the right. Endress+Hauser...
Page 72 Umlauts and accents Controlling data entries Symbol Meaning Move entry position Reject entry Confirm entry Delete character immediately to the left of the entry position Delete character immediately to the right of the entry position Clear all the characters entered Endress+Hauser...
Page 73: Operating Elements
Press the key for 3 s: the context menu opens along with the option for activating the keypad lock. 8.3.5 Opening the context menu Using the context menu, the user can call up the following menus quickly and directly from the operational display: • Setup • Data backup • Simulation Endress+Hauser...
Page 74  The context menu is closed and the operational display appears. Calling up the menu via the context menu 1. Open the context menu. 2. Press  to navigate to the desired menu. 3. Press  to confirm the selection.  The selected menu opens. Endress+Hauser...
Page 75: Navigating And Selecting From List
A parameter number is assigned to every parameter to be able to access a parameter directly via the onsite display. Entering this access code in the Direct access parameter calls up the desired parameter directly. Navigation path Expert → Direct access Endress+Hauser...
Page 76: Calling Up Help Text
Parameters can be changed via the numeric editor or text editor. • Numeric editor: Change values in a parameter, e.g. specifications for limit values. • Text editor: Enter text in a parameter, e.g. tag name. A message is displayed if the value entered is outside the permitted value range. Endress+Hauser...
Page 77: User Roles And Related Access Authorization
Parameter write protection via local operation can be disabled by entering the user-specific access code in the Enter access code parameter via the respective access option. 1. After you press , the input prompt for the access code appears. Endress+Hauser...
Page 78: Enabling And Disabling The Keypad
WLAN connection: order code for "Display; operation", option G "4-line, illuminated; touch control + WLAN". The device acts as an Access Point and enables communication by computer or a mobile handheld terminal. For additional information on the Web server, refer to the Special Documentation for the device Endress+Hauser...
Page 79: Prerequisites
Network connections Only the active network connections to the measuring device should be used. Switch off all other network Switch off all other network connections such as WLAN. connections. In the event of connection problems: →  159 Endress+Hauser...
Page 80: Establishing A Connection
3. If a 2nd network card is not used, close all the applications on the notebook.  Applications requiring Internet or a network, such as e-mail, SAP applications, Internet or Windows Explorer. 4. Close any open Internet browsers. 5. Configure the properties of the Internet protocol (TCP/IP) as defined in the table: Endress+Hauser...
Page 81 SSID name to the measuring point (e.g. tag name) because it is displayed as the WLAN network. Disconnecting ‣ After configuring the device: Terminate the WLAN connection between the operating unit and measuring device. Starting the Web browser 1. Start the Web browser on the computer. Endress+Hauser...
Page 82: Logging On
2. Enter the user-specific access code. 3. Press OK to confirm your entry. Access code 0000 (factory setting); can be changed by customer If no action is performed for 10 minutes, the Web browser automatically returns to the login page. Endress+Hauser...
Page 83: User Interface
Configuration and checking of all the parameters required for establishing the connection to Network the measuring device: configuration • Network settings (e.g. IP address, MAC address) • Device information (e.g. serial number, firmware version) Logout End the operation and call up the login page Endress+Hauser...
Page 84: Disabling The Web Server
1. Select the Logout entry in the function row.  The home page with the Login box appears. 2. Close the Web browser. 3. If no longer needed: Reset modified properties of the Internet protocol (TCP/IP) →  80. Endress+Hauser...
Page 85: Access To The Operating Menu Via The Operating Tool
Order code for "Accessories", option NB: "Adapter RJ45 M12 (service interface)" The adapter connects the service interface (CDI-RJ45) to an M12 connector mounted in the cable entry. Therefore the connection to the service interface can be established via an M12 connector without opening the device. Endress+Hauser...
Page 86 Service interface (CDI-RJ45) of the measuring device with access to the integrated Web server Via WLAN interface The optional WLAN interface is available on the following device version: Order code for "Display; operation", option G "4-line, illuminated, graphic display; touch control + WLAN" Endress+Hauser...
Page 87 • Angle bracket: Stainless steel Configuring the Internet protocol of the mobile terminal NOTICE If the WLAN connection is lost during the configuration, settings made may be lost. ‣ Make sure that the WLAN connection is not disconnected while configuring the device. Endress+Hauser...
Page 88: Fieldcare
FieldCare Function scope FDT-based plant asset management tool from Endress+Hauser. It can configure all smart field devices in a system and helps you manage them. By using the status information, it is also a simple but effective way of checking their status and condition.
Page 89: Devicecare
Display area for current measured values Edit toolbar with additional functions such as save/restore, event list and create documentation Navigation area with operating menu structure Working area Range of action Status area 8.5.3 DeviceCare Function scope Tool to connect and configure Endress+Hauser field devices. Endress+Hauser...
Page 90 Operation options Proline Promag H 500 PROFIBUS DP The fastest way to configure Endress+Hauser field devices is with the dedicated "DeviceCare" tool. Together with the device type managers (DTMs) it presents a convenient, comprehensive solution. For details, see Innovation Brochure IN01047S Source for device description files See information →...
Page 91: System Integration
Operating tool via Sources for obtaining device descriptions PROFIBUS protocol FieldCare • www.endress.com → Download Area • CD–ROM (contact Endress+Hauser) • DVD (contact Endress+Hauser) DeviceCare • www.endress.com → Download Area • CD–ROM (contact Endress+Hauser) • DVD (contact Endress+Hauser)
Page 92: Manufacturer-Specific Gsd
– Extended GSD file: EH3x1526.gsd – Standard GSD file: EH3_1526.gsd 9.3.1 Automatic identification (factory setting) The Promag 500 PROFIBUS DP automatically recognizes the measuring device configured in the automation system (Promag 50 PROFIBUS DP or Promag 53 PROFIBUS DP) and Endress+Hauser...
Page 93: Manual Setting
Promag 53 PROFIBUS DP), the following settings may need to be changed: 1. Configuration of the application-specific parameters. 2. Choice of process variables to be transmitted via theChannel parameter in the Analog Input or Totalizer function block. 3. Setting of the units for the process variables. Endress+Hauser...
Page 94: Using The Gsd Modules Of The Previous Model
Totalizer function block. 0 → 24 UNIT TO BUS Cause: Functionality is no longer required as the unit is adopted automatically. 0 → 50 Relay output 1: ON Yes, terminals 24/25 (I/O 2) 0 → 51 Relay output 1: OFF Endress+Hauser...
Page 95 Proline Promag H 500 PROFIBUS DP System integration Control variable Function Support 0 → 55 Relay output 2: ON Yes, terminals 22/23 (I/O 3) 0 → 56 Relay output 2: OFF 0 → 30 to 46 Additional functions: Batching Endress+Hauser...
Page 96: Cyclic Data Transmission
Description of the modules The data structure is described from the perspective of the PROFIBUS master: • Input data: Are sent from the measuring device to the PROFIBUS master. • Output data: Are sent from the PROFIBUS master to the measuring device. Endress+Hauser...
Page 97 Master (Class 1) via the TOTAL module. The totalizer value is depicted in the first four bytes in the form of a floating point number as per the IEEE 754 standard. The fifth byte contains standardized status information pertaining to the totalizer value. Three Totalizer blocks are available (slot 5 to 7). Endress+Hauser...
Page 98 Totalizer 1, 2 and 3 0 (totalizing) Data structure Output data of SETTOT Byte 1 Control variable 1 Input data of TOTAL Byte 1 Byte 2 Byte 3 Byte 4 Byte 5 Measured value: floating point number (IEEE 754) Status Endress+Hauser...
Page 99 IEEE 754 standard. The fifth byte contains standardized status information pertaining to the compensation value. Two Analog Output blocks are available (slot 8 to 9). Endress+Hauser...
Page 100 • Bit 6: Verification overall result - Check not done • Bit 7: Not used Only available with the Heartbeat Verification application package Factory setting Function block Factory setting DI 1 Empty pipe detection DI 2 Low flow cut off Endress+Hauser...
Page 101 The GSD file contains a description of the individual modules along with their individual properties. The modules are permanently assigned to the slots. When configuring the modules, it is absolutely essential to observe the sequence/arrangement of the modules. Any gaps between the configured modules must be filled with the EMPTY_MODULE. Endress+Hauser...
Page 102: Address Shifting Configuration
Index value for parameter 1 Slot value for parameter 2 Value for parameter-specific → selection Index value for parameter 2 194 to 219 Slot value for parameter 16 Value for parameter-specific → selection Index value for parameter 16 Endress+Hauser...
Page 103: Configuring Address Shifting
1001 : °C 1002 : °F 1000 : K 1003 : °R For more information on the "slot/index table", please contact the Endress+Hauser Sales Center. 9.6.4 Accessing data via PROFIBUS DP The PROFIBUS master uses the indexes 230 to 245 in slot 0 to access the address shifting data area.
Page 104 0 and index 230. The data type (integer/float) and data access (read/write) depend on the parameter entered in the configuration area. If the parameter entered supports read and write access, the parameter can also be read- and write-accessed via the data area. Endress+Hauser...
Page 105: Commissioning
Device address • To display the current device address: Device address parameter →  109 • If hardware addressing is active, software addressing is blocked →  58 10.5 Setting the operating language Factory setting: English or ordered local language Endress+Hauser...
Page 106: Configuring The Measuring Device
/ ../Setup Medium selection XXXXXXXXX XXXXXXXXX A0032222-EN  33 Taking the example of the local display Depending on the device version, not all submenus and parameters are available in every device. The selection can vary depending on the order code. Endress+Hauser...
Page 107: Defining The Tag Name
Device tag parameter and thus change the factory setting. XXXXXXXXX A0029422  34 Header of the operational display with tag name Tag name Enter the tag name in the "FieldCare" operating tool →  89 Endress+Hauser...
Page 108: Setting The System Units
Unit choose list Country-specific: • l/h Result • gal/min (us) The selected unit applies for: • Output • Low flow cut off • Simulation process variable Volume unit – Select volume unit. Unit choose list Country-specific: • m³ • gal (us) Endress+Hauser...
Page 109: Interface
• Sft³ 10.6.3 Configuring communication interface The Communication submenu guides you systematically through all the parameters that have to be configured for selecting and setting the communication interface. Navigation "Setup" menu → Communication ‣ Communication Device address →  110 Endress+Hauser...
Page 110 Commissioning Proline Promag H 500 PROFIBUS DP Parameter overview with brief description Parameter Description User entry Factory setting Device address Enter device address. 0 to 126 Endress+Hauser...
Page 111: Configuring The Analog Inputs
Visibility depends on order options or device settings 10.6.5 Displaying the I/O configuration The I/O configuration submenu guides the user systematically through all the parameters in which the configuration of the I/O modules is displayed. Endress+Hauser...
Page 112: Configuring The Current Input
The "Current input" wizard guides the user systematically through all the parameters that have to be set for configuring the current input. Navigation "Setup" menu → Current input ‣ Current input 1 to n Terminal number →  113 Endress+Hauser...
Page 113: Configuring The Status Input
The Status input submenu guides the user systematically through all the parameters that have to be set for configuring the status input. Navigation "Setup" menu → Status input ‣ Status input 1 to n →  114 Assign status input Endress+Hauser...
Page 114: Configuring The Current Output
Current output 1 to n Terminal number →  115 Signal mode →  115 Assign current output 1 to n →  115 Current span →  115 0/4 mA value →  115 →  115 20 mA value Endress+Hauser...
Page 115 • 4...20 mA NAMUR • 4...20 mA US • 4...20 mA • 0...20 mA Fixed current The Fixed current option is Defines the fixed output 0 to 22.5 mA 22.5 mA selected in the Current span current. parameter (→  115). Endress+Hauser...
Page 116 • 4...20 mA • 0...20 mA Failure current The Defined value option is Enter current output value in 0 to 22.5 mA 22.5 mA selected in the Failure mode alarm condition. parameter. Visibility depends on order options or device settings Endress+Hauser...
Page 117: Configuring The Pulse/Frequency
→  118 Terminal number →  118 Signal mode →  118 Assign pulse output →  118 Value per pulse →  118 Pulse width →  118 →  118 Failure mode Invert output signal →  118 Endress+Hauser...
Page 118 • Yes Configuring the frequency output Navigation "Setup" menu → Pulse/frequency/switch output ‣ Pulse/frequency/switch output 1 to n →  119 Operating mode Terminal number →  119 Signal mode →  119 Assign frequency output →  119 Endress+Hauser...
Page 119 The Frequency option is Enter maximum frequency. 0.0 to 10 000.0 Hz 10 000.0 Hz selected in the Operating mode parameter (→  117) and a process variable is selected in the Assign frequency output parameter (→  119). Endress+Hauser...
Page 120 (→  117) and a process variable is selected in the Assign frequency output parameter (→  119). Invert output signal – Invert the output signal. • No • Yes Visibility depends on order options or device settings Endress+Hauser...
Page 121 Shows the terminal numbers • Not used – used by the PFS output • 24-25 (I/O 2) module. • 22-23 (I/O 3) • 20-21 (I/O 4) Signal mode – Select the signal mode for the • Passive Passive PFS output. • Active Endress+Hauser...
Page 122 Switch-on delay • The Switch option is Define delay for the switch-on 0.0 to 100.0 s 0.0 s selected in the Operating of status output. mode parameter. • The Limit option is selected in the Switch output function parameter. Endress+Hauser...
Page 123: 10.6.10 Configuring The Relay Output
→  124 Assign flow direction check →  124 Assign limit →  124 Assign diagnostic behavior →  124 Assign status →  124 Switch-off value →  124 →  124 Switch-on value Failure mode →  124 Endress+Hauser...
Page 124 0.0 to 100.0 s 0.0 s parameter, the Limit option is of status output. selected. Failure mode – Define output behavior in • Actual status Open alarm condition. • Open • Closed Visibility depends on order options or device settings Endress+Hauser...
Page 125: 10.6.11 Configuring The Local Display
• Corrected volume flow • Flow velocity • Corrected conductivity • Totalizer 1 • Totalizer 2 • Totalizer 3 • Current output 1 • Current output 2 • Current output 3 • Current output 4 • Temperature • Electronic temperature Endress+Hauser...
Page 126 • Current output 4 • Temperature • Electronic temperature 0% bargraph value 3 A selection was made in the Enter 0% value for bar graph Signed floating-point Country-specific: Value 3 display parameter. display. number • 0 l/h • 0 gal/min (us) Endress+Hauser...
Page 127: 10.6.12 Configuring The Low Flow Cut Off
• Corrected volume flow On value low flow cutoff A process variable is selected Enter on value for low flow cut Positive floating- Depends on country in the Assign process variable off. point number and nominal parameter (→  127). diameter Endress+Hauser...
Page 128 Assign process variable off. parameter (→  127). Pressure shock suppression A process variable is selected Enter time frame for signal 0 to 100 s in the Assign process variable suppression (= active pressure parameter (→  127). shock suppression). Endress+Hauser...
Page 129: 10.6.13 Configuring Empty Pipe Detection
Response time empty pipe detection A process variable is selected Enter the time before 0 to 100 s in the Assign process variable diagnostic message S862 ' ' P ipe parameter (→  129). empty' ' is displayed for empty pipe detection. Endress+Hauser...
Page 130: Advanced Settings
Special Documentation for the device. Navigation "Setup" menu → Advanced setup ‣ Advanced setup Enter access code ‣ Sensor adjustment →  131 ‣ Totalizer 1 to n →  131 ‣ →  133 Display ‣ Electrode cleaning circuit →  136 Endress+Hauser...
Page 131: Carrying Out A Sensor Adjustment
"Setup" menu → Advanced setup → Totalizer 1 to n ‣ Totalizer 1 to n Assign process variable →  132 Unit totalizer →  132 Totalizer operation mode →  132 Control Totalizer 1 to n →  155 Failure mode →  132 Endress+Hauser...
Page 132 Net flow total • Forward flow total • Reverse flow total • Last valid value Failure mode Define the totalizer behavior in the event of • Stop Actual value a device alarm. • Actual value • Last valid value Endress+Hauser...
Page 133: Carrying Out Additional Display Configurations
→  135 Decimal places 4 →  135 Display language →  136 Display interval →  136 Display damping →  136 Header →  136 Header text →  136 Separator →  136 Backlight →  136 Endress+Hauser...
Page 134 • Temperature • Electronic temperature Decimal places 2 A measured value is specified Select the number of decimal • x x.xx in the Value 2 display places for the display value. • x.x parameter. • x.xx • x.xxx • x.xxxx Endress+Hauser...
Page 135 • Temperature • Electronic temperature Decimal places 4 A measured value is specified Select the number of decimal • x x.xx in the Value 4 display places for the display value. • x.x parameter. • x.xx • x.xxx • x.xxxx Endress+Hauser...
Page 136: Performing Electrode Cleaning
Visibility depends on order options or device settings 10.7.4 Performing electrode cleaning The Electrode cleaning circuit submenu contains parameters that must be configured for the configuration of electrode cleaning. The submenu is only available if the device was ordered with electrode cleaning. Endress+Hauser...
Page 137: Wlan Configuration
The WLAN Settings submenu guides the user systematically through all the parameters that have to be set for the WLAN configuration. Navigation "Setup" menu → Advanced setup → WLAN Settings ‣ WLAN settings WLAN IP address →  138 Endress+Hauser...
Page 138: Configuration Management
Cancel • Ok 10.7.6 Configuration management After commissioning, you can save the current device configurationor restore the previous device configuration. You can do so using the Configuration management parameter and the related options found in the Configuration backup submenu. Endress+Hauser...
Page 139 The backup copy includes the transmitter data of the device. Restore The last backup copy of the device configuration is restored from the device memory to the device' s HistoROM backup. The backup copy includes the transmitter data of the device. Endress+Hauser...
Page 140: Using Parameters For Device Administration
Restrict write-access to parameters to protect the configuration Max. 16-digit character string comprising of the device against unintentional changes. numbers, letters and special characters Confirm access code Confirm the entered access code. Max. 16-digit character string comprising numbers, letters and special characters Endress+Hauser...
Page 141: Simulation
Character string comprising 0x00 numbers, letters and special  For a reset code, contact your characters Endress+Hauser service organization. The reset code can only be entered via: • Web browser • DeviceCare, FieldCare (via service interface CDI-RJ45) • Fieldbus Using the parameter to reset the device Navigation "Setup"...
Page 142 Switch status 1 to n Relay output 1 to n simulation →  143 Switch status 1 to n →  144 Device alarm simulation →  144 Diagnostic event category →  144 Diagnostic event simulation →  144 Endress+Hauser...
Page 143 Switch status 1 to n – Select the status of the status • Open Open output for the simulation. • Closed Relay output 1 to n simulation – Switch simulation of the relay • Off output on and off. • On Endress+Hauser...
Page 144: Protecting Settings From Unauthorized
Defining the access code via local display 1. Navigate to the Define access code parameter (→  140). 2. Define a max. 16-digit character string comprising numbers, letters and special characters as the access code. Endress+Hauser...
Page 145 A reset code must be entered for this purpose. The user-specific access code can then be defined again afterwards. Via Web browser, FieldCare, DeviceCare (via CDI-RJ45 service interface), fieldbus For a reset code, contact your Endress+Hauser service organization. 1. Navigate to the Reset access code parameter (→  141). Endress+Hauser...
Page 146: Write Protection Via Write Protection
 In the Locking status parameter the Hardware locked option is displayed →  148. In addition, on the local display the -symbol appears in front of the parameters in the header of the operational display and in the navigation view. X X X X X X X 20.50 A0029425 Endress+Hauser...
Page 147 (factory setting) disables hardware write protection.  No option is displayed in the Locking status parameter →  148. On the local display, the -symbol disappears from in front of the parameters in the header of the operational display and in the navigation view. Endress+Hauser...
Page 148: Operation
With the Measured values submenu, it is possible to read all the measured values. Navigation "Diagnostics" menu → Measured values ‣ Measured values ‣ Process variables →  149 ‣ →  150 Totalizer 1 to n ‣ Input values →  151 ‣ Output values →  152 Endress+Hauser...
Page 149: Process Variables" Submenu
(→  109). Flow velocity – Displays the flow velocity currently Signed floating-point calculated. number Conductivity – Displays the conductivity currently Signed floating-point measured. number Dependency The unit is taken from the Conductivity unit parameter (→  109). Endress+Hauser...
Page 150: Totalizer
"Diagnostics" menu → Measured values → Totalizer 1 to n ‣ Totalizer 1 to n Assign process variable →  151 Totalizer value 1 to n →  151 Totalizer status 1 to n →  151 →  151 Totalizer status (Hex) 1 to n Endress+Hauser...
Page 151: Input Values" Submenu
Navigation "Diagnostics" menu → Measured values → Input values → Current input 1 to n ‣ Current input 1 to n Measured values 1 to n →  152 Measured current 1 to n →  152 Endress+Hauser...
Page 152: Output Values
→  153 1 to n ‣ →  153 Relay output 1 to n Output values of current output The Value current output submenu contains all the parameters needed to display the current measured values for every current output. Endress+Hauser...
Page 153 Displays the current switch output • Open Operating mode parameter. status. • Closed Output values for relay output The Relay output 1 to n submenu contains all the parameters needed to display the current measured values for every relay output. Endress+Hauser...
Page 154: Adapting The Measuring Device To The Process
The totaling process is stopped and the totalizer is set to its defined start value from the Preset value 1 to n parameter. Navigation "Operation" menu → Totalizer handling ‣ Totalizer handling Control Totalizer 1 to n →  155 Endress+Hauser...
Page 155: Showing Data Logging
If the length of the logging interval or the assignment of the process variables to the channels is changed, the content of the data logging is deleted. Navigation "Diagnostics" menu → Data logging ‣ Data logging Assign channel 1 →  156 Assign channel 2 →  156 Endress+Hauser...
Page 156 Assign channel 2 The Extended HistoROM Assign process variable to Picklist, see Assign application package is logging channel. channel 1 parameter available. (→  156)  The software options currently enabled are displayed in the Software option overview parameter. Endress+Hauser...
Page 157 • Active • Stopped Entire logging duration In the Data logging Displays the total logging Positive floating- parameter, the Not duration. point number overwriting option is selected. Visibility depends on order options or device settings Endress+Hauser...
Page 158: Diagnostics And Troubleshooting
Message on local display: Communication between the • Check the cable and the "Communication Error" display module and the electronics connector between the main "Check Electronics" is interrupted. electronics module and display module. • Order spare part →  202. Endress+Hauser...
Page 159 • Operating device is outside of unstable reception range: Check network status on operating device. • To improve network performance, use an external WLAN antenna. Parallel WLAN and Ethernet • Check network settings. communication • Temporarily enable only the WLAN as an interface. Endress+Hauser...
Page 160 Depending on the settings of the or DeviceCare via CDI-RJ45 service preventing communication firewall used on the computer or in interface (via port 8000 or TFTP the network, the firewall must be ports) adapted or disabled to allow FieldCare/DeviceCare access. Endress+Hauser...
Page 161: Diagnostic Information Via Light Emitting
A diagnostic event with "Warning" diagnostic behavior has occurred. A diagnostic event with "Alarm" diagnostic behavior has occurred. Flashing red/green The device restarts. Not used – – Communication Device does not receive any Profibus data. White Device receives Profibus data. Endress+Hauser...
Page 162: Sensor Connection Housing
Connected and connection established. Flashing yellow Service interface active. 12.2.2 Sensor connection housing Proline 500 – digital Various light emitting diodes (LED) on the ISEM electronics (Intelligent Sensor Electronic Module) in the sensor connection housing provide information on the device status. Endress+Hauser...
Page 163 Diagnostics and troubleshooting Communication Communication Alarm Power Power A0029699 Communication Device status Supply voltage Color Meaning Communication White Communication active Device status Error Flashing red Warning Supply voltage Green Supply voltage is ok Supply voltage is off or too low Endress+Hauser...
Page 164: Diagnostic Information On Local Display
Function check The device is in service mode (e.g. during a simulation). Out of specification The device is operated: Outside its technical specification limits (e.g. outside the process temperature range) Maintenance required Maintenance is required. The measured value remains valid. Endress+Hauser...
Page 165 ↓ ↓ ↓ Example Process limit A0013962 A0013958 NAMUR 3-digit number NE 107 Operating elements Meaning Plus key In a menu, submenu Opens the message about remedy information. Enter key In a menu, submenu Opens the operating menu. Endress+Hauser...
Page 166: Calling Up Remedial Measures
 The message for the remedial measures closes. 12.4 Diagnostic information in the Web browser 12.4.1 Diagnostic options Any faults detected by the measuring device are displayed in the Web browser on the home page once the user has logged on. Endress+Hauser...
Page 167: Calling Up Remedy Information
These measures are displayed in red along with the diagnostic event and the related diagnostic information. 12.5 Diagnostic information in FieldCare or DeviceCare 12.5.1 Diagnostic options Any faults detected by the measuring device are displayed on the home page of the operating tool once the connection has been established. Endress+Hauser...
Page 168: Calling Up Remedy Information
Remedy information is provided for every diagnostic event to ensure that problems can be rectified quickly: • On the home page Remedy information is displayed in a separate field below the diagnostics information. • In the Diagnostics menu Remedy information can be called up in the working area of the user interface. Endress+Hauser...
Page 169: Adapting The Diagnostic Information
PROFIBUS PA Profile 3.02 Specification and transmitted along with the measured value to the PROFIBUS Master (Class 1) via the coding byte (byte 5). The coding byte is split into three segments: Quality, Quality Substatus and Limits. Endress+Hauser...
Page 170 Device diagnosis Quality Coding Category (configurable) (fixed assignment) Quality Substatus (hex) (NE107) Maintenance Maintenance Alarm 0x24 to 0x27 alarm (Failure) alarm Maintenance Maintenance Warning GOOD 0xA8 to 0xAB demanded (Maintenance) demanded Logbook entry only GOOD 0x80 to 0x8E – – Endress+Hauser...
Page 171 (configurable) (fixed assignment) Quality Substatus (hex) (NE107) Process Invalid process Alarm 0x28 to 0x2B related (Failure) condition UNCERTA Process Invalid process Warning 0x78 to 0x7B (Out of related condition specification) Logbook entry only GOOD 0x80 to 0x8E – – Endress+Hauser...
Page 172: Overview Of Diagnostic Information
• Electronic temperature Coding (hex) 0x24 to 0x27 • Empty pipe detection • Flow velocity Status signal • Low flow cut off Diagnostic behavior Alarm • Mass flow • Reference density • Corrected volume flow • Temperature • Volume flow Endress+Hauser...
Page 173 • Empty pipe detection Quality substatus Maintenance alarm • Flow velocity • Low flow cut off Coding (hex) 0x24 to 0x27 • Mass flow • Reference density Status signal • Corrected volume flow Diagnostic behavior Alarm • Temperature • Volume flow Endress+Hauser...
Page 174: Diagnostic Of Electronic
• Electronic temperature Coding (hex) 0x24 to 0x27 • Empty pipe detection • Flow velocity Status signal • Low flow cut off Diagnostic behavior Alarm • Mass flow • Reference density • Corrected volume flow • Temperature • Volume flow Endress+Hauser...
Page 175 • Electronic temperature Coding (hex) 0x24 to 0x27 • Empty pipe detection • Flow velocity Status signal • Low flow cut off Diagnostic behavior Alarm • Mass flow • Reference density • Corrected volume flow • Temperature • Volume flow Endress+Hauser...
Page 176 • Electronic temperature Coding (hex) 0x24 to 0x27 • Empty pipe detection • Flow velocity Status signal • Low flow cut off Diagnostic behavior Alarm • Mass flow • Reference density • Corrected volume flow • Temperature • Volume flow Endress+Hauser...
Page 177 • Electronic temperature Coding (hex) 0x24 to 0x27 • Empty pipe detection • Flow velocity Status signal • Low flow cut off Diagnostic behavior Alarm • Mass flow • Reference density • Corrected volume flow • Temperature • Volume flow Endress+Hauser...
Page 178 • Electronic temperature Coding (hex) 0x24 to 0x27 • Empty pipe detection • Flow velocity Status signal • Low flow cut off Diagnostic behavior Warning • Mass flow • Reference density • Corrected volume flow • Temperature • Volume flow Endress+Hauser...
Page 179 • Electronic temperature Coding (hex) 0x24 to 0x27 • Empty pipe detection • Flow velocity Status signal • Low flow cut off Diagnostic behavior Alarm • Mass flow • Reference density • Corrected volume flow • Temperature • Volume flow Endress+Hauser...
Page 180 • Low flow cut off Diagnostic behavior Warning • Mass flow • Reference density • Corrected volume flow • Temperature • Volume flow Diagnostic behavior can be changed. This causes the overall status of the measured variable to change. Endress+Hauser...
Page 181 • Electronic temperature Coding (hex) 0x24 to 0x27 • Empty pipe detection • Flow velocity Status signal • Low flow cut off Diagnostic behavior Alarm • Mass flow • Reference density • Corrected volume flow • Temperature • Volume flow Endress+Hauser...
Page 182: Diagnostic Of Configuration
• Electronic temperature Coding (hex) 0x24 to 0x27 • Empty pipe detection • Flow velocity Status signal • Low flow cut off Diagnostic behavior Warning • Mass flow • Reference density • Corrected volume flow • Temperature • Volume flow Endress+Hauser...
Page 183 • Empty pipe detection Quality substatus Initial value • Flow velocity • Low flow cut off Coding (hex) 0x4C to 0x4F • Mass flow • Reference density Status signal • Corrected volume flow Diagnostic behavior Warning • Temperature • Volume flow Endress+Hauser...
Page 184 • Electronic temperature Coding (hex) 0x68 to 0x6B • Empty pipe detection • Flow velocity Status signal • Low flow cut off Diagnostic behavior Warning • Mass flow • Reference density • Corrected volume flow • Temperature • Volume flow Endress+Hauser...
Page 185 2. Check pulse output settings Measured variable status [from the factory] Quality Good Quality substatus Function check Coding (hex) 0xBC to 0xBF Status signal Diagnostic behavior Warning Diagnostic behavior can be changed. This causes the overall status of the measured variable to change. Endress+Hauser...
Page 186 Diagnostic behavior Alarm Diagnostic information Remedy instructions Influenced measured variables Short text 482 FB not Auto/Cas Set Block in AUTO mode – Measured variable status Quality Good Quality substatus Coding (hex) 0x80 to 0x83 Status signal Diagnostic behavior Alarm Endress+Hauser...
Page 187 Warning Diagnostic information Remedy instructions Influenced measured variables Short text 491 Current output 1 to n simulation Deactivate simulation – Measured variable status Quality Good Quality substatus Function check Coding (hex) 0xBC to 0xBF Status signal Diagnostic behavior Warning Endress+Hauser...
Page 188 0xBC to 0xBF Status signal Diagnostic behavior Warning Diagnostic information Remedy instructions Influenced measured variables Short text 495 Diagnostic event simulation Deactivate simulation – Measured variable status Quality Good Quality substatus Coding (hex) 0x80 to 0x83 Status signal Diagnostic behavior Warning Endress+Hauser...
Page 189 1. Check I/O hardware configuration – 2. Replace wrong I/O module Measured variable status 3. Plug the module of double pulse output on correct slot Quality Quality substatus Function check Coding (hex) 0x3C to 0x3F Status signal Diagnostic behavior Alarm Endress+Hauser...
Page 190 Diagnostic behavior Warning Diagnostic information Remedy instructions Influenced measured variables Short text 594 Relay output simulation Deactivate simulation switch output – Measured variable status Quality Good Quality substatus Function check Coding (hex) 0xBC to 0xBF Status signal Diagnostic behavior Warning Endress+Hauser...
Page 191: Diagnostic Of Process
• Low flow cut off Diagnostic behavior Warning • Mass flow • Reference density • Corrected volume flow • Temperature • Volume flow Diagnostic behavior can be changed. This causes the overall status of the measured variable to change. Endress+Hauser...
Page 192 • Corrected volume flow • Volume flow Quality Uncertain Quality substatus Process related Coding (hex) 0x78 to 0x7B Status signal Diagnostic behavior Warning Diagnostic behavior can be changed. This causes the overall status of the measured variable to change. Endress+Hauser...
Page 193 0x24 to 0x27 • Mass flow • Reference density Status signal • Corrected volume flow Diagnostic behavior Alarm • Temperature • Volume flow Diagnostic behavior can be changed. This causes the overall status of the measured variable to change. Endress+Hauser...
Page 194: Pending Diagnostic Events
Other pending diagnostic events can be displayed in the Diagnostic list submenu →  195 Navigation "Diagnostics" menu  Diagnostics Actual diagnostics →  195 Previous diagnostics →  195 Operating time from restart →  195 Operating time →  195 Endress+Hauser...
Page 195: Diagnostic List
• Via "DeviceCare" operating tool →  168 12.10 Event logbook 12.10.1 Reading out the event logbook A chronological overview of the event messages that have occurred is provided in the Events list submenu. Navigation path Diagnostics menu → Event logbook submenu → Event list Endress+Hauser...
Page 196: 12.10.2 Filtering The Event Logbook
Unlike a diagnostic event, an information event is displayed in the event logbook only and not in the diagnostic list. Info number Info name I1000 --------(Device ok) I1079 Sensor changed I1089 Power on I1090 Configuration reset I1091 Configuration changed Endress+Hauser...
Page 197 Display: login successful I1629 CDI: login successful I1631 Web server access changed I1632 Display: login failed I1633 CDI: login failed I1634 Reset to factory settings I1635 Reset to delivery settings I1636 Fieldbus address reset I1639 Max. switch cycles number reached Endress+Hauser...
Page 198: 12.11 Resetting The Measuring Device
Device tag →  199 →  199 Serial number Firmware version →  199 Device name →  199 Order code →  199 Extended order code 1 →  199 Extended order code 2 →  199 Endress+Hauser...
Page 199 Shows the version of the electronic Character string 2.02.00 nameplate (ENP). PROFIBUS ident number Displays the PROFIBUS identification 0 to FFFF 0x156C number. Status PROFIBUS Master Config Displays the status of the PROFIBUS Master • Active Not active configuration. • Not active Endress+Hauser...
Page 200: 12.13 Firmware History
"Manufacturer' s information" document. The manufacturer' s information is available: • In the Download Area of the Endress+Hauser web site: www.endress.com → Downloads • Specify the following details: –...
Page 201: Maintenance
Replacement seals (accessory part) →  232 13.2 Measuring and test equipment Endress+Hauser offers a wide variety of measuring and test equipment, such as W@M or device tests. Your Endress+Hauser Sales Center can provide detailed information on the services. List of some of the measuring and testing equipment: →  204 13.3...
Page 202: Repairs
• The measuring devices have a modular design. • Spare parts are grouped into logical kits with the associated Installation Instructions. • Repairs are carried out by Endress+Hauser Service or by appropriately trained customers. • Certified devices can only be converted to other certified devices by Endress+Hauser Service or at the factory.
Page 203: Disposal
Ensure that the measuring device and all cavities are free of fluid residues that are hazardous to health or the environment, e.g. substances that have permeated into crevices or diffused through plastic. Observe the following notes during disposal: ‣ Observe valid federal/national regulations. ‣ Ensure proper separation and reuse of the device components. Endress+Hauser...
Page 204: Accessories
Various accessories, which can be ordered with the device or subsequently from Endress +Hauser, are available for the device. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com.
Page 205: For The Sensor
Are used to ground the medium in lined measuring tubes to ensure proper measurement.  For details, see Installation Instructions EA00070D Mounting kit Consists of: • 2 process connections • Screws • Seals Wall mounting kit Wall mounting kit for measuring device (only DN 2 to 25 (1/12 to 1")) Endress+Hauser...
Page 206: Service-Specific Accessories
Accessories Description Applicator Software for selecting and sizing Endress+Hauser measuring devices: • Choice of measuring devices for industrial requirements • Calculation of all the necessary data for identifying the optimum flowmeter: e.g. nominal diameter, pressure loss, flow velocity and accuracy.
Page 207: Technical Data
/min] /min] 1/12 0.06 to 1.8 0.005 0.01 5/32 0.25 to 7 0.025 0.05 Only available for nominal diameters DN 15 to 150 (½ to 6") and with the order code for "Sensor option", option CI: "Medium temperature measurement". Endress+Hauser...
Page 208 0.25 to 8 0.02 0.025 ½ 1 to 27 0.05 2.5 to 80 0.25 1 ½ 7 to 190 0.75 10 to 300 1.25 24 to 800 40 to 1 250 60 to 1 950 90 to 2 650 Endress+Hauser...
Page 209 • Reference density for calculating the corrected volume flow Various pressure transmitters and temperature measuring devices can be ordered from Endress+Hauser: see "Accessories" section →  206 It is recommended to read in external measured values to calculate the corrected volume flow.
Page 210 Proline Promag H 500 PROFIBUS DP Input signal level • Low signal: DC –3 to +5 V • High signal: DC 12 to 30 V Assignable functions • Off • Reset the individual totalizers separately • Reset all totalizers • Flow override Endress+Hauser...
Page 211: Output
Pulse output Maximum input values DC 30 V, 250 mA (passive) Maximum output current 22.5 mA (active) Open-circuit voltage DC 28.8 V (active) Pulse width Adjustable: 0.05 to 2 000 ms Maximum pulse rate 10 000 Impulse/s Pulse value Adjustable Endress+Hauser...
Page 212 • Flow direction monitoring • Status – Empty pipe detection – Low flow Relay output Function Switch output Version Relay output, galvanically isolated Switching behavior Can be set to: • NO (normally open), factory setting • NC (normally closed) Endress+Hauser...
Page 213 • Max. value: 22.5 mA • Freely definable value between: 3.59 to 22.5 mA • Actual value • Last valid value 0 to 20 mA Failure mode Choose from: • Maximum alarm: 22 mA • Freely definable value between: 0 to 20.5 mA Endress+Hauser...
Page 214 Status information Status indicated by various light emitting diodes The following information is displayed depending on the device version: • Supply voltage active • Data transmission active • Device alarm/error has occurred  Diagnostic information via light emitting diodes Endress+Hauser...
Page 215: Power Supply
• Max. 400 mA (24 V) • Max. 200 mA (110 V, 50/60 Hz; 230 V, 50/60 Hz) Power supply failure Depending on the device version, the configuration is retained in the device memoryor in the pluggable data memory (HistoROM DAT). Endress+Hauser...
Page 216: Performance Characteristics
• Optional: ±0.2 % o.r. ± 2 mm/s (0.08 in/s) Fluctuations in the supply voltage do not have any effect within the specified range. 0.5 % 0.2 % 10 [m/s] 32 [ft/s] A0028974  39 Maximum measured error in % o.r. Endress+Hauser...
Page 217: Installation
< 15 s response time Influence of ambient Current output temperature Temperature coefficient Max. 1 μA/°C Pulse/frequency output Temperature coefficient No additional effect. Included in accuracy. 16.7 Installation "Mounting requirements" →  23 16.8 Environment Ambient temperature →  25 range Endress+Hauser...
Page 218 Mechanical load • Protect the transmitter housing against mechanical effects, such as shock or impact. • Never use the transmitter housing as a ladder or climbing aid. Interior cleaning • Cleaning in place (CIP) • Sterilization in place (SIP) Endress+Hauser...
Page 219: Process
Details are provided in the Declaration of Conformity. 16.9 Process Medium temperature range –20 to +150 °C (–4 to +302 °F) [°F] [°C] 40 60 80 100 120 140 160 [°C] [°F] A0027806  40 Promag 500 – digital Ambient temperature range Fluid temperature Endress+Hauser...
Page 220 • No pressure loss occurs as of nominal diameter DN 8 (5/16") if the sensor is installed in a pipe with the same nominal diameter. • Pressure losses for configurations incorporating adapters according to DIN EN 545 →  26 Endress+Hauser...
Page 221: 16.10 Mechanical Construction
ISO/DVGW to DN300, without inlet/outlet runs, constricted meas.tube" System pressure →  25 Vibrations →  26 16.10 Mechanical construction Design, dimensions For the dimensions and installation lengths of the device, see the "Technical Information" document, "Mechanical construction" section. Endress+Hauser...
Page 222 Housing of Proline 500 – digital transmitter Order code for "Transmitter housing": • Option A "Aluminum coated": aluminum, AlSi10Mg, coated • Option D "Polycarbonate": polycarbonate Housing of Proline 500 transmitter Order code for "Transmitter housing": Option A "Aluminum coated": aluminum, AlSi10Mg, coated Endress+Hauser...
Page 223 • Standard cable: PVC cable with copper shield • Reinforced cable: PVC cable with copper shield and additional steel wire braided jacket UV rays can impair the cable outer sheath. Protect the cable from exposure to sun as much as possible. Endress+Hauser...
Page 224 Spacer 1.4435 (F316L) Fitted electrodes • 2 measuring electrodes for signal detection • 1 empty pipe detection electrode for empty pipe detection/temperature measurement (only DN 15 to 150 (½ to 6")) USP Class VI, FDA 21 CFR 177.2600, 3A Endress+Hauser...
Page 225: 16.11 Operability
Two display modules are available: • Order code for "Display; operation", option F "4-line, illuminated, graphic display; touch control" • Order code for "Display; operation", option G "4-line, illuminated, graphic display; touch control + WLAN" Information about WLAN interface →  86 Endress+Hauser...
Page 226 →  85 Supported operating tools Different operating tools can be used for local or remote access to the measuring device. Depending on the operating tool used, access is possible with different operating units and via a variety of interfaces. Endress+Hauser...
Page 227 – Flash firmware version for device firmware upgrade, for instance – Download driver for system integration – Visualize up to 1000 saved measured values (only available with the Extended HistoROM application package →  231) Web server special documentation →  233 Endress+Hauser...
Page 228 FieldCare, DeviceCare or Web server: to duplicate the configuration or to store in an archive (e.g. for backup purposes) • Transmission of the drivers for system integration via Web server, e.g.: GSD for PROFIBUS DP Endress+Hauser...
Page 229: 16.12 Certificates And Approvals
The device meets the legal requirements of the applicable EU Directives. These are listed in the corresponding EU Declaration of Conformity along with the standards applied. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. C-Tick symbol The measuring system meets the EMC requirements of the "Australian Communications...
Page 230 • With the identification PED/G1/x (x = category) on the sensor nameplate, Directive Endress+Hauser confirms conformity with the "Essential Safety Requirements" specified in Appendix I of the Pressure Equipment Directive 2014/68/EU. • Devices not bearing this marking (PED) are designed and manufactured according to good engineering practice.
Page 231: 16.13 Application Packages
The application packages can be ordered with the device or subsequently from Endress+Hauser. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com.
Page 232: 16.14 Accessories
For an overview of the scope of the associated Technical Documentation, refer to the following: • W@M Device Viewer (www.endress.com/deviceviewer): Enter the serial number from nameplate • Endress+Hauser Operations App: Enter the serial number from the nameplate or scan the 2D matrix code (QR code) on the nameplate Standard documentation Brief Operating Instructions...
Page 233 Installation Instructions Contents Comment Installation instructions for spare part sets and accessories • Access the overview of all the available spare part sets via W@MDevice Viewer →  202 • Accessories available for order with Installation Instructions →  204 Endress+Hauser...
Page 234: Index
Electrical connection In the navigation view ..... 70 Connection examples, potential equalization ..54 Endress+Hauser...
Page 235 Installation ......34 Endress+Hauser services Received goods ......16 Maintenance .
Page 236 Sensor ....... . . 19 118, Transmitter ......17 Endress+Hauser...
Page 237 Notes ....... . . 202 Storage conditions ......21 Endress+Hauser...
Page 238 System integration ......91 Current input ......112 Endress+Hauser...
Page 239 Via write protection switch ....146 Write protection switch ..... . 146 Endress+Hauser...
Page 240 www.addresses.endress.com...

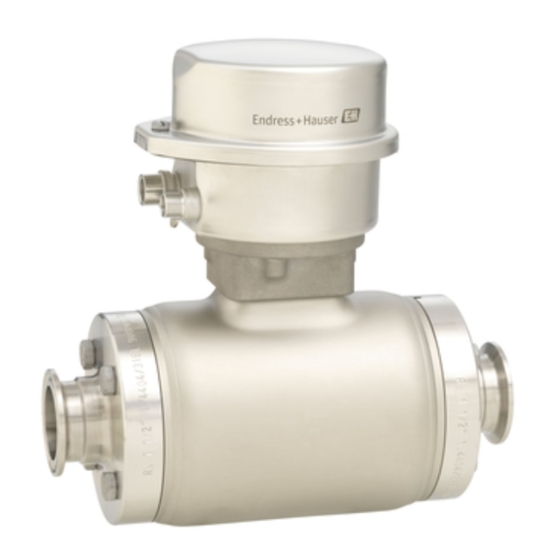

Endress+Hauser Profibus Proline Promag H 500 Operating Instructions Manual

1 About this Document

2 Basic Safety Instructions

3 Product Description

4 Incoming Acceptance and Product

Identification

5 Storage and Transport

6 Installation

7 Electrical Connection

8 Operation Options

9 System Integration

10 Commissioning

11 Operation

12 Diagnostics and Troubleshooting

13 Maintenance

14 Repairs

15 Accessories

16 Technical Data

Index

Quick Links

Related Manuals for Endress+Hauser Profibus Proline Promag H 500

Summary of Contents for Endress+Hauser Profibus Proline Promag H 500
