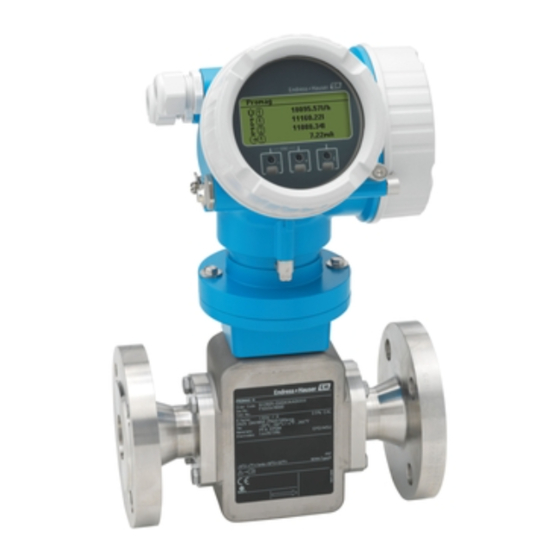

Endress+Hauser Proline Promag H 200 Operating Instructions Manual

Electromagnetic flowmeter
Hide thumbs Also See for Proline Promag H 200:
Table of Contents

Advertisement

Quick Links

Download this manual

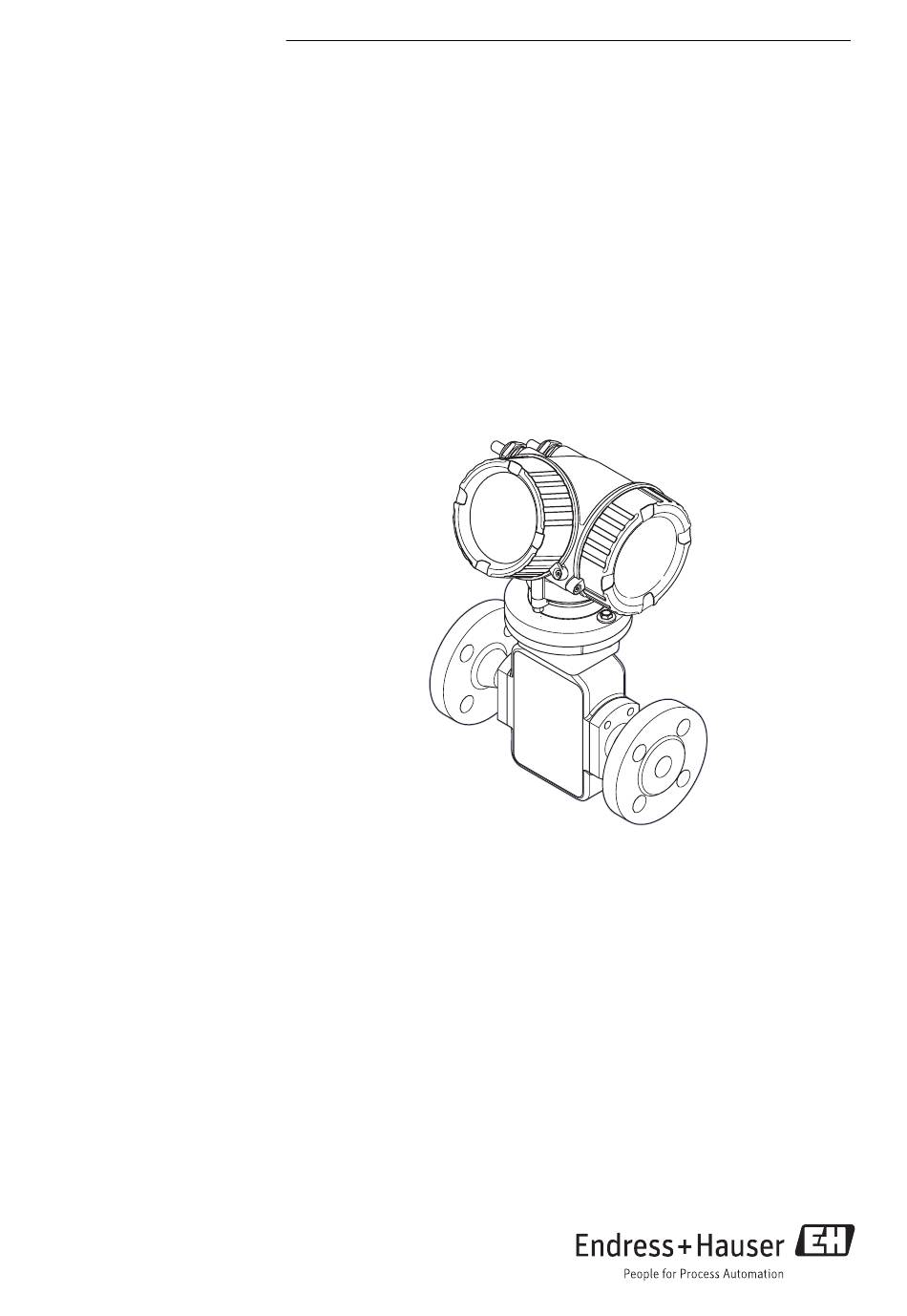

KA01120D/06/EN/02.14
71271651
Products
Brief Operating Instructions
Proline Promag H 200
Electromagnetic flowmeter
These Instructions are Brief Operating Instructions; they are
not a substitute for the Operating Instructions pertaining to
the device.
Detailed information about the device can be found in the
Operating Instructions and the other documentation:
• On the CD-ROM supplied (is not included in the delivery for
all device versions).
• Available for all device versions via:
– Internet:
www.endress.com/deviceviewer
– Smart phone/tablet: Endress+Hauser Operations App
Solutions
Services

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Proline Promag H 200

Summary of Contents for Endress+Hauser Proline Promag H 200

  • Page 1 Detailed information about the device can be found in the Operating Instructions and the other documentation: • On the CD-ROM supplied (is not included in the delivery for all device versions). • Available for all device versions via: – Internet: www.endress.com/deviceviewer – Smart phone/tablet: Endress+Hauser Operations App...
  • Page 2 Proline Promag H 200 Order code 00X00-XXXX0XX0XXX Ser. No.: X000X000000 TAG No.: XXX000 Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 Endress+Hauser...

  • Page 3: Table Of Contents

    Proline Promag H 200 Table of contents Table of contents Document information ............4 Symbols used .

  • Page 4: Document Information

    Document information Proline Promag H 200 Document information Symbols used 1.1.1 Safety symbols Symbol Meaning DANGER! DANGER This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in serious or fatal injury. WARNING! This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in WARNING serious or fatal injury.
  • Page 5 Proline Promag H 200 Document information 1.1.3 Tool symbols Symbol Meaning Flat blade screwdriver Allen key Open-ended wrench 1.1.4 Symbols for certain types of information Symbol Meaning Permitted Indicates procedures, processes or actions that are permitted. Preferred Indicates procedures, processes or actions that are preferred.

  • Page 6: Basic Safety Instructions

    Basic safety instructions Proline Promag H 200 Symbol Meaning Flow direction A0013441 Hazardous area Indicates a hazardous area. A0011187 Safe area (non-hazardous area) Indicates the non-hazardous area. A0011188 Basic safety instructions Requirements for the personnel The personnel must fulfill the following requirements for its tasks: ‣...

  • Page 7: Workplace Safety

    Verification for borderline cases: ‣ For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of fluid-wetted materials, but does not accept any warranty or liability as minute changes in the temperature, concentration or level of contamination in the process can alter the corrosion resistance properties.

  • Page 8: Product Safety

    It meets general safety standards and legal requirements. It also complies with the EC directives listed in the device-specific EC Declaration of Conformity. Endress+Hauser confirms this by affixing the CE mark to the device. IT security We only provide a warranty if the device is installed and used as described in the Operating Instructions.

  • Page 9: Product Description

    Proline Promag H 200 Product description Product description Product design A0014056  1 Important components of a measuring device Electronics compartment cover Display module Main electronics module Cable glands Transmitter housing (incl. integrated HistoROM) I/O electronics module Terminals (spring loaded terminals, pluggable) Connection compartment cover Sensor (incl.

  • Page 10: Incoming Acceptance And Product Identification

    (depends on device version) and documents present? • If one of the conditions is not satisfied, contact your Endress+Hauser Sales Center. • Depending on the device version, the CD-ROM might not be part of the delivery! The Technical Documentation is available via the Internet or via the Endress+Hauser Operations App.

  • Page 11: Product Identification

    • Enter serial numbers from nameplates in W@M Device Viewer (www.endress.com/deviceviewer): All information about the measuring device is displayed. • Enter the serial number from the nameplates into the Endress+Hauser Operations App or scan the 2-D matrix code (QR code) on the nameplate with the Endress+Hauser Operations App: all the information for the measuring device is displayed.
  • Page 12 Storage and transport Proline Promag H 200 A0015604 Do not remove protective covers or caps installed on process connections. They prevent mechanical damage to the sealing surfaces and contamination in the measuring tube. 5.2.1 Measuring devices without lifting lugs WARNING Center of gravity of the measuring device is higher than the suspension points of the webbing slings.

  • Page 13: Installation

    Proline Promag H 200 Installation CAUTION Risk of damaging the magnetic coil ‣ If transporting by forklift, do not lift the sensor by the metal casing. ‣ This would buckle the casing and damage the internal magnetic coils. A0023726 Installation Installation conditions 6.1.1...
  • Page 14 Installation Proline Promag H 200 Installation in down pipes Install a siphon with a vent valve downstream of the sensor in down pipes whose length h ≥ 5 m (16.4 ft). This precaution is to avoid low pressure and the consequent risk of damage to the measuring tube.
  • Page 15 Proline Promag H 200 Installation Vertical A0015591 Optimum for self-emptying pipe systems and for use in conjunction with empty pipe detection. Horizontal A0019602 EPD electrode for empty pipe detection Measuring electrodes for signal detection • The measuring electrode plane must be horizontal. This prevents brief insulation of the two measuring electrodes by entrained air bubbles.
  • Page 16 Installation Proline Promag H 200 For the dimensions and installation lengths of the device, see the "Technical Information" document, "Mechanical construction" section 6.1.2 Requirements from environment and process Ambient temperature range For detailed information on the ambient temperature range, see the Operating Instructions for the device.

  • Page 17: Mounting The Measuring Device

    Proline Promag H 200 Installation Adapters [mbar] 8 m/s 7 m/s 6 m/s 5 m/s 4 m/s max. 8° 3 m/s 2 m/s 1 m/s d / D A0016359 6.1.3 Special mounting instructions Display protection ‣ To ensure that the optional display protection can be easily opened, maintain the following minimum head clearance: 350 mm (13.8 in)
  • Page 18 The sensor may need to be supported or additionally secured depending on the application and pipe length. In particular, it is absolutely essential to secure the sensor additionally if plastic process connections are used. An appropriate wall mounting kit can be ordered separately as an accessory from Endress+Hauser . Endress+Hauser...
  • Page 19 Proline Promag H 200 Installation DN 2…25 (1/12…1 ) " A0018782  5 Process connection seals Process connections with O-ring seal Process connections with aseptic gasket seal Welding the sensor into the pipe (welding connections) WARNING Risk of destroying the electronics! ‣...
  • Page 20 • Grounding rings can be ordered separately as an accessory from Endress+Hauser . When ordering make sure that the grounding rings are compatible with the material...
  • Page 21 Proline Promag H 200 Installation A0002651  6 Installing grounding rings Hexagonal-headed bolts of process connection O-ring seals Grounding ring or plastic disk (spacer) Sensor Release the 4 or 6 hexagonal-headed bolts (1) and remove the process connection from the sensor (4).

  • Page 22: Post-Installation Check

    Installation Proline Promag H 200 max. 350° 8 mm 8 mm A0013713 6.2.5 Turning the display module The display module can be turned to optimize display readability and operability. 3 mm A0013905 Post-installation check Is the device undamaged (visual inspection)? ...
  • Page 23 Proline Promag H 200 Installation Is the device adequately protected from precipitation and direct sunlight?  Have the fixing screws been tightened with the correct tightening torque?  Endress+Hauser...

  • Page 24: Electrical Connection

    Electrical connection Proline Promag H 200 Electrical connection Connection conditions 7.1.1 Required tools • For cable entries: Use corresponding tools • For securing clamp: Allen key 3 mm • Wire stripper • When using stranded cables: Crimping tool for wire end ferrule •...
  • Page 25 Proline Promag H 200 Electrical connection Transmitter A0018179 4-20 mA HART connection version with additional outputs, without integrated overvoltage protection 1.1 Output 1 (passive): 4-20 mA HART 1.2 Output 2 (passive): no assignment, pulse/frequency/switch output or 4-20 mA 1.3 Ground terminal for cable shield 4-20 mA HART connection version with additional outputs, with integrated overvoltage protection 2.1 Output 1 (passive): 4-20 mA HART...
  • Page 26 Electrical connection Proline Promag H 200 Calculation of the maximum load Depending on the supply voltage of the power supply unit (U ), the maximum load (R including line resistance must be observed to ensure adequate terminal voltage at the device.

  • Page 27: Connecting The Measuring Device

    Proline Promag H 200 Electrical connection Connecting the measuring device NOTICE Limitation of electrical safety due to incorrect connection! ‣ For use in potentially explosive atmospheres, observe the information in the device-specific Ex documentation. 7.2.1 Connecting the transmitter 3 mm 20 mm 10 (0.4)
  • Page 28 Electrical connection Proline Promag H 200 Removing a cable 3 (0.12) mm (in) A0013835 7.2.2 Ensuring potential equalization CAUTION Electrode damage can result in the complete failure of the device! ‣ Make sure that the fluid and sensor have the same electrical potential.
  • Page 29 • Ground rings can be ordered separately from Endress+Hauser as accessories. When placing the order, make certain that the ground rings are compatible with the material used for the electrodes.

  • Page 30: Ensuring The Degree Of Protection

    Electrical connection Proline Promag H 200 Potential equalization via ground electrodes on process connection A0017293 Allen screw (process connection) Integrated ground electrodes O-ring seal Sensor Ensuring the degree of protection The measuring device fulfills all the requirements for the IP66/67 degree of protection, Type 4X enclosure.

  • Page 31: Post-Connection Check

    Proline Promag H 200 Electrical connection  A0013960 Insert dummy plugs into unused cable entries. Post-connection check Are cables or the device undamaged (visual inspection)?  Do the cables comply with the requirements (→  24)?  Do the cables have adequate strain relief? ...

  • Page 32: Operation Options

    Operation options Proline Promag H 200 Operation options Structure and function of the operating menu 8.1.1 Structure of the operating menu Operating menu for operators and maintenances Language Display/operat. Setup Diagnostics Operating menu for experts Expert A0014058-EN 8.1.2 Operating philosophy The individual parts of the operating menu are assigned to certain user roles.

  • Page 33: Access To The Operating Menu Via The Local Display

    Proline Promag H 200 Operation options Access to the operating menu via the local display X X X X X X 19.184 mA 12.5 X X X X X X Language à 20.50 English Deutsch Español Français User ABC_ DEFG...
  • Page 34 Operation options Proline Promag H 200 8.2.1 Operational display Status area Status signals A0013956 A0013959 A0013958 A0013957 Failure Function check Out of specification Maintenance required Diagnostic behavior Locking Communication A0013961 A0013962 A0013965 A0013963 Alarm Warning Device locked Remote operation enabled...
  • Page 35 Proline Promag H 200 Operation options 8.2.2 Navigation view Status area The following appears in the status area of the navigation view in the top right corner: • Of the submenu – The direct access code for the parameter you are navigating to (e.g. 0022-1) –...
  • Page 36 Operation options Proline Promag H 200 Correction symbols under A0013990 A0013991 A0013989 A0013988 Clears all entered characters. Moves the input position Moves the input position Deletes one character one position to the left. one position to the right. immediately to the left of the input position.
  • Page 37 Proline Promag H 200 Operation options Meaning Escape key combination (press keys simultaneously) In a menu, submenu • Pressing the key briefly: – Exits the current menu level and takes you to the next higher level. – If help text is open, closes the help text of the parameter.
  • Page 38 Operation options Proline Promag H 200 Access authorization to parameters User role Read access Write access Without access code With access code Without access code With access code (from the factory) (from the factory) Operator    Maintenance ...

  • Page 39: Access To The Operating Menu Via The Operating Tool

    Proline Promag H 200 Operation options A0016215-EN Access to the operating menu via the operating tool For detailed information about access to the operating menu via operating tool, refer to the Operating Instructions for the device on the CD-ROM provided 8.3.1...

  • Page 40: System Integration

    Proline Promag H 200 8.3.2 Via service interface (CDI) A0014019 Service interface (CDI = Endress+Hauser Common Data Interface) of the measuring device Commubox FXA291 Computer with "FieldCare" operating tool with COM DTM "CDI Communication FXA291" System integration For system integration: See Operating Instructions for the device on the CD-ROM provided.

  • Page 41: Switching On The Measuring Device

    Proline Promag H 200 Commissioning 10.2 Switching on the measuring device After a successful function check, switch on the measuring device. After a successful startup, the local display switches automatically from the startup display to the operational display. If nothing appears on the local display or a diagnostic message is displayed, refer to the device' s operating instructions which can be found on the CD-ROM supplied with the device.

  • Page 42: Defining The Tag Name

    Commissioning Proline Promag H 200 Wizard Meaning Current output 1 Configuring output 1 Pulse/frequency/switch output Configuring the selected output type Display Configuring the measured value display Output conditioning Defining the output conditioning Low flow cut off Configuring the low flow cut off 10.5...
  • Page 43 Proline Promag H 200 Commissioning Defining the access code via local display Navigate to the Define access code parameter. Define a max. 4-digit numeric code as an access code. Enter the access code again to confirm the code.  The -symbol appears in front of all write-protected parameters.

  • Page 44: Diagnostic Information

    Diagnostic information Proline Promag H 200 Loosen the securing clamp. Unscrew the electronics compartment cover. Pull out the display module with a gentle rotational movement. To make it easier to access the lock switch, attach the display module to the edge of the electronics compartment.
  • Page 45 Proline Promag H 200 Diagnostic information X X X X X X X X X X X X X X 20.50 S441 Curr. output 1 Curr. output 1 (ID:153) S441 2d11h05m55s 1. Check process 2. Check current output settings A0013940-EN ...
  • Page 48 www.addresses.endress.com...
