How To Open Pwb Box/1 - Olivetti d-Color MF651 Service Manual

Field Service Ver. 2.0 Jul. 2009
[2]
5.5.54

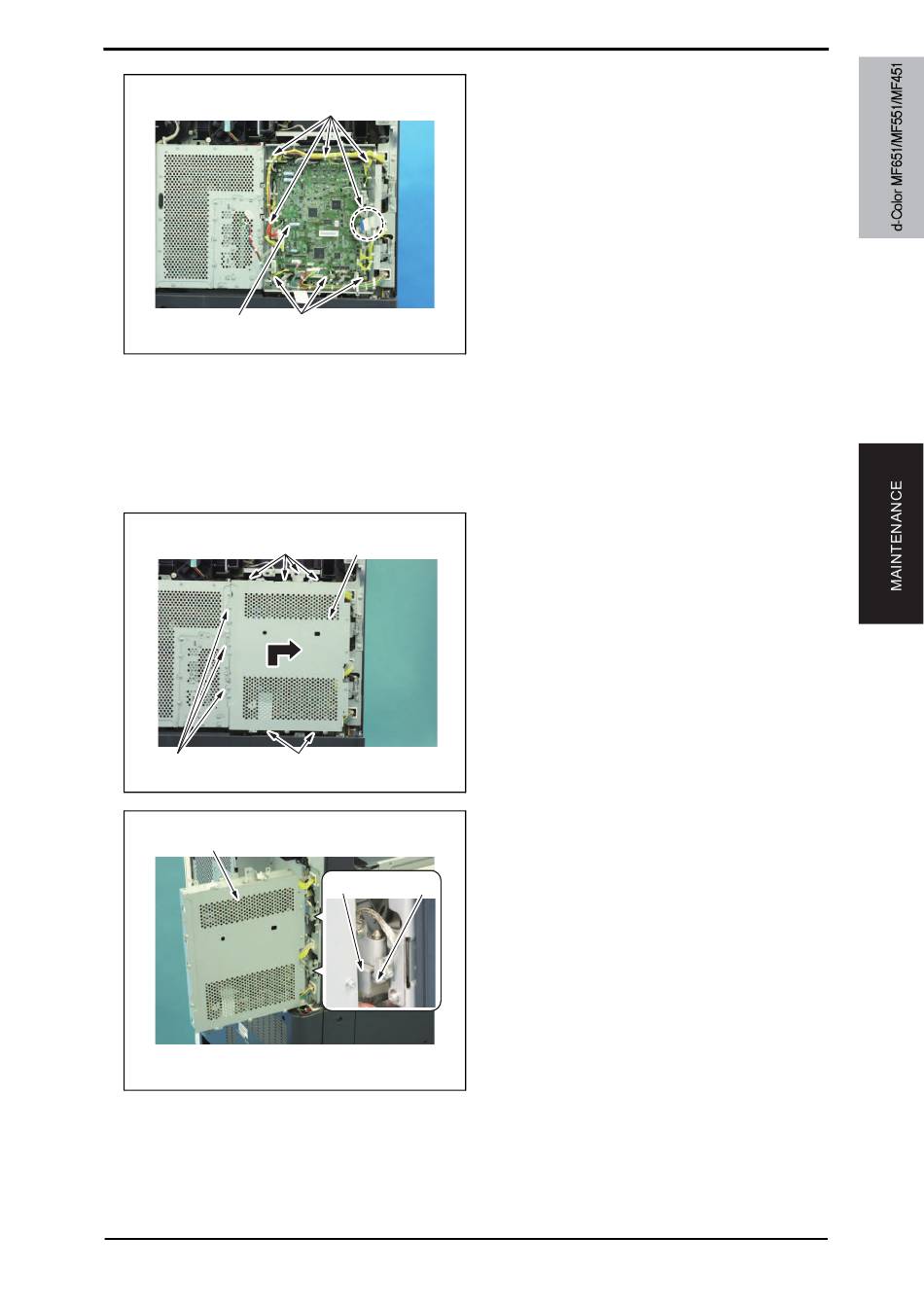

How to open PWB box/1

1. Remove the upper rear cover /2.
See P.92
2. Remove the rear right cover /1.
See P.91
[1]
[1]
[1]
Y110571-1
[1]
[1]
A0P0F2C118DA
[2]
[1]
A0P0F2C119DA
[2]
[3]
A0P0F2C120DA
Service Manual
5. OTHER MAINTENANCE ITEMS
5. Remove eight screws [1], and
remove the printer control board [2].
6. To reinstall, reverse the order of
removal.
NOTE
• When the printer control board is to
be replaced, rewriting the firmware
to the latest one.
3. Remove nine screws [1], and move
the PWB box/1 [2] up to remove it.
4. Open the PWB box/1 [1] to the direc-
tion shown on the left and set two fin-
gers [2] to the hook [3] on the frame
of the main unit.
