Alerts Panel

3WXM U I
SER NTERFACE
To expand the view of an object in the tree, click on the plus sign next to
the object. For example, to display the buildings in a site, click on the plus
sign next to the site name. To display the floors in the building, click next
to the building name, and so on.

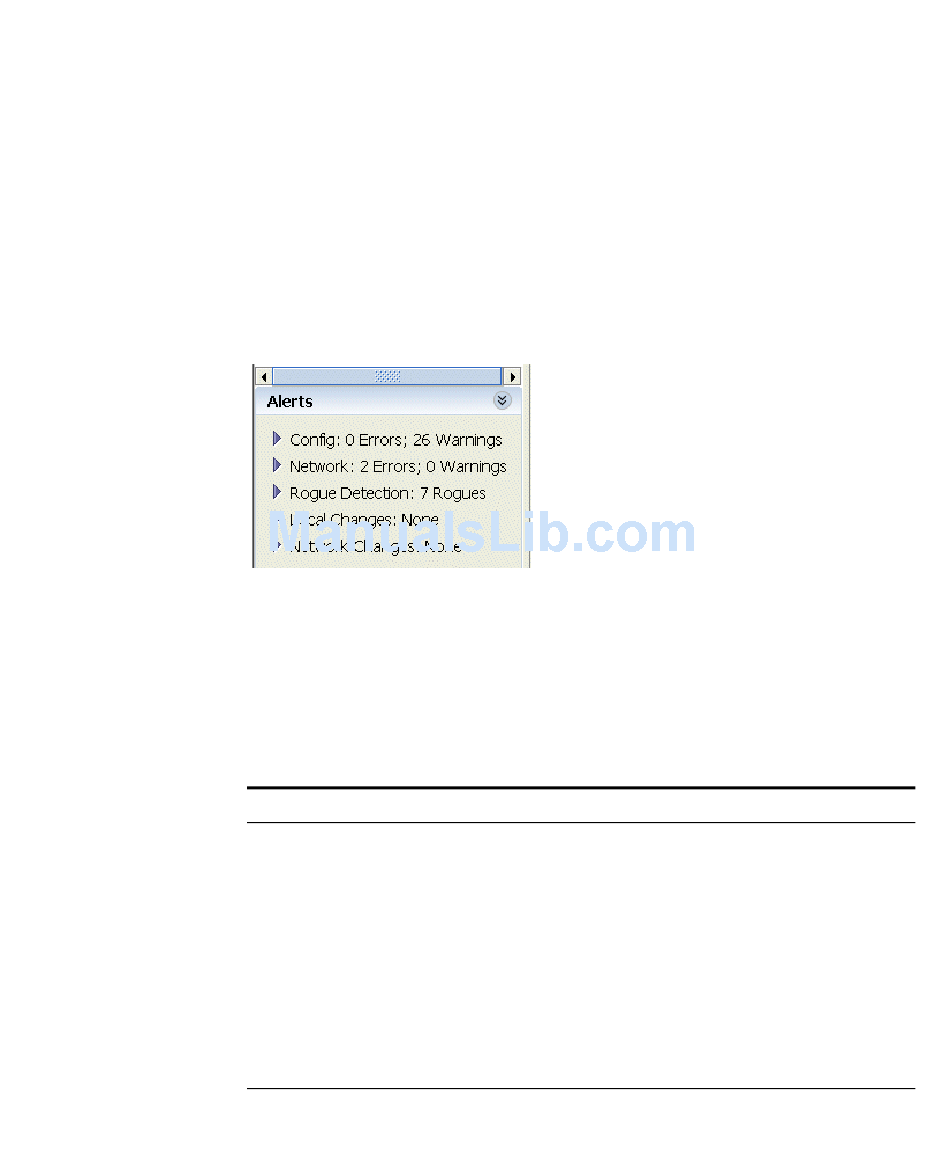

The Alerts panel displays summary statistics for configuration changes or
errors and for rogue devices. Click on a statistic to open the related tab in
the Content panel. The Alerts panel is located on the left side of the main
window, below the Content panel.
To navigate to more information and correct the warning or error, click
on the arrow to expand the panel, then click on the statistic to open the
corresponding tab in the Content panel.
Table 6 lists the types of alerts displayed in the Alerts panel.
Table 6 Alerts
Alert Category Description
Configuration Lists the number of configuration errors and warnings
encountered when 3WXM verifies WX switch configurations in
the network plan.
3WXM compares a switch's configuration to a set of
configuration rules, and flags the items that must (error) or
should (warning) be corrected before deploying the switch
configuration from the network plan to the live network.
Select this alert to open the Config Verification tab in the
Content panel. You can use this tab to correct configuration
errors or disable rules.
(See "Verifying Configuration Changes" on page 365.)
