To compute and place MAPs
1 Display the floor plan in the Content panel.
2 In the Task List panel, click RF Planning.

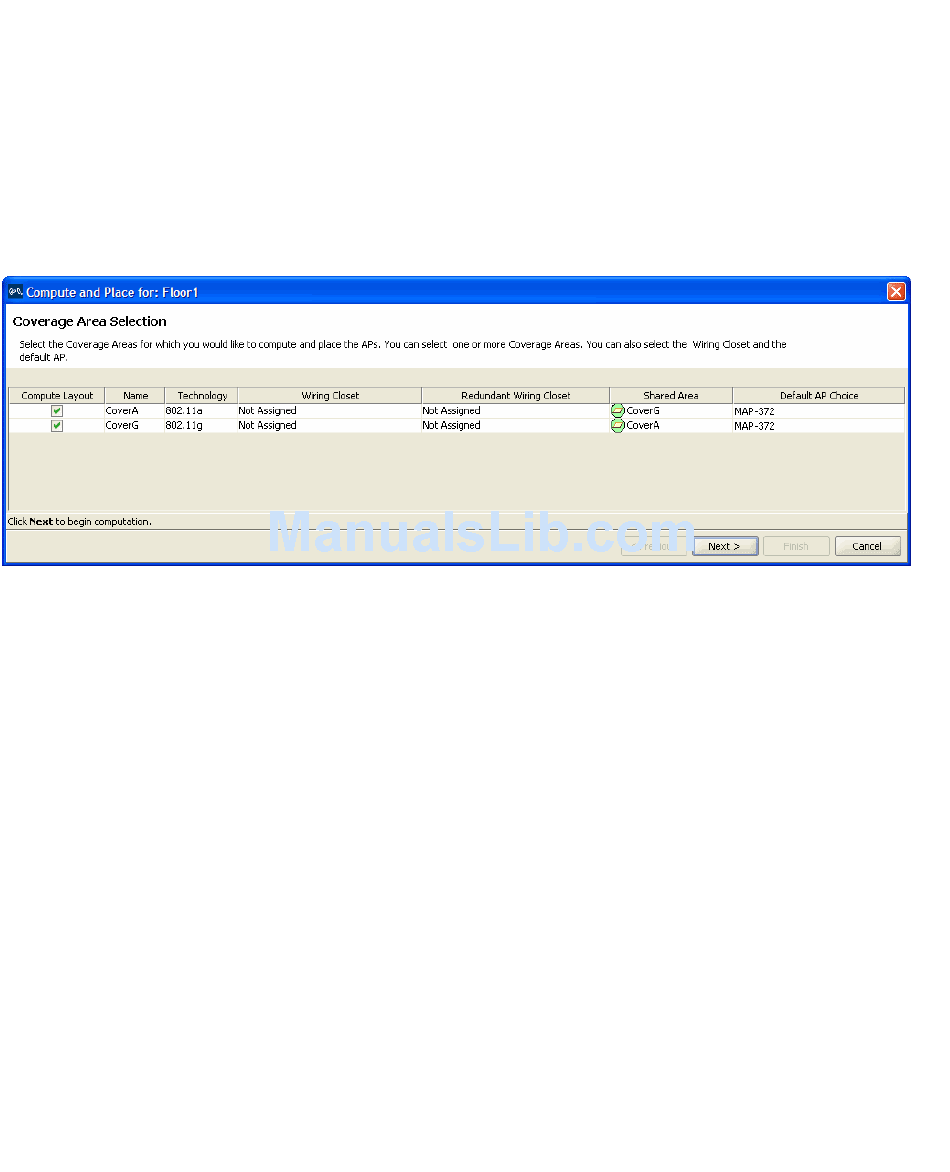

3 Under RF Planning, click Compute and Place. The Compute and Place
wizard appears.
4 To remove a coverage area from MAP placement and computation, clear
the area's Compute Layout box.
5 To specify the primary wiring closet for a coverage area, click in the
Wiring Closet column to display the wiring closet list and select a wiring
closet from the list.
You must specify the primary wiring closet for directly attached MAP
access points. Specifying the primary wiring closet for distributed MAPs is
optional.
6 To specify the redundant wiring closet for a coverage area, click in the
Redundant Wiring Closet column to display the wiring closet list and
select a wiring closet from the list. This step is optional.
7 To specify the shared area for a coverage area, click in the Shared Area
column to display the shared area list and select a coverage area from the
list. This step is optional.
8 To specify the default AP to be used in a coverage area, click in the
Default AP Choice column to display a list of APs and select an AP from
the list. This step is optional.
9 Click Next. The Coverage Area Progress page appears.
