456 C 16: M N
HAPTER ONITORING THE ETWORK
Viewing Data in Percentages
To see a set of objects in a particular category of data as percentages in a
pie chart, click the Percent tab. Data for the pie chart is captured when
you click the tab and is based on the polling interval you selected.
To see details for percentage-based performance data You can
see percentage data for the objects in the selected scope. For example, if
you selected a Mobility Domain as the scope, you can see percentage
data for the Mobility Domain, WX switches in the Mobility Domain, or
WX ports.
To see the objects available in the scope, click the button next to Select
Detail (the button text depends on what scope you selected), and select
the object whose percentage data you want to see.

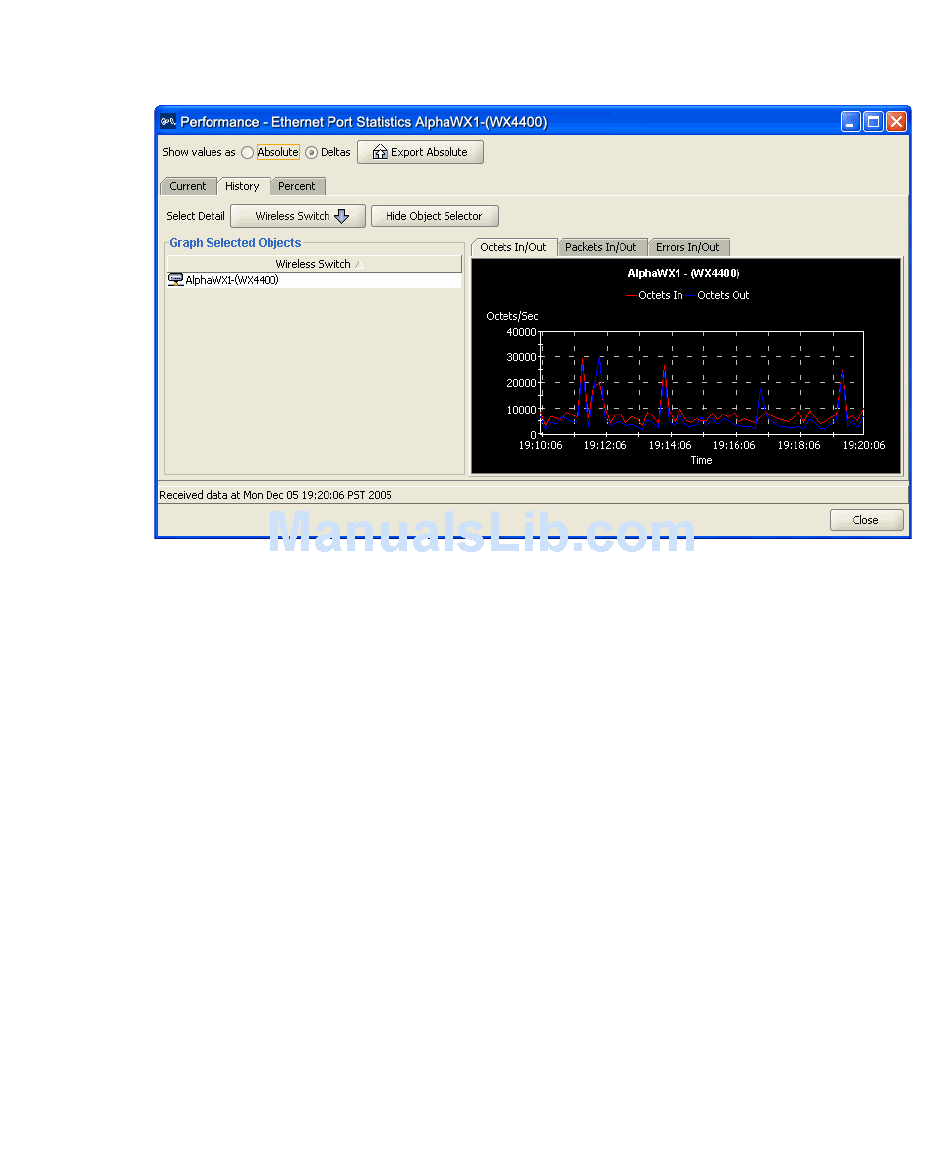

To hide the list of objects that you can graph, click Hide Object
Selector. Doing this allows you to see the graph in the full width of the
Statistics tab.
The following figure shows the delta values for Octets In and Octets Out
for the entire Mobility Domain as percentages in a pie chart.
