Taking RF
Measurements
N
ETWORK

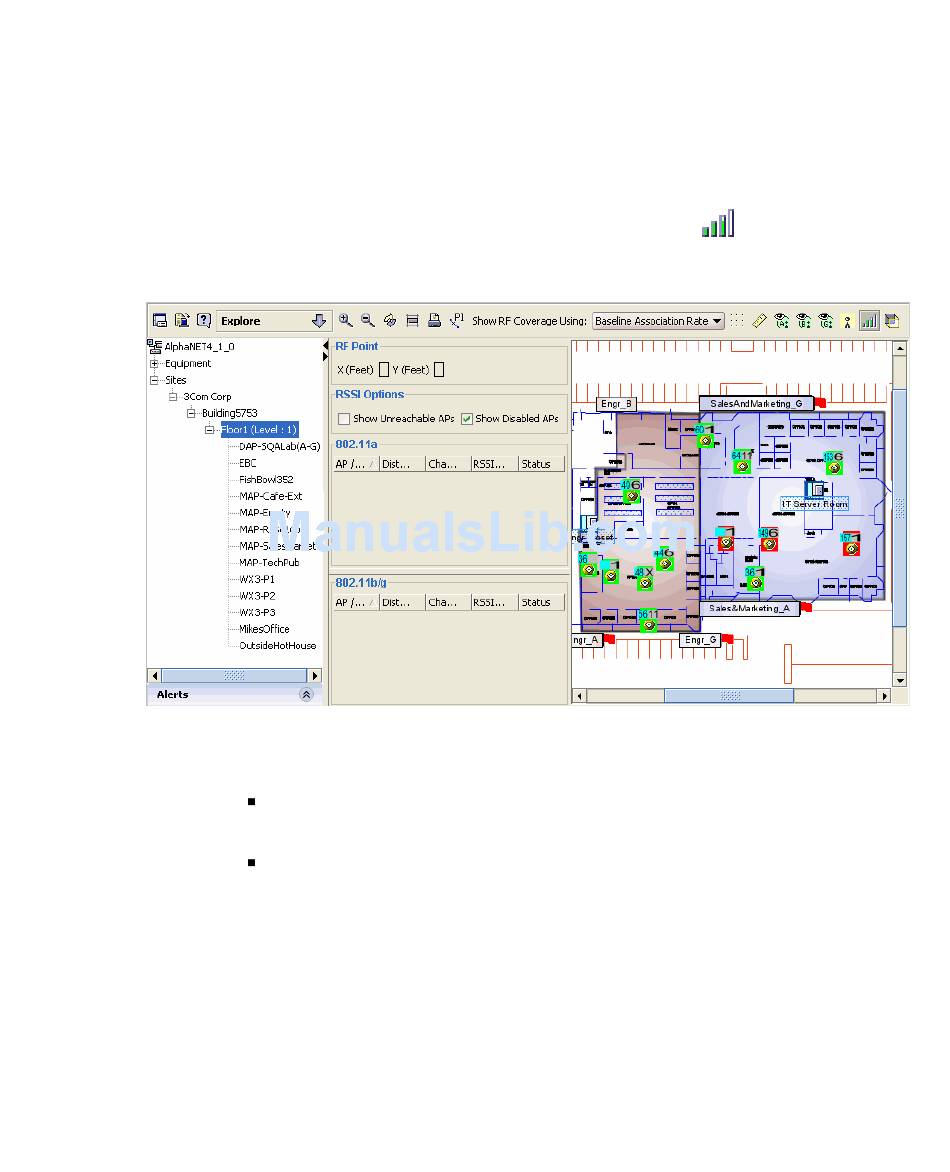

In the floor plan display, you can take an RF measurement at any point on
the floor plan. An RF measurement point indicates the RSSI value for each
3Com radio on the floor.
To take an RF measurement
1 In the floor plan display of the Explore view, click
toolbar. RF measurement options appear on the left.
2 In the RSSI Options box, select display options for the dialog box:
To list access points that cannot be detected from this RF
measurement point, select Show Unreachable MAPs.
To list disabled access points, select Show Disabled MAPs.
3 Click on a spot on the floor plan. RF measurements for that spot appear.
A triangle is also displayed where you clicked.
on the window's
