2 1

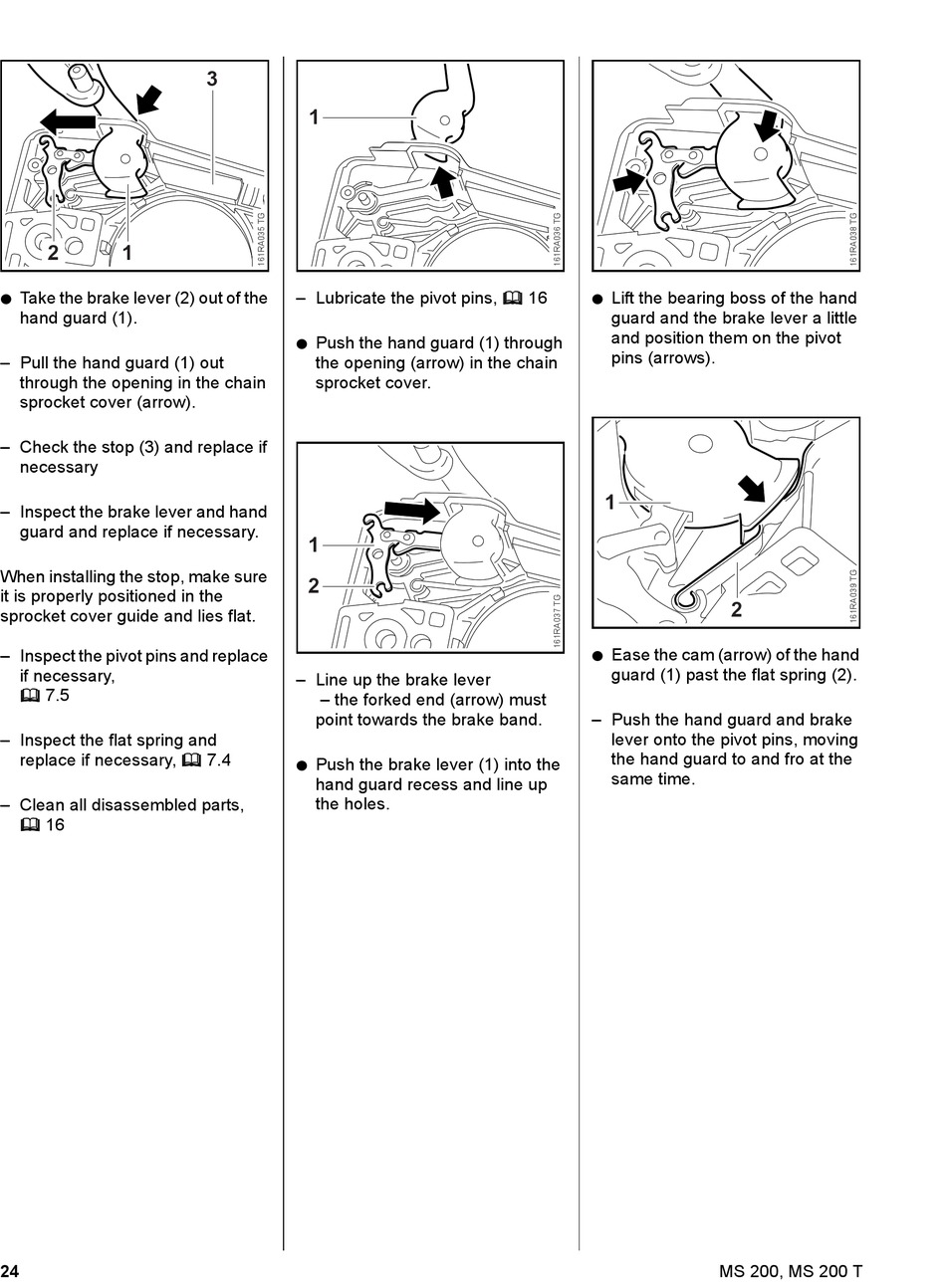

: Take the brake lever (2) out of the
hand guard (1).
– Pull the hand guard (1) out
through the opening in the chain
sprocket cover (arrow).
– Check the stop (3) and replace if
necessary
– Inspect the brake lever and hand
guard and replace if necessary.
When installing the stop, make sure
it is properly positioned in the
sprocket cover guide and lies flat.
– Inspect the pivot pins and replace
if necessary,
b 7.5
– Inspect the flat spring and
replace if necessary, b 7.4
– Clean all disassembled parts,
b 16
24
3
1
– Lubricate the pivot pins, b 16
: Push the hand guard (1) through
the opening (arrow) in the chain
sprocket cover.
1
2
– Line up the brake lever
– the forked end (arrow) must
point towards the brake band.
: Push the brake lever (1) into the
hand guard recess and line up
the holes.
: Lift the bearing boss of the hand
guard and the brake lever a little
and position them on the pivot
pins (arrows).
1
2
: Ease the cam (arrow) of the hand
guard (1) past the flat spring (2).
– Push the hand guard and brake
lever onto the pivot pins, moving
the hand guard to and fro at the
same time.
MS 200, MS 200 T
