Table 11: Components of the Topology for Configuring MSTP on EX Series Switches

Property
Switch 1
Switch 2
Copyright © 2017, Juniper Networks, Inc.

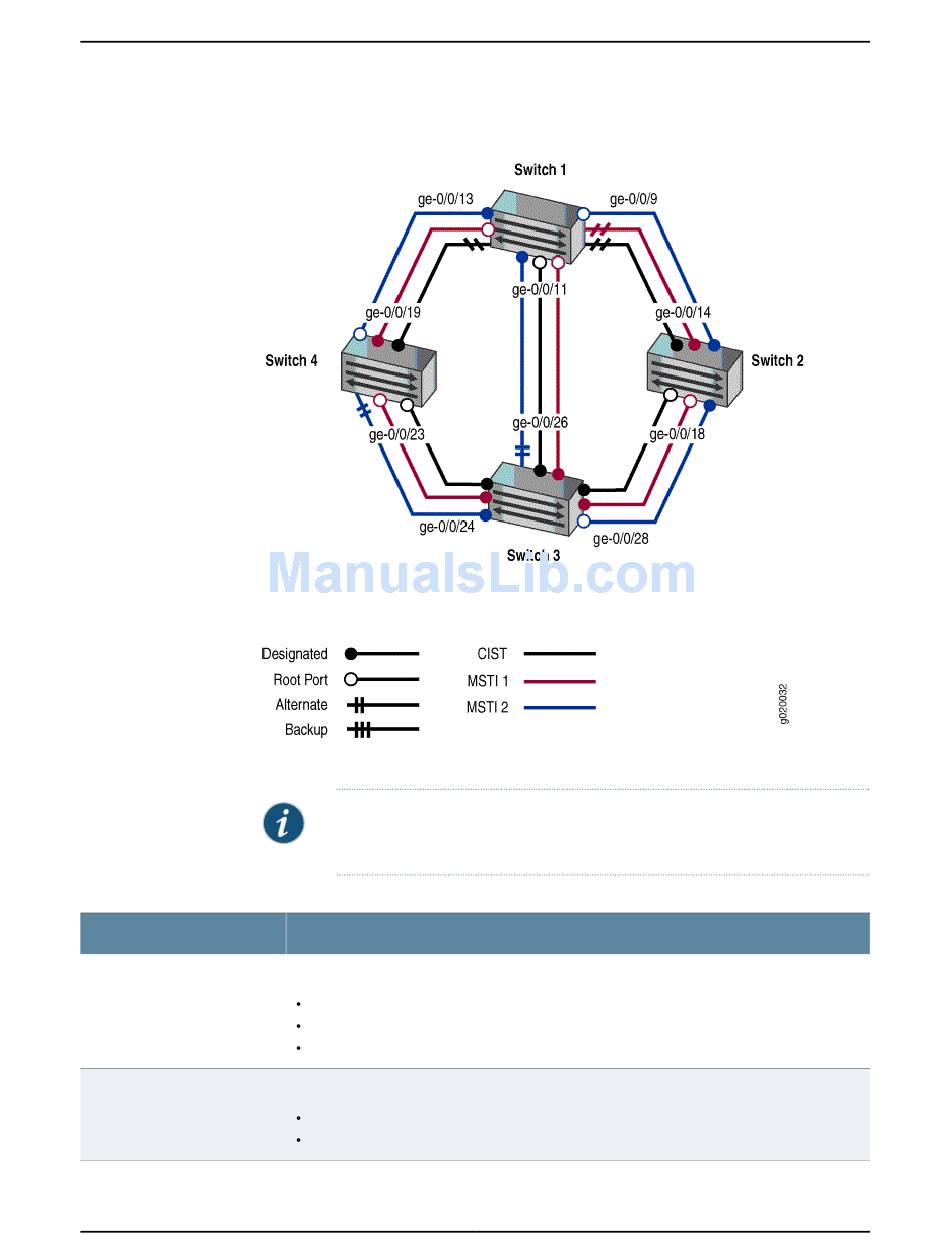

Figure 2: Network Topology for MSTP

The interfaces shown in Figure 2 on page 83
NOTE: You can configure MSTP only on physical interfaces, not on logical
interfaces.
Settings
The following interfaces on Switch 1 are connected in this way:
ge-0/0/9 is connected to Switch 2
is connected to Switch 4
ge-0/0/13
is connected to Switch 3
ge-0/0/11
The following interfaces on Switch 2 are connected in this way:
ge-0/0/14 is connected to Switch 1
is connected to Switch 3
ge-0/0/18
Chapter 4: Using MSTP
will be configured for MSTP.
