Focusing The Camera - Cisco TelePresence System 1100 Assembly Manual

Setting Up the Camera

Focusing the Camera

When you focus a TelePresence system, you focus within a range of distances. The ranges are
represented by small and large targets that you place in front of the camera.
To focus the camera, complete the following steps.
In the Cisco TelePresence administrative GUI, click the Center radio button.
Step 1
Click the Setup button that is located below the center screen icon.
Step 2
Click Show Focus Targets.
Step 3
Red and green outline boxes display on the screen, and red and green horizontal bars display on the
bottom of the screen. The horizontal bars indicate the sharpness of focus in the boxes that use the
corresponding color. Longer bars indicate a sharper focus.
Position the small camera target by completing the following steps:
Step 4
a.
b.
Position the large target by completing the following steps:
Step 5
a.
b.
c.
Note
d.
e.

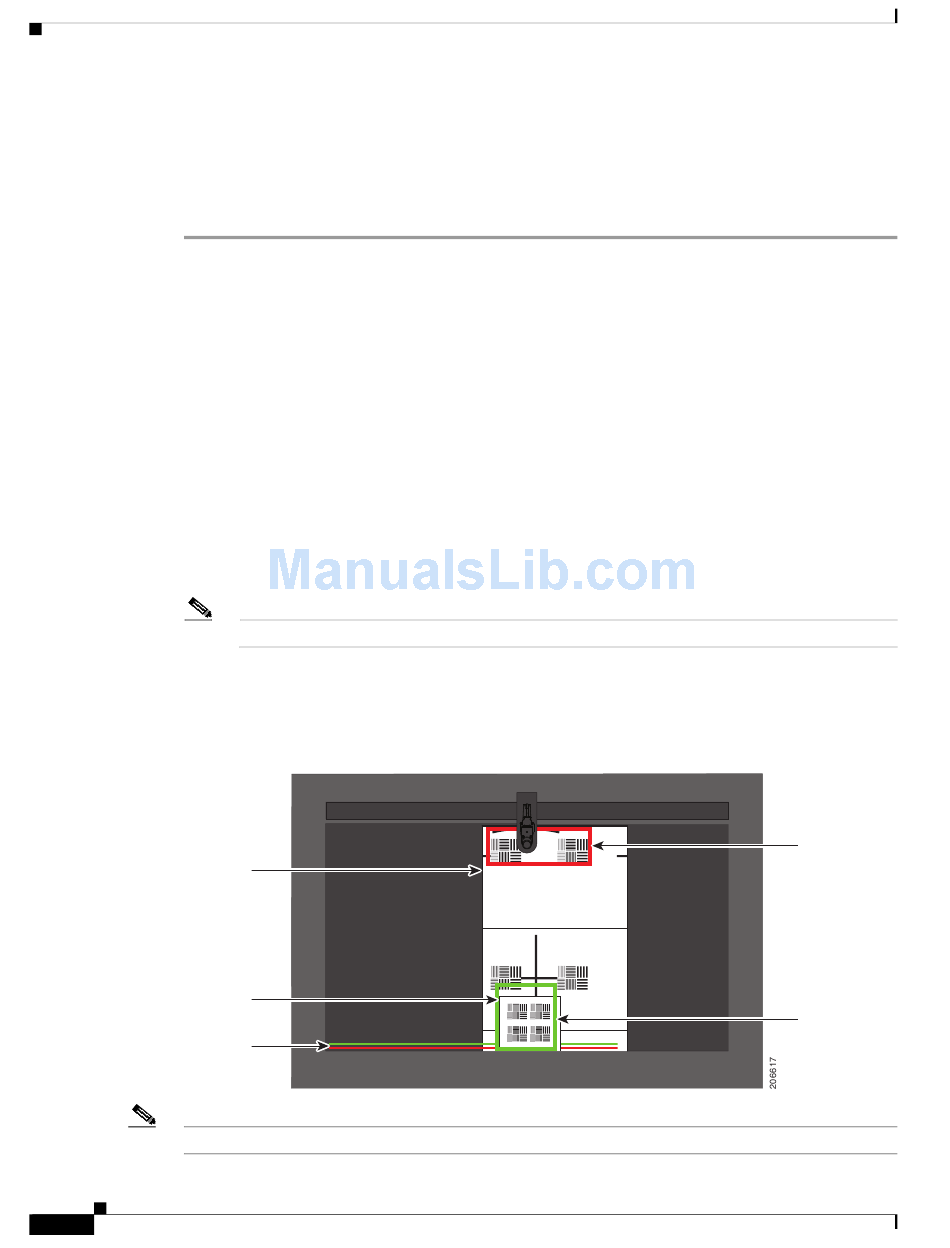

Figure 4-17 Positioning the Small and Large Targets
Large
target
Small
target
Red and green
horizontal bars
Note
Cisco TelePresence System 1100 Assembly, First-Time Setup, and Field Replaceable Unit Guide
4-24
Place the target on the table approximately one foot (30 cm) from the edge where the participants sit.
Move the target on the table so that all of the patterns on the target are enclosed in the green box.
Remove the large focus target from the easel.
Rotate the target 90 degrees.
Have another person hold the target upright.
If another person is not available, clamp the top of the target into the clamp at the top of the easel.
Place the top of the easel five feet (1.5 meters) behind the top of the small target.
Position the target so that the top two patterns are enclosed in the red box.
Chapter 4 First-Time Setup
Red
rectangle
Green
rectangle
