Omron F3SJ-A series User Manual page 48

System Configuration and Functions

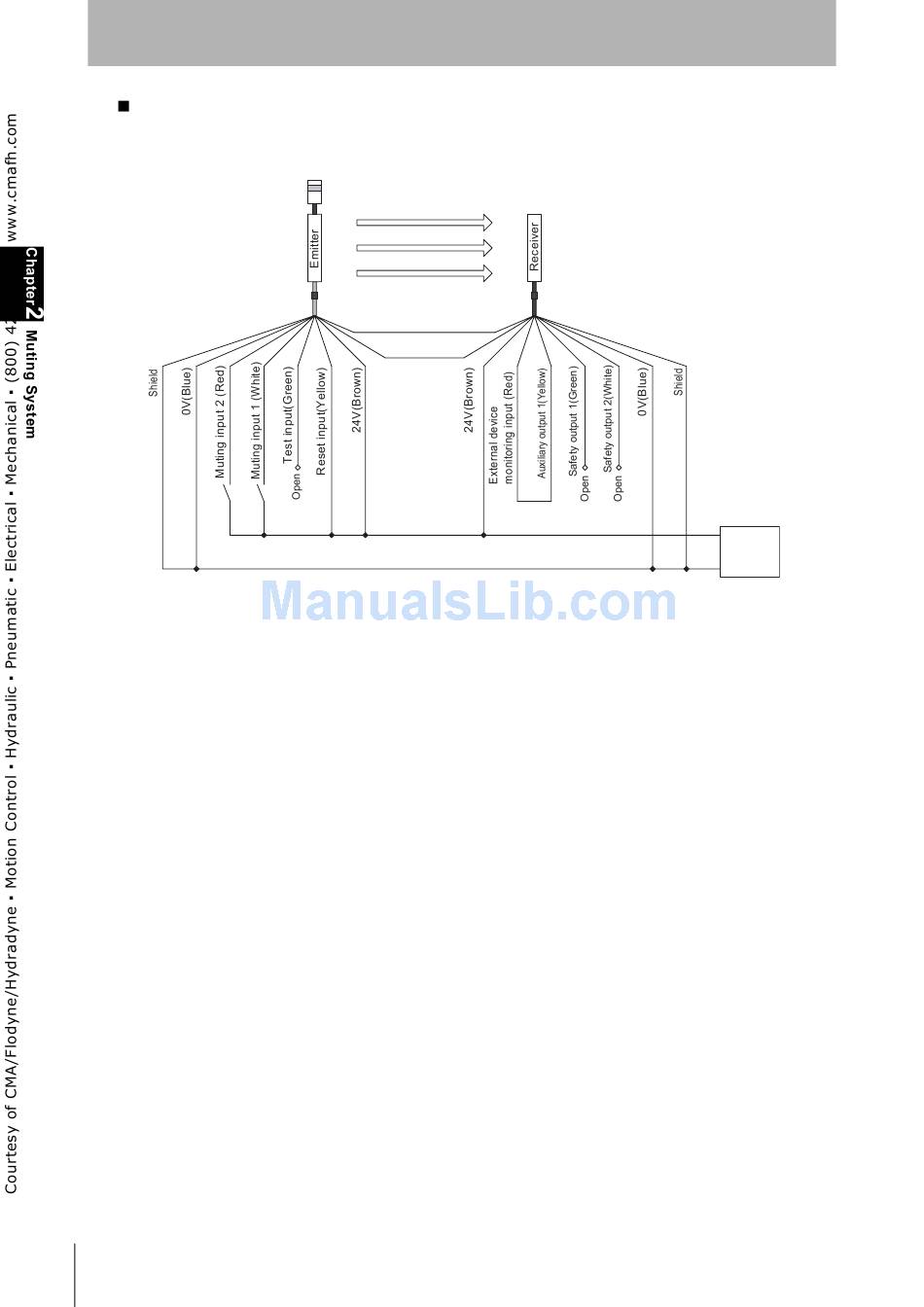

Ref.: Minimum Wiring Required to Check the Operation of the F3SJ When Using the
Muting Function
(Wiring that does not use the external device monitoring function)
A1
B1
M1
*1 When the muting function's operation check is not performed, it can work if this is open.
*2 Connect either the emitter or receiver to the muting lamp.
F3SJ-A
30
User's Manual
M1 *1 *2
(Grey) Communication line (+)
(Pink) Communication line (-)
B1 A1
*1 * 1
: Contact by muting sensor A1
: Contact by muting sensor B1
: Muting lamp
+24V DC
Power
supply
0V
