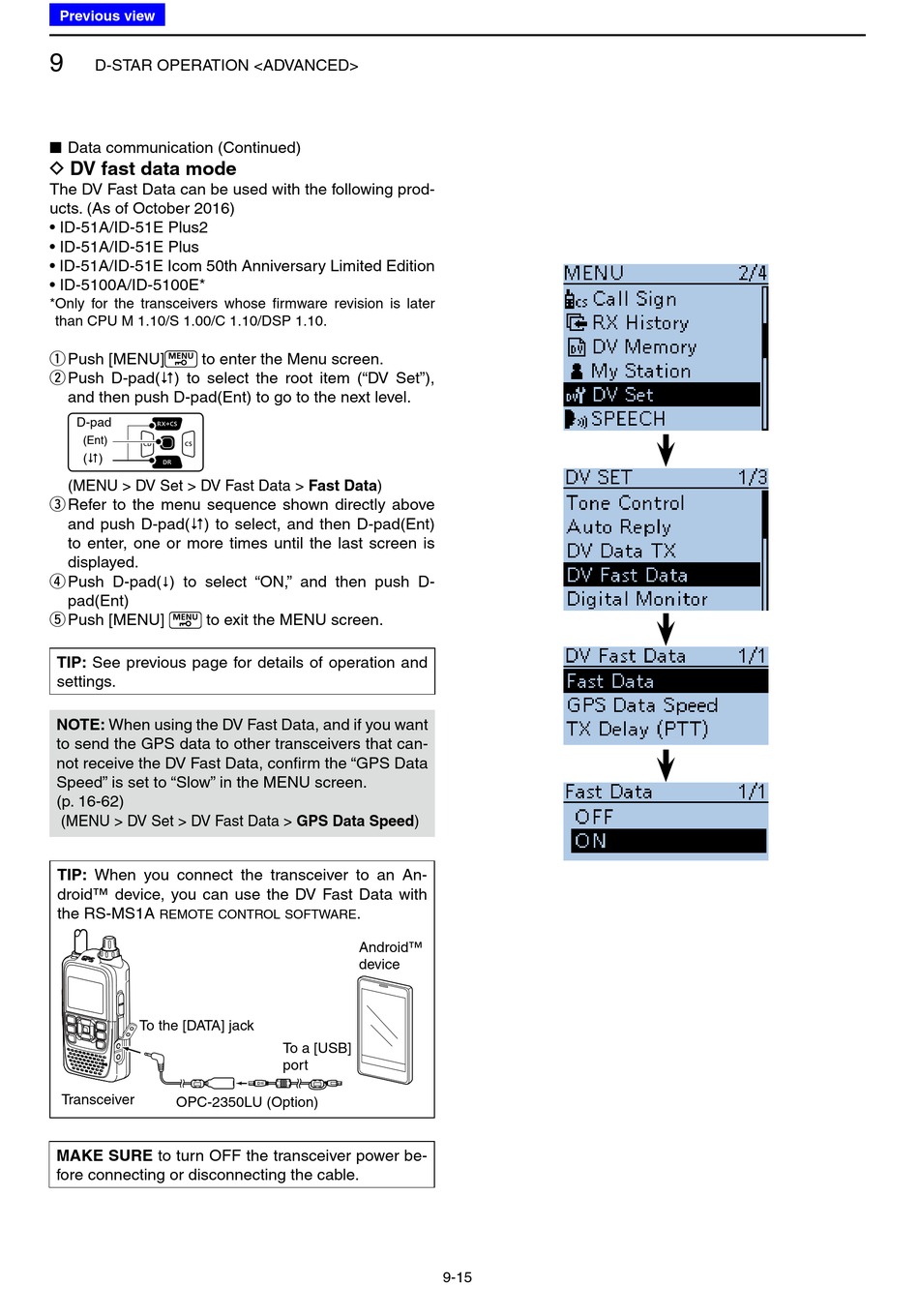

D Dv Fast Data Mode - Icom ID-51A Advanced Manual

Previous view
9
D-STAR OPERATION <ADVANCED>
■ Data communication (Continued)

D DV fast data mode

The DV Fast Data can be used with the following prod-
ucts. (As of October 2016)
• ID-51A/ID-51E Plus2
• ID-51A/ID-51E Plus
• ID-51A/ID-51E Icom 50th Anniversary Limited Edition
• ID-5100A/ID-5100E*
* Only for the transceivers whose firmware revision is later
than CPU M 1.10/S 1.00/C 1.10/DSP 1.10.
q Push [MENU] to enter the Menu screen.
w Push D-pad() to select the root item ("DV Set"),
and then push D-pad(Ent) to go to the next level.
D-pad
(Ent)
( )
( MENU > DV Set > DV Fast Data > Fast Data)
e Refer to the menu sequence shown directly above
and push D-pad() to select, and then D-pad(Ent)
to enter, one or more times until the last screen is
displayed.
r Push D-pad( ) to select "ON," and then push D-

pad(Ent)
t Push [MENU] to exit the MENU screen.
TIP: See previous page for details of operation and
settings.
NOTE: When using the DV Fast Data, and if you want
to send the GPS data to other transceivers that can-
not receive the DV Fast Data, confirm the "GPS Data
Speed" is set to "Slow" in the MENU screen.
(p. 16-62)
(MENU > DV Set > DV Fast Data > GPS Data Speed)
TIP: When you connect the transceiver to an An-
droid™ device, you can use the DV Fast Data with
the RS-MS1A
remote control software
To the [DATA] jack
Transceiver
OPC-2350LU (Option)
MAKE SURE to turn OFF the transceiver power be-
fore connecting or disconnecting the cable.
.
Android™
device
To a [USB]
port
9-15
