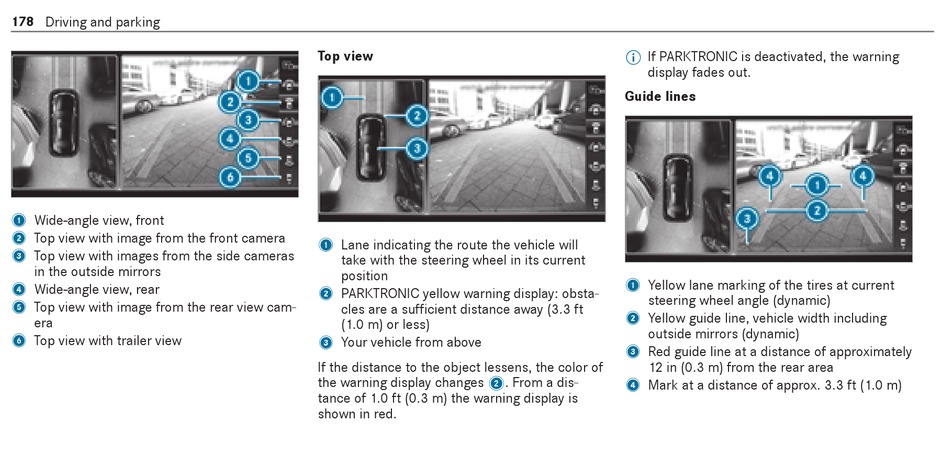

178 Driving and parking
1 Wide-angle view, front
2 Top view with image from the front camera
3
Top view with images from the side cameras
in the outside mirrors
4 Wide-angle view, rear
5 Top view with image from the rear view cam‐
era
6 Top view with trailer view
Top view
1
Lane indicating the route the vehicle will
take with the steering wheel in its current
position
2 PARKTRONIC yellow warning display: obsta‐
cles are a sufficient distance away (3.3 ft
(1.0 m) or less)
3 Your vehicle from above
If the distance to the object lessens, the color of
the warning display changes 2. From a dis‐
tance of 1.0 ft (0.3 m) the warning display is
shown in red.
% If PARKTRONIC is deactivated, the warning
display fades out.

Guide lines

1
Yellow lane marking of the tires at current
steering wheel angle (dynamic)
2 Yellow guide line, vehicle width including
outside mirrors (dynamic)
3 Red guide line at a distance of approximately
12 in (0.3 m) from the rear area
4
Mark at a distance of approx. 3.3 ft (1.0 m)
