Presets panel
Presets save output settings to be recalled through RS-232, USB, or Ethernet (see the
following table for a comparison of saved settings for input and user presets).
Setting
Horizontal and Vertical Start
Active Lines
Pixel Phase
Active Pixels
Total Pixels
Input Type
Audio Gain and Attenuation
Film Detect
Brightness and Contrast
Color and Tint
Detail
Image Size and Position
Preset Name
NOTE: User presets can be saved on one input resolution and recalled on a different
one. Input presets can only be recalled on the same input resolution that was present
when the preset was saved.

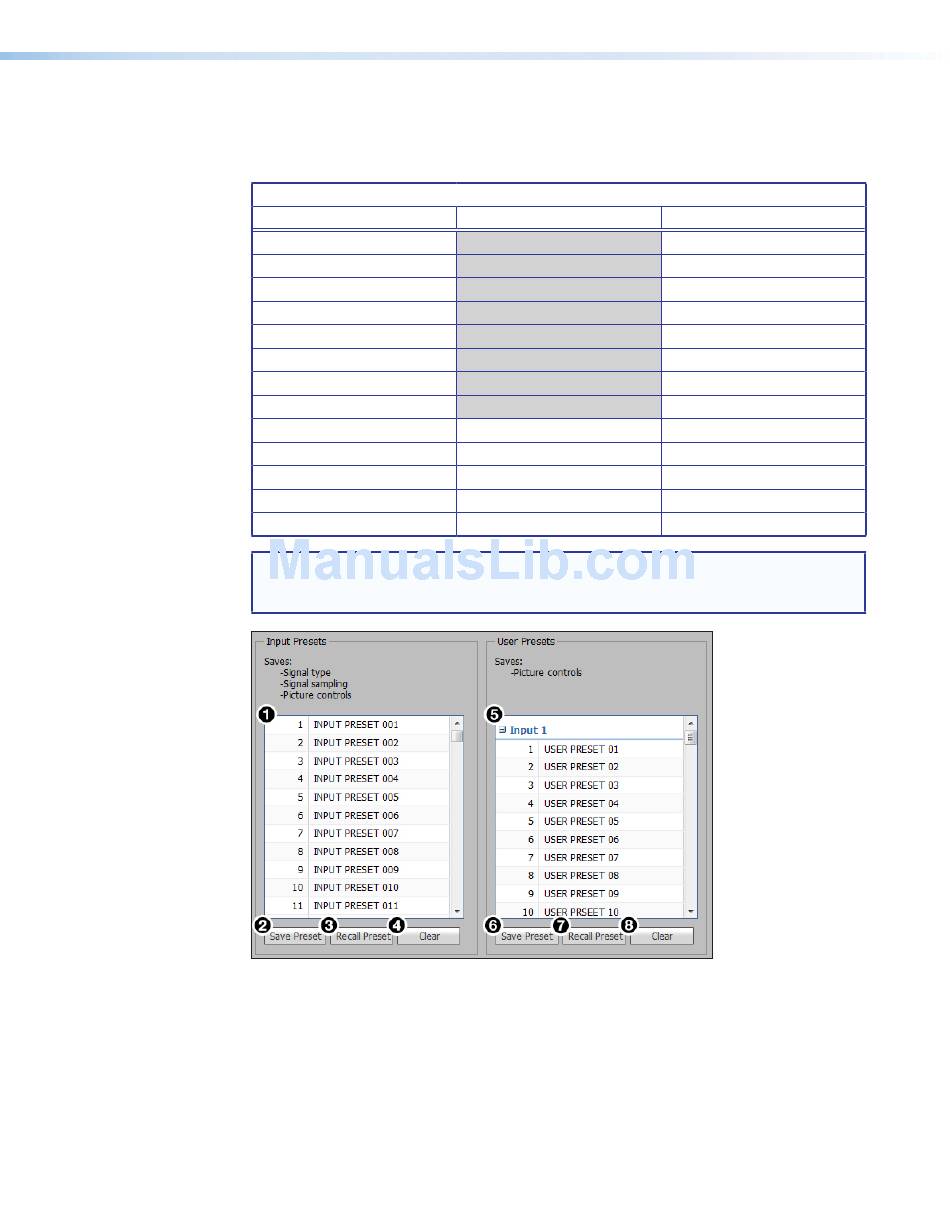

Figure 67. Input and User Presets Panels
There are 128 presets that are global to all inputs. The presets contain all of the settings for
an input when used with an upstream matrix switcher. Input presets save signal type, signal
sampling, and picture control settings.
There are 16 user presets per input to save picture control settings only.
IN1606 and IN1608 Series Scaling Presentation Switcher • Internal Web Pages
Settings Included Within Presets
User Preset
X
X
X
X
X
Input Preset
X
X
X
X
X
X
X
X
X
X
X
X
X
