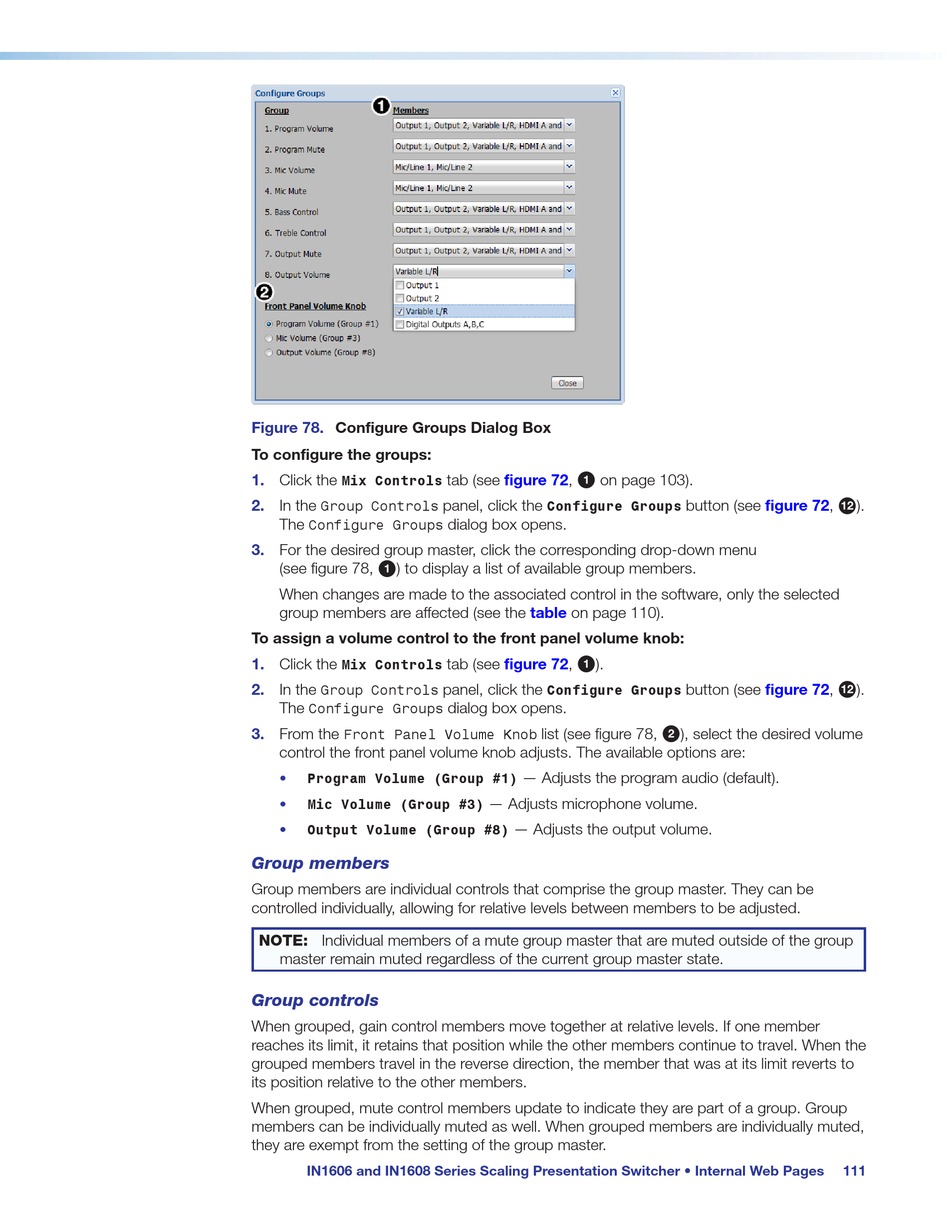

Figure 78. Configure Groups Dialog Box
To configure the groups:
1. Click the
Mix Controls
2. In the
Group Controls
The
Configure Groups
3. For the desired group master, click the corresponding drop-down menu
(see figure 78, ) to display a list of available group members.
1
When changes are made to the associated control in the software, only the selected
group members are affected (see the
To assign a volume control to the front panel volume knob:
1. Click the
Mix Controls
2. In the
Group Controls
The
Configure Groups
3. From the
Front Panel Volume Knob
control the front panel volume knob adjusts. The available options are:
• Program Volume (Group #1)
• Mic Volume (Group #3)
• Output Volume (Group #8)
Group members
Group members are individual controls that comprise the group master. They can be
controlled individually, allowing for relative levels between members to be adjusted.
NOTE: Individual members of a mute group master that are muted outside of the group
master remain muted regardless of the current group master state.
Group controls
When grouped, gain control members move together at relative levels. If one member
reaches its limit, it retains that position while the other members continue to travel. When the
grouped members travel in the reverse direction, the member that was at its limit reverts to
its position relative to the other members.
When grouped, mute control members update to indicate they are part of a group. Group
members can be individually muted as well. When grouped members are individually muted,
they are exempt from the setting of the group master.
IN1606 and IN1608 Series Scaling Presentation Switcher • Internal Web Pages
tab (see figure 72, on page 103).
1
panel, click the
Configure Groups
dialog box opens.
table on page 110).
tab (see figure 72, ).
1
panel, click the
Configure Groups
dialog box opens.
list (see figure 78,
— Adjusts the program audio (default).
— Adjusts microphone volume.
— Adjusts the output volume.
button (see figure 72,
~
button (see figure 72,
~
), select the desired volume
2
).
).
