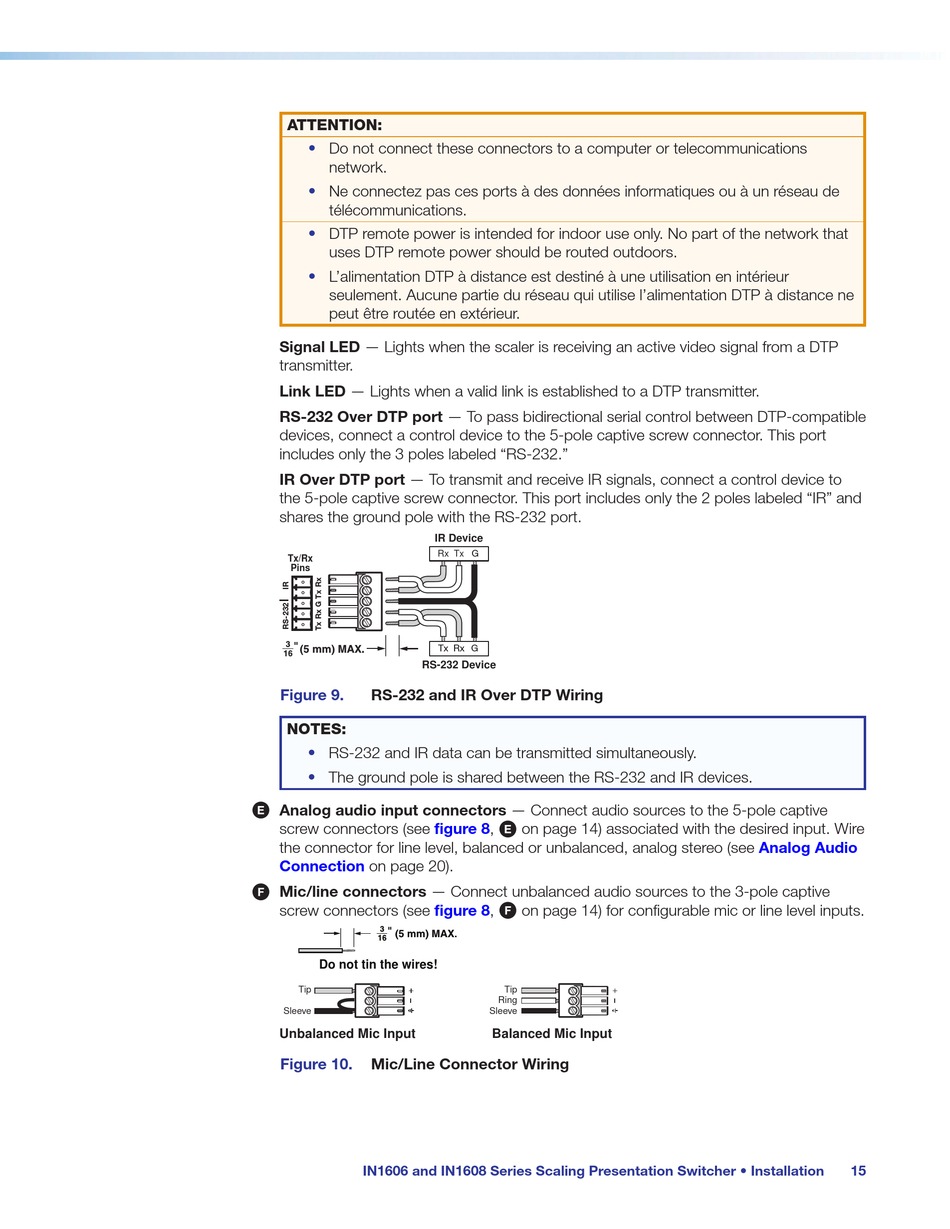

ATTENTION:
•
Do not connect these connectors to a computer or telecommunications
network.
• Ne connectez pas ces ports à des données informatiques ou à un réseau de
télécommunications.
•
DTP remote power is intended for indoor use only. No part of the network that
uses DTP remote power should be routed outdoors.
• L'alimentation DTP à distance est destiné à une utilisation en intérieur
seulement. Aucune partie du réseau qui utilise l'alimentation DTP à distance ne
peut être routée en extérieur.
Signal LED — Lights when the scaler is receiving an active video signal from a DTP
transmitter.
Link LED — Lights when a valid link is established to a DTP transmitter.
RS-232 Over DTP port — To pass bidirectional serial control between DTP-compatible
devices, connect a control device to the 5-pole captive screw connector. This port
includes only the 3 poles labeled "RS-232."
IR Over DTP port — To transmit and receive IR signals, connect a control device to
the 5-pole captive screw connector. This port includes only the 2 poles labeled "IR" and
shares the ground pole with the RS-232 port.
Tx/Rx
Pins
RS-232 Device
Figure 9. RS-232 and IR Over DTP Wiring
NOTES:
• RS-232 and IR data can be transmitted simultaneously.
•
The ground pole is shared between the RS-232 and IR devices.
Analog audio input connectors — Connect audio sources to the 5-pole captive
E
screw connectors (see
the connector for line level, balanced or unbalanced, analog stereo (see
Connection on page 20).
Mic/line connectors — Connect unbalanced audio sources to the 3-pole captive
F
screw connectors (see
Do not tin the wires!
Tip
Sleeve
Unbalanced Mic Input
Figure 10. Mic/Line Connector Wiring
IN1606 and IN1608 Series Scaling Presentation Switcher • Installation
IR Device
G
Rx Tx
Tx Rx G
figure 8, on page 14) associated with the desired input. Wire
E
figure 8, on page 14) for configurable mic or line level inputs.
F
Tip
Ring
Sleeve
Balanced Mic Input
Analog Audio
15
