IN1608 amplifier models
The IN1608 amplifier models (see figure 5) feature all the connectors of the IN1608 plus an
amplified audio connector. The SA models feature a 4-pole captive screw connector while
the MA models feature a 2-pole captive screw connector for amplified audio output.
INPUTS
1
3 5
CONFIGURABLE
100-240V ~ 1.3 A MAX 2
HDMI HDMI
4 6
50-60 Hz
IN1608 SA
INPUTS
1
3 5
CONFIGURABLE
100-240V ~ 1.3 A MAX 2
HDMI HDMI
4 6
50-60 Hz
IN1608 MA

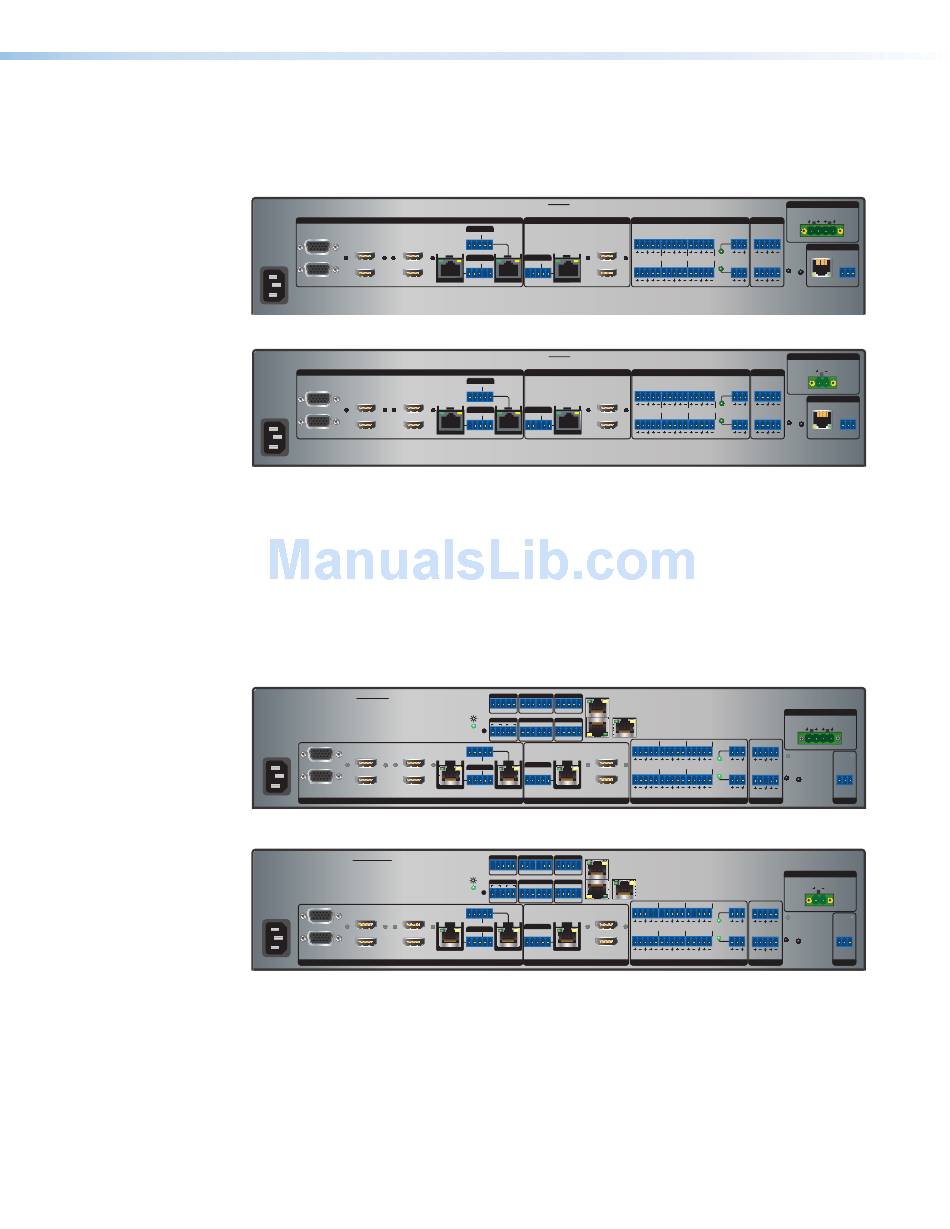

Figure 5. IN1608 SA and IN1608 MA Rear Panels
IN1608 IPCP models
The IN1608 IPCP models (see figure 6) feature the connectors of an SA model or
an MA model (depending on the model) plus an IPCP Pro 350 control processor. The LAN
connector is incorporated in the IPCP Pro 350 control processor instead of the scaler.
Otherwise, the IN1608 IPCP SA and IN1608 IPCP SA HDBT include all of the connectors of
the SA models and the IN1608 IPCP MA 70 and IN1608 IPCP MA 70 HDBT include all of
the connectors of the MA models.
IN1608 IPCP SA
1
100-240V ~ -- A MAX 3 5
CONFIGURABLE
2
HDMI HDMI
4 6
50/60 Hz INPUTS
IN1608 IPCP SA
IN1608 IPCP MA 70
1
100-240V ~ -- A MAX 3 5
CONFIGURABLE
2
HDMI HDMI
4 6
50/60 Hz INPUTS
IN1608 IPCP MA 70
Figure 6. IN1608 IPCP SA and IN1608 IPCP MA 70 Rear Panels
IN1608 HDBT models
The IN1608 HDBT models feature the same connectors as their IN1608 DTP counterparts
except for the remote output. For IN1608 HDBT models, the remote output is an HDBaseT
output instead of a DTP output.
