Operation

This section of the guide discusses the operation of the IN1606 device. Topics in this
section include:
•
•
•
•
•
•

Front Panel Overview

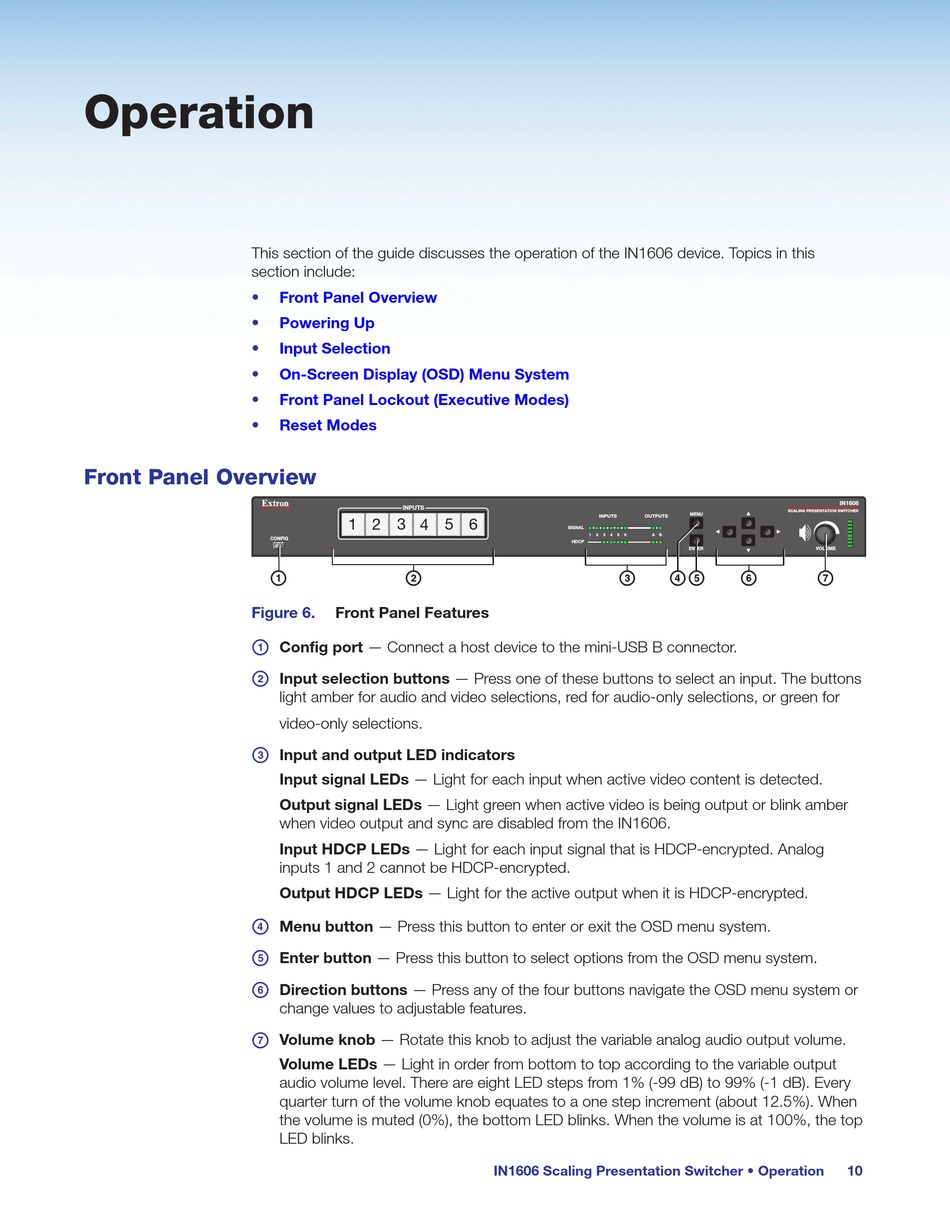

Figure 6.
a
b
c
d
e
f
g
Front Panel Overview
Powering Up
Input Selection
On-Screen Display (OSD) Menu System
Front Panel Lockout (Executive Modes)
Reset Modes
INPUTS
1 2 3 4 5 6
CONFIG
Front Panel Features
Config port — Connect a host device to the mini-USB B connector.
Input selection buttons — Press one of these buttons to select an input. The buttons
light amber for audio and video selections, red for audio-only selections, or green for
video-only selections.
Input and output LED indicators
Input signal LEDs — Light for each input when active video content is detected.
Output signal LEDs — Light green when active video is being output or blink amber
when video output and sync are disabled from the IN1606.
Input HDCP LEDs — Light for each input signal that is HDCP-encrypted. Analog
inputs 1 and 2 cannot be HDCP-encrypted.
Output HDCP LEDs — Light for the active output when it is HDCP-encrypted.
Menu button — Press this button to enter or exit the OSD menu system.
Enter button — Press this button to select options from the OSD menu system.
Direction buttons — Press any of the four buttons navigate the OSD menu system or
change values to adjustable features.
Volume knob — Rotate this knob to adjust the variable analog audio output volume.
Volume LEDs — Light in order from bottom to top according to the variable output
audio volume level. There are eight LED steps from 1% (-99 dB) to 99% (-1 dB). Every
quarter turn of the volume knob equates to a one step increment (about 12.5%). When
the volume is muted (0%), the bottom LED blinks. When the volume is at 100%, the top
LED blinks.
INPUTS OUTPUTS
SIGNAL
1 2 3 4 5 6 A B
HDCP
IN1606 Scaling Presentation Switcher • Operation
IN1606
SCALING PRESENTATION SWITCHER
MENU
ENTER VOLUME
10
