Configuration Pages

The configuration pages contain options for input and output configuration, EDID
management, image settings, image size and position, audio configuration, preset
management, and device settings.

Input and Output Configuration Page

Click the
contains a section for input configuration and output configuration.
Input Configuration section
The Input Configuration section consists of user configurable fields for each of the six inputs.
These include input naming, signal type, aspect ratio, automatic Auto-Image, Auto Memory,
HDCP Authorized status, and Film Detect.

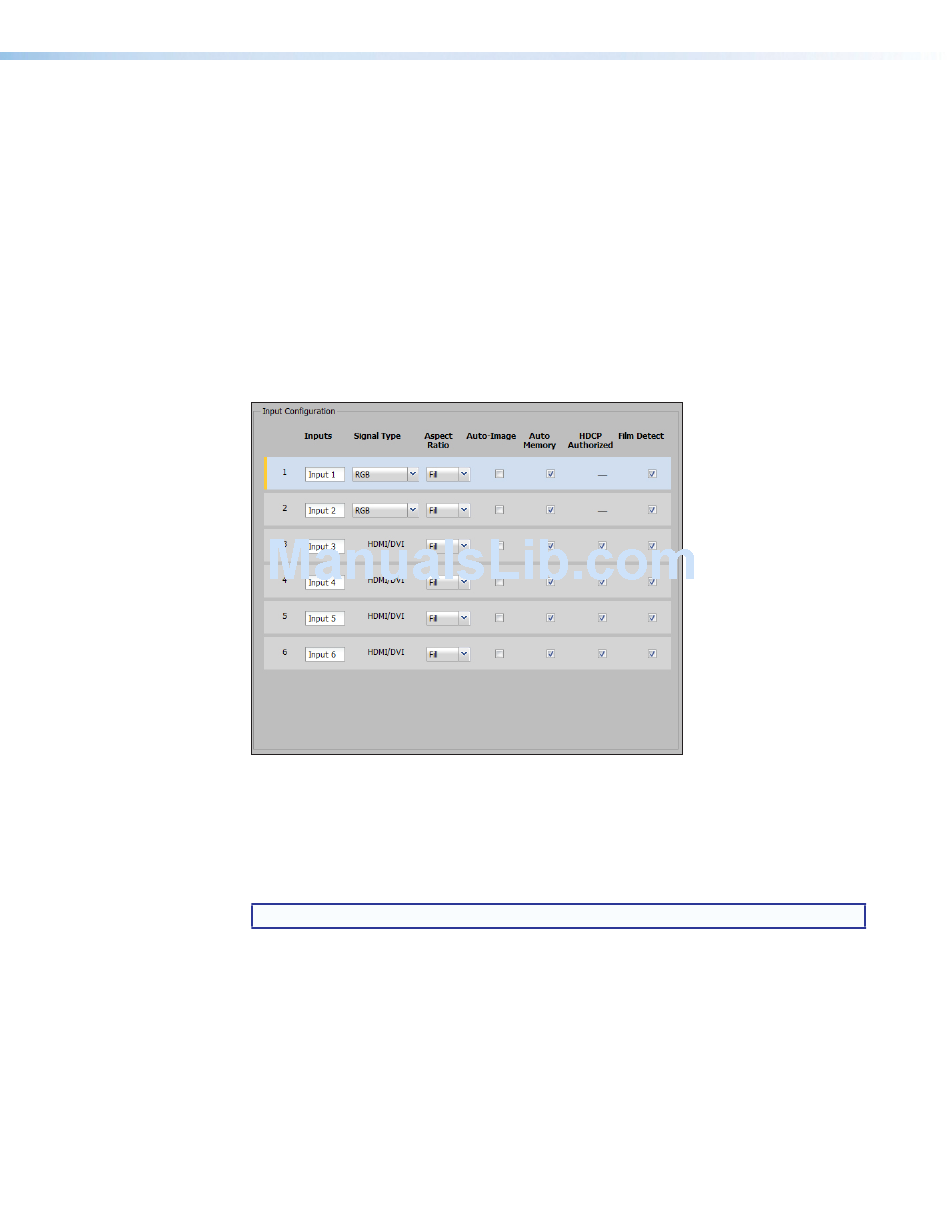

Figure 21.
Input (renaming)
To rename an input, click inside the desired input field and type in the desired name to
identify the input. Input names have a 16-character limit. By default, the name associated
with an input channel is
NOTE: Entering a single space character resets the name of the input to the default.
Signal type
From the
RGB (default), YUV, RGBcvS, S-video, and composite. For inputs 3 through 6, HDMI/DVI is
the only available signal type.
button on the Global Navigation Bar to open this page. It
Input/Output Config
Input Configuration
Input <number>
drop-down menu, select the signal type for inputs 1 and 2 from
Signal Type
