Picture Control section
Picture Control shows adjustable image settings for the selected input.

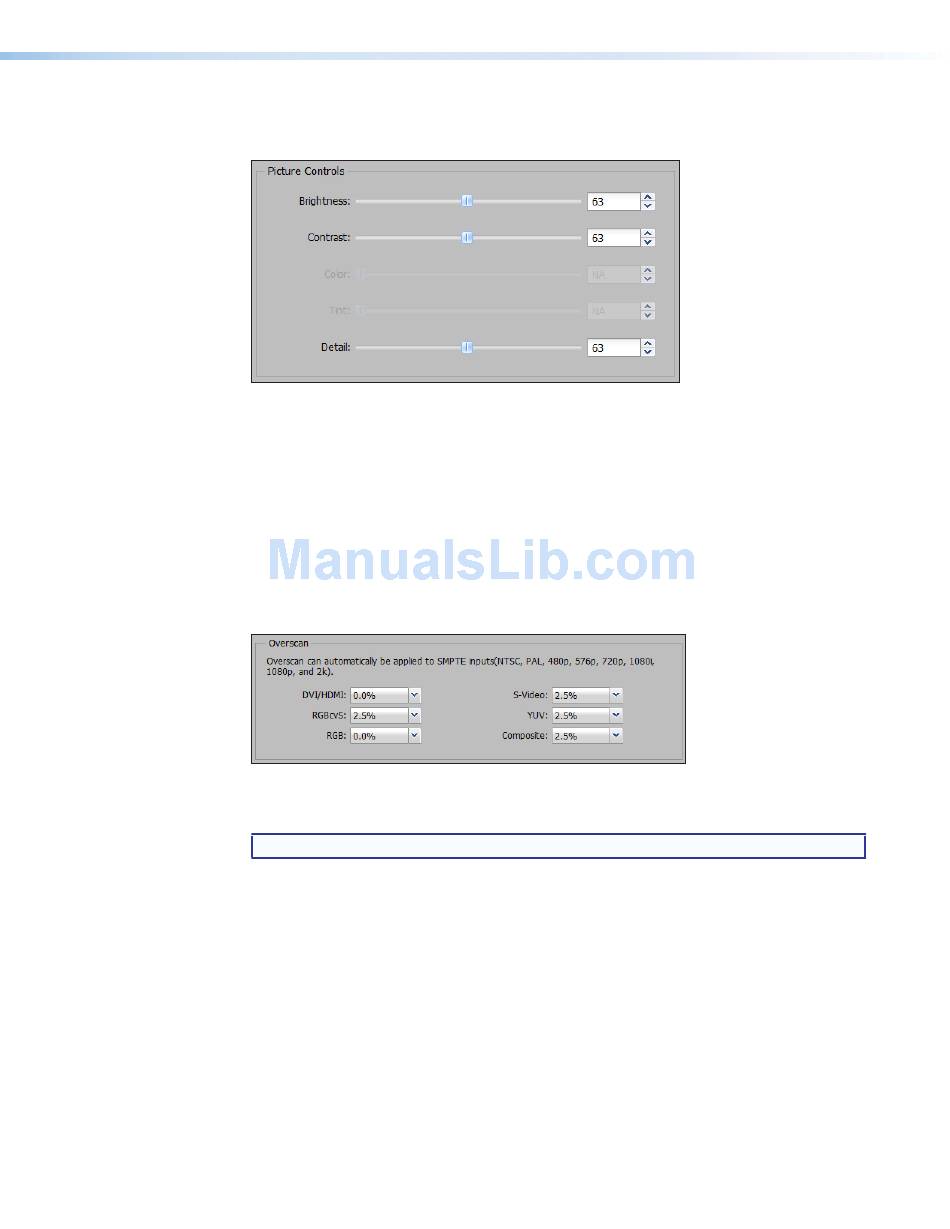

Figure 27. Picture Control Section
To adjust the picture settings, click and drag the associated slider for any image setting
(brightness, contrast, color, tint, or detail) to the desired value.
Alternatively, enter a value within the field associated with the image setting, or click the Up
and Down arrows to change the value in the field.
Overscan section
Overscan mode zooms and crops SMPTE inputs to mask edge effects and ancillary data
common in broadcast signals. Issuing an Auto-Image with overscan enabled, runs an Auto
Phase routine (YUV and RGB only) and centers and sizes the input according to table
values.
Figure 28. Overscan Section
For each input signal type, select a value from the corresponding drop-down menu.
NOTE: Setting a value of
IN1606 Scaling Presentation Switcher • Internal Web Pages
disables overscan for the corresponding input format.
0%
54
