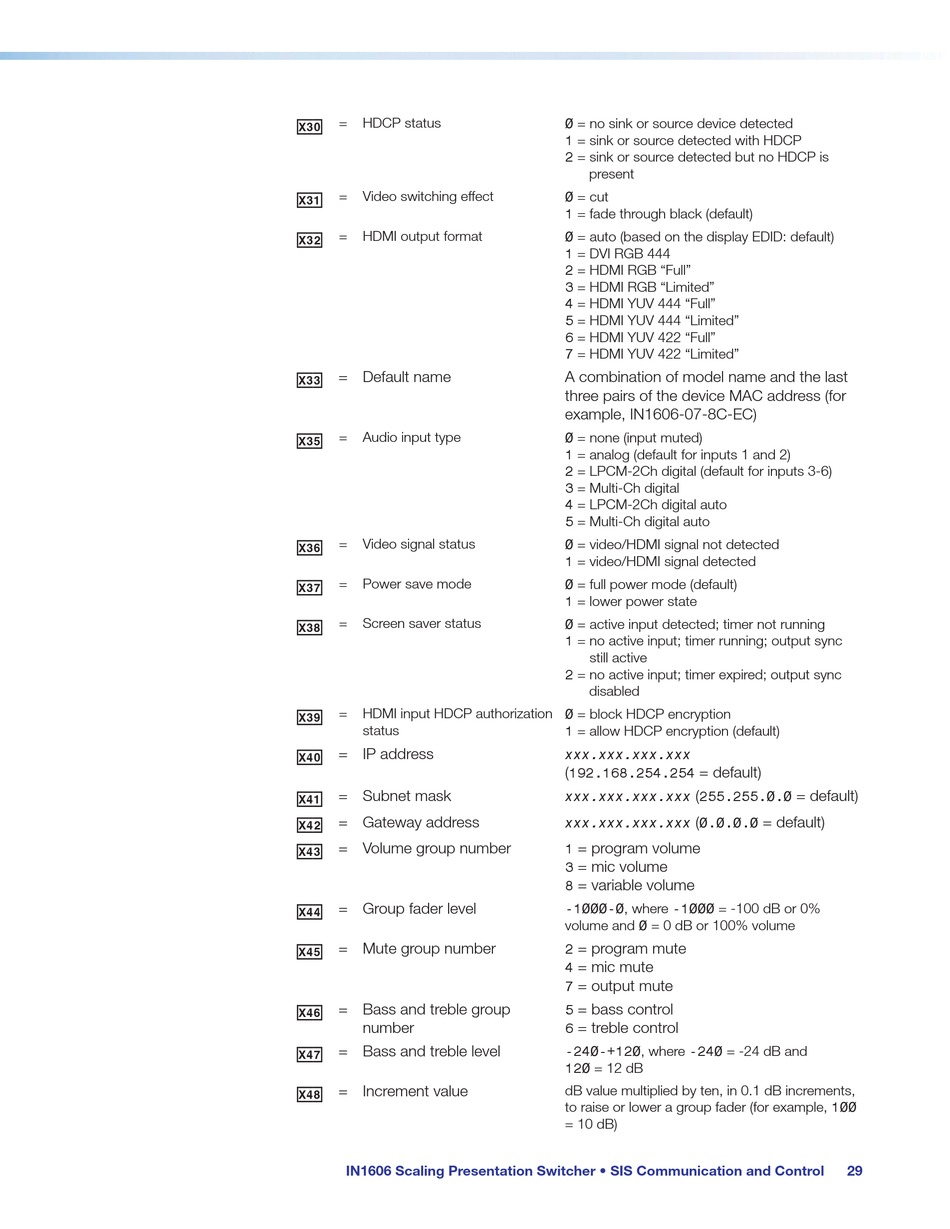

Extron electronics in1606 User Manual page 37

X3) = HDCP status
X3! = Video switching effect
X3@ = HDMI output format
= Default name
X3#
X3% = Audio input type
X3^ = Video signal status
X3& = Power save mode
X3* = Screen saver status
X3( = HDMI input HDCP authorization
status
= IP address
X4)
= Subnet mask
X4!
= Gateway address
X4@
= Volume group number
X4#
X4$ = Group fader level
X4% = Mute group number
X4^ = Bass and treble group
number
X4& = Bass and treble level
= Increment value
X4*
IN1606 Scaling Presentation Switcher • SIS Communication and Control
0 = no sink or source device detected
1 = sink or source detected with HDCP
2 = sink or source detected but no HDCP is
present
0 = cut
1 = fade through black (default)
0 = auto (based on the display EDID: default)
1 = DVI RGB 444
2 = HDMI RGB "Full"
3 = HDMI RGB "Limited"
4 = HDMI YUV 444 "Full"
5 = HDMI YUV 444 "Limited"
6 = HDMI YUV 422 "Full"
7 = HDMI YUV 422 "Limited"
A combination of model name and the last
three pairs of the device MAC address (for
example, IN1606-07-8C-EC)
0 = none (input muted)
1 = analog (default for inputs 1 and 2)
2 = LPCM-2Ch digital (default for inputs 3-6)
3 = Multi-Ch digital
4 = LPCM-2Ch digital auto
5 = Multi-Ch digital auto
0 = video/HDMI signal not detected
1 = video/HDMI signal detected
0 = full power mode (default)
1 = lower power state
0 = active input detected; timer not running
1 = no active input; timer running; output sync
still active
2 = no active input; timer expired; output sync
disabled
0 = block HDCP encryption
1 = allow HDCP encryption (default)
xxx.xxx.xxx.xxx
( = default)
192.168.254.254
(
xxx.xxx.xxx.xxx 255.255.0.0
(
xxx.xxx.xxx.xxx 0.0.0.0
= program volume
1
= mic volume
3
= variable volume
8
-1000-0, where -1000 = -100 dB or 0%
volume and 0 = 0 dB or 100% volume
= program mute
2
= mic mute
4
= output mute
7
= bass control
5
= treble control
6
-240-+120, where -240 = -24 dB and
120 = 12 dB
dB value multiplied by ten, in 0.1 dB increments,
to raise or lower a group fader (for example, 100
= 10 dB)
= default)
= default)
29
