Mic/Line Input tab

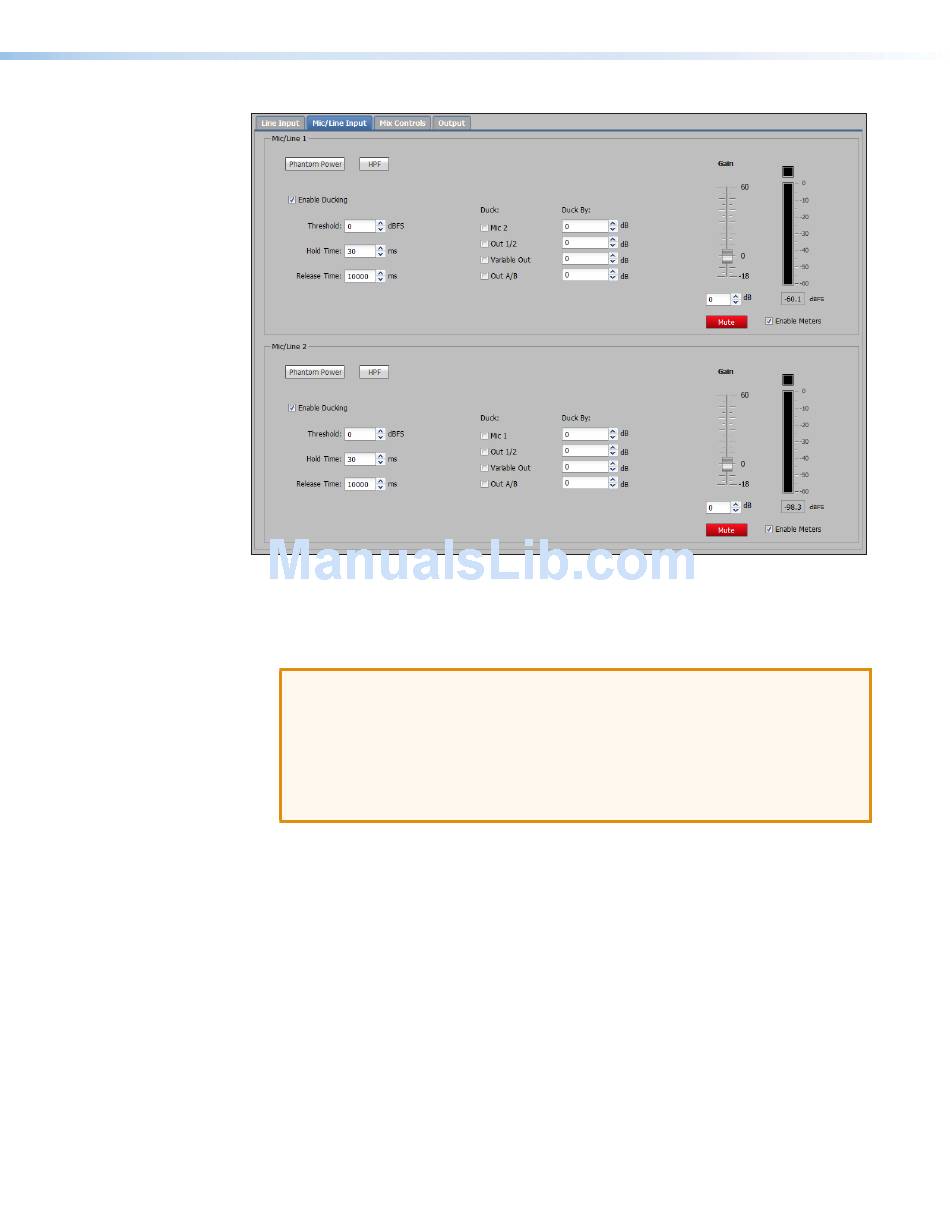

Figure 32. Mic/Line Input Tab with Ducking Enabled
1. Click the
Mic/Line Input
2. For each Mic/Line input, click the
phantom power on the mic input. The button turns blue when enabled.
ATTENTION:
•
Condenser microphones require phantom power. Dynamic microphones do not
require power. Never set an unbalanced dynamic microphone to +48V. Doing so
may damage the microphone.
• For condenser microphones, verify it will safely operate at +48 VDC.
• When a line level source is connected, be certain the +48V phantom power is
off.
3. For each Mic/Line input, click
input. Lower frequencies are attenuated, allowing higher frequencies to pass. The
button turns blue when enabled.
4. For each Mic/Line input, select the
ducking. Enabling ducking opens additional ducking settings as described below.
Ducking provides a means to duck or lower the level of the program audio when a
specified Mic/Line source must take precedence.
a.
In the field, enter a value or press the Up or Down arrow button to set
Threshold
the input signal level the ducking source must exceed before ducking begins.
b. In the field, enter a value or press the Up or Down arrow button to set
Hold Time
the time between when a ducking source signal drops below the threshold and
before release time engages.
c. In the
Release Time
to set the time the ducking targets take to restore signal levels after the ducking
source level is below the threshold and the hold time is met.
IN1606 Scaling Presentation Switcher • Internal Web Pages
tab.
button to enable or disable +48 VDC
Phantom Power
to enable or disable a high-pass filter on the mic
HPF
Enable Ducking
field, enter a value or press the Up or Down arrow button
check box to enable or disable
