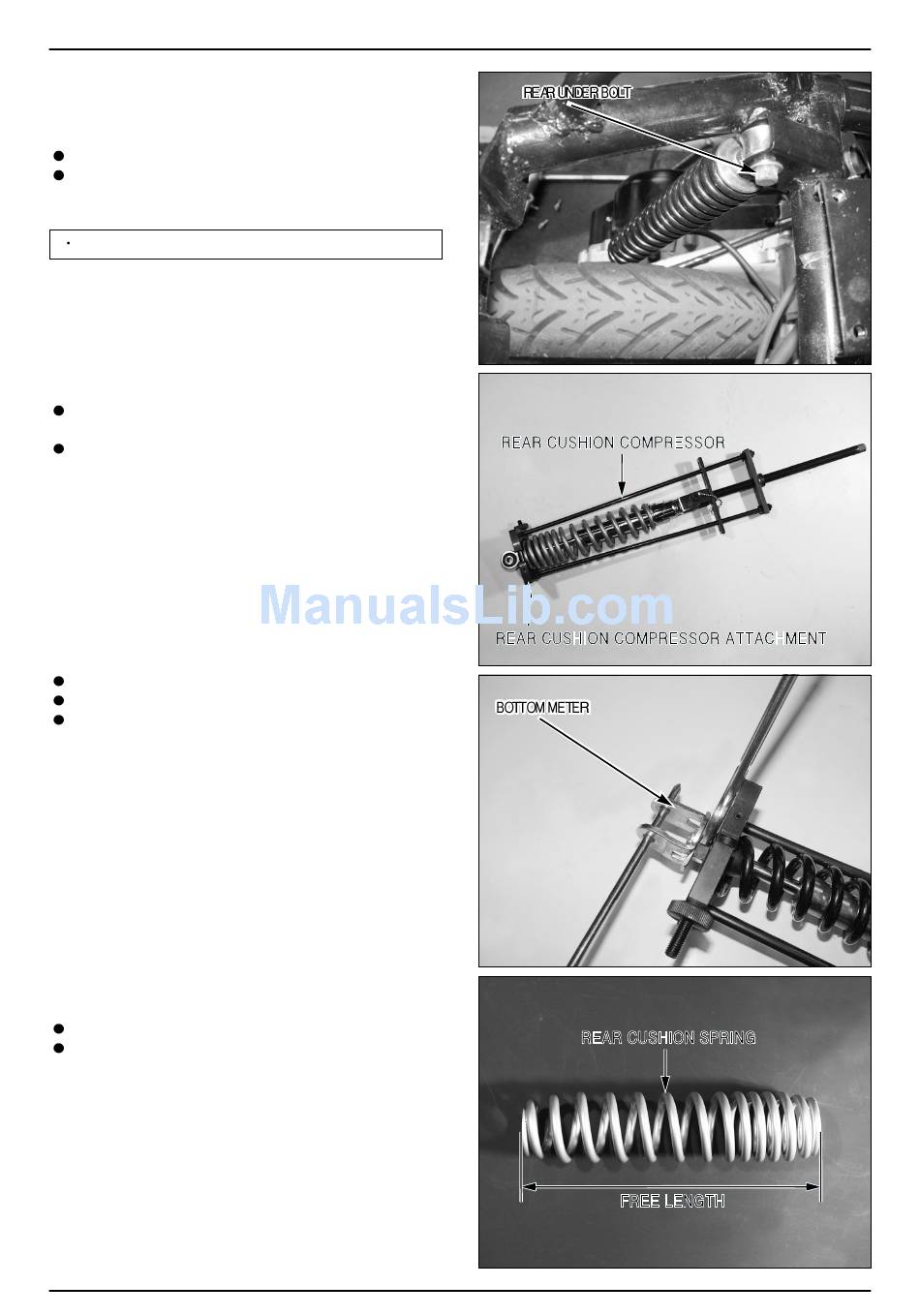

REAR WHEEL/REAR BRAKE/SUSPENSION/REAR SWING ARM
REAR CUSHION
REMOVAL
Remove the luggage box and body cover.
Loosen the top and bottom rear cushion setting bolts.
NOTE
Support the frame firmly prior to working.
DISASSEMBLY
Install the compressor attachment as shown in the
figure.
Install the cushion on the cushion compressor, and
compress the spring.
TOOLS : REAR CHUSION COMPRESSOR ATTACHMENT
REAR CHUSION COMPRESSOR
Fix the upper metal, and loosen the hex nut.
Remove the upper metal.
Remove the hex nut, stopper rubber, spring from the
rear damper component.
INSPECTION
Measure the rear cushion spring free length.
Check the damper rod for deflection or damage.
SERVICE LIMIT : 267mm
