OWNER S MANUAL

Advertisement

Table of Contents
loading

Related Manuals for DAELIM DELFINO - CATALOG

Summary of Contents for DAELIM DELFINO - CATALOG

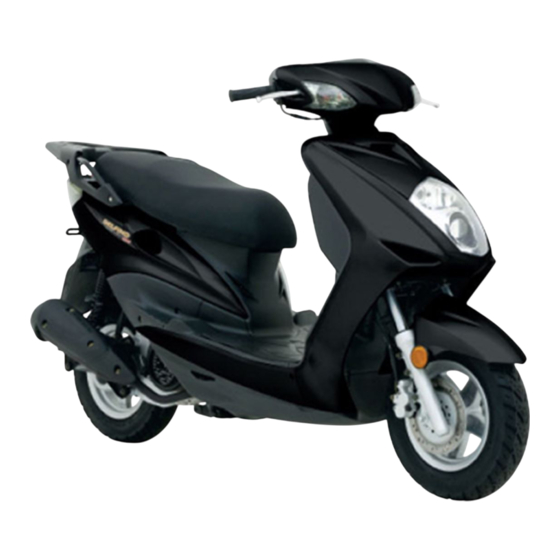

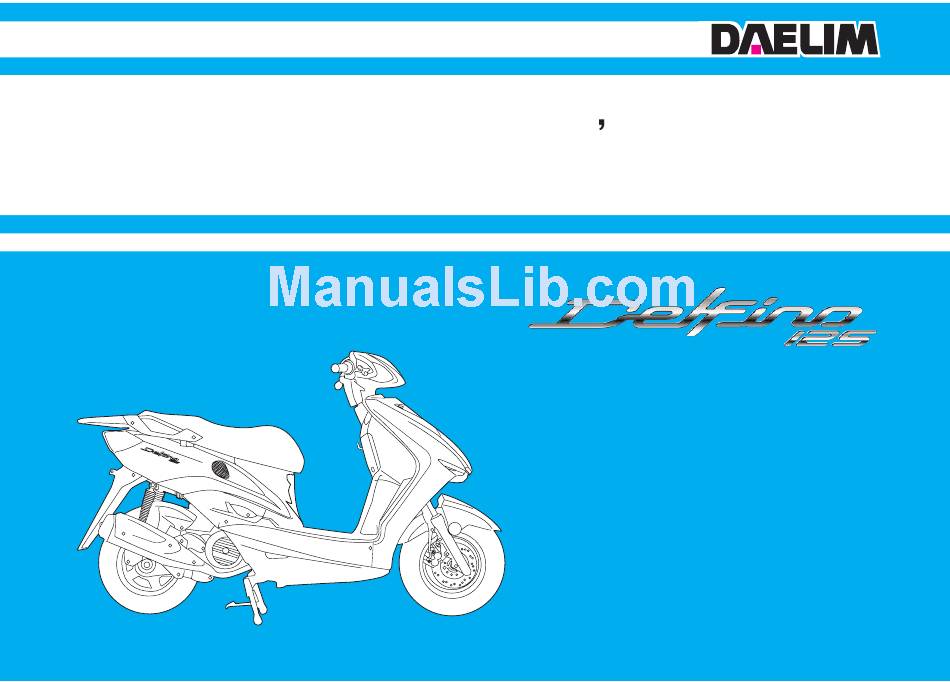

  • Page 1 OWNER S MANUAL...
  • Page 2 This motorcycle is designed to carry the operator and one passenger. WARNING Attempting to change the pre-set maximum speed may cause danger and will void the Daelim warranty. ON-ROAD USE This motorcycle is designed to be used only on the road.

  • Page 3: Table Of Contents

    CONTENTS SPECIFICATION EQUIPMENT USAGE OPERATION INSTRUCTION STEERING STEM LOCK SAFETY PRECAUTIONS SEAT LOCK TRUNK PRIOR TO STARTING VEHICLE DOCUMENT STORAGE AREA OPERATION BAG HOLDER CORRECT ATTIRE CORRECT DRIVING OPERATION CARGO STARTING THE ENGINE ATTACHMENT IF ENGINE CANNOT BE STARTED MODIFICATION AFTER STARTING ENGINE MUFFLER PARTS LOCATION...
  • Page 4 MAINTENANCE SAFE DRIVING DRIVING METHOD MAINTENANCE SCHEDULE MAINTENANCE PRECAUTIONS DRIVING POSITION BRAKES TAKING POSE OF FELLOW PASSENGER THE ADJUSTMENT OF FREE PLAY OF REAR BRAKE LEVER PRECAUTION WHEN DRIVING CHECKING THE REAR BRAKE SHOE STARTING TURNING METHOD BRAKE HOSE, PIPE LEAKAGE, DAMAGE, ASSEMBLY STATE BRAKE PAD WEAR PRINCIPLE OF TURN CHANGING ENGINE OIL...

  • Page 5: Specification

    SPECIFICATION ITEM DATA ITEM DATA LENGTH×WIDTH×HEIGHT(mm) 1,830×655×1,127 IGNITION SYSTEM C.D.I WHEEL BASE(mm) 1,290 BATTERY CAPACITY 12V8AH(MF TYPE) SEAT HEIGHT(mm) FUEL CAPACITY(ℓ) RESERVE FUEL CAPACITY(ℓ) DRY WEIGHT(kgf) PASSENGER 110 / 70 - 12, 47J TIRE SIZE AIR COOLED 120 / 70 - 12, 56J ENGINE TYPE 4 STROKE SOHC 2VALVE TELESCOPIC...

  • Page 6: Operation Instruction

    OPERATION INSTRUCTION SAFETY PRECAUTIONS This manual describes matters pertaining to correct operation, ●Careful driving and the wearing of proper attire and safety safe operation and simple maintenance of the vehicle you equipment are the most important factors in the safe operation purchased.

  • Page 7: Prior To Starting Vehicle

    PRIOR TO STARTING VEHICLE OPERATION ●Read user's manual carefully. ● Operators should naturally fix bodies to keep smooth driving. ●Conduct maintenance checks prior to operation. ●Please check whether or not you are unnaturally strained and ●Always maintain vehicle in clean status and carry out specified strung up.

  • Page 8: Correct Attire

    CORRECT ATTIRE ●Always make sure to wear helmet for safety. Wear gloves and A helmet should always be worn and the helmet chin safety goggles. strap should be securely ●Do not wear uniforms which might hinder operation. It is fastened. dangerous if the uniform is caught by brake lever or by the Correct shirts or jackets with rotating part of drive chain.

  • Page 9: Cargo

    Beware of muffler after driving as it is still hot to be ● burnt. Especially never children touch on it. And pay ●Except designated attachment by DAELIM MOTOR CO., attention to park where pedestrian zoon. LTD., don't attach any extra lighting device, because it may If haystack or vinyl is stuck to the muffler, it might be ●...

  • Page 10: Parts Location

    PARTS LOCATION SPEEDOMETER FR. BRAKE LEVER FR. WINKER MAIN SEAT RR. WINKER FR. BRAKE DISK MUFFLER FR. TIRE RR. TIRE PILLION STEP BAR BATTER COVER...
  • Page 11 PARTS LOCATION FUEL TANK LID RR. BRAKE LEVER MAIN SEAT RR. WINKER HEADLIGHT REAR COMBI. LIGHT FR. FENDER RR. CUSHION FR. CUSHION AIR CLEANER MAIN STAND KICK START BRAKE CALIPER SIDE STAND...

  • Page 12: Meter Reading And Usage

    METER READING AND USAGE HEADLIGHT INDICATOR LAMPS WINKER WINKER HIGHBEAM INDICATOR INDICATOR INDICATOR <WINKER INDICATOR> When the winker switch is operated, the winker indicator flashes in union with the flashing of the turn signals. FUEL METER SPEEDOMETER <FUEL METER> The fuel meter indicates the gasoline level inside the fuel tank.

  • Page 13: Switch Operation

    SWITCH OPERATION MAIN SWITCH 1. ON..Starts engine. Key can not be CAUTION pulled out. When you park the vehicle and 2. OFF..Stops engine. Key can be ● leave it, please lock handle bars and placed in or taken out of the take out the key.

  • Page 14: Start Button

    START BUTTON HEADLIGHT <TURNING ON HEADLIGHT> <DIMMER SWITCH> START BUTTON Put main switch key in “ON” position and High beam or low beam can be operated turn on headlight switch. by the use of dimmer switch. HIGH BEAM ..used when needing extra (HI) light.

  • Page 15: Winker Switch

    WINKER SWITCH HORN BUTTON CAUTION The winker switch does not auto- ● matically turn back to its original position after completing the turn. Please set the switch back to its ● center position after turning. HONE BUTTON WINKER SWITCH If this switch is turned on when the main The horn is sounded if the horn button is switch is in an ON position, the winker will pressed when the main switch is in an ON...

  • Page 16: Equipment Usage

    EQUIPMENT USAGE STEERING STEM LOCK SEAT LOCK CAUTION As the seat automatically locks, take ● special care not to accidently leave the key in the trunk. STEERING STEERING Make sure that the seat is securely STEM LOCK STEM LOCK ● locked after closing the seat.

  • Page 17: Trunk

    TRUNK DOCUMENT STORAGE AREA BAG HOLDER TRUNK DOCUMENT STORAGE AREA BAG HOLDER ●There is a trunk under the seat. ●There is a document storage area on the ●The seat is opened to gain access to the bottom of the seat. trunk by using the main switch key on ●Store the owner’s manual and the the seat lock.

  • Page 18: Correct Driving Operation

    CORRECT DRIVING OPERATION STARTING THE ENGINE Always follow the proper starting ●Make sure to check the oil, gasoline, WARNING procedure described below. etc., before starting the engine. Never run the engine in an enclosed ●Please ensure that the main stand is in a ●...
  • Page 19 <USING THE ELECTRIC START(CELL)> Lock the rear wheel. ●Press the starter button without rotating ●If the engine is hot and does not start the starter grip (opening the throttle). after pressing the starter button for 3~4 seconds, rotate the throttle grip to 1/8~1/4 of a rotation and try again.

  • Page 20: If Engine Cannot Be Started

    IF ENGINE CANNOT BE STARTED If engine cannot be started or vehicle does ●It is possible that starting will be more When the engine is cold morning or not move, check the followings. difficult if the vehicle has not been used winter or the vehicle has not been used ●Is there fuel in fuel tank? for a long period of time or if the fuel...

  • Page 21: After Starting Engine

    AFTER STARTING ENGINE Fold the main stand. Get on the vehicle. Release the squeezing tension on the rear brake lever and slowly begin to ●Push the vehicle forward to fold the ●Mounting should be done from the left rotate the throttle grip to allow for a main stand and make sure that the brake side, and you should sit squarely on the slow and easy start.

  • Page 22: Proper Driving Methods

    PROPER DRIVING METHODS Speed is controlled by the operation of Work the front and rear brakes ●Before entering traffic, use the correct the throttle grip. together. turn signal to foreward other drivers of your intentions. ● If the throttle grip is rotated..●Allow the throttle grip to rotate back to The speed of the vehicle increases.

  • Page 23: Stopping

    STOPPING The brakes should never be suddenly Special care in driving should be When approaching the desired applied and the handle bars should taken during rainy weather. stopping area. never be suddenly turned. ●More braking distance is needed when ●Activate the proper winker, and after ●Sudden braking or turning can cause the driving on wet roads or in the rain.
  • Page 24 After the vehicle has come to a Dismount on the left side and lower To prevent theft, be sure to lock the complete stop. the main stand on a flat surface. steering when parking. ●Return the winker switch to the center ●Be sure to park in an area that is free of CAUTION position and turn the main switch to...

  • Page 25: Self Inspections Before Operation

    SELF INSPECTIONS BEFORE OPERATION Self inspect the vehicle and have regular ●Inspections of concerned Area CAUTION maintenance inspections for increased ●Brake inspection Observe safety rules when safety and the prevention of accidents. ●Tire inspection ● conducting inspections. Regular maintenance inspections should ●Fuel check Exhaust gas contains harmful ●...

  • Page 26: Inspection Of Concerned Area

    INSPECTION OF CONCERNED AREA BRAKE INSPECTION <BRAKE LEVER FREE PLAY> <CHECK OF BRAKE FLUID> ●Check areas which caused for concern Lightly squeeze the brake levers until This is checked by placing the vehicle on when last operating the vehicle. tension is felt to check for an appropriate its main stand on a flat surface.

  • Page 27: Fuel Check

    FUEL CHECK <CHECK> <REFUELING> CAUTION ●Open the key cover on fuel tank cap, Check gasoline to see if there is a sufficient Gasoline is extremely flammable and amount of gasoline to reach your and turn the key clockwise to remove ●...

  • Page 28: Tire Inspection

    TIRE INSPECTION <AIR PRESSURE CHECK> <CRACKS/DAMAGE> <FOREIGN MATERIALS> Check for an appropriate level of air Check tire tread and sides for cracks and Check tire tread and sides for nails, rocks, pressure by examining how the tire sits on damage. etc.

  • Page 29: Engine Oil Level Check

    ENGINE OIL LEVEL CHECK Check the engine oil level each day before CAUTION CAUTION riding the motorcycle. If air pressure is inadequate or if there To drive with insufficient oil, it may The oil level must be maintained between ● ●...

  • Page 30: Lights And Winker Inspection

    LIGHTS AND WINKER INSPECTION <INSPECTION OF STOP LAMP> <HEADLIGHT LAMP> CAUTION (1) Loosen 4 washer screws and remove Turn a main switch “ON”. Check a stop The lighting head light emits very hot ● the headlight. lamp for proper operation by operating the heat.
  • Page 31 <HEADLIGHT LUMINATION ANGLE> <TAIL/STOP LIGHT BULB> CAUTION ●Adjust headlight lumination angle by (1) Loosen 2 tapping screws to disassemble When disassembling, care is to be taken ● turning an adjusting bolt on a headlight. tail light lens. for ensuring that a tail light lens can not (Use type screwdriver.) (2) Press a bulb with a light force and rotate be damaged.

  • Page 32: Rear View Mirror

    <WINKER BULB> Rear Winker Bulb REAR VIEW MIRROR (1) Loosen two tapping screws to Front Winker Bulb disassemble a tail light lens and a winker Check the objects at the back are well (1) Loosen tapping screw to disassemble a lens.

  • Page 33: Maintenance

    ●These instructions are based on the assumption that the motorcycle will be used exclusively for its designed purpose. Sustained high speed operation, or operation in unusually wet or dusty conditions, will require more frequent service than specified in the MAINTENANCE SCHEDULE. Consult your authorized Daelim dealer for recommendations applicable to your individual needs and use.

  • Page 34: Maintenance Schedule

    MAINTENANCE SCHEDULE Perform the Self Inspections Before Operation at each scheduled maintenance period. I: INSPECT AND, CLEAN, ADJUST, LUBRICATE OR REPLACE IF NECESSARY R: REPLACE L: LUBRICATE C: CLEAN ODOMETER READING(NOTE1) FREQUENCY REMARK ×1,000Km ITEM MONTH ★ FUEL LINE ★ FUEL FILTER ★...
  • Page 35 ODOMETER READING(NOTE 1) FREQUENCY REMARK ×1,000Km ITEM MONTH BRAKE SHOE / PAD WEAR Master cylinder, BRAKE SYSTEM Caliper BRAKE STOP SWITCH ★ ★ HEADLIGHT ADJUSTMENT ★ SUSPENSION ★ BOLTS, NUTS, FASTENERS ★★ WHEELS / TIRES ★ STEERING ★ DRIVE VALTE ★...

  • Page 36: Maintenance Precautions

    After adjustment, grip the brake lever, and Daelim dealer for this service. pull untill you feel the lesistance, and check to see if the free play of lever ends is with in the limit range of regulation.
  • Page 37 <REPLENISHING FRONT BRAKE FLUID> CAUTION When adding brake fluid, be very ●Check that the fluid level is above the ● careful not to allow foreign materials LOWER level mark with to enter the reserve tank. motorcycle in an upright position. SCREWS Foreign materials can clog the ●Brake fluid must be added to the...

  • Page 38: Brake Hose, Pipe Leakage, Damage, Assembly State

    ●If either pad is worn to the cutout, ●Wait for 20~30 seconds after stopping the replace both pads as a set engine, check again the oil level gauge. ●See your authorized Daelim dealer for this service.
  • Page 39 Check the oil level gauge, and add the engine CAUTION LEFT THE oil until it reaches the specified level. When changing the engine oil (Between max and min) ● immediately after stopping the engine, WHEN CHANGING THE OIL FILTER : 0.9 be careful not to be burned the hot oil.

  • Page 40: Transmission Oil Inspection

    TRANSMISSION OIL INSPECTION ●Start the engine and let it idle for a few OIL CHECK BOLT CAUTION minutes. Pay special attention not to leak out. ● ●Stop the engine and put the motorcycle When draining the oil, make sure that ●...

  • Page 41: Spark Plug

    SPARK PLUG If electrode is stained or clearance is not <HANDLING FOR POOR STARTING> ●Clean plug with plug cleaner. right, satisfactory spark is not produced. ●Check electrode for wear and corrosion. During cold season or when frequent Clean and make adjustment. If the ends become round, replace it short-distance traveling, the starting may ●Remove the spark plug cap.

  • Page 42: Battery Inspection

    If there is any Make sure that terminals do not contact with ● and grind it with wire brush or abnormal, contact to Daelim service other adjacent parts when handling (+), (-) sandpaper. center. terminals. Contact with other parts may If you reform the battery for car, battery ●...

  • Page 43: Fuse Replacement

    ● parts to remove the fuse, as short electric system. Contact to Daelim ●Fuse is installed in fuse holder around circuit can be occurred to cause service center.

  • Page 44: Air Cleaner Element Inspection

    AIR CLEANER ELEMENT INSPECTION <REMOVAL> CAUTION ① Loosen the 7 tapping screws and air If the air cleaner element is ● cleaner case cover. inadequately assembled, dust and ② Inspect the air cleaner element. other waste materials can directly ③ If the air cleaner element is enter the engine.

  • Page 45: Side Stand Inspection

    SIDE STAND INSPECTION CABLE RUBBER PART A rubber boots is assembled on the cable ●Erect main stand and place vehicle in to protect the inner cable. upright position on level ground. Make sure that this part is placed firmly ●Check the spring for damage or loss of around the correct part of the cable.

  • Page 46: Cleaning

    CLEANING GENERAL CLEANING FRAME AND ENGINE NUMBER ●Make sure to stop the engine prior to ●To preserve the finish of metal parts and ●The frame number is stamped on the car washing. paintwork, wash and clean your motorcycle front central part of the frame. ●Be careful not to allow water to enter ●The engine number is stamped on the at regular intervals, anyway according to the...

  • Page 47: Safe Driving

    SAFE DRIVING PREPARATION BEFORE DRIVING ● Performing daily inspection ● Putting on the protective gears (Helmet, glove, goggles, etc.) ● Bringing the driver's licence ● Determinating the path to the desired destination...

  • Page 48: Driving Method

    DRIVING METHOD DRIVING POSITION The appropriate driving position is most important thing to driving safely. ① Eyes : Look at the front direction widely. ② Shoulders : Relieve the tension. ③ Arms : Relieve the tension and bend arms to inside and let them act as the spring.

  • Page 49: Taking Pose Of Fellow Passenger

    TAKING POSE OF FELLOW PASSENGER ① Hands: Hold the rear grip. WARNING ② Feet and knees: Put the feet on pillion step, and adhere the the fellow passenger doesn’t hold the rear grip or put the ● knees closely to body. step on the pillion step, it may lead death or serious injury due to falling from the vehicle as sudden start, stop or turning.

  • Page 50: Precaution When Driving

    PRECAUTION WHEN DRIVING ● Secure the safe distance. ● If any abnormality is found, stop driving and contact service ● Drive protectively. center to inspect the vehicle. ● Do not obstruct the traffic. ● Restart the vehicle after 2~3 min when it is turned over. ●...

  • Page 51: Starting

    STARTING Prior to starting always look around to avoid accident. ① Get on the vehicle after pulling back the stand. ② Start driving slowly after turning on the winker and releasing the brake while ensuring the safety around the vehicle. CAUTION Return the side stand to its original position.

  • Page 52: Turning Method

    TURNING METHOD PRINCIPLE OF TURN EFFECT OF SPEED CENTRIFUGAL FORCE GRAVITY The centrifugal force increases in inverse portion to the radius The basic principle of turn is balancing using the centrifugal of a curve and in portion to the square speed. Decelerate prior force which makes vehicle go outside and the gravity which to entering the curved way to reduce the centrifugal force.

  • Page 53: Positions Of Turning

    3 POSITIONS OF TURNING The basic principle of turn is balancing using combined force of < LEAN-IN > the centrifugal force and the gravity. This is a turning position with driver leaned inside more than All 3 positions require straightening the head and keeping the motorcycle.

  • Page 54: Turning Method

    TURNING METHOD < LEAN-OUT > This is a turning position with motorcycle leaned inside more than driver, which is opposite to the lean-in position. With this position, quick turn is well performed and driver can obtain wide front visual field adequate to drive on the rained or slippy road because it has best road holding.

  • Page 55: Precaution When Turning

    PRECAUTION WHEN TURNING Do not drive inside of large truck's turn circle. < DEAD ANGLE ZONE > < DISTANCE BETWEEN THE FRONT AND REAR WHEEL TURN > Dead angle zone is the sight range which cannot be identified by It is distance between path of the front and rear wheel and driver and increases in proportion to the width of the vehicle.

  • Page 56: Braking Method

    BRAKING METHOD BASIC PRINCIPLE OF BRAKE (FRICTION FORCE) RESTRAINT OF BRAKE EFFECT (INERTIA) ● Vehicle is braked using friction between road surface and tires. ● Braking distance increases 1.5 times on wet road and 3 times on icy road because friction force of road surface is decreased.

  • Page 57: Braking Method

    BRAKING METHOD IMPACT WHEN COLLISION Learn the proper braking method to prevent accident. ● Turn the throttle grip to its original position and decelerate using the engine brake. ● Erect the vehicle straight. ● Brake using both front and rear brakes. COMPARISION OF BRAKING DISTANCE ·Vehicle speed : 50 km/h When using both front and...

  • Page 58: Wiring Diagram

    WIRING DIAGRAM...
  • Page 59 MEMO :...
  • Page 60 MEMO :...
  • Page 61 OWNER S MANUAL 2008. 05 PRINTED NO COPY...
  • Page 62 HEAD OFFICE(FACTORY) #58, SUNG SAN-DONG, CHANG WON, KYUNGNAM, KOREA TEL: (82-55) 239-7000 / FAX: (82-2) 467-9997 OM67-0805-01E...
