IBM® Netfinity® 4500R User's Reference

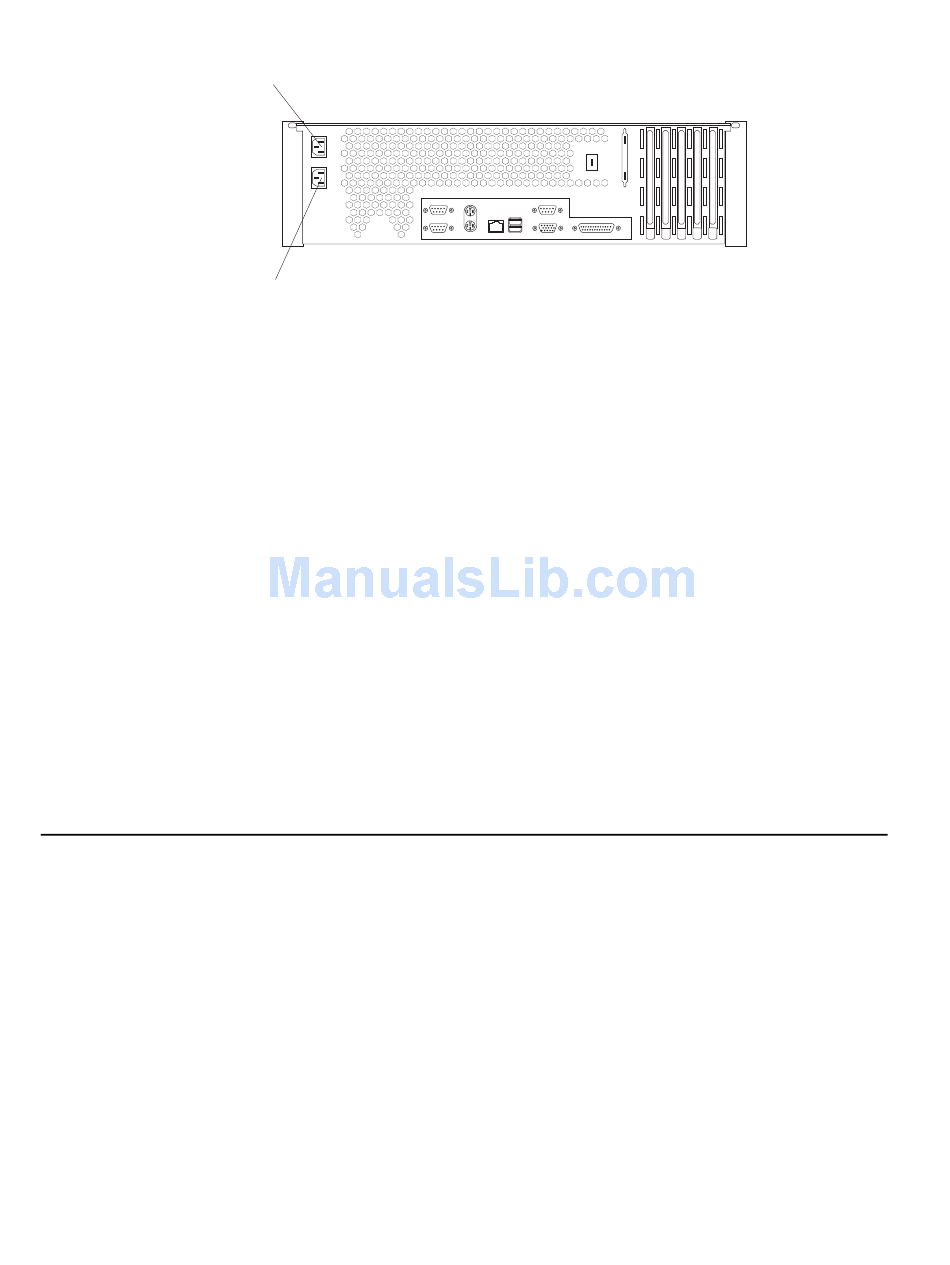

Power supply 1 power cord connector
Power supply 2 power cord connector
To install a power supply:
1. Remove the bezel. See "Removing the cover and bezel" on page 72.
2. Remove the filler panel from the empty power supply bay by inserting your
finger into the depression on the filler panel and pulling it away from the server.
Save the filler panel in case you remove the power supply at a later time.
Note: During normal operation, each power-supply bay must have either a
power supply or filler panel installed for proper cooling.
3. Install the power supply in the bay:
a. Place the handle on the power supply in the open position and slide the
power supply into the chassis.
b. Gently close the handle to seat the power supply in the bay.
4. Plug the power cord for the added power supply into the power cord connector
on the rear of the server.
5. Route the power cord through the cable-management arm. (See "Cabling the
server" on page 105.)
6. Plug the power cord into a properly grounded electrical outlet.
7. Verify that the DC Power light and AC Power light on the power supply are lit,
indicating that the power supply is operating correctly.
8. Replace the bezel. (See "Installing the server cover and bezel" on page 92.)
You can install a Netfinity 3-Pack Ultra160 Hot-Swap Expansion Kit in your server to
provide three additional hot-swap hard disk drives.
Note: The illustrations in this document might differ slightly from your hardware.
