4
RECEIVE AND TRANSMIT

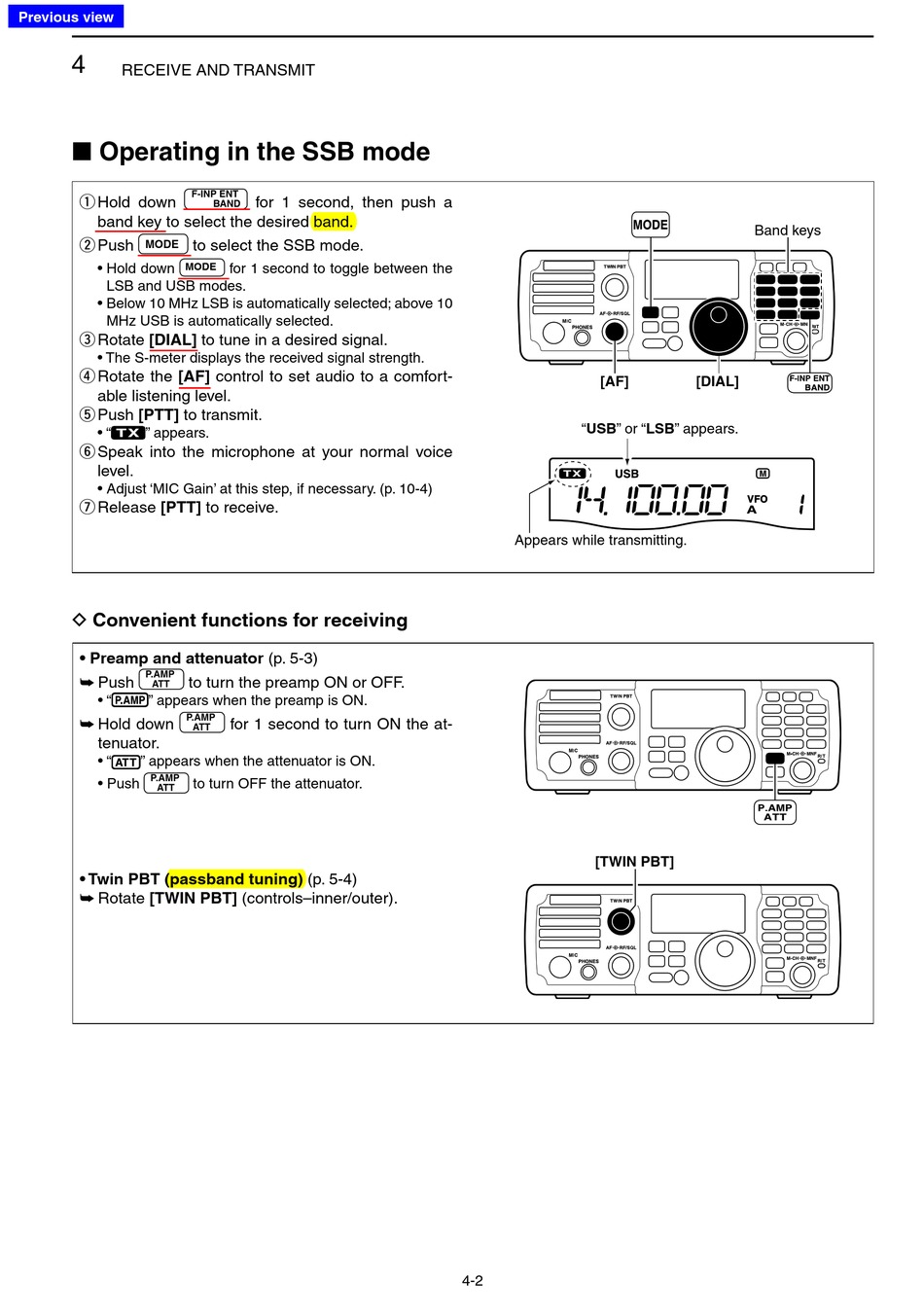

■ Operating in the SSB mode

F-INP ENT
Hold down
q
band key to select the desired band.
Push to select the SSB mode.
w MODE
• Hold down
MODE
LSB and USB modes.
• Below 10 MHz LSB is automatically selected; above 10
MHz USB is automatically selected.
Rotate [DIAL] to tune in a desired signal.
e
• The S-meter displays the received signal strength.
[AF] control to set audio to a comfort-
Rotate the
r
able listening level.
[PTT] to transmit.
Push
t
• " " appears.
Speak into the microphone at your normal voice
y
level.
• Adjust 'MIC Gain' at this step, if necessary. (p. 10-4)
Release [PTT] to receive.
u

D Convenient functions for receiving

• Preamp and attenuator (p. 5-3)
P.AMP
Push to turn the preamp ON or OFF.
➥
ATT
• " " appears when the preamp is ON.
P.AMP
Hold down
➥
ATT
tenuator.
• " " appears when the attenuator is ON.
P.AMP
• Push to turn OFF the attenuator.
ATT
• Twin PBT (passband tuning) (p. 5-4)
Rotate [TWIN PBT] (controls–inner/outer).
➥
for 1 second, then push a
BAND
for 1 second to toggle between the
for 1 second to turn ON the at-
[AF]
"USB" or "LSB" appears.
Appears while transmitting.
[TWIN PBT]
4-2
Band keys
[DIAL]
