PANEL DESCRIPTION

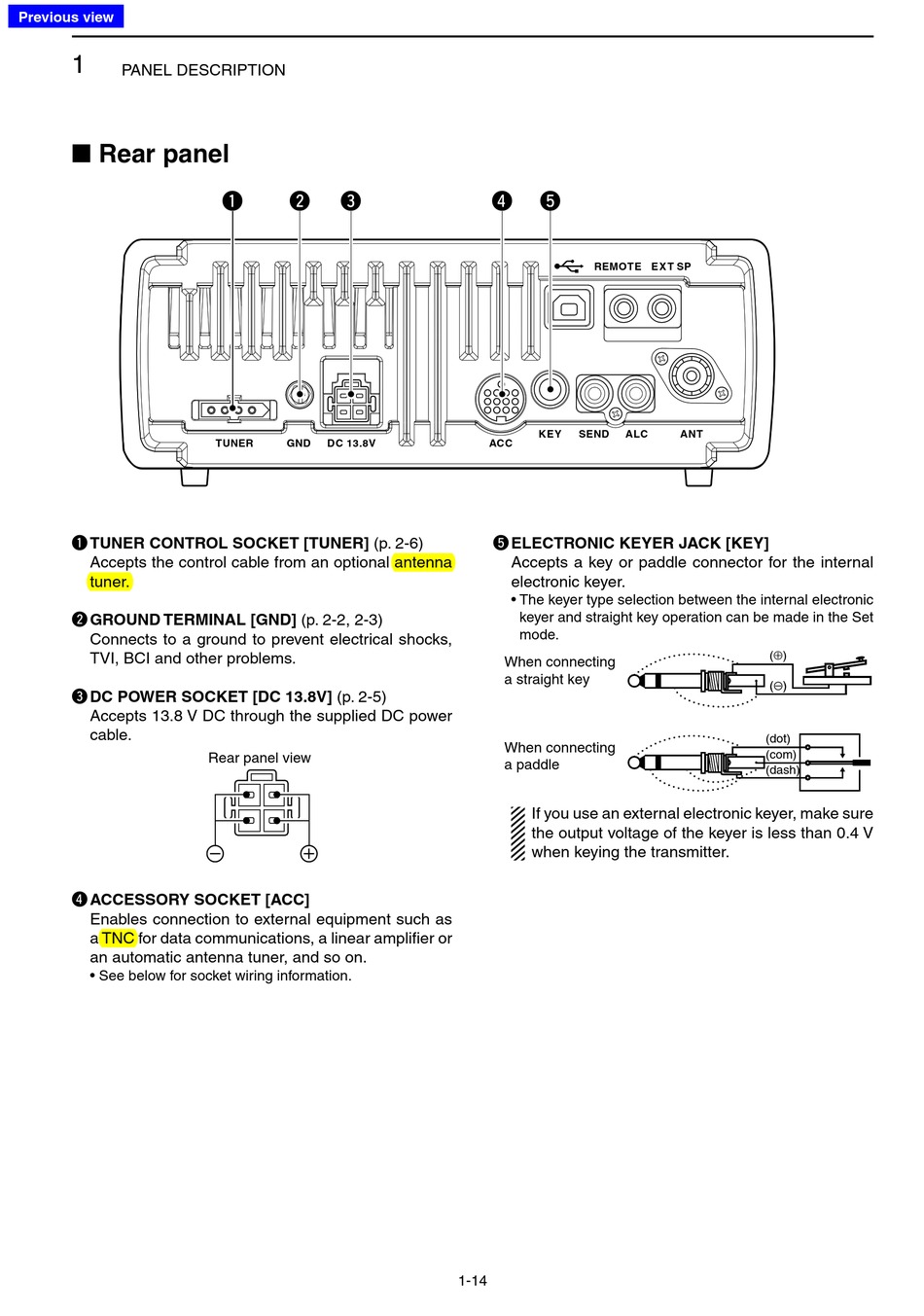

■ Rear panel

q TUNER CONTROL SOCKET [TUNER] (p. 2-6)
Accepts the control cable from an optional antenna
tuner.
w GROUND TERMINAL [GND] (p. 2-2, 2-3)
Connects to a ground to prevent electrical shocks,
TVI, BCI and other problems.
e DC POWER SOCKET [DC 13.8V] (p. 2-5)
Accepts 13.8 V DC through the supplied DC power
cable.
r ACCESSORY SOCKET [ACC]
Enables connection to external equipment such as
a TNC for data communications, a linear amplifier or
an automatic antenna tuner, and so on.
• See below for socket wiring information.
q w e
TUNER GND DC 13.8V
Rear panel view
r t
REMOTE E X T SP
KEY SEND ALC
ACC
t ELECTRONIC KEYER JACK [KEY]
Accepts a key or paddle connector for the internal
electronic keyer.
• The keyer type selection between the internal electronic
keyer and straight key operation can be made in the Set
mode.
When connecting
a straight key
When connecting
a paddle
If you use an external electronic keyer, make sure
the output voltage of the keyer is less than 0.4 V
when keying the transmitter.
1-14
ANT
(⊕)
(dot)
(com)
(dash)
