SCAN OPERATION

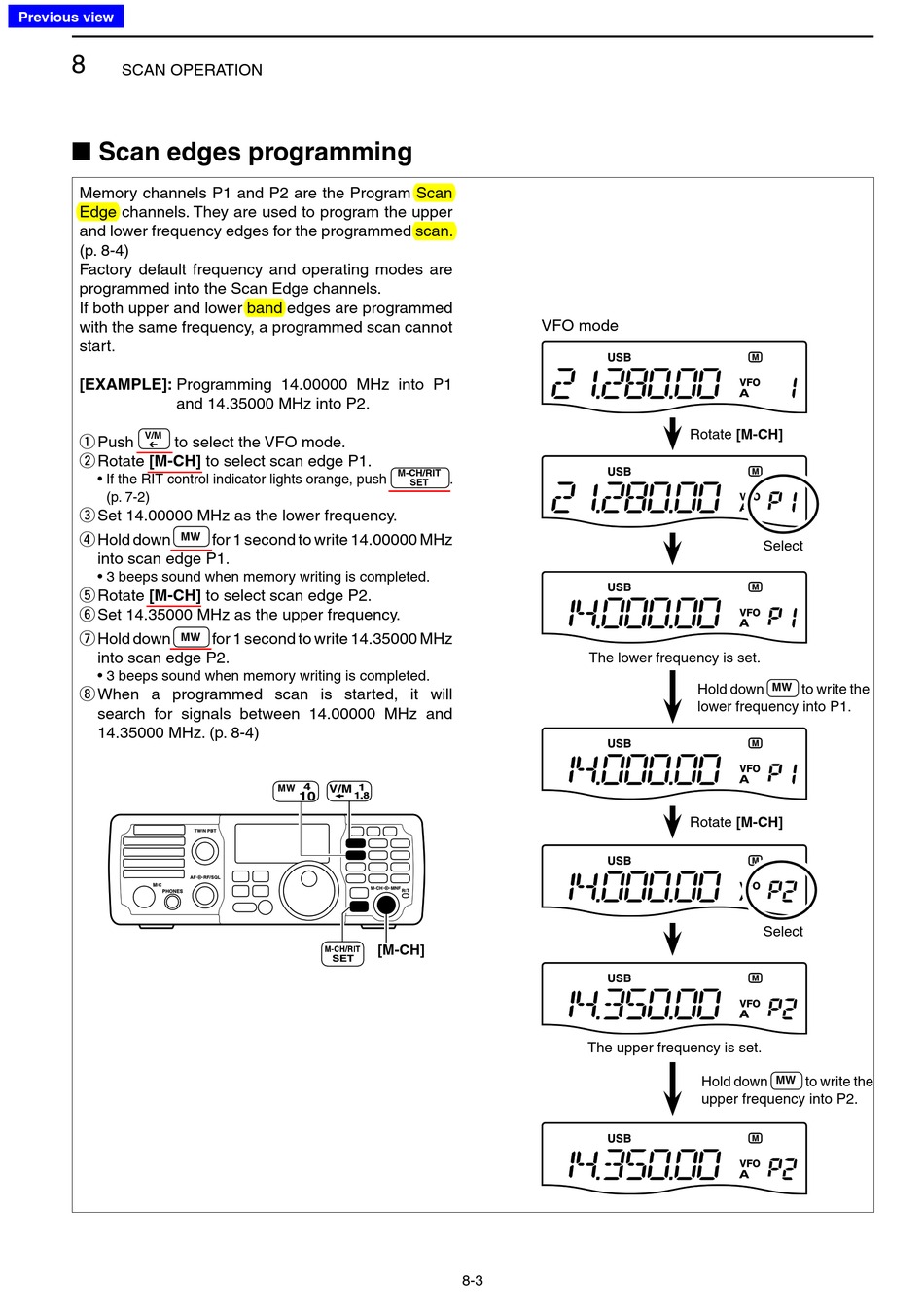

■ Scan edges programming

Memory channels P1 and P2 are the Program Scan
Edge channels. They are used to program the upper
and lower frequency edges for the programmed scan.
(p. 8-4)
Factory default frequency and operating modes are
programmed into the Scan Edge channels.
If both upper and lower band edges are programmed
with the same frequency, a programmed scan cannot
start.
[EXAMPLE]: Programming 14.00000 MHz into P1
and 14.35000 MHz into P2.
V/M
Push to select the VFO mode.
q
[M-CH] to select scan edge P1.
Rotate
w
• If the RIT control indicator lights orange, push
(p. 7-2)
Set 14.00000 MHz as the lower frequency.
e
MW
Hold down
r
into scan edge P1.
• 3 beeps sound when memory writing is completed.
[M-CH] to select scan edge P2.
Rotate
t
Set 14.35000 MHz as the upper frequency.
y
Hold down
u MW
into scan edge P2.
• 3 beeps sound when memory writing is completed.
When a programmed scan is started, it will
i
search for signals between 14.00000 MHz and
14.35000 MHz. (p. 8-4)
for 1 second to write 14.00000 MHz
for 1 second to write 14.35000 MHz
[M-CH]
VFO mode
M-CH/RIT
.
SET
8-3
Rotate [M-CH]
Select
The lower frequency is set.
Hold down
lower frequency into P1.
Rotate [M-CH]
Select
The upper frequency is set.
Hold down
upper frequency into P2.
MW to write the
MW to write the
