1

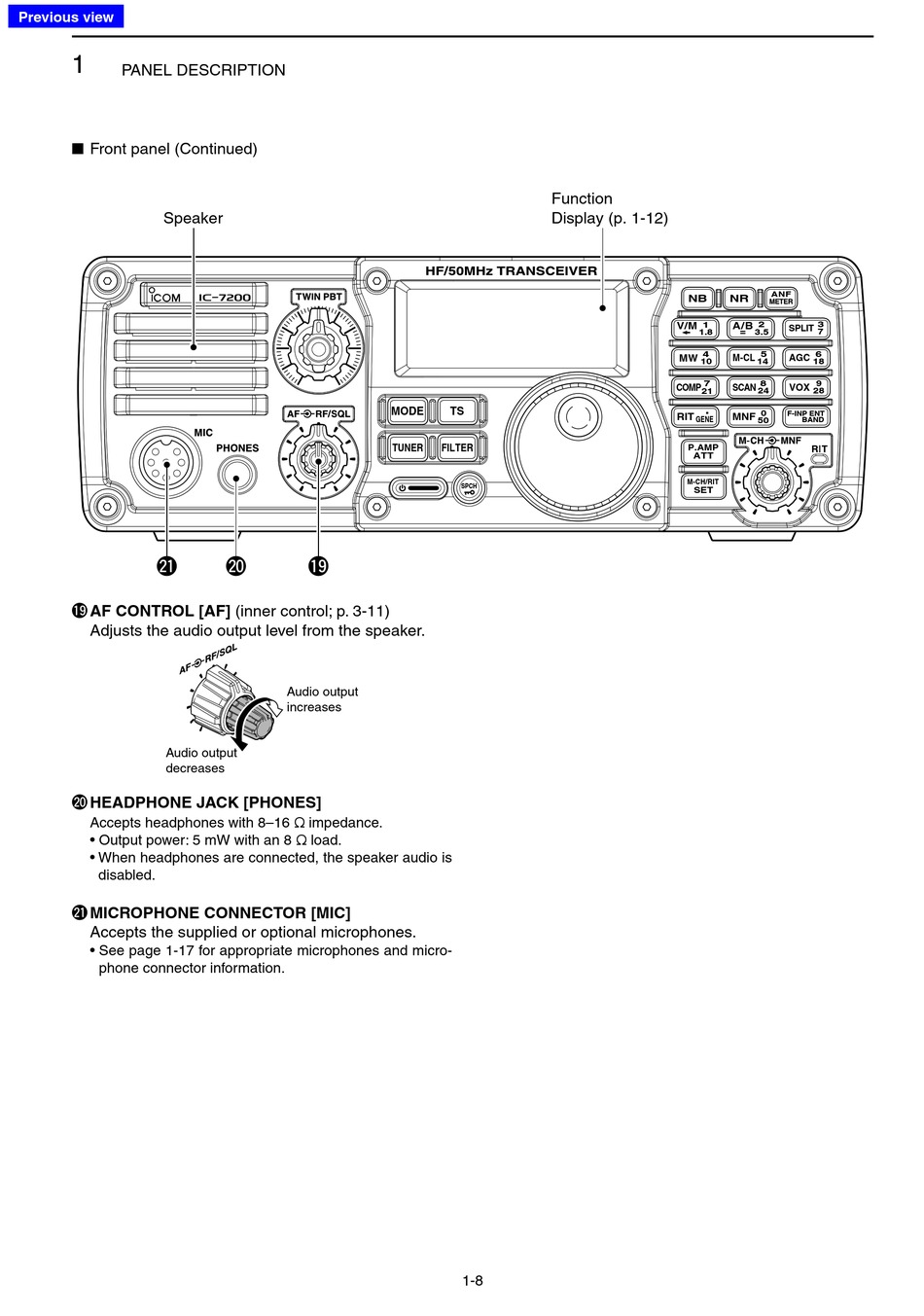

PANEL DESCRIPTION
Front panel (Continued)
■
Speaker
@1
!9 AF CONTROL [AF] (inner control; p. 3-11)
Adjusts the audio output level from the speaker.
Audio output
decreases
@0 HEADPHONE JACK [PHONES]
Accepts headphones with 8–16 Ω impedance.
• Output power: 5 mW with an 8 Ω load.
• When headphones are connected, the speaker audio is
disabled.
@1 MICROPHONE CONNECTOR [MIC]
Accepts the supplied or optional microphones.
• See page 1-17 for appropriate microphones and micro-
phone connector information.
i7200
@0 !9
Audio output
increases
Function
Display (p. 1-12)
MODE TS
TUNER FILTER
SPCH
1-8
ANF
NB NR
METER
1 2 3
V/M A/B
SPLIT
= 7
1.8 3.5
4 5 6
MW M-CL AGC
10
14 18
7 8 9
COMP SCAN VOX
28
21 24
.
0
F-INP ENT
RIT MNF
GENE
50 BAND
P.AMP
ATT
M-CH/RIT
SET
