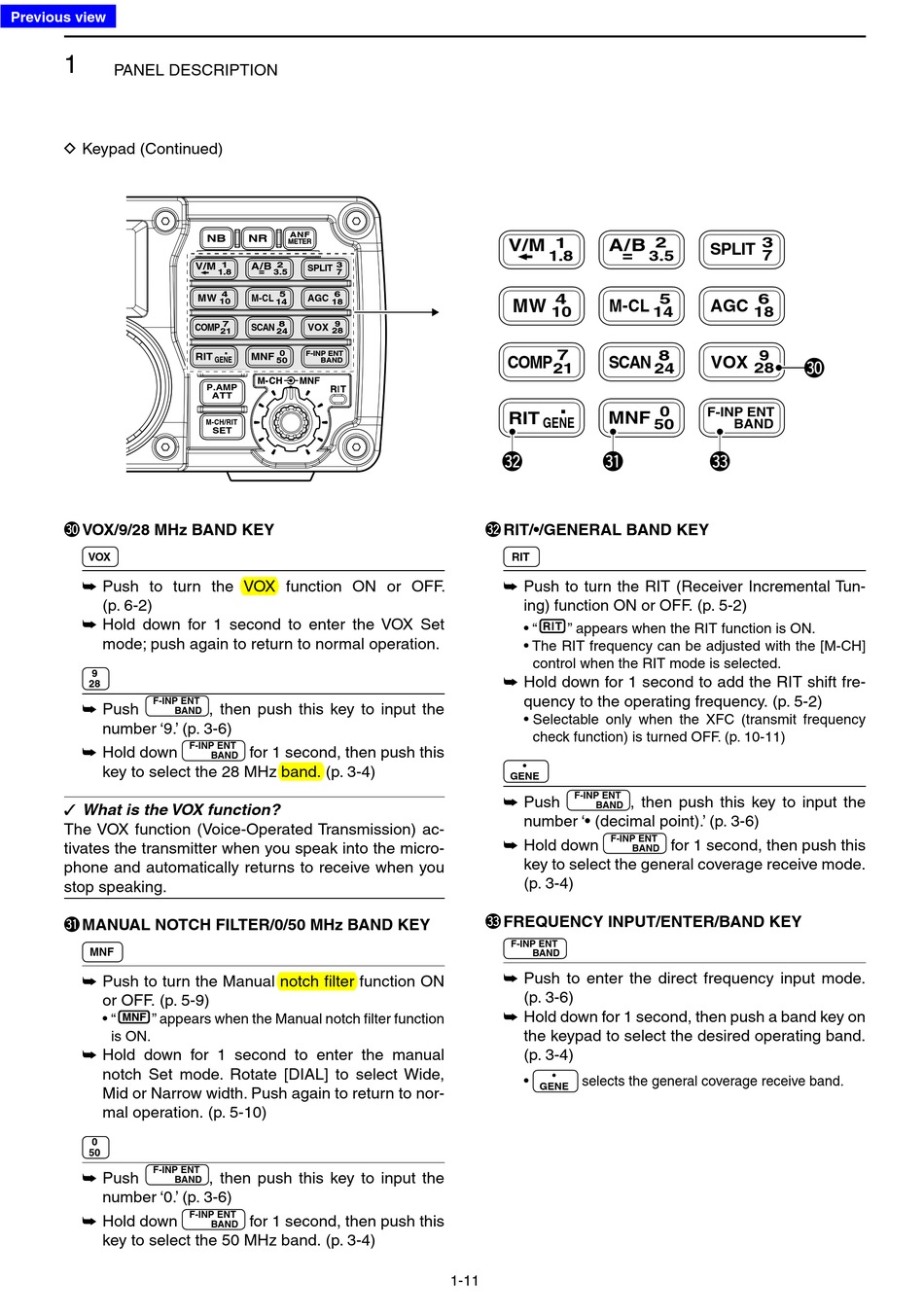

PANEL DESCRIPTION
D
Keypad (Continued)
ER
SPCH
#0 VOX/9/28 MHz BAND KEY
VOX
Push to turn the VOX function ON or OFF.
➥
(p. 6-2)
Hold down for 1 second to enter the VOX Set
➥
mode; push again to return to normal operation.
9
28
F-INP ENT
Push
➥
number '9.' (p. 3-6)
Hold down
➥
key to select the 28 MHz band. (p. 3-4)
What is the VOX function?
✓
The VOX function (Voice-Operated Transmission) ac-
tivates the transmitter when you speak into the micro-
phone and automatically returns to receive when you
stop speaking.
#1 MANUAL NOTCH FILTER/0/50 MHz BAND KEY
MNF
Push to turn the Manual notch filter function ON
➥
or OFF. (p. 5-9)
• " " appears when the Manual notch filter function
is ON.
Hold down for 1 second to enter the manual
➥
notch Set mode. Rotate [DIAL] to select Wide,
Mid or Narrow width. Push again to return to nor-
mal operation. (p. 5-10)
0
50
F-INP ENT
Push
➥
number '0.' (p. 3-6)
Hold down
➥
key to select the 50 MHz band. (p. 3-4)
ANF
NB NR
METER
1 2 3
V/M A/B
SPLIT
= 7
1.8 3.5
4 5 6
MW M-CL AGC
10 14 18
7 8 9
COMP SCAN VOX
28
21 24
.
0
F-INP ENT
RIT MNF
GENE
50 BAND
P.AMP
ATT
M-CH/RIT
SET
, then push this key to input the
BAND
F-INP ENT
for 1 second, then push this
BAND
, then push this key to input the
BAND
F-INP ENT
for 1 second, then push this
BAND
V/M 1 A/B
=
1.8
4
MW M-CL
10
7
COMP SCAN
21
.
MNF
RIT
GENE
#2 #1
#2 RIT/•/GENERAL BAND KEY
RIT
Push to turn the RIT (Receiver Incremental Tun-
➥
ing) function ON or OFF. (p. 5-2)
• " " appears when the RIT function is ON.
• The RIT frequency can be adjusted with the [M-CH]
control when the RIT mode is selected.
Hold down for 1 second to add the RIT shift fre-
➥
quency to the operating frequency. (p. 5-2)
• Selectable only when the XFC (transmit frequency
check function) is turned OFF. (p. 10-11)
•
GENE
F-INP ENT
Push
➥
BAND
number '• (decimal point).' (p. 3-6)
F-INP ENT
Hold down
➥
key to select the general coverage receive mode.
(p. 3-4)
#3 FREQUENCY INPUT/ENTER/BAND KEY
F-INP ENT
BAND
Push to enter the direct frequency input mode.
➥
(p. 3-6)
Hold down for 1 second, then push a band key on
➥
the keypad to select the desired operating band.
(p. 3-4)
•
• selects the general coverage receive band.
GENE
1-11
2 3
SPLIT
7
3.5
5 6
AGC
14 18
8 9
VOX
#0
24 28
0
F-INP ENT
50
BAND
#3
, then push this key to input the
for 1 second, then push this
BAND
