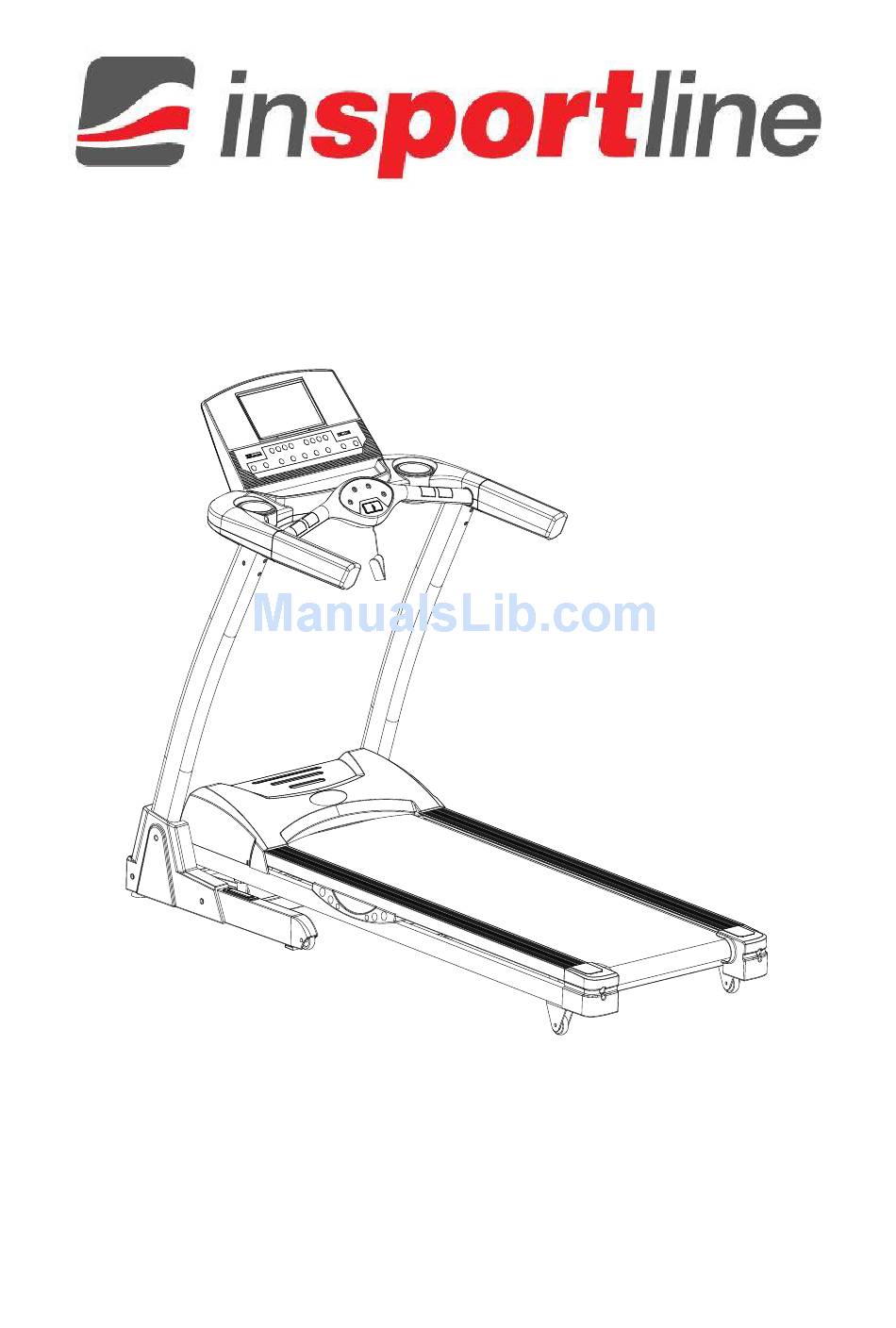

- Page 1 USER MANUAL – EN IN 7563 Motorized Treadmill inSPORTline Elbrom (QS8480TV)
-
Page 2: Table Of Contents
CONTENTS TIPS FOR SAFETY ..............................3 SPECIAL TIPS FOR SAFETY........................... 4 PACKING DETAILS ............................. 4 EXPLODED VIEW ..............................6 PARTS LIST ................................7 TREADMILL STRUCTURE ..........................9 INSTALLATION SKETCH ..........................10 USE ..................................12 SAFETY KEY ..............................12 FOLDING / UNFOLDING ..........................13 INSTRUCTION FOR CONSOLE ........................ -
Page 3: Tips For Safety
Special tips: Before installation and operation, please read this operation manual carefully and save this manual for future reference. WARRANTY We make sure that this item is made of high quality materials. In normal use, if any problem, we will take charge of maintenance. If the product you purchased has problems as follows, the manufacturer’s warranty is not effective: ... -
Page 4: Special Tips For Safety
Cardiopathy, hypertension, sugar diabetes, respiratory disease, smoking, and other chronic diseases, complication disease. If you are over 35 years old and heavier than common weight. Women in pregnant or in breasting period. SPECIAL TIPS FOR SAFETY Please use qualified socket. If the plug and the socket is not compatible, please ask electrician to handle it and don’t do anything for the plug. - Page 5 Meter board set Meter set Frame Meter stator Hardware tool bag Decorating cover at base HARDWARE TOOL BAG Nut , 2pcs Homemade wrench, 1 pc Multi-wrench, 1 pc Umbrella-type allen screw M8*60, Umbrella-type allen screw M8*20, Umbrella-type cross tapping screw M4.2*15, 12pcs Safety key Washer, 10pcs...
-
Page 6: Exploded View
EXPLODED VIEW These are all the components used in installation. All components are listed in the following form. -
Page 7: Parts List
PARTS LIST Component Quantity Base frame frame Left pillar accessory Right pillar accessory Dashboard frame Incline frame Meter stator Motor stator Safety brace for base frame pressure rod Front roller Back roller Incline motor Motor Power switch Overload protector Running board Running belt Multislot belt Long bumper... - Page 8 Upper cover of heart rate sensor Lower cover of heart rate sensor Upper cover of meter board Lower cover of meter board Right handlebar cover Left handlebar cover Safety key Console board Amplifier board Touch key board Button key board MP3 module Speaker Reed pipe for safety key...
-
Page 9: Treadmill Structure
TREADMILL STRUCTURE... -
Page 10: Installation Sketch
INSTALLATION SKETCH STEP 1: Set meter stator on upper cover of meter Set meter stator on upper cover of meter. Use 4 pcs of Screw ST4.2*15 to solid meter stator. (Fasten screws ) STEP 2: Put meter board on meter stator Make sure that communication lines and connecting lines are connected correctly, in case they are connected in reverse. - Page 11 Set meter tube at base frame, use 2 pcs of Screw M8*20 and 2 pcs of washer, 2 pcs of Screw M8*60, 2 pcs of washer and 2 pcs of nut to solid the meter tube (Don’t fasten screw at first) STEP 4: Put meter on the meter tube Make sure that communication lines are connected correctly, in case they are connected in reverse.
-
Page 12: Use
STEP 5: Install decorating cover at base. Use 6 pcs of Screw ST4.2*15 to solid left and right decorating cover at base. STEP 6: Disassemble connecting screw for base frame. Insert the power plug into the socket and switch on the machine. The switch light will be on and you will hear a voice “Di”. -
Page 13: Folding / Unfolding

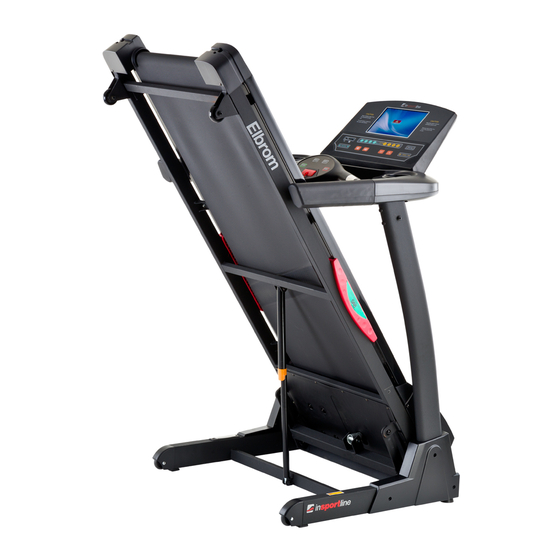

FOLDING / UNFOLDING Folding: Folding will help to save space. Before folding, please switch off and pull off the plug. Use your hand to lift the running board until it has been locked. Unfolding: Step on the supporting tube and pull running board with your hands. The running board will fall to the ground slowly. -
Page 14: Touch Screen And Panel Keys Function
Tech info: Time 00:00-99:59 Min Speed 0.0-20.0 km/h Incline 0-20 % Distance 0.00-99.9 km Calorie 0-999 KCAL Heart rate 70-200 / Min Road, Garden, Beach, Cross-country ,Mountain, Program Cortislim TOUCH SCREEN AND PANEL KEYS FUNCTION START Key: Press "Start " Key, there will be 3 seconds countdown displayed on the window! After countdown, the machine will run at the speed of 1.0km/h. -
Page 15: Display Window
it for above 0.5 seconds, it will progressive increase or reduce automatically. SPEED direct key Use these keys, you could set speed for 3 km/h, 6km/h, 9km/h, 12km/h directly. INCLINE direct key these keys, could incline 3%，6%，9%，12% directly. Music Voice + - key You could use these two keys to change the voice of music. -
Page 16: Detailed Instruction
PULSE: Display pulse figure START/STOP key CALORIES: Display calories figure DISTANCE: Display distance figure SPEED: Display speed figure Display simulation scene DETAILED INSTRUCTION QUICK START (FOR MANUAL MODE) Turn on power switch, Put safe key in the right position. ... - Page 17 ROAD GARDEN BEACH CROSS-COUNTRY MOUNTAIN CORTISLIM After selecting specific program, press “MODE” button and “30:00” will appear in TIME window, then press “SPEED+”, “SPEED-” to set exercise time. After setting, press “START” to start the machine. Preset programs have 16 parts, the time for each part=setting time / 16. When machines come into next part, there will be a voice “Bi-Bi- Bi”...
- Page 18 USER PROFILES MANAGEMENT The machine has user profiles management system. This system will help you to keep the latest 5 times of exercise data. If you are not in this system, there will be a “GUEST” displayed on the window and your exercise data can’t be recorded and saved.
-
Page 19: Multimedia Centre
calorie(cal) 10-999 BODY FAT TEST Under ready condition, you could press into body fat test. Press number buttons to set “SEX”, “AGE”, “WEIGHT ”, “HEIGHT ”.After that, put your hands on the heart rate sensor for 5-8 seconds, you will find BMI and PULSE displayed on the screen.BMI is a figure about the relations of weight and height. - Page 20 You could enjoy movies, music and photos by using USB or SD card. NOTE: Not all formats of movie, music and photo can be played in the treadmill because of copyright issue. The acceptable formats as below: Movies: RM,RMVB,MKV,MPEG,AVI,3GP,MP4,VOB Music:MP3 Photo: JPEG, PNG When you are enjoying movie, music and photo, you could find the exercise information at the bottom of display screen.
-
Page 21: Maintenance
Step 1: Press AUTO to search TV programs automatically, and the system will record every TV program that were searched. It takes about 3 minutes to finish the searching. Step 2: After the searching, press CH+ or CH- to change TV programs and VOL+ or VOL- to change the volume. - Page 22 The adjustment steps for poly V-belt: a) Unplug all power supply and take off the base cover. b) Loosen the four screws for the motor, adjust the V-belt tension bolts in clockwise direction, and then tighten back the four screws for the motor. Adjustment running belt: a) Turn the speed to be 6km/h.
-
Page 23: Cleaning
CLEANING a) Please power off and pull the plug out before cleaning. b) Wipe out the dust stuck on the surface and running board frequently. c) Please clean the surface of frame and running belt with a soft cloth dipped with suds, don’t use things like eradicator and naphtha.(After cleaning, please dry it for use) d) Please take the protecting cover off every two month, use vacuum dust-collector to suck the dust remaining inside of the protecting cover.(The dust will make the components of circuitry board short... -
Page 24: Terms And Conditions Of Warranty, Warranty Claims
Running belt runs faster or slower than Unadjusted Readjust it what been displayed “Maintenance: Please read Running belt slips Running belt is not tight enough adjustment steps for poly V-belt / Adjustment running belt“ “Maintenance: Please read Running belt The running belt is unadjusted. adjustment steps running... -
Page 25: Frame,
In case such agreement is not made, the Seller is obliged to provide the Buyer with a financial compensation in the form of a refund. SEVEN SPORT, s.r.o. Borivojova 35/878 130 00 Praha 3, Czech Rebublic CRN: 268 47 264, VAT ID: CZ26847264 Orders: +420 556 300 970, objednavky@insportline.cz... - Page 26 +420 556 770 190, Mobile: +420 604 853 019, servis@insportline.cz Fax: +420 556 770 192, (Service +420 556 770 191) Web: www.insportline.cz, www.worker.cz, www.worker-moto.cz INSPORTLINE, s.r.o. Bratislavska 36, 911 05 Trencin, Slovakia CRN: 36311723, VAT ID: SK2020177082 Orders: +421(0)326 526 701, +421(0)917 649 192, objednavky@insportline.sk...
