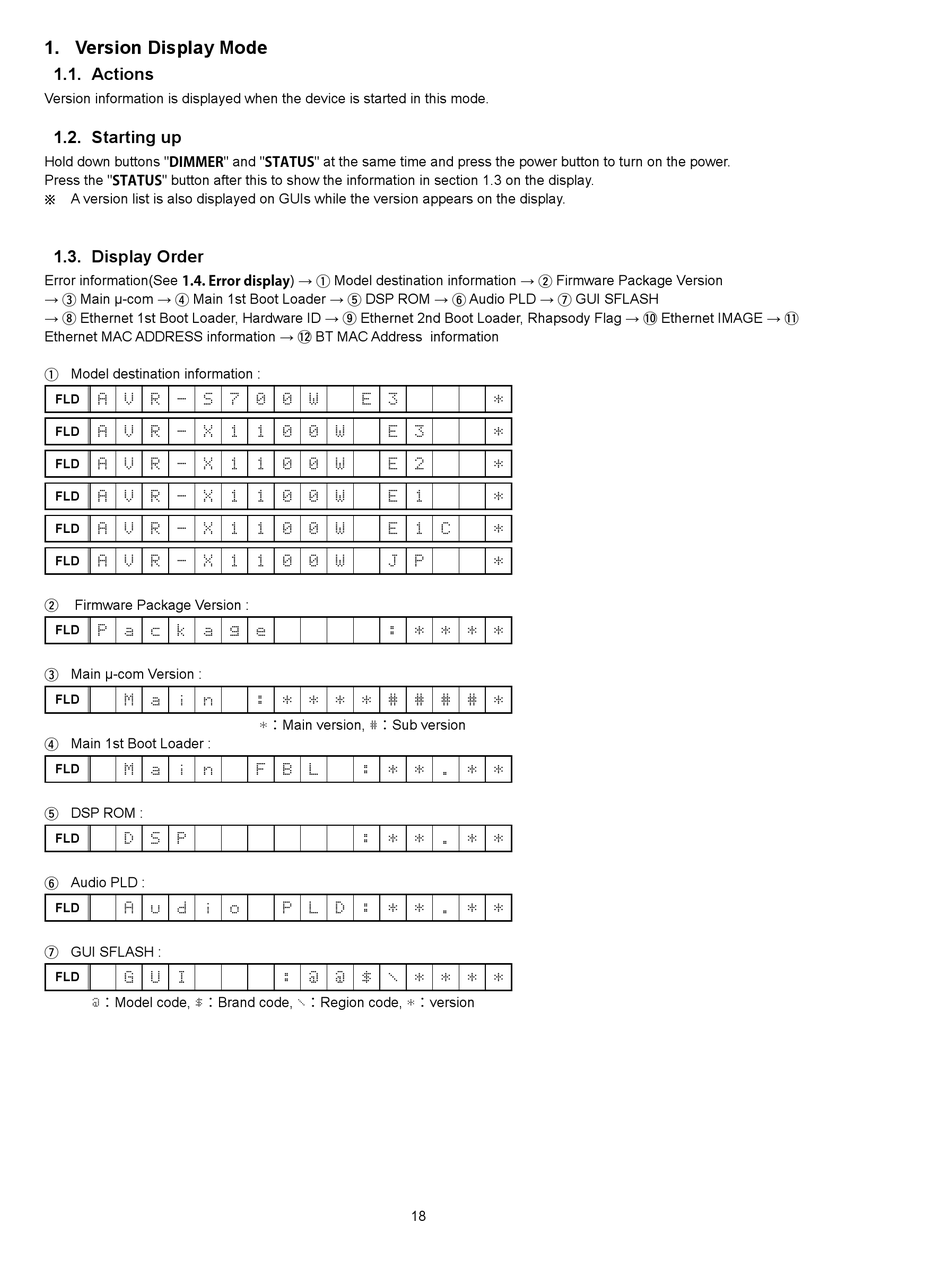

Version Display Mode - Denon AVR-X1100W Service Manual

1. Version Display Mode

1.1. Actions
Version information is displayed when the device is started in this mode.
1.2. Starting up
Hold down buttons "DIMMER" and "STATUS" at the same time and press the power button to turn on the power.
Press the "STATUS" button after this to show the information in section 1.3 on the display.
A version list is also displayed on GUIs while the version appears on the display.
b
1.3. Display Order
Error information(See 1.4. Error display) → q Model destination information → w Firmware Package Version
→ e Main μ-com → r Main 1st Boot Loader → t DSP ROM → y Audio PLD → u GUI SFLASH
→ i Ethernet 1st Boot Loader, Hardware ID → o Ethernet 2nd Boot Loader, Rhapsody Flag → Q0 Ethernet IMAGE → Q1
Ethernet MAC ADDRESS information → Q2 BT MAC Address information
q Model destination information :
FLD
A V R - S 7 0 0 W
FLD
A V R - X 1 1 0 0 W
FLD
A V R - X 1 1 0 0 W
FLD
A V R - X 1 1 0 0 W
FLD
A V R - X 1 1 0 0 W
FLD
A V R - X 1 1 0 0 W
Firmware Package Version :
w
FLD
P a c k a g e
e Main µ-com Version :
FLD
M a i n
r Main 1st Boot Loader :
FLD
M a i n
t DSP ROM :
FLD
D S P
y Audio PLD :
FLD
A u d i o
u GUI SFLASH :
FLD
G U I
@ ： Model code, $ ： Brand code, \ ： Region code, * ： version
E 3
E 3
E 2
E 1
E 1 C
J P
: * * * *
: * * * * # # # # *
* ： Main version, # ： Sub version
F B L : * * . * *
: * * . * *
P L D : * * . * *
: @ @ $ \ * * * *
