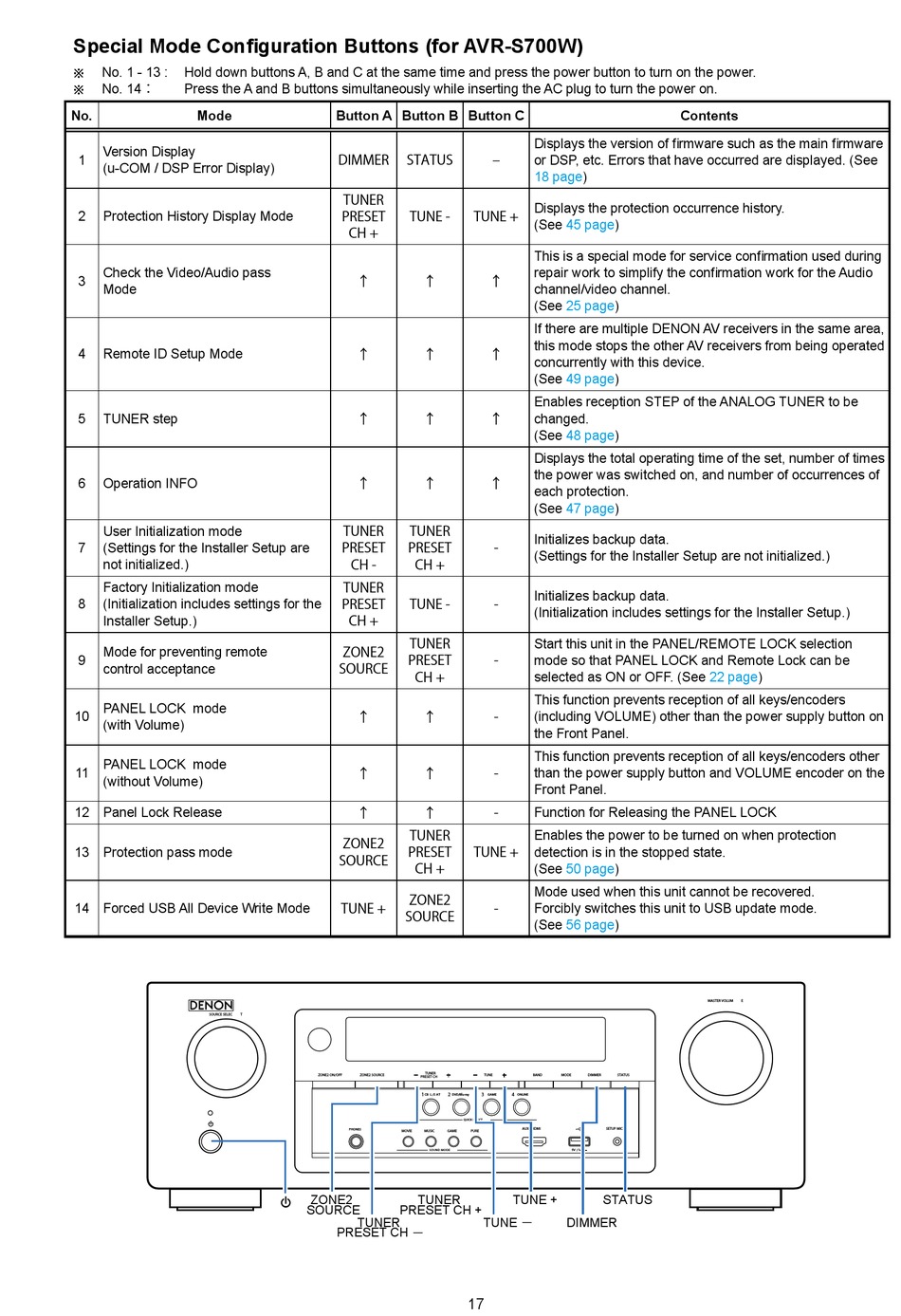

Special Mode Configuration Buttons (for AVR-S700W)

No. 1 - 13 : Hold down buttons A, B and C at the same time and press the power button to turn on the power.
b
No. 14 ： Press the A and B buttons simultaneously while inserting the AC plug to turn the power on.
b
No. Mode
Version Display
1
(u-COM / DSP Error Display)
2 Protection History Display Mode
Check the Video/Audio pass
3
Mode
4 Remote ID Setup Mode
5 TUNER step
6 Operation INFO
User Initialization mode
7 (Settings for the Installer Setup are
not initialized.)
Factory Initialization mode
8 (Initialization includes settings for the
Installer Setup.)
Mode for preventing remote
9
control acceptance
PANEL LOCK mode
10
(with Volume)
PANEL LOCK mode
11
(without Volume)
12 Panel Lock Release
13 Protection pass mode
14 Forced USB All Device Write Mode
SOURCE SELEC T
Button A Button B Button C
DIMMER STATUS
TUNER
PRESET TUNE -
CH +
↑ ↑
↑ ↑
↑ ↑
↑ ↑
TUNER TUNER
PRESET PRESET
CH - CH +
TUNER
PRESET TUNE -
CH +
TUNER
ZONE2
PRESET
SOURCE
CH +
↑ ↑
↑ ↑
↑ ↑
TUNER
ZONE2
PRESET
SOURCE
CH +
ZONE2
TUNE +
SOURCE
TUNER
ZONE2 ON/OFF ZONE2 SOURCE
PRESET CH
1 2
CB L /S AT
PHONES
MOVIE MUSIC GAME
SOUND MODE
ZONE2 TUNER
X
SOURCE PRESET CH +
TUNER
PRESET CH －
Displays the version of firmware such as the main firmware
– or DSP, etc. Errors that have occurred are displayed. (See
18 page)
Displays the protection occurrence history.
TUNE +
(See 45 page)
This is a special mode for service confirmation used during
repair work to simplify the confirmation work for the Audio
↑
channel/video channel.
(See 25 page)
If there are multiple DENON AV receivers in the same area,
this mode stops the other AV receivers from being operated
↑
concurrently with this device.
(See 49 page)
Enables reception STEP of the ANALOG TUNER to be
↑ changed.
(See 48 page)
Displays the total operating time of the set, number of times
the power was switched on, and number of occurrences of
↑
each protection.
(See 47 page)
Initializes backup data.
-
(Settings for the Installer Setup are not initialized.)
Initializes backup data.
-
(Initialization includes settings for the Installer Setup.)
Start this unit in the PANEL/REMOTE LOCK selection
mode so that PANEL LOCK and Remote Lock can be
-
selected as ON or OFF. (See
This function prevents reception of all keys/encoders
(including VOLUME) other than the power supply button on
-
the Front Panel.
This function prevents reception of all keys/encoders other
- than the power supply button and VOLUME encoder on the
Front Panel.
- Function for Releasing the PANEL LOCK
Enables the power to be turned on when protection
TUNE + detection is in the stopped state.
(See 50 page)
Mode used when this unit cannot be recovered.
Forcibly switches this unit to USB update mode.
-
(See 56 page)
TUNE BAND MODE DIMMER STATUS
3 4
DVD/Blu-ray GAME ONLINE
QUICK SELECT
AUX - HDMI SETUP MIC
PURE
5V / 1A
TUNE + STATUS
TUNE － DIMMER
