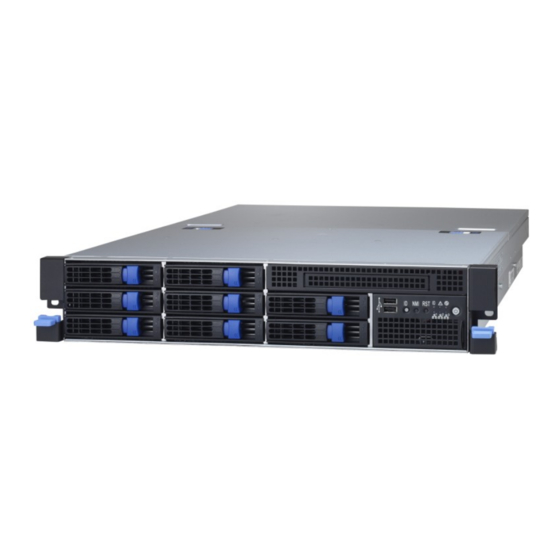

TYAN GN70-B7086 Service Manual
  1. Manuals
  2. Brands
  3. TYAN Manuals
  4. Server
  5. GN70-B7086
  6. Service manual

TYAN GN70-B7086 Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
GN70-B7086
Service Engineer's Manual
1
http://www.tyan.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GN70-B7086 and is the answer not in the manual?

Questions and answers

Related Manuals for TYAN GN70-B7086

Summary of Contents for TYAN GN70-B7086

  • Page 1 GN70-B7086 Service Engineer’s Manual http://www.tyan.com...
  • Page 2 http://www.tyan.com...
  • Page 3 Neither this manual, nor any material contained herein, may be reproduced without written consent of manufacturer. ® Copyright 2015 MiTAC International Corporation. All rights reserved. TYAN a registered trademark of MiTAC International Corporation. Version 1.0 Disclaimer Information contained in this document is furnished by MiTAC International Corporation and has been reviewed for accuracy and reliability prior to printing.
  • Page 4 There will be danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by manufacturer. Dispose of used battery according to manufacturer instructions and in accordance with your local regulations. http://www.tyan.com...

  • Page 5: About This Manual

    About this Manual This manual provides you with instructions on installing your TYAN GN70-B7086. This Manual is intended for experienced users and integrators with hardware knowledge of personal computers. This manual consists of the following parts: Chapter1: Provides an introduction to the TYAN GN70-B7086...

  • Page 6: Safety And Compliance Information

    Safety and Compliance Information Before installing and using TYAN GN70-B7086, take note of the following precautions: ·Read all instructions carefully. ·Do not place the unit on an unstable surface, cart, or stand. ·Do not block the slots and opening on the unit, which are provided for ventilation.

  • Page 7: Safety Information

    You must become familiar with the safety information in this guide before you install, operate, or service TYAN products. Symbols on Equipment Caution. This symbol indicates a potential hazard.
  • Page 8 · Make sure racks are coupled together if it is a multiple-rack installation. · Make sure the rack is level and stable before installing an appliance in the rack. · Make sure the leveling jacks are extended to the floor. http://www.tyan.com...
  • Page 9 If you do not ground the Green/Yellow tab, it can cause an electrical shock due to high leakage currents. · Do not place objects on AC power cords or cables. Arrange them so that no http://www.tyan.com...
  • Page 10 TYAN, your authorized TYAN partner, or their agents. Equipment Modifications · Do not make mechanical modifications to the system. TYAN is not responsible for the regulatory compliance of TYAN equipment that has been modified.
  • Page 11 – Liquid has been spilled on the product or an object has fallen into the product. – The product has been exposed to rain or water. – The product has been dropped or damaged. – The product does not operate normally when you follow the operating instructions. http://www.tyan.com...
  • Page 12 http://www.tyan.com...

  • Page 13: Table Of Contents

    Table of Contents Chapter 1: Overview ................ 15 About the TYAN GN70-B7086 ..........15 Product Models ............... 15 Features.................. 16 Standard Parts List ..............21 1.4.1 Box Contents ..............21 1.4.2 Accessories ..............22 About the Product ..............24 1.5.1 System Front View ............
  • Page 14 Replacing the HDD Backplane Board ........76 3.9.1 HDD BP Board Specifications ......... 77 Appendix I: Cable Connection Tables ........... 80 Appendix II: FRU Parts Table ............82 Appendix III: Fan and Temp Sensors ..........84 Appendix IV: Technical Support ............. 89 http://www.tyan.com...

  • Page 15: Chapter 1: Overview

    IT demand but also offers a smooth path for future application usage. ® TYAN also offers the GN70-B7086 in a version that can support up to eight 3.5” or 2.5” hot-swap hard drives. The GN70-B7086 uses TYAN’s latest chassis featuring a robust structure and a solid mechanical enclosure.

  • Page 16: Features

    Features TYAN GN70B7086 (B7086G70V6E2HR) Form Factor 2U Rackmount Gross Weight 25 kg Chassis Model GN70 System Dimension (D x W x 27.56” x 17.72” x 3.43” (700 x 450 x 87mm) Motherboard S7086GM3NRE Board Dimension EATX, 12”x13” (305x330mm) Buttons (1) RST / (1) ID / (1) PWR w/ LED...
  • Page 17 (6) PCI-E Gen3 x16 slots (w/ x8 link) (1) OCP slot for Mezz Card/ (1) Proprietary slot for SAS Note: Mezz Card/ (4) PCI-E Gen3 x4 in MiniSAS HD for NVMe devices(TYAN Proprietary) M7062-B811-1T, PCI-E Gen3 x8, Broadcom 10GbE Mezz Card M7062-B810-2T, PCI-E Gen3 x8,...
  • Page 18 Temp. Environment In/Non-operating 90%, non-condensing at 35° C Humidity RoHS 6/6 RoHS Compliant Barebone (1) GN70-B7086 Barebone Package Manual (1) Web User’s manual / (1) Quick Installation Guide Contains Installation CD (1) TYAN installation CD TYAN GN70B7086 (B7086G70V8HR) Form Factor...
  • Page 19 Expansion PCI-E Gen3 x8, LSI SAS 12G Mezz Card Recommended Slots M7094-2308G-8I, PCI-E Gen3 x8, LSI SAS 6G Mezz TYAN OCP Card Card M7076-3008-8I, PCI-E Gen3 x8, LSI SAS 12G Mezz Card M7076-I350, PCI-E Gen3 x8, Intel (2)GbE Mezz Card...
  • Page 20 - 40° C ~ 70° C (-40° F ~ 158° F) Temp. Environment In/Non-operating 90%, non-condensing at 35° C Humidity RoHS 6/6 RoHS Compliant Barebone (1) GN70-B7086 Barebone Package Manual (1) Web User’s manual / (1) Quick Installation Guide Contains Installation CD (1) TYAN installation CD http://www.tyan.com...

  • Page 21: Standard Parts List

    Standard Parts List This section describes GN70-B7086 package contents and accessories. Open the box carefully and ensure that all components are present and undamaged. The product should arrive packaged as illustrated below. 1.4.1 Box Contents Component Description 2U chassis, (8) hot swap HDD bays ®...

  • Page 22: Accessories

    If any items are missing or appear damaged, contact your retailer or browse to ® TYAN ’s website for service: http://www.tyan.com ® The web site also provides information of other TYAN products, as well as FAQs, compatibility lists, BIOS settings, etc. ® TYAN Motherboard...
  • Page 23 Addendum for China Use Only http://www.tyan.com...

  • Page 24: About The Product

    The following views show you the product. 1.5.1 System Front View Ears 3.5” /2.5” HDD bays USB Ports ID Button NMI Button RESET Button LAN1/LAN2/LAN3 ID LED System Fan Fail LED System Warning LED Power On/OFF Button with LED http://www.tyan.com...
  • Page 25 2 PSU and 2 PSU AC cords are Amber solid on connected. After system is powered on, disconnect 1 PSU AC cord. 2 PSU and 2 PSU AC cords are Amber solid on connected. After system is powered on, disconnect 1 PSU. http://www.tyan.com...
  • Page 26 Color: Red No Driver Present or power disconnected No Activity Solid ON Driver Present Access Activity Blinking HDD Drive Fail Don’t care Solid ON RAID Rebuild Don’t care Blinking @ 4Hz HDD Drive Locate Identifier Don’t care Blinking @ 1Hz http://www.tyan.com...

  • Page 27: System Rear View

    10 Mbps Blinking Green Active Solid Green Solid Green Link 100 Mbps Blinking Green Solid Green Active Solid Green Solid Yellow Link 1000 Mbps Blinking Green Solid Yellow (1Gbps) Active NOTE: “Left” and “Right” are viewed from the rear panel. http://www.tyan.com...
  • Page 28 I210 LAN chip is support on LAN3 can up to 1Gbps. Peripheral devices can be plugged straight into any of these ports but software may be required to complete the installation. ID LED Behavior Status Remark Color Normal ID LED Blue Local and Located Solid on remote http://www.tyan.com...

  • Page 29: Motherboard (S7086) Layout

    The board you receive may not look exactly like the above diagram. The DIMM slot numbers shown above can be used as a reference when reviewing the DIMM population guidelines shown later in the manual. For the latest board revision, please visit our web site at http://www.tyan.com. http://www.tyan.com...

  • Page 30: Jumpers & Connectors

    8. LAN Port#2(LAN2) 25.USB 2.0 Header(USB2_HD1) 9. ID LED 26.PSMI Connector(PSMI_HD1) 10. 4-pin Fan Connector(SYS_FAN5) 27. 24-pin Power Connector(PW1) 11. TYAN Module Header 28. USB 3.0 Header(USB3_HD1) 12. BMC LED 29. TYPE_A USB Header(TYPEA_USB3) 13. COM Port(COM2) 30. 4-in-1 Mini SAS Connector(SSATA0-3) 14.
  • Page 31 Jumper Legend OPEN - Jumper OFF Without jumper cover CLOSED - Jumper ON With jumper cover http://www.tyan.com...

  • Page 32: System Block Diagram (S7086)

    1.5.5 System Block Diagram (S7086) http://www.tyan.com...

  • Page 33: Internal View

    1.5.6 Internal View With Riser Card Brackets 3.5”/2.5” HDD cage (underneath) SAS/SATA HDD Backplane Board System Fan Unit Power Distribution Board PCI-E Riser Card Bracket Power Supply (underneath) http://www.tyan.com...
  • Page 34 Without Riser Card Brackets 3.5”/2.5” HDD cage (underneath) SAS/SATA HDD Backplane Board System Fan Unit Power Distribution Board Power Supply (underneath) http://www.tyan.com...
  • Page 35 NOTE http://www.tyan.com...

  • Page 36: Chapter 2: Setting Up

    Caution! To avoid damaging the motherboard and associated components, do not use torque force greater than 7kgf/cm (6.09 lb/in) on each mounting screw for motherboard installation. Do not apply power to the board if it has been damaged. http://www.tyan.com...

  • Page 37: Precautions

    Working on a system that is connected to a power supply can be extremely dangerous. Follow the guidelines below to avoid damage to GN70-B7086 or injury to yourself.  Ground yourself properly before removing the top cover of the system.

  • Page 38: Installing Motherboard Components

    CPUs, memory modules, HDD and PCI-E cards. 2.1.1 Removing the Chassis Cover Follow these instructions to remove the GN70-B7086 chassis cover. Unscrew the rear top cover on the back side. Unscrew the front top cover and pull the latches aside to lift up the top cover.
  • Page 39 Slide the rear top cover out. http://www.tyan.com...

  • Page 40: Removing The Riser Card Brackets

    2.1.2 Removing the Riser Card Brackets Follow these instructions to remove the PCI-E Riser Card Brackets. Loose three thumb screws to release the PCI-E Riser Card Brackets. Lift up the Riser Card Brackets. http://www.tyan.com...

  • Page 41: Installing The Cpu And Heatsink

    Follow the steps below on installing CPUs and CPU heatsinks. Locate the CPU sockets. Always start with CPU0 first. Pull the first and second levers slightly away from the socket and then push them to a fully open position. http://www.tyan.com...
  • Page 42 Push the CPU socket cover to a fully open position. Take out the protection Place the CPU into the socket and make sure that the gold arrow is located in the right direction. http://www.tyan.com...
  • Page 43 Close the CPU socket cover and press the levers down to secure the CPU. Position the heatsink on top of the CPU and secure it with 4 screws. Repeat the procedures mentioned earlier to install the second CPU and heatsink. http://www.tyan.com...

  • Page 44: Installing The Memory

    Align the memory module with the slot. When inserted properly, the memory slot locking levers lock automatically onto the indentations at the ends of the module. Follow the recommended memory population table to install the other memory modules. http://www.tyan.com...
  • Page 45 1. √ indicates a populated DIMM slot. 2. Use paired memory installation for max performance. 3. Populate the same DIMM type in each channel, specifically - Use the same DIMM size - Use the same # of ranks per DIMM http://www.tyan.com...
  • Page 46 √ √ √ √ √ √ √ CPU1_DIMM_E0 CPU1_DIMM_E1 √ √ √ CPU1_DIMM_F0 √ √ √ √ √ √ √ √ CPU1_DIMM_F1 √ √ √ √ √ √ CPU1_DIMM_G0 CPU1_DIMM_G1 √ √ CPU1_DIMM_H0 √ √ √ √ CPU1_DIMM_H1 √ http://www.tyan.com...
  • Page 47 Intel Xeon processor E5-2600v3 product families Support NOTE 1: 1DPC => One dimm per channel NOTE 2: 2DPC => Two dimm per channel  Physical Ranks are used to calculate DIMM Capacity.  Supported DRAM Densities are 4Gb, 8Gb. http://www.tyan.com...

  • Page 48: Installing Hard Drives

    2.1.5 Installing Hard Drives The GN70-B7086 can support up to eight (8) 3.5” or 2.5” hard drives. Follow these instructions to install a hard drive. Warning!!! Always install the hard disk drive to the chassis after the chassis is secured on the rack.
  • Page 49 Option A: for 2.5” hard drives Place a 2.5” hard drive into the HDD tray and use 4 screws to secure the HDD. Option B: for 3.5” hard drives Unscrew the drive bracket from the HDD tray. http://www.tyan.com...
  • Page 50 Place a 3.5” hard drive into the drive tray and use 6 screws to secure the HDD. Reinsert the HDD tray into the chassis and press the locking lever to secure the tray. http://www.tyan.com...

  • Page 51: Installing The Pci-E Cards

    2.1.6 Installing the PCI-E Cards The GN70-B7086 supports PCI-E Riser Card Brackets. A power cable (2x3p/2x4p) is required for GPU cards. Follow these instructions to install PCI-E cards. Unscrew the PCI-E slot to take out the PCI bracket. Insert the PCI-E card and securely screw as shown.
  • Page 52 Please add a 4-pin power cable to connect PDB J4/J5 to riser card M7056-L24 PWR1/M7056-R24 PWR1, if the PCI-E card needs more than 75W power and has no power connector to supply power. M7056-L24-3F M7056-R24-3F Signal Signal J2 (PWR1) +12V http://www.tyan.com...

  • Page 53: Rack Mounting

    CRAL-0190 Rail Kit Front view 2.2.1 Installing the Server in a Rack Follow these instructions to mount the TYAN GN70-B7086 into an industry standard 19” rack. NOTE: Before mounting the TYAN GN70-B7086 in a rack, ensure that all internal components have been installed and that the unit has been fully tested. However, to make the installation easier, we suggest that you remove all HDD trays before you insert the chassis to the rack.
  • Page 54 Repeat the same procedures for the front end of the rail. Front Push the locking latch to secure the rail to the rack. Repeat the same procedures for the other rail. Left Right http://www.tyan.com...
  • Page 55 There are three holes on each rail which are used to hook and secure the chassis. Align the studs on the chassis with the holes on the rails and make sure the chassis is securely hooked. http://www.tyan.com...
  • Page 56 Push the chassis back into the rack. The installation is now complete. http://www.tyan.com...

  • Page 57: Removing The Server From A Rack

    2.2.2 Removing the Server from a Rack Follow these instructions to remove the TYAN GN70-B7086 from an industry standard 19” rack. Push the ears to pull the chassis forward. Push forward the locking tabs on both rails to unhook the chassis from the rails.

  • Page 58: Chapter 3: Replacing Pre-Installed Components

    This chapter explains how to replace the pre-installed components, including the S7086 Motherboard, M1709G70-FPB Front Panel Board, PCI-E Riser Card, M1276G70-BP12E-8/M1276G70-BP12-8 SATA/SAS HDD Board, System Fan and Power Supply Unit etc. Disassembly Flowchart The following flowchart outlines the disassembly procedure. http://www.tyan.com...

  • Page 59: Removing The Cover

    Removing the Cover Before replacing any parts you must remove the chassis cover. Follow Section 2.1.1 Removing the Chassis Cover (page 38) to remove the cover of the GN70-B7086. Replacing Motherboard Components Follow these instructions to replace motherboard components, including the motherboard.
  • Page 60 Repeat the same procedures for the second Riser Card Bracket. Unscrew the M7056-L24-3F riser card to replace a new one if necessary. http://www.tyan.com...
  • Page 61 3.4.2 PCI-E Riser Cards Specification M7056-L24-3F riser card M7056-L24-3F riser card http://www.tyan.com...

  • Page 62: Disconnecting All Motherboard Cables

    Before replacing the motherboard or certain components, remove cables connected to the motherboard. Follow these instructions to remove all cables. Disconnect the Mini SAS, USB and 2x12pin power cables. Disconnect the PSMI and front panel cables. Disconnect the 2x4pin power cable. http://www.tyan.com...

  • Page 63: Removing The Motherboard

    After removing all of the aforementioned cables, follow the instructions below to remove the motherboard from the chassis. Remove the heatsinks and processors if installed. Remove the nine screws securing the motherboard to the chassis. Carefully lift the motherboard from the chassis. http://www.tyan.com...

  • Page 64: Replacing The Power Distribution Board

    Replacing the Power Distribution Board Follow these instructions to replace the M1601T70-D-PDB power distribution board. Disconnect all cables. Unscrew to replace a new power distribution board. http://www.tyan.com...

  • Page 65: Replacing The Front Panel Board

    Replacing the Front Panel Board Follow these instructions to replace the M1709G70-FPB Front Panel Board. Unscrew to release the Front Panel Board Module. Push the Front Panel Board Module forward. Disconnect the Front Panel Control and USB cables. http://www.tyan.com...
  • Page 66 Unscrew the Front Panel Board to replace a new one. Follow the steps described earlier in reverse to reinstall the Front Panel Board. http://www.tyan.com...

  • Page 67: Front Panel Board Specifications

    Power On/Off Button with LED: Green  ID LED Color: Blue  LEDs System Warning LED: Amber  System Fan Fail LED: Red  LAN1/LAN2/LAN3: Green  RESET button  ID button Push buttons  Power On/Off button with LED  NMI Button http://www.tyan.com...

  • Page 68: Connector Pin Definition

    Connector Pin Definition Front Panel Connector (J3) Definition Definition PW_LED+ ID_LED+ PW_LED- ID_LED- HD/LAN3_LED+ SYS_FAULT1- HD/LAN3_LED- SYS_FAULT2- PWR_SW+ LAN1_LED+ PWR_SW- LAN1_LED- RESET+ ICH_SMBDAT RESET- ICH_SMBCLK ID_SW+ INTRU# Temp_sensor LAN2_LED+ EXT_INT LAN2_LED- USB Connector (J1) Definition Definition USB1- USB2- USB1+ USB2+ http://www.tyan.com...

  • Page 69: Replacing The System Fan

    Replacing the System Fan Follow these instructions to replace the system fan. Press the latch in the direction as shown to lift up the fan from cage. Take out the fan unit. Loose the screws on both sides. http://www.tyan.com...
  • Page 70 Push the latch in the direction as the arrow shown to release the fan from the iron holder. Remove the iron holder to replace a new fan. After replacing a new one, put the fan unit back into the cage. http://www.tyan.com...

  • Page 71: Replacing The Fan Backplane Board

    Follow these instructions to replace the M1806G70-FB Fan Backplane Board in your system. Press the latch in the direction as shown to lift up the fan from cage. Remove all four fans from the chassis. Disconnect all cables attached to the Fan Backplane Board. http://www.tyan.com...
  • Page 72 Use a screw driver to unscrew the Fan Module. Disconnect the power and fan cables. Lift up the Fan Module. http://www.tyan.com...
  • Page 73 Release the 14 screws on the Fan Backplane Board to replace a new one. Follow the steps described in reverse order to reinstall the fan cage. http://www.tyan.com...

  • Page 74: Fan Bp Board Specifications

    (2) 1x4pin R/A Power Connector  (8) 2x2pin Fan Connectors Integrated I/O  (1) 2x10pin Barebone Fan Connector  (1) 2x2pin Connector for S7015 3.8.2 Fan BP Board LED Definitions FAN Status Green LED Red LED With Fan Without Fan http://www.tyan.com...

  • Page 75: Connector Pin Definitions

    3.8.3 Connector Pin Definitions Power Connector (PW1/PW2) Definition Definition +12V Barebone Fan Connector (J8) Definition Definition FANIN1 FANIN6 FANIN2 FANIN7 FANIN3 FANIN8 FANIN4 SIO_FANIN1 FANIN5 SIO_ FANIN2 MB_PWM2 MB_PWM1 SIO_ FANIN3 SMBUS_3V3_DATA SIO_ FANIN4 SMBUS_3V3_CLK VDD_3.3_AUX MB_PWM3 http://www.tyan.com...

  • Page 76: Replacing The Hdd Backplane Board

    Fan Module. Disconnect the power cables attached to the HDD BP Board. Unscrew the HDD BP Board. Remove the HDD BP Board from the hook. Replace a new HDD BP Board and reinstall it into the chassis following the steps in reverse. http://www.tyan.com...

  • Page 77: Hdd Bp Board Specifications

    Integrated I/O  Support (4) 29 pin SAS connectors, (4) HDD devices Support (4) mini-SAS HD connectors, connect MB  Support (2) mini-SAS connectors, connect MB  Support (8) HDD Failed LED LEDs Support (8) HDD Access LED http://www.tyan.com...
  • Page 78 PW4 Pin definition Definition Definition +12V +12V +12V +12V SGPIO Pin definition Definition Definition SMBUS_3V3_CLK SAS_GPIO2 SAS_GPIO0 SMBUS_3V3_DATA SAS_GPIO3 SAS_GPIO1 VCC3 HD_ERR_LED http://www.tyan.com...

  • Page 79: Replacing The Power Supply

    Follow these instructions to replace the power supply units. Press and hold the latch to pull the power supply out. After replacing a new power supply, press and hold the latch to push the power supply back into the chassis. http://www.tyan.com...

  • Page 80: Appendix I: Cable Connection Tables

    Front Panel Board Connects to Motherboard M1709G70-FPB  FP_HD1 USB Cable Front Panel Board Connects to Motherboard M1709G70-FPB  USB2_HD1 Power Cable Power Board Connects to Motherboard M1601T70-D-PDB PW1 (MB)  PATX1 (MB1)  PATX2 (MB2)   J7 (PSMI) PSMI_HD1 http://www.tyan.com...
  • Page 81 Power Cable Power Board FAN Board Connects to M1601T70-D-PDB M1806G70-FB PW4 (FAN BD1)  PW5 (FAN BD2)  Power Cable Power Board SAS/SATA Backplane Connects to M1601T70-D-PDB M1276G70-BP12E-8  PATX6 (HDD BP1) http://www.tyan.com...

  • Page 82: Appendix Ii: Fru Parts Table

    411T43900115 PCI-E x16 2U Riser Card PCBA M7056-L24-3F 411T43900114 PCI-E x16 2U Riser Card TF-Riser M7086-R24-3F 5411T5290004 Card;SBU,M7086-R24-3F,R01,TYAN ,GN70-B7086 Rack GN70, 泛亞 420-11599 CRAL-0190 452T44600001 Mounting CCBL-0290 332810000281 A/C power cord, L=1830mm, EU type Power cord; US, 125V, 18AWGX3C, Cable...
  • Page 83 NOTE http://www.tyan.com...

  • Page 84: Appendix Iii: Fan And Temp Sensors

    SYS_FAN_1, SYS_FAN_2, SYS_FAN_3 and SYS_FAN_4. They detect the fan speed (rpm) Temp Sensor: SYS_Air_Inlet, and M/B_Inlet_Temp. They detect the system temperature around. NOTE: The system temperature is measured in a scale defined by Intel, not in Fahrenheit or Celsius. http://www.tyan.com...
  • Page 85 BIOS Temp Sensor Name Explanation: http://www.tyan.com...
  • Page 86 http://www.tyan.com...
  • Page 87 Fan speed of SYS_FAN_4 SYS_FAN_5 Fan speed of SYS_FAN_5 SYS_FAN_6 Fan speed of SYS_FAN_6 SYS_FAN_7 Fan speed of SYS_FAN_7 SYS_FAN_8 Fan speed of SYS_FAN_8 SYS_FAN_9 Fan speed of SYS_FAN_9 SYS_FAN_10 Fan speed of SYS_FAN_10 SYS_FAN_11 Fan speed of SYS_FAN_11 http://www.tyan.com...
  • Page 88 SYS_FAN_12 Fan speed of SYS_FAN_12 http://www.tyan.com...

  • Page 89: Appendix Iv: Technical Support

    By offering plenty of options for users, MiTAC serves multiple market segments with the industry’s most competitive services to support them. Please feel free to contact us directly for this service at tech-support@tyan.com Help Resources: 1. See the beep codes section of this manual.
  • Page 90 (RMA) number. The RMA number should be prominently displayed on the outside of the shipping carton and the package should be mailed prepaid. TYAN will pay to have the board shipped back to you. ® TYAN GN70-B7086 Service Engineer’s Manual V1.0 Document No.:...
