TYAN Tank GT20 B5372-LH Service Manual

TYAN Tank GT20 B5372-LH Service Manual

Rack-mountable barebone system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

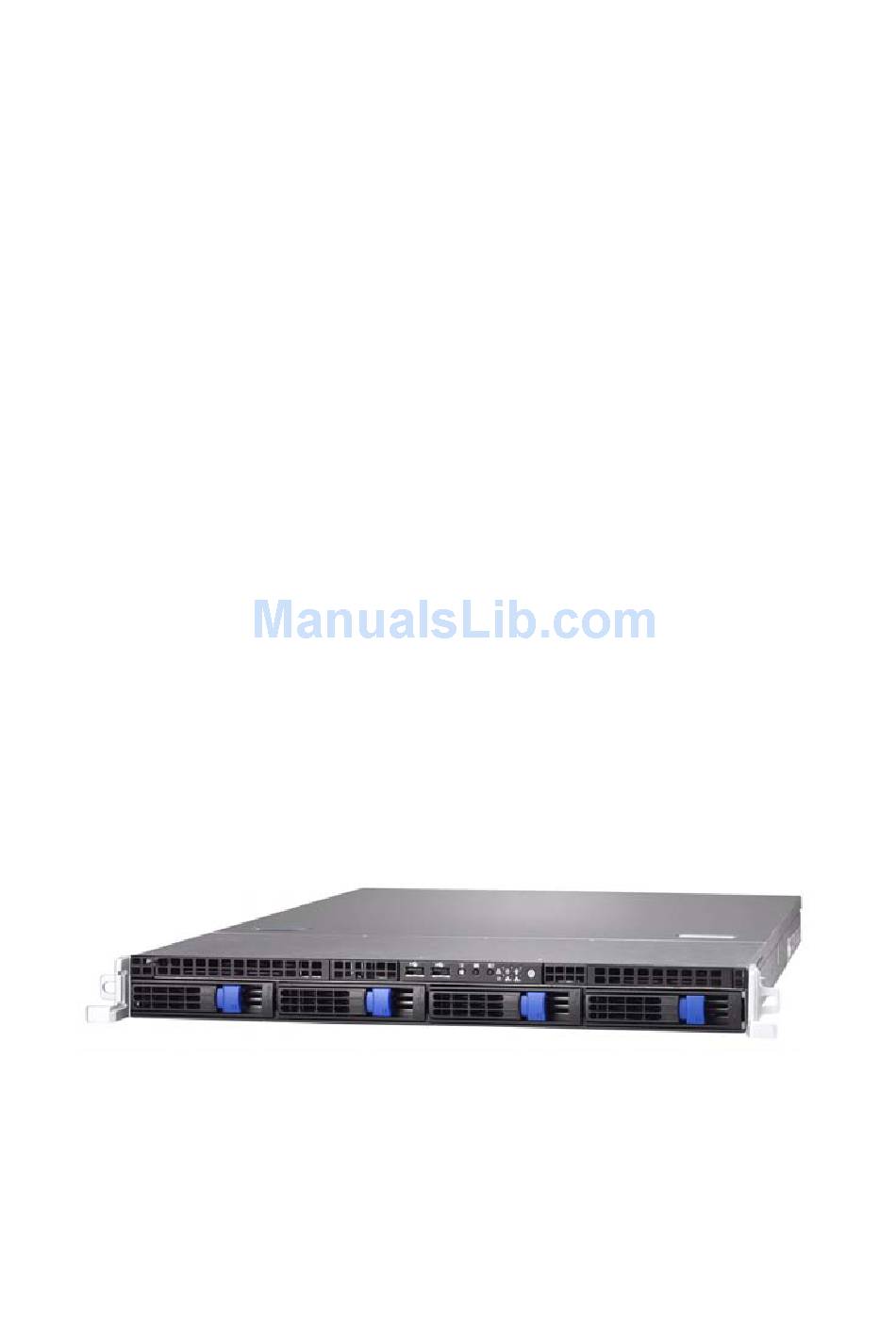

Tank GT20
B5372-LH
Service Engineer's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tank GT20 B5372-LH and is the answer not in the manual?

Questions and answers

Related Manuals for TYAN Tank GT20 B5372-LH

Summary of Contents for TYAN Tank GT20 B5372-LH

  • Page 1 Tank GT20 B5372-LH Service Engineer’s Manual...
  • Page 3 TYAN retains the right to make changes to product descriptions and/or specifications at any time, without notice. In no event will TYAN be held liable for any direct or indirect, incidental or consequential damage, loss of use, loss of data or other malady resulting from errors or inaccuracies of information contained in this document.
  • Page 4 Federal Communications Commission (FCC) Notice for the USA Compliance Information State- ment (Declaration of Conformity Procedure) DoC FCC Part 15: This device complies with part 15 of the FCC Rules Operation is subject to the following conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received including inter- ference that may cause undesired operation.
  • Page 5 About this Manual This manual provides you with instructions on installing your Tank GT20. This manual is intended for experienced users and integra- tors with hardware knowledge of personal computers. This manual consists of the following parts Chapter 1: Provides an Introduction to the Tank GT20 B5372- LH bare-bones, packing list, describes the exter- nal components, gives a table of key components, and provides block diagrams of the system.
  • Page 6 SAFETY INFORMATION Before installing and using the Tank GT20, take note of the following precautions: – Read all instructions carefully. – Do not place the unit on an unstable surface, cart, or stand. – Do not block the slots and opening on the unit, which are pro- vided for ventilation.

  • Page 7: Table Of Contents

    Table of Contents Chapter 1:Overview 1.1 About the Tank GT20 B5372-LH ......1 1.2 Features ..........2 1.3 Unpacking .
  • Page 8 3.6 Replacing the LED Control Board ......43 3.7 Replacing the M1012 Adapter Board ..... .45 3.7.1 M1012 Adapter Board Features for B5372-LH .

  • Page 9: Chapter 1:Overview

    Chapter 1: Overview About the Tank GT20 B5372-LH Congratulations on your purchase of the TYAN Tank GT20 (B5372-LH), a highly-optimized rack-mountable barebone system. The Tank GT20 (B5372-LH) is designed to support ® two Intel Xeon 5100/5200/5300/5400 (80W CPUs or lower) processors, providing a rich feature set and incredible perfor- ®...

  • Page 10: Features

    • 16MB DDR frame buffer of video • Supports TYAN Server Manage- memory ment (TSM) Storage • Optional Tyan M3291 SMDC kit, • Support (4) SATA/SATA2 HDD with IPMI 2.0 compliant RAID 1, 0, 5, 10 • Supports TYAN LCM Module...
  • Page 11 System Cooling • Five (5) 40*40*28mm 15000rpm heavy-duty fans with fan speed monitor/control • Two (2) passive CPU heatsinks Regulatory • FCC Class A (Declaration of Con- formity) • CE (Declaration of Congormity) • VCCI • C-Tick Environment Temperature • Operating temperature 5 C~35 •...

  • Page 12: Unpacking

    Unpacking This section describes the Tank GT20 package contents and accessories. 1.3.1 Opening the box Open the box carefully and ensure that all components are present and undamaged. The product should arrive pack- aged as illustrated below. Packaged accessories Chapter 1: Overview...

  • Page 13: Box Contents

    1.3.2 Box Contents Industry standard 1U chassis, (4) hot-swap HDD bays Tyan S5372-LH motherboard (pre-installed) EPS 1U 400W PSU (pre-installed) (5) 40mm x 28mm LED and USB control board (pre-installed) Fan Adapter Board M1208-2 SATA/SAS Backplane Chapter 1: Overview...

  • Page 14: Accessories

    If any items are missing or appear damaged, contact your retailer or browse to TYAN’s Web site for service: http://www.tyan.com. The Web site also provides information on other TYAN prod- ucts, plus FAQs, compatibility lists, BIOS settings, and more. (2) Heatsink Mounting Ears &...
  • Page 15 Rail Kit Sliding Rails x 2 Sliding Brackets Front L-Bracket x 2 Rear L-Bracket x 2 Screws Kit Mounting Bracket x 4 FDD Kit FDD Cable FDD Installing Rails & Screws FDD Backplane Cable Chapter 1: Overview...

  • Page 16: About The Product

    About the Product The following views show you the product. 1.4.1 Front View Reset switch Warning LED NMI switch HDD activity LED ID Switch Power LED ID LED Power switch USB ports 2 x LAN LEDs Hard Drive Bay x 4 1.4.2 Rear View Power Supply Socket PS/2 Mouse/Keyboard Ports...

  • Page 17: Led Definition

    1.4.3 LED Definition Front Panel Color State Description Power Green Power ON Power OFF HDD Activity Amber Random Blinking HDD access activity No disk activity LAN1/LAN2 Linkage Green LAN linked Green Blinking LAN accessing No LAN linked Warning Fan fails Normal Hot Swappable HDD Green...

  • Page 18: Internal View

    1.4.4 Internal View FAN5 FAN4 FAN3 FAN2 FAN1 1. PCI-E Riser Card Slot 7. M1012 Adapter Board 2. Link Bar 8. SATA/SAS Backplane 3. Memory Slots 9. Four SATA HDD Bays 4. EPS Power Supply 10. Fan Cable 5. CPU Sockets 11.

  • Page 19: Motherboard Block Diagram

    1.4.5 Motherboard Block Diagram Chapter 1: Overview...

  • Page 20: Motherboard Layout

    1.4.6 Motherboard (S5372-LH) Layout Chapter 1: Overview...
  • Page 21 CN11 TYAN SO-DIMM Connector CN12 Front Panel USB 2.0 Connector CN19 Front Panel Header CN20 SMDC Connector CN17 TYAN Fan Speed Header for Barebone CN21 TYAN LCM Header for Barebone CN22 TYAN LAN LED Header for Barebone Chapter 1: Overview...
  • Page 22 NOTE Chapter 1: Overview...

  • Page 23: Chapter 2:Setting Up

    Chapter 2: Setting Up 2.0.1 Before You Begin This chapter explains how to install the CPU, CPU heatsink, memory modules, and hard drives. Instructions on inserting a PCI card are also given. Take note of the precautions mentioned in this section when installing your system.

  • Page 24: Precautions

    2.0.4 Precautions Components and electronic circuit boards can be damaged by discharges of static electricity. Working on a system that is connected to a power supply can be extremely dangerous. Follow the guidelines below to avoid damage to the Tank GT20 or injury to yourself.

  • Page 25: Rack Mounting

    Rack Mounting After installing the necessary components, the Tank GT20 can be mounted in a rack using the supplied rack mounting kit. Rack mounting kit Sliding Rails x 2: Sliding Brackets x 4 (Front x 2, Rear x 2) Mounting Ears x 2 Screws Kit x 1 Mounting Brackets x 4 2.1.1 Installing the Server in a Rack...
  • Page 26 NOTE: Before mounting the Tank GT20 in a rack, ensure that all internal components have been installed and that the unit has been fully tested. Maintenance can be performed on the unit while in a rack but it is preferable to install the device in a fully operational condition.
  • Page 27 Installing the Inner Rails to Chassis 1. Screw the mounting ear to each side of GT20 as shown using 2 screws from the supplied screws kit. Mounting Ears 2. Draw out the inner rails from rail assembly. Install inner rails to left and right sides of chassis using 2 M4-5L(D) screws for each side.
  • Page 28 4. Locate the front and rear brackets. Rear Bracket x2 Front Bracket x2 5. Reserve 90mm for GT20 on the front bracket. Secure the front bracket to outer rail with 2 M4-4L(C) screws. M4-4L(C) Screw *Remember to add washer. Chapter 2: Setting Up...
  • Page 29 6. Reserve the distance same as in Step 2 on rear bracket. Secure the rear bracket to outer rail with 2 M4-4L(C) screws. Remember to add washer Front Side Rear Side 7. Secure the outer rail to the rack using 2 brackets and 4 M4-8L(E) screws for each side (A).
  • Page 30 Rackmounting the Server 8. Draw out the middle rail to the latch position. 9. Lift the chassis and then insert the inner slide rails into the middle rails. 10. Push the chassis in and press the latch key (A). Then push the whole system into the rack (B).
  • Page 31 11. Secure the mounting ears of chassis to the rack with 2 M4-15L(F) screws. Note: To avoid injury, it is strongly recom- mended that two people lift the GT20 into the place while a third person screws it to the rack.

  • Page 32: Installing Motherboard Components

    Installing Motherboard Components This section describes how to install components on to the motherboard, including CPU, memory modules and PCI card. 2.2.1 Removing the Chassis Cover Follow these instructions to remove the Tank GT20 chassis cover. 1. Remove the screw on the back side. Then slide the chas- sis cover in the direction of arrow.

  • Page 33: Installing The Memory

    2.2.2 Installing the Memory Follow these instructions to install the memory modules on the motherboard. 1. Locate the memory slots on the motherboard. 2. Press the memory slot locking levers in the direction of the arrows as shown in the following illustration. 3.

  • Page 34: Memory Population Rules

    Memory Population Rules Single DIMM/Channel Dual Channal Channel DIMM6/DIMMA0 DIMM5/DIMMA1 DIMM4/DIMMA2 DIMM3/DIMMB0 DIMM2/DIMMB1 DIMM1/DIMMB2 NOTE: For optimal dual channel operations, always install memory in pairs beginning with DIMM6/DIMMA0 and DIMM3/DIMMB0. One pair of DIMM must be of the same type of DIMM. For single channel mode: only one DIMM at DIMM6/DIMMA0.

  • Page 35: Installing The Cpu And Heatsink

    2.2.3 Installing the CPU and Heatsink 1. Follow these instructions to install the CPU and CPU heatsink. 2. Before you install the CPU and heatsink, please make sure a black sponge is attached to the fans for better thermal solution. 3.
  • Page 36 To make the heatsink installation easier, remove the load plate. 6. Pull the CPU lever up to release the CPU socket to a fully open position. 7. Place the CPU on the CPU socket, ensuring that pin 1 is located in the right direction. Chapter 2: Setting Up...
  • Page 37 8. Press the CPU socket lever down in the direction shown to secure the CPU. 9. Screw the heatsink to the motherboard following the indicated order. 10. Repeat the same procedures to install CPU and heatsink for the second CPU socket. Chapter 2: Setting Up...

  • Page 38: Installing The Pci-E Card

    2.2.4 Installing the PCI-E Card Follow these instructions to install a PCI-E card. 1. Push the tab of PCI-E slot on the rear panel in the direc- tion as shown to release the I/O shield. 2. Move the I/O shield to right as shown and then take off the I/O shield.
  • Page 39 4. Push the tab of PCI-E slot on the rear panel in the direc- tion as shown to secure PCI-E card. Chapter 2: Setting Up...

  • Page 40: Installing The External Hard Drive

    Installing the External Hard Drive The GT20 chassis kit supports external SATA or SCSI hard drives. Follow these instructions to install an external SATA or SCSI hard drive. 1. Press the locking lever latch in the direction of arrow (A) and then pull the locking lever open (B).
  • Page 41 4. Using 4 HDD screws to secure the HDD. 5. Reinsert the drive tray into the chassis (A), ensuring that the drive tray is completely inserted into the chassis (B). 6. Pressing the locking lever to secure the hard drive tray. Chapter 2: Setting Up...
  • Page 42 NOTE Chapter 2: Setting Up...

  • Page 43: Chapter 3:Replacing Pre-Installed Components

    Chapter 3: Replacing Pre-Installed Components Introduction This chapter explains how to replace pre installed compo- nents including the motherboard, LED control board, HDD, and CD-ROM drive. Take note of the precautions in this section when installing your system. 3.1.1 Work Area Make sure you have a stable, clean working environment.

  • Page 44: Precautions

    3.1.3 Precautions Components and electronic circuit boards can be damaged by static electricity. Working on a system that is connected to a power supply can be extremely dangerous. Follow the guidelines below to avoid damage to the Tank GT20 or injury to yourself.

  • Page 45: Disassembly Flowchart

    Disassembly Flowchart The following flowchart outlines the disassembly procedure. Rear Components DIMMs Chassis rear cover CPU/heatsink assembly Mainboard PCI card Power Supply Mainboard Front Components Chassis rear cover PCBs CD-ROM (optional) Control M1012 Board Adapter Board HDD Backplane Chapter 3: Replacing Pre-Installed Components...

  • Page 46: Removing The Cover

    Removing the Cover Before replacing any parts you must remove the chassis cover. Follow these instructions to remove the cover of the Tank GT20 chassis cover. 1. Remove the screw on the back side. Then slide the chas- sis cover in the direction of arrow. 2.

  • Page 47: Replacing Motherboard Components

    Replacing Motherboard Components Follow these instructions to replace motherboard compo- nents, including the motherboard. 3.4.1 Disconnecting All Motherboard Cables Before replacing the motherboard or certain components, remove cables connected to the motherboard. Follow these instructions to remove all motherboard cabling. 1.

  • Page 48: Removing The Motherboard

    3.4.2 Removing the Motherboard After removing all of those cables, follow these instructions to remove the motherboard from the chassis. 1. Remove the link bar. 2. Remove seven screws securing the motherboard to the chassis. 3. Remove the motherboard. Chapter 3: Replacing Pre-Installed Components...

  • Page 49: Replacing The Slim Cd-Rom (Option)

    Replacing the Slim CD-ROM (optional) Follow these instructions to replace the CD-ROM. 1. Remove power and data cables from the slim CD-ROM adapter. 2. Press the tab in the directions as show to release the CD- ROM drive. 3. The CD-ROM drive will be freed from the drive bay after pressing the tab.
  • Page 50 4. Remove two screws that secure CD-ROM drive to the bracket. 5. Replace the CD-ROM drive. 6. Secure CD-ROM to the bracket using two screws. Then replace the unit into the drive bay and connect the CD- ROM power and data cables. Chapter 3: Replacing Pre-Installed Components...

  • Page 51: Replacing The Led Control Board

    Replacing the LED Control Board Follow these instructions to replace the LED control board. 1. Remove two screws securing LED control board unit to the chassis. 2. Lift the LED control board unit free of the chassis. 3. Remove three screws securing LED control board to the bracket.
  • Page 52 4. Lift the LED control board free from the chassis. After replacement, insert the unit into the chassis. Chapter 3: Replacing Pre-Installed Components...

  • Page 53: Replacing The M1012 Adapter Board

    Replacing the M1012 Adapter Board 1. Remove all of those cables connected to the adapter board, including fans. fan cables, optional CD-ROM power cable, front LED panel cable, power cables, and SAS cables. Chapter 3: Replacing Pre-Installed Components...
  • Page 54 2. Remove six screws to release the adapter board. Chapter 3: Replacing Pre-Installed Components...

  • Page 55: M1012 Adapter Board Features For B5372-Lh

    3.7.1 M1012 Adapter Board Features for B5372-LH J1: Front Panel J16: LCM Connector Connector J14: Fan Tach Connector FDD1: Standard Floppy Connector J7:Fan Tach & PWM Connector J3: LAN/ID LED Connector JP1: Fan Input Select Connector J19: CD-ROM Power Connector J5: Fan Connector J9: Fan Connector J11: Fan Connector...

  • Page 56: System Fan Connection

    3.7.2 System Fan Connection The following tables provide the information for system fan connection. System Fan Speed Control Signal M1012 Adapter Board Connect to Motherboard J14 (PWM Signal) CN17 (PWM Signal) System Fan Monitoring Signal Barebone System Fan Connect to Motherboard Fan J14 (Fan 1~9) CN17...

  • Page 57: M1012 Adapter Board Connector Pin Definition

    3.7.3 M1012 Adapter Board Connector Pin Definition J1 TYFP Front Panel Connector HDLED+ PW_LED+ HDLED - PW_LED - RESET- PWR_SW+ RESET+ PWR_SW - VOLTAGE5 WLED+ EXT_INT WLED- V5SB KEY PIN ICH_SMBDAT ICH_SMBCLK INTRU# J2 Front Panel Connector HDLED+ HDLED- RESET+ RESET- PW_LED+ PW_LED-...
  • Page 58 J3 LAN/ID LED Connector LAN1_LED+ LAN1_LED- LAN2_LED+ LAN2_LED- LAN3_LED+ LAN3_LED- ID_LED+ ID_LED- ID_SW+ ID_SW- KEY PIN FAN Signal Related Connector Pin Definition NOTE: The FAN signal naming is based on HW circuit design only. It might be different from the system fan naming. J4 Fan TACH &...
  • Page 59 J13 Fan TACH Connector FAN1_TACH FAN2_TACH FAN3_TACH KEY PIN J14 Fan TACH Connector FAN1_TACH FAN2_TACH FAN3_TACH FAN4_TACH FAN5_TACH FAN6_TACH FAN7_TACH FAN8_TACH FAN9_TACH FAN10_TACH KEY PIN J6 Fan Connector FAN1_12VPWM FAN1_TACH FAN2_TACH FAN2_12VPWM Chapter 3: Replacing Pre-Installed Components...
  • Page 60 J10 Fan Connector FAN3_12VPWM FAN3_TACH FAN4_TACH FAN4_12VPWM J11 Fan Connector FAN5_12VPWM FAN5_TACH FAN6_TACH FAN6_12VPWM J9 Fan Connector FAN7_12VPWM FAN7_TACH FAN8_TACH FAN8_12VPWM Chapter 3: Replacing Pre-Installed Components...
  • Page 61 J5 Fan Connector FAN9_12VPWM FAN9_TACH FAN10_TACH FAN10_12VPWM J15 & J16 LCM Connectors LCM_+5V LCM_SIN KEY PIN LCM_+5VSB LCM_SOUT JP1 Fan Input Select Connector Pin1 & Pin2 Close Fan PWM signal from J8 Pin2 & Pin3 Close Fan PWM signal from J4, J7 &...

  • Page 62: Replacing The Sata/Sas Backplane

    Replacing the SATA/SAS Backplane 1. After removing the M1012 adapter board, disconnect those cables connected to the SATA/SAS backplane, including SATA/SAS and power cables. 2. Grab the two tabs to lift the SATA/SAS backplane off. 3. Remove ten screws that secure the bracket to the adapter board.

  • Page 63: M1208-2 Sata/Sas Backplane Features

    3.8.1 M1208-2 SATA/SAS Backplane Features U1, SATA/SAS 1 Connector U2, SATA/SAS 2 Connector U3, SATA/SAS 3 Connector HDD Power LED HDD Active LED U4, SATA/SAS 4 Connector Chapter 3: Replacing Pre-Installed Components...
  • Page 64 J1, SATA/SAS 1 Connector Power Connector J2, SATA/SAS 2 Connector J3, SATA/SAS 3 Connector J5, SATA/SAS 4 Connector Chapter 3: Replacing Pre-Installed Components...

  • Page 65: Replacing The Power Supply

    Replacing the Power Supply 1. Remove two screws securing the power supply to the chassis. 2. Remove the screw securing fan assembly to the chassis. 3. Disconnect power supply cables before lifting the power supply free from the chassis. Chapter 3: Replacing Pre-Installed Components...
  • Page 66 4. First unscrew the bracket to replace the power supply. After replacement, place and secure the unit into the chassis following the reverse procedures from Step 1 to Step 3. Chapter 3: Replacing Pre-Installed Components...

  • Page 67: Appendix I: Bios Differences

    Appendix I: BIOS Differences The following table displays the differences in BIOS between B5372-LH and S5372-LH. For a complete review of S5372- LH BIOS, refer to the motherboard manual. S5372-LH Mainboard B5372-LH Barebone Advanced Hardware Monitor Auto Fan Control [Dis- Auto Fan Control [Enabled] Fan Control abled]...

  • Page 68: Appendix Ii: Cable Connection Tables

    Appendix II: Cable Connection Tables SATA Cable Table 1: B5372G20V4H-LH Model M1208-2 SATA/SAS Connect to Motherboard Backplane SATA 1 (J1) SATA 0 SATA 2 (J2) SATA 1 SATA 3 (J3) SATA 2 SATA 4 (J4) SATA 3 FAN Cable Table 2: System Fan to M1012 Adapter Board System Fan Connect to M1012...
  • Page 69 Power Supply Cable Table 4: Power Supply to Motherboard Power Supply Connect to Motherboard P1 24-pin power cable PW1 24-pin connector P2 8-pin power cable PW2 8-pin connector Table 5: Power Supply to M1012 Adapter Board Power Supply Connect to M1012 P4 4-pin power cable PW2 4-pin connector...
  • Page 70 Other Cables Table 7: M1012 Adapter Board to Motherboard M1012 Connect to Motherboard J1 Front Panel connector CN19 (TYFP1) J3 (LAN / ID LED) CN22 (TYFP2) Table 8: M1003 Front Panel Control Board Related Cable M1003 J1 USB connector Motherboard CN12 (USB2) M1003 J2 connector M1012 J2 connector...

  • Page 71: Appendix Iii: Installing Smdc Cards

    Appendix III: Installing SMDC Cards The following provides you with the information on installing the M3291 SMDC card into your GT20 chassis. 1. Connect the 2x25 pin SMDC cable to M3291 as shown. 2. Remove the two screws as indicated below. 3.
  • Page 72 4. Align the SMDC plate holder with the secured stand-off screws and secure in place with two screws as shown. 5. Secure the SMDC card to the plate holder with three screws. 6. Connect the other end of SMDC cable to the SMDC connector (CN20) on the motherboard.

  • Page 73: Appendix Iv: Fru Parts List

    Appendix IV: FRU Parts List Item Model Number Part Number Picture Quantity Description ® S5372G2NR-LH Dual Intel Motherboard S5372G2NR-LH Xeon LGA771 Chassis Unit CCHA-0081 432753600002 GT20 1U Chassis for CEB Cover CCCV-0060 451738500004 Rear Top Cover for GT20 Chassis Front Bezel for GT Series CFBZ-0070 451739100003 Front Bezel...
  • Page 74 Item Model Number Part Number Picture Quantity Description M2055-RS PCI-X 1U Riser Card Riser Card M2082-2-RS PCI-E 1U Riser Card CRAL-0020 341730200002 Rail Kit Rack Mounting Parts CEAR-0050 340740900010 Mounting Ear Kit CCBL-0679 42275360007 SAS Cable CCBL-0340 422740000021 Control Board Cable, 250mm CCBL-0405 422753600003 TYFP I Cable, 300mm...
  • Page 75 Item Model Number Part Number Picture Quantity Description CDVD-0020 523410299020 Slim Type DVD-ROM CCDD-0041 523410295038 Slim Type CD-ROM Peripheral Drives& parts CD-ROM Adapter Board with CPCA-0230 412740000001 Screw CFDD-0020 523474620007 Slim Floppy Disk Drive FDD Accessory FDD kit for CFAK-0020 523474620007 GT24/GT20,Standard LCD Module Kit for GT...
  • Page 76 NOTE...

  • Page 77: Technical Support

    (which can have expensive consequences). If these options are not available for you then Tyan Computer Corporation can help.Besides designing innovative and qual- ity products for over a decade, Tyan has continuously offered customers service beyond their expectations.
  • Page 78 RMA number should be prominently displayed on the outside of the shipping carton and the package should be mailed pre- paid. TYAN will pay to have the board shipped back to you. Tank GT20 B5372-LH Service Engineer’s Manual v1.0 Document part No. D1974-100...
