Power On/Off Dialog; Reset Dialog - Intel ISP2150 2U Product Manual

Power On/Off
Selecting Power On/Off from the Action menu displays the Power on/off dialog. This dialog
provides commands to remotely power on or power off the server.
Options available in the dialog are:
•
Power ON - powers on the server.
•
Power OFF - powers off the server. This option is not allowed if the server is configured in
RESTRICTED mode for EMP operations.
•
Post-power-up option - sets the mode selection of the server to EMP active or BIOS
redirection. The setting is available after the next power-up. The default selection is
EMP active.
•
Cancel - exits the Connect dialog without taking any action.
•
Help - displays the help information for this dialog.
Reset
Selecting Reset from the Action menu displays the Reset dialog. This dialog provides the ability to
remotely reset the server with post-reset options.
Configuration Software and Utilities

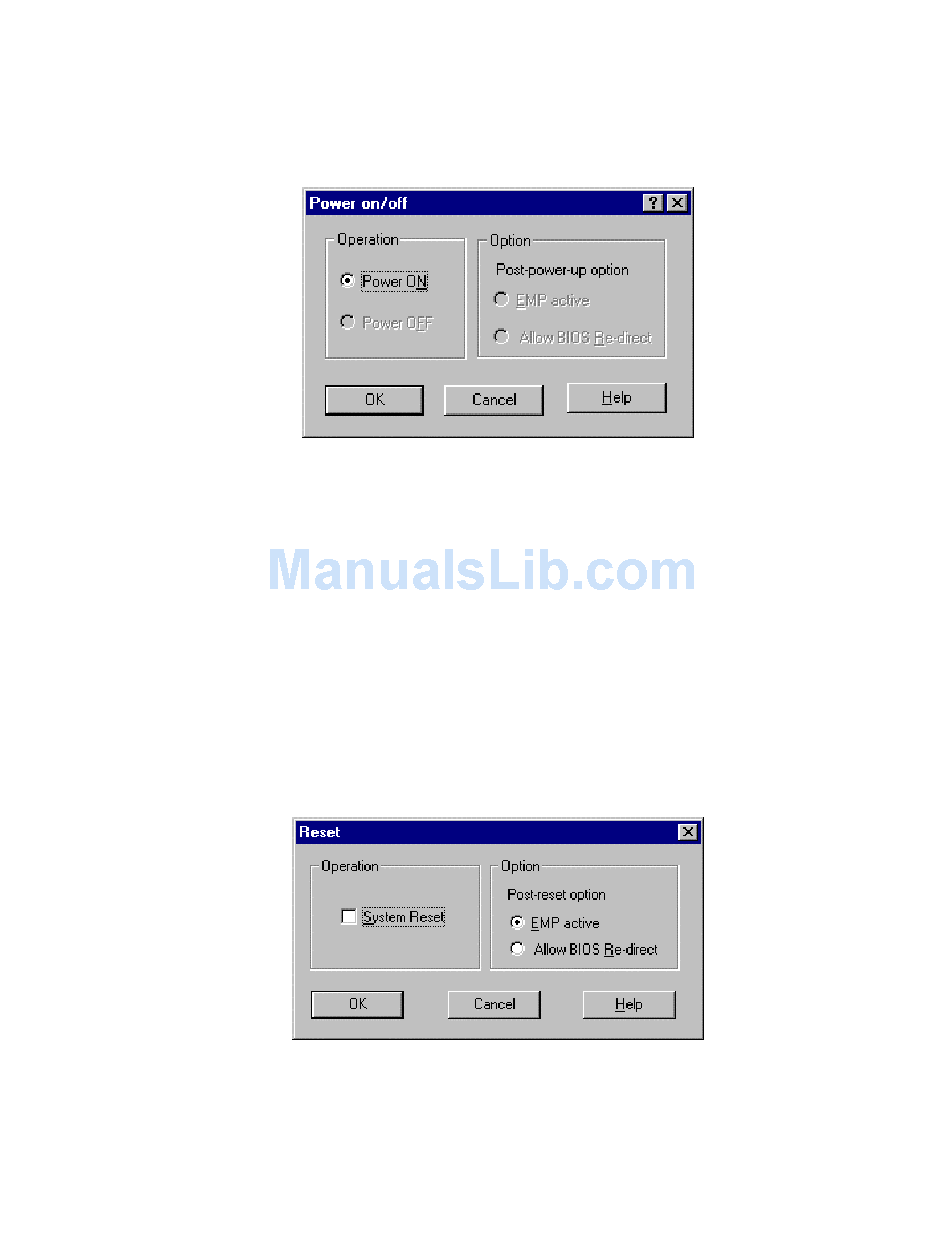

Figure 39. Power On/Off Dialog
Figure 40. Reset Dialog
87
