Page 1: User Manual
HEX100HDVGA HDMI LINK Power LINK Input HDMI in IR RX IR TX Audio RS232 HDBT Out DC12V Select HEX100HDVGA – RX/TX User Manual... -
Page 2: Table Of Contents
This product contains sensitive electri- cal components that may be damaged by electrical spikes, surges, electric Maintenance shock, lightning strikes, etc. Use of surge protection systems is highly recommended in order to protect and extend the life of your equipment. www.blustream.co.uk... -
Page 3: Introduction
100m, 4K up to 60m needed at either transmitter or receiver side. NOTE: The POH function is designed for powering compatible transmitter or receiver units of Blustream only. Do not connect any part of this equipment to power over Ethernet devices. Damage may result. -
Page 4: Front Panel

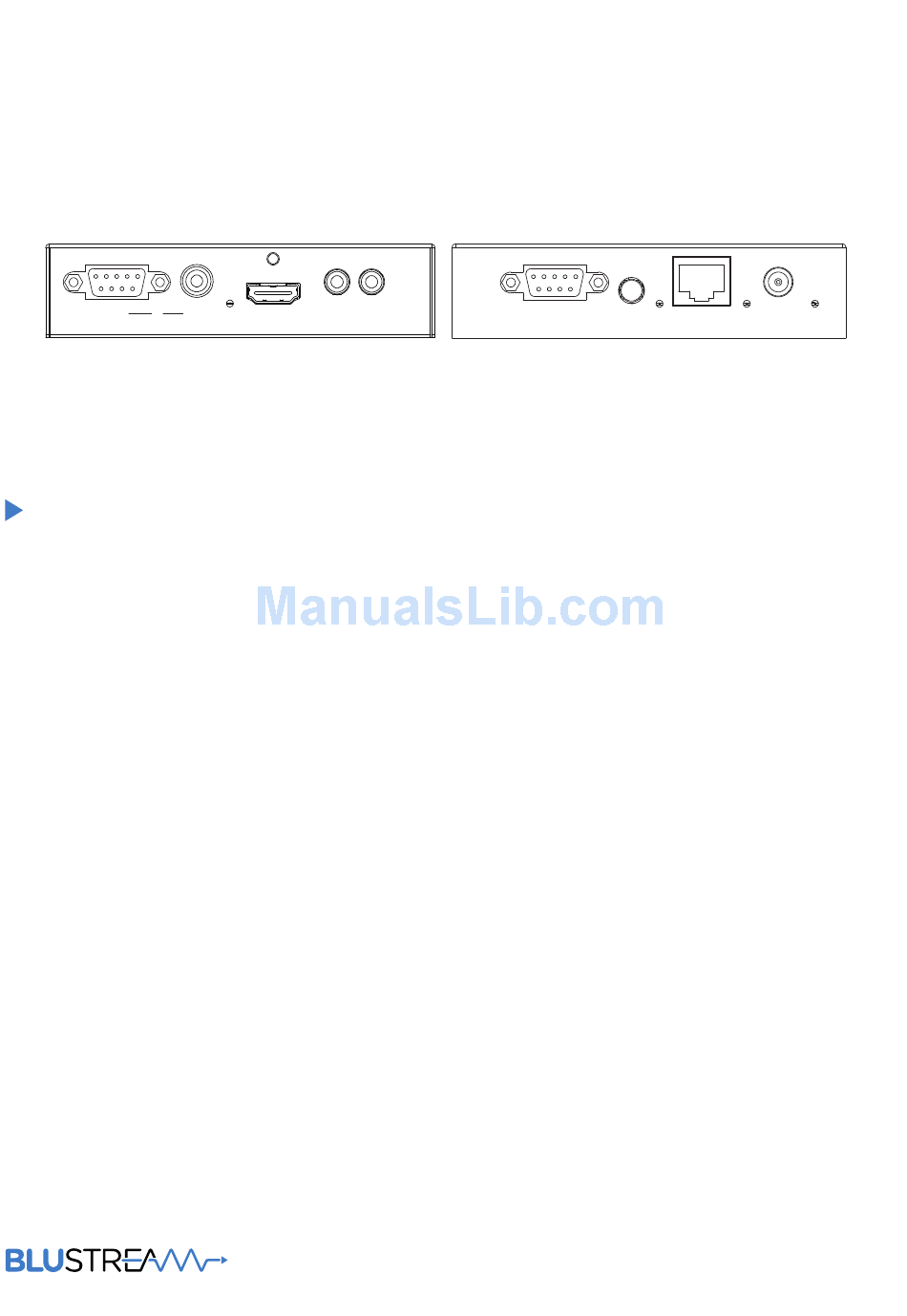

IR commands to a display HDBaseT out – RJ45 connector, connect to HDBaseT input on HEX100HDVGA-RX IR Tx port – Connect a 5V Blustream IR emitter. Used to control source devices from display end. Power port – Use supplied 12v / 2amp DC adaptor... - Page 5 HDMI output – Connect to HDMI display device Input status light – Red=VGA/Audio, Blue=HDMI IR Rx port – Connect to Blustream 5v IR sensor. Used to control HDBaseT in – RJ45 connector, connect to HDBaseT IR controlled source devices at HEX100HDVGA-Tx end output on HEX100HDVGA-TX IR Tx port –...
-
Page 6: Rs232 Control
Get status of currently selected input, return message will be HDMI port or VGA port ensigdet Enable signal detect (Auto switching) dissigdet Disable signal detect (Auto switching) resetdef Restore factory settings RS232 Pin assignment Blustream Remote Control Console Assignment Assignment Baud Rate: 57600 bps Data Bit: 8-bit... -
Page 7: Specifications
Dimensions including connections (W x H x D): 135mm x 113mm x 29mm Shipping Weight (Kit): 1.1kg Operating Temperature: 32°F to 104°F (0°C to 40°C) Storage Temperature : -4°F to 140°F (-20°C to 60°C) Power Supply: 12V/2A DC contact support@blustream.co.uk / support@blustream.com.au... -
Page 8: Package Contents
Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or benzene to clean this unit. • 1x HEX100HDVGA Receiver • 1 x 12V/2A DC power supply • 1 x Blustream 5v IR sensor • 1x Blustream 5v IR emitter • 1x Mounting kit • 1x Manual... - Page 9 HEX100HDVGA – RX/TX USER MANUAL contact support@blustream.co.uk / support@blustream.com.au...
