BluStream CEX4K-KIT Quick Reference Manual

UPGRADE

Introduction

FEATURES:

• Extends 4K HDMI signals up to distances of 100m over a single 75 ohm coaxial cable

• Supports up to 4K 60Hz 4:4:4 UHD video*

• Supports Bi-directional IR from input and output locations

• Supports PCM 2.0 channel audio

• Supplied with Blustream IR receiver and emitter

• Smart EDID management

• HDCP 2.2 compliant

* Please note: HDR 10/12 bit formats not supported. Requires local power at both Transmitter and Receiver devices

Contact:

support@blustream.com.au

CEX4K-KIT

Quick Reference Guide

HDMI IN

IR IN

IR OUT

COAX OUT

1.2A

Our CEX4K-KIT HDMI extender set offers HDMI distribution over a single Coaxial

cable. The product delivers HDMI & Bi-directional IR up to lengths of 100m @ 4K

60Hz 4:4:4

support@blustream-us.com

CEX4K-KIT

UPGRADE

HDMI OUT

1.2A

support@blustream.co.uk

QUICK REFERENCE GUIDE

IR IN

IR OUT

COAX IN

Table of Contents

Do you have a question about the CEX4K-KIT and is the answer not in the manual?

Page 1 COAX IN 1.2A 1.2A Introduction Our CEX4K-KIT HDMI extender set offers HDMI distribution over a single Coaxial cable. The product delivers HDMI & Bi-directional IR up to lengths of 100m @ 4K 60Hz 4:4:4 FEATURES: • Extends 4K HDMI signals up to distances of 100m over a single 75 ohm coaxial cable •...

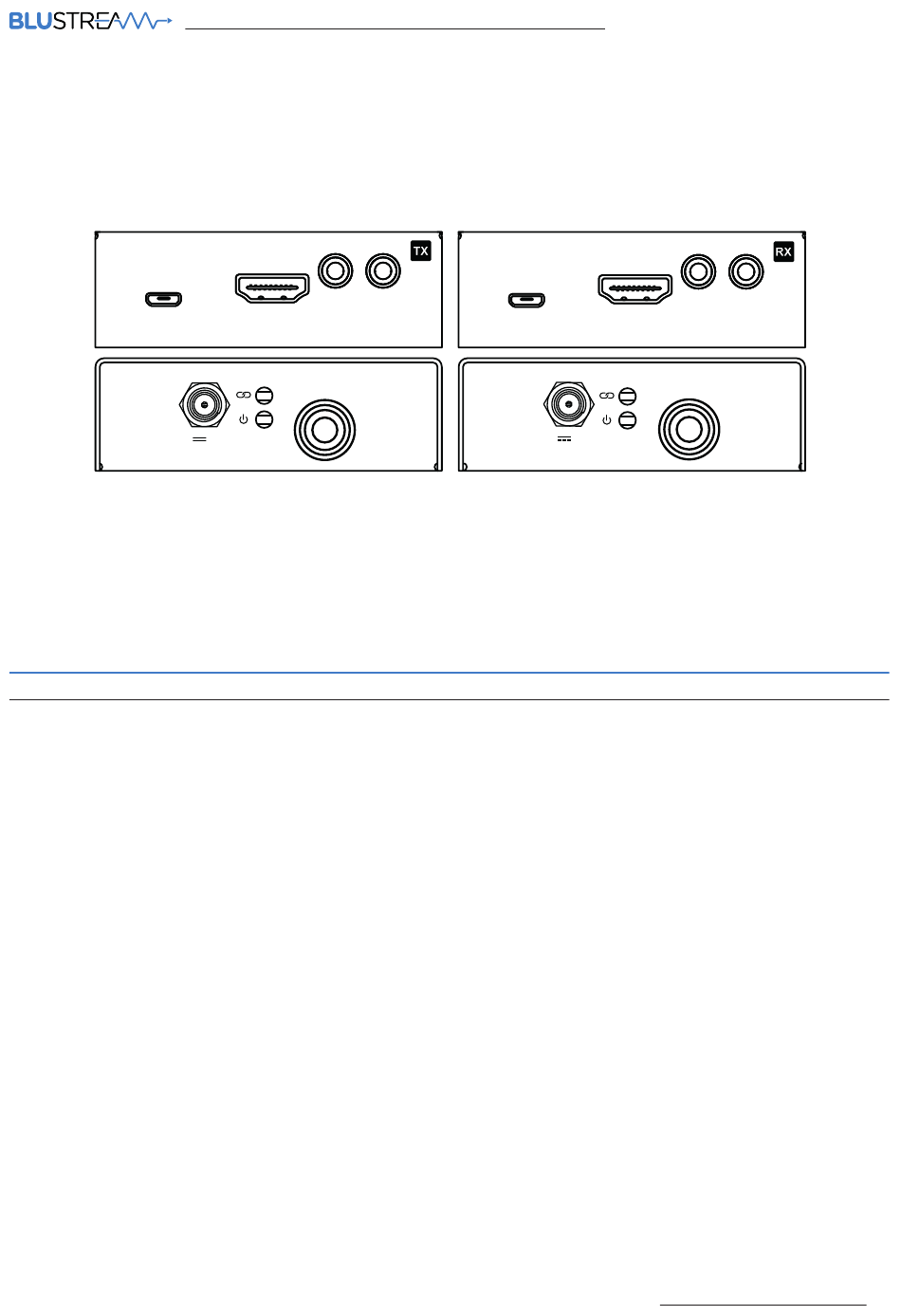

Page 2 USB Upgrade Port HDMI Input - Connect to HDMI source device COAX OUT COAX IN IR Input - Connect to Blustream 5V 3.5mm IR receiver IR Output - Connect to Blustream 5V 3.5mm IR emitter 5V/1.2A DC Power Input Power Status Indicator...
Page 3 CEX4K-KIT QUICK REFERENCE GUIDE Specifications CEX4K-RX CEX4K-TX • Video Input Connector: • Video Input Connector: 1 x BNC connector 1 x HDMI Type A, female • Video Output Connector: 1 x HDMI Type A, female • Video Output Connector: 1 x BNC connector •...
Page 4 CEX4K-KIT QUICK REFERENCE GUIDE Certifications FCC Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
