Blustream Multicast
IP300UHD-TX/RX, IP300UHD-TX-WP
IP350UHD-TX/RX
User Manual
Multicast 18Gbps UHD Transmitter
SFP
LAN / PoE
Multicast 18Gbps UHD Transmitter with Dante
SFP
LAN 1 / PoE
LAN 2
M U L T I C A S T
RX TX
DEBUG
ON OFF
RS-232
IR IN
RESET
OPT OUT
HDMI OUT
HDMI IN
RX TX
DEBUG
ON OFF
®
RS-232
IR IN
RESET
OPT OUT
HDMI OUT
HDMI IN
IP300UHD-TX
IR OUT
USB
IP300UHD-TX
AUDIO OUT
AUDIO IN
IP350UHD-TX
IR OUT
USB
IP350UHD-TX
AUDIO IN
AUDIO OUT
Revision_A0 - June 2024
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for BluStream Multicast IP300UHD-TX
Summary of Contents for BluStream Multicast IP300UHD-TX

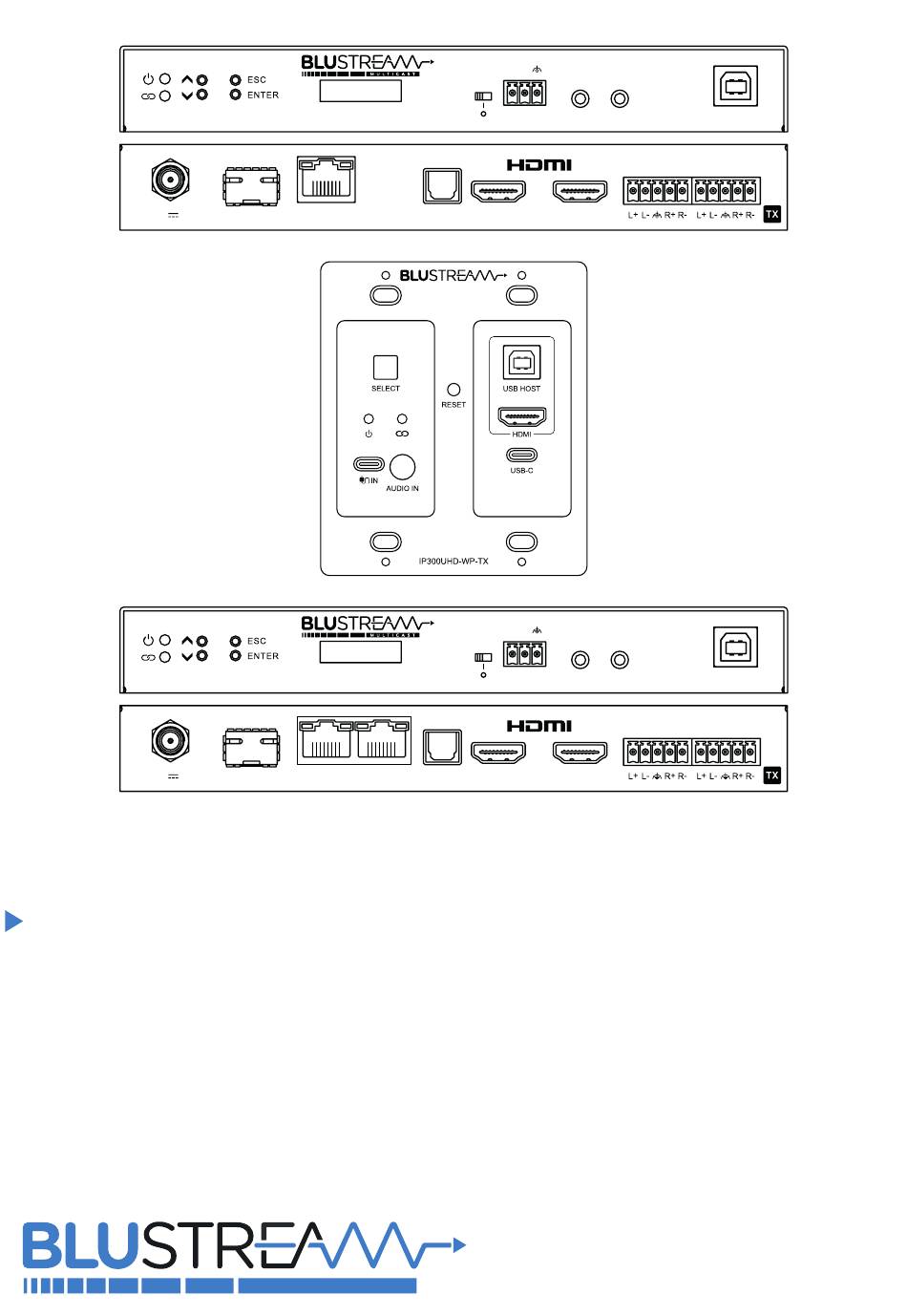

- Page 1 IR OUT RESET IP350UHD-TX AUDIO IN AUDIO OUT LAN 1 / PoE LAN 2 OPT OUT HDMI OUT HDMI IN Blustream Multicast IP300UHD-TX/RX, IP300UHD-TX-WP IP350UHD-TX/RX User Manual Revision_A0 - June 2024 M U L T I C A S T...
-
