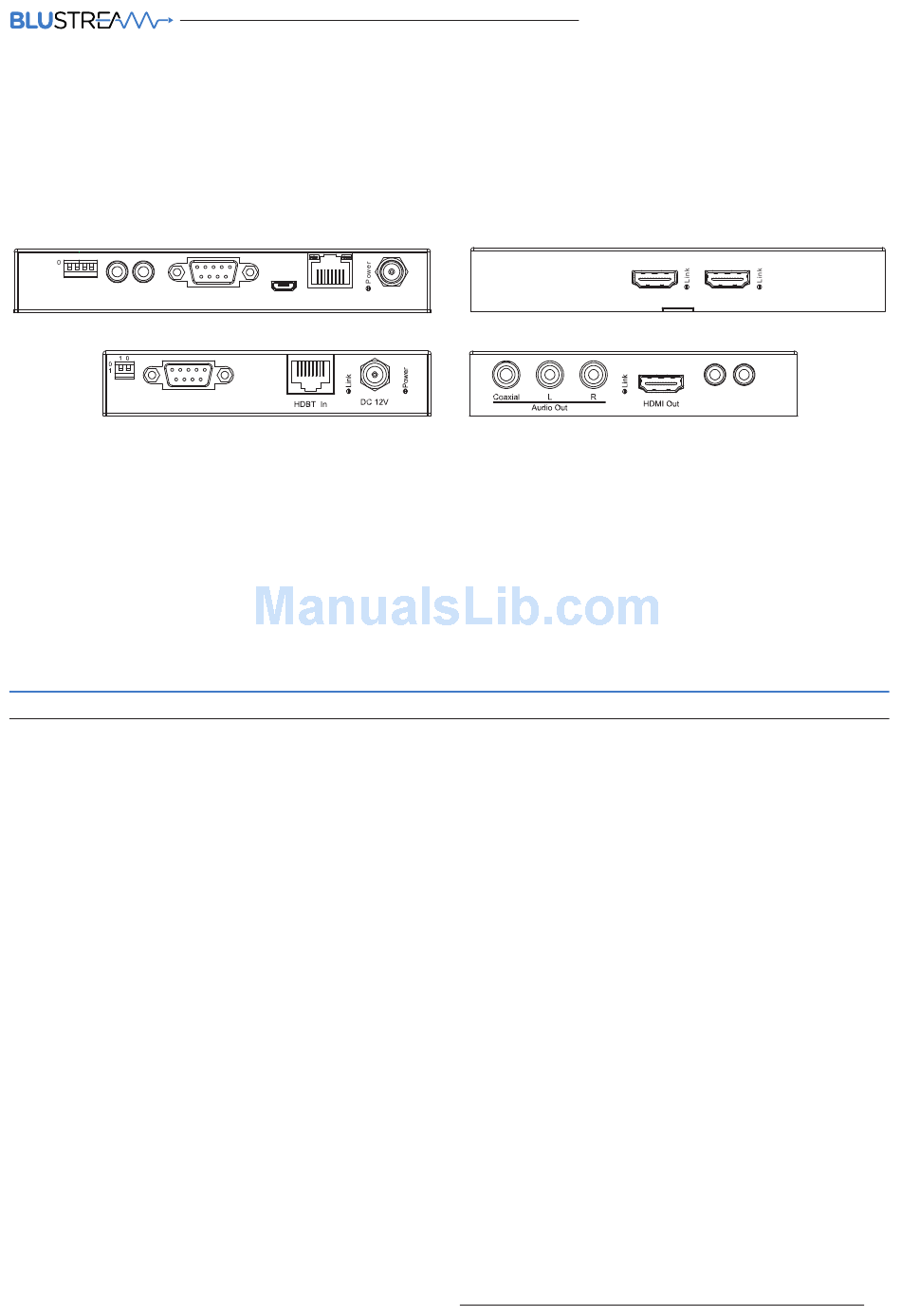

BluStream HEX100CS-TX Quick Reference Manual

3 2 1 0
1
EDID
IR Out IR In
Mode
RS-232

Introduction

FEATURES:
• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Advanced Color Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
• Supports 4K 60Hz 4:4:4 UHD video up to 70m
• Extends HDMI 1080P video up to 100m
• Features 1x HDMI loop-out on HEX100CS-TX for integrating local displays or cascading to multiple devices
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
• HDMI re-clocking on the HDBaseT™ Receiver to help solve HDMI HDCP, compatibility and handshaking issues
• HDMI audio breakout to analogue L/R audio and coaxial digital outputs concurrently
• Supports bi-directional RS-232 pass through
• Supports bi-directional IR pass through
• Supplied with Blustream 5V IR receiver and emitter
• Advanced EDID management
• HDCP 2.2 Support
contact
support@blustream.co.uk / support@blustream.com.au
HEX100CS-KIT
Quick Reference Guide
Upgrade
RS-232 HDBT Out
IR In
HDMI In HDMI Out
Our HEX100CS-KIT HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP 2.2 HDBaseT™
extender set offers market leading features and outstanding value utilising
CSC technology. The product extends HDMI, Bi-directional IR & RS-232 and
Bi-directional PoH (PoE) up to lengths of 100m (4K 70m). The Transmitter
includes a HDMI loop-out for integrating local displays or cascading to
multiple devices. The Receiver features simultaneous analogue stereo and
digital coax audio breakout.
3 2 1 0
1
EDID
DC 12V
IR Out
Mode
HEX100CS-KIT QUICK REFERENCE GUIDE
IR Out IR In
RS-232
HDMI In HDMI Out
IR In
RS-232
Upgrade
HDBT Out DC 12V
IR Out
01
