Page 1: User Manual
+5V DC Coax Input HDMI In Power Signal IR TX IR RX CEX120B-RX CEX120B-TX +5V DC Coax Output HDMI Out Power Signal IR TX IR RX MODE CEX120B-KIT User Manual... -
Page 2: Panel Descriptions
Do not substitute or use any other power supply other than the enclosed unit, or a Blustream approved replacement. Do not disassemble either the Transmitter or Receiver units for any reason. Doing so will void the manufacturer’s warranty. - Page 3 CEX120B-KIT USER MANUAL Introduction Our CEX120B-KIT HDMI™ extender set offers HDMI distribution over a single Coaxial cable. The product delivers HDMI & Bi-directional IR up to lengths of 120m @ 1080p. FEATURES: • Extends HDMI 1080p up to a distances of 120m over a single Coaxial cable •...

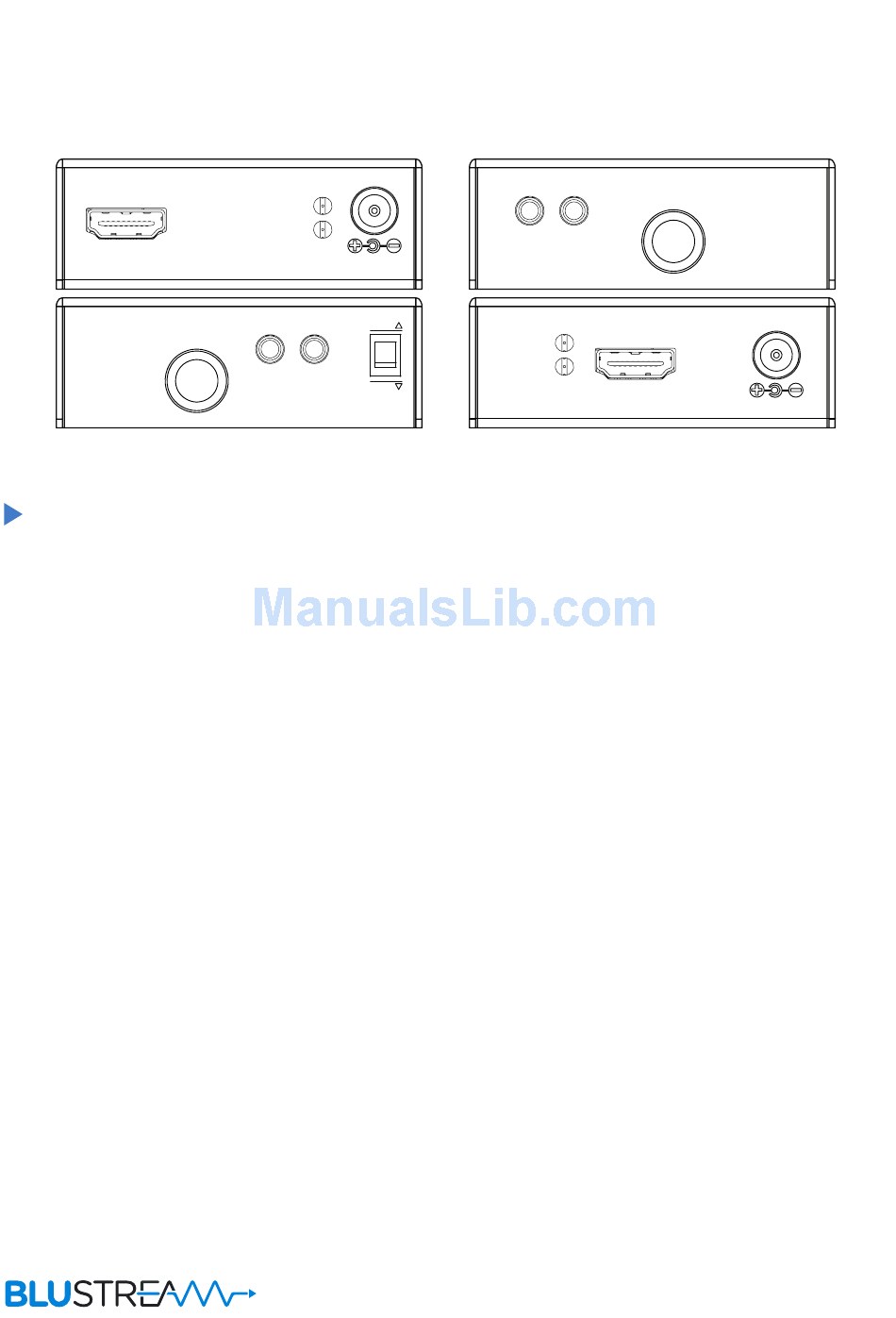

- Page 4 IR Receiver connected at the CEX120B-RX. Signal Status LED - LED indicators on both the Transmitter IR RX port - Connect to Blustream 5V IR Receiver or IRCAB and Receiver products used to show all connections are cable (when used with a third party control processor).
- Page 5 Should joins be required it is advised that a back-to-back Coaxial coupler is used. The Coaxial cable can be terminated with either a BNC or F-type connector (CEX120B-KIT is supplied with 2x F-type to BNC converters) using one of two methods: •...
-
Page 6: Edid Learning
By pre-determining the video resolution and audio format of the source and display device you can potentially work around compatibility issues associated with some display and source combinations. The CEX120B-KIT has 2x dip-switches on the Transmitter which allow you to fix the Video and Audio resolution to one of the settings shown below. - Page 7 The Blustream HDMI extender products include multiple options for control and routing of IR. IMPORTANT: Blustream InfraRed products are all 5V and NOT compatible with alternative manufacturers InfraRed solutions. When using third party 12V IR control solutions please use Blustream IRCAB cable for IR conversion (sold separately).
- Page 8 CEX120B-KIT USER MANUAL www.blustream.co.uk...
- Page 9 1 x CEX120B-RX • 2 x Mounting kits • 2 x 5V/1.2A power supply • 1 x IRR Blustream 5V IR receiver • 1 x IR1 Blustream 5V IR emitter • 2 x F-type to BNC adaptor • 1 x User manual Maintenance Clean this unit with a soft, dry cloth.
- Page 10 www.blustream.com.au...
