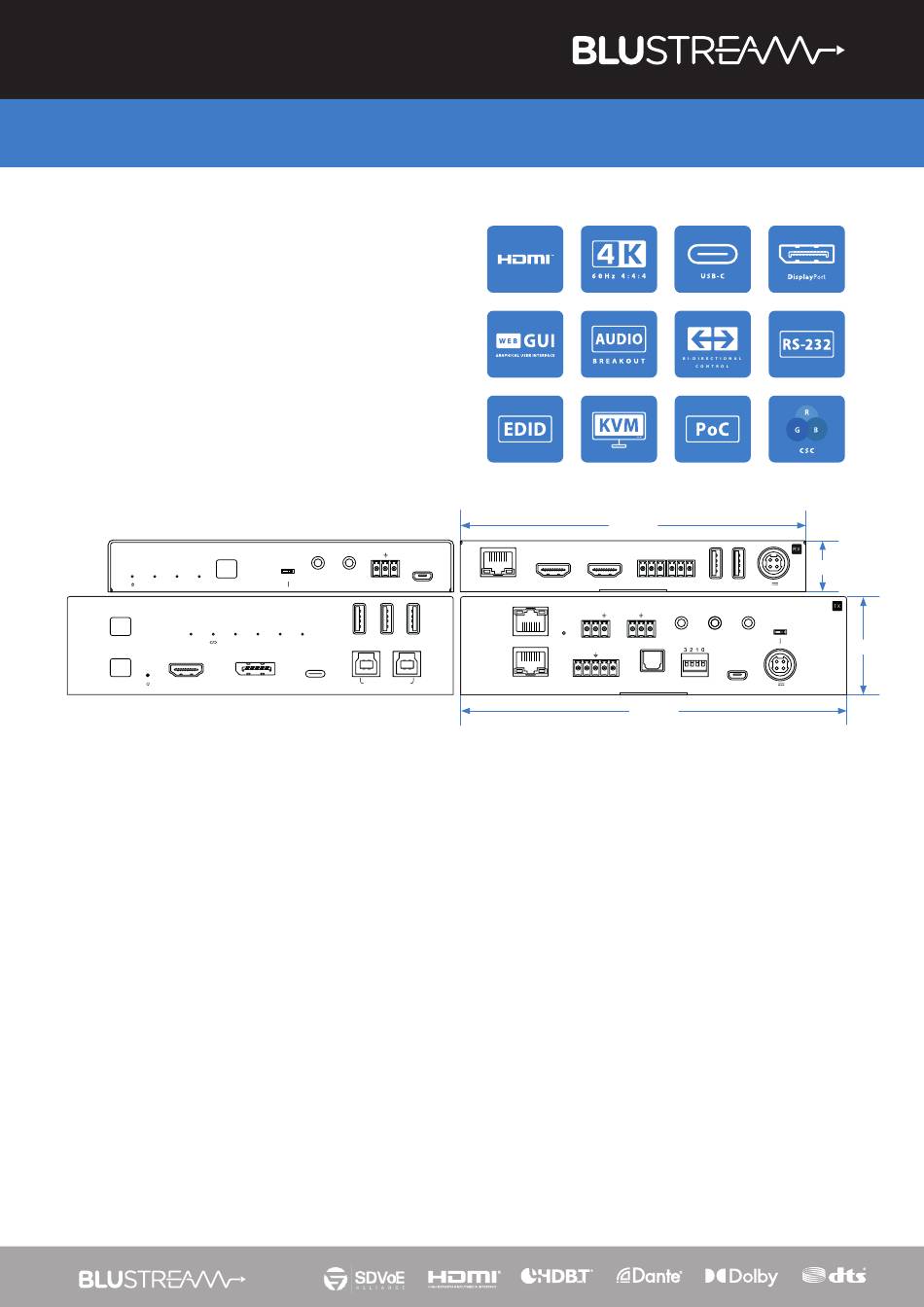

BluStream HEX70HDUK-KIT Quick Start Manual

HEX70HDUK-KIT
Multi Format HDBaseT™ CSC Extender Set

Description

The HEX70HDUK-KIT extender set is an industry leading HDMI2.0
4K 60Hz 4:4:4 (18Gbps) HDCP2.2 HDBaseT™ multi-format solution
utilising CSC technology to deliver HDMI, USB-C and DisplayPort™ up
to lengths of 70m 1080p (40m 4K) over a single CAT cable.
The HEX70HDUK-KIT provides enhanced features including USB 2.0
extension, local HDMI input on the HDBaseT™ Receiver for additional
source input, web GUI for control and configuration, auto display
control, audio breakout and bi-directional IR pass-through.
The HEX70HDUK-KIT also features control via front panel, IR, RS-232
and TCP/IP as well as advanced EDID and HDCP management.
1 2
HDBT IN HDMI IN
TCP/IP RESET GPIO
L - R -
L+ R+
INPUT / AUTO
HDBT OUT AUDIO OUT
HDBT HDMI AUTO
INPUT / AUTO AUTO HDMI
DISPLAY HDMI IN
Key Features
•
Advanced HDBaseT™ technology offering distribution of video
and audio over a single CAT cable
•
Advanced Colour Space Conversion (CSC) supports HDMI2.0
18Gbps specification including HDR
•
Features 1x HDMI, 1x USB-C and 1x DisplayPort™ input on the
HDBaseT™ Transmitter with manual or auto source selection
•
Features 1x local HDMI input on the HDBaseT™ Receiver for
connection of a source local to the display
•
Supports 4K 60Hz 4:4:4 UHD video up to 40m
•
Extends HDMI 1080p up to a distance of 70m over single CAT
cable
•
Supports all known HDMI audio formats including Dolby Atmos,
Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
transmission
•
Supports USB Type C up to 4K UHD 60Hz 4:4:4 DP1.2 with 60W
charging capability*
•
Supports DisplayPort™ up to 4K UHD 60Hz 4:4:4 DP1.2
•
Features 2x USB-Type A devices (RX - peripherals), 2x USB-Type
A devices (TX - peripherals) and 2x USB Type-B (TX - host source
specific) that support a combined data transmission bandwidth of
up to 250Mbps
Blustream cannot be held responsible for errors in typography or photography. Specifications are subject to change without notice.
1 2
NO C NC NO C NC
TX RX
PoC
HDMI OUT RELAY 1 RELAY 2 USB DEVICES
RS-232 IR CTRL IR IN IR OUT ON OFF
TX RX
0
PoC
1
OPTICAL OUT EDID UPGRADE 24V 5A
ON OFF IR IN IR OUT RS-232
1 2
DP USB-C HDMI RX USB DEVICES CHARGING
1 - USB HOST - 2
DISPLAY PORT IN USB-C IN
24V 5A
HDBT IN HDMI IN
UPGRADE
INPUT / AUTO
TCP/IP RESET
HDBT HDMI AUTO
L+
HDBT OUT AUDIO OUT
INPUT / AUTO AUTO
DISPLAY HDMI IN
•
USB Type-A connections support charging of devices up to 500mA
when there is an active connection to a Host device
•
Independent USB Type-A connection to support charging only of
devices up to 5V 2A
•
Audio breakout to analogue L/R audio and Optical digital (S/PDIF)
outputs concurrently**
•
Bi-directional IR pass-through
•
Auto display on/off feature allowing control of display at the
HDBaseT™ Receiver via CEC or RS-232
•
Web interface module for control and configuration of
HEX70HDUK-KIT
•
Control via front panel, IR, RS-232 and TCP/IP
•
Advanced EDID ad HDCP management
*USB-C video support is limited to 4K 60HZ 4:2:0 when charging feature
is activated by the source device
**Analogue audio breakout supports 2ch PCM only
155mm
1 2
NO C NC NO C NC
HDMI OUT RELAY 1 RELAY 2 USB DEVICES
TX RX
1 2 TX RX
PoC
GPIO RS-232 IR CTRL IR IN IR OUT
ON OFF IR IN IR OUT RS-232
L - R -
R+
0
1
OPTICAL OUT EDID UPGRADE
183mm
1
HDMI DP USB-C HDMI RX USB DEVICES
1 - USB HOST - 2
DISPLAY PORT IN USB-C IN
24mm
24V 5A
PoC
ON OFF 44mm
UPGRADE
24V 5A
2
CHARGING
