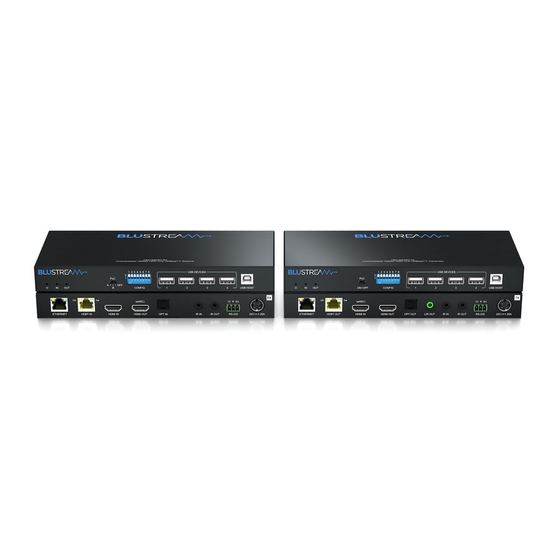

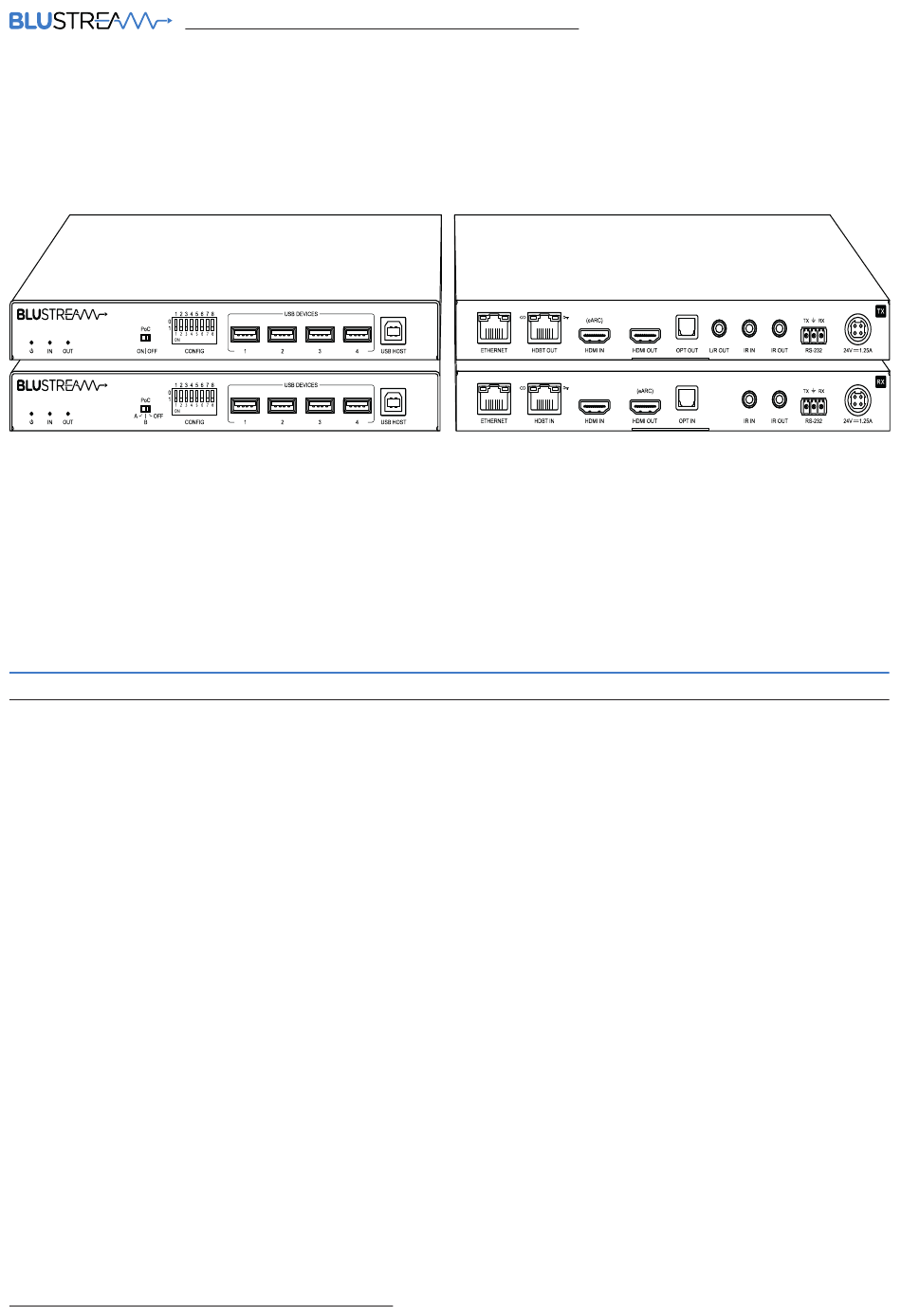

HEX18GARC-KIT
Introduction
FEATURES:
• Advanced uncompressed, unconverted, HDMI over HDBaseT™ technology offering distribution of bit for bit 4K HDMI
video and audio over a single CAT6A cable
• Supports HDMI2.0 18Gbps specification including 4K 60Hz 4:4:4 UHD video
• Supports uncompressed distribution of the latest HDR resolutions including HDR10/10+ and Dolby Vision
• Supports HDMI video distribution up to 100m*
• Features 1x HDMI loop-out on HEX18GARC-TX for integrating local displays or cascading to multiple devices
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• HDMI re-clocking on the HDBaseT™ Receiver to help solve HDMI HDCP, compatibility and handshaking issues
• Supports eARC (Enhanced Audio Return Channel) from display via HDMI and ARC via optical digital inputs
• Supports audio return to HDMI, optical digital and analogue L/R audio outputs (analogue output supports 2ch PCM
only)
• Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD
Master Audio transmission
• Features USB2.0 KVM with speeds up to 350Mbps
• Bi-directional Ethernet (1Gb), IR & RS-232 pass through
• Supplied with Blustream IR receiver and emitter
• Bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end
• Support for HDCP 2.3, HDCP 2.2 and HDCP 1.4
*Transmission distance is subject to video format, cable type and installation environment. It is recommended to use a minimum of CAT6A cabling
Quick Reference Guide
The HEX18GARC-KIT extender set is an industry leading uncompressed,
unconverted HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.3/2.2 solution utilising the latest in
HDBaseT™ technology. The HEX18GARC-KIT supports uncompressed distribution
of the latest HDR resolutions including HDR10/10+ and Dolby Vision resulting in the
ultimate in picture quality for your critical viewing areas.
The HEX18GARC-KIT supports bi-directional IR, RS-232 and PoC up to lengths of
100m over a single CAT6A cable. The HEX18GARC-KIT also provides enhanced
features including KVM, ARC via HDMI or optical (S/PDIF) and Ethernet pass through.
www.blustream.com.au
HEX18GARC-KIT
QUICK REFERENCE GUIDE
|
www.blustream-us.com
|
www.blustream.co.uk

Advertisement

loading
Need help?

Need help?

Do you have a question about the HEX18GARC-KIT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BluStream HEX18GARC-KIT

Summary of Contents for BluStream HEX18GARC-KIT

  • Page 1 HDR resolutions including HDR10/10+ and Dolby Vision resulting in the ultimate in picture quality for your critical viewing areas. The HEX18GARC-KIT supports bi-directional IR, RS-232 and PoC up to lengths of 100m over a single CAT6A cable. The HEX18GARC-KIT also provides enhanced features including KVM, ARC via HDMI or optical (S/PDIF) and Ethernet pass through.
  • Page 2 USB 2.0 Type A Connections - Connect to USB (2ch PCM only) peripheral devices IR Output - Connect to Blustream 5V 3.5mm IR emitter USB 2.0 Type B Connection - Connect to USB host device IR Input - Connect to Blustream 5V 3.5mm IR receiver...
  • Page 3 The switches allow you to configure various functions of the Transmitter as follows: DIP switch 1: Specify between 5V IR or 12V IR equipment in use. Blustream IR equipment supplied is 5V. DIP switch pointing UP for 5V IR equipment. DIP switch pointing DOWN for 12V IR equipment.
  • Page 4 QUICK REFERENCE GUIDE ARC, eARC, and Optical Audio Return The HEX18GARC-KIT allows for a variety of ways to transfer Audio Return from the Receiver back to the Transmitter unit. By definition, ARC (Audio Return Channel) and Optical Audio Return, will support up to a maximum of 5.1ch HD audio pass-through.
  • Page 5 EMI, or for 4K signal distribution. Understanding the HDBaseT™ Signal Status Lights Blustream HDBaseT™ extender solutions include status LED indicators on both the Transmitter and Receiver products to show all connections are active and to help diagnose possible problems with the HDBaseT™ link.

  • Page 6: Example Schematic

    HEX18GARC-KIT QUICK REFERENCE GUIDE Example Schematic Contact: support@blustream.com.au support@blustream-us.com support@blustream.co.uk...

  • Page 7: Specifications

    HEX18GARC-KIT QUICK REFERENCE GUIDE Specifications HEX18GARC-RX HEX18GARC-TX • Video Input Connectors: 1x HDBaseT™ RJ45 • Video Input Connectors: 1x HDMI Type A, female connector, 1x HDMI Type A, female (reserved) • Video Output Connectors: 1x HDBaseT™ RJ45 connector, 1x •...
