Page 1: User Manual
Input Output Link IR RX IR TX Link IR RX IR TX EX40B-KIT User Manual... -
Page 2: Panel Descriptions
EX40B-KIT USER MANUAL Contents Thank you for purchasing this product. Introduction For optimum performance and safety, please read these instructions carefully before connecting, operating or Features adjusting this product. Please keep this manual for future reference. Panel descriptions Terminating the interconnecting CAT cable 05... -
Page 3: Introduction
EX40B-KIT USER MANUAL Introduction Our EX40B-KIT HDMI™ extender set offers HDMI distribution over a single CAT cable. The product delivers HDMI & B-directional IR up to lengths of 40m @ 1080p and 50m @ 1080i. FEATURES: • Extends HDMI 1080p up to distances of 40m over single CAT... -
Page 4: Panel Descriptions

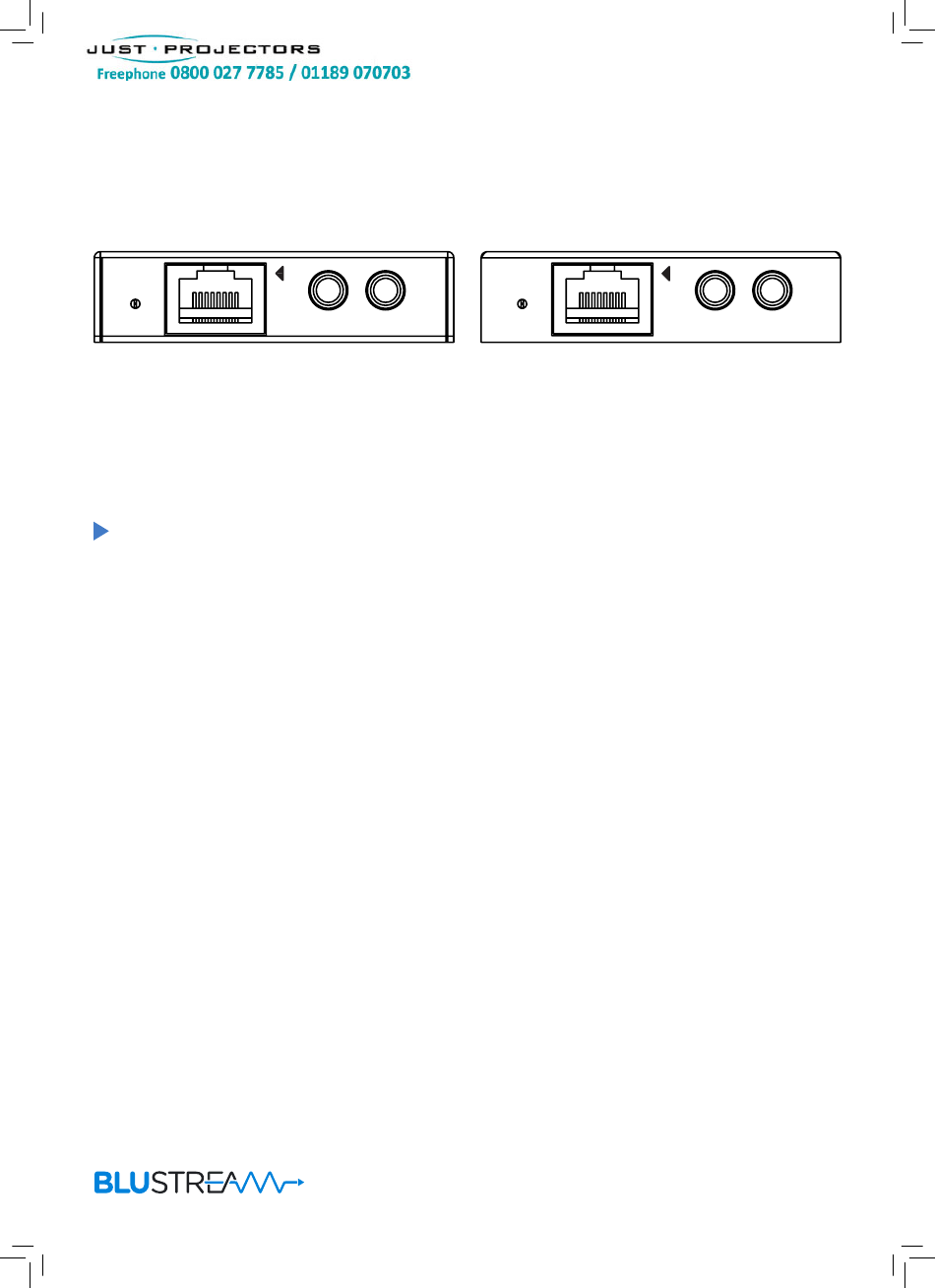

EX40B-KIT USER MANUAL Panel Description EX40B-RX Input Link IR RX IR TX Link HDMI Output Power CAT link indicator HDMI link indicator CAT cable input HDMI output IR Receiver jack (Sensor input) Power indicator IR Transmitter jack (Emitter output) 5V/1A DC power input... -
Page 5: Terminating The Interconnecting Cat Cable
The link light will be off when there is no signal on the HDMI input (no connection with a source device) • The link light will blink when there is a signal on the HDMI input but there is no CAT cable/Blustream Receiver connected to the RJ45 output •... -
Page 6: Edid Control
The EX40B-KIT has 2x dip-switches on the Transmitter which allow you to fix the Video and Audio resolution to one of the below settings. Note: EDID management only supports 2ch PCM audio types. Should alternate audio formats be required these must be forced from the source hardware. - Page 7 IMPORTANT: Blustream InfraRed products are all 5V and NOT compatible with alternate manufacturers InfraRed solutions. When using third party 12V IR control solutions with Blustream HDMI extender products please use the Blustream IRCAB cable for IR con- version. This is available as an optional accessory.
- Page 8 EX40B-KIT USER MANUAL www.blustream.co.uk...
-
Page 9: Specifications
• EX40B-RX • 2 x 5V/1A DC power supply • 1 x IR Emitter • 1 x IR Sensor • 2 x mounting brackets • 1 x user manual contact support@blustream.co.uk / support@blustream.com.au... - Page 10 Just Projectors, Unit 7, Campbell Court, Bramley Hampshire, RG26 5EG...
