- Page 1 HEX100ARC-TX-V2 HEX100ARC-RX-V2 IR TXI R RX Optical HEX100ARC-KIT V2 User Manual...
- Page 2 RS-232 and Telnet Commands 14-15 Do not substitute or use any other power supply other than the enclosed unit, or a Blustream approved Infrared Commands 16-18 replacement. Do not disassemble either the Web Browser Interface Transmission or Receiver units for any reason.
- Page 3 • Bi-directional RS-232 pass through • Bi-directional IR from all input and output locations • Supplied with Blustream IR receiver and emitter • Bi-directional PoH (Power over HDBaseT) to power extenders from either transmitter or receiver end • HDCP 2.2 support contact support@blustream.co.uk / support@blustream.com.au...

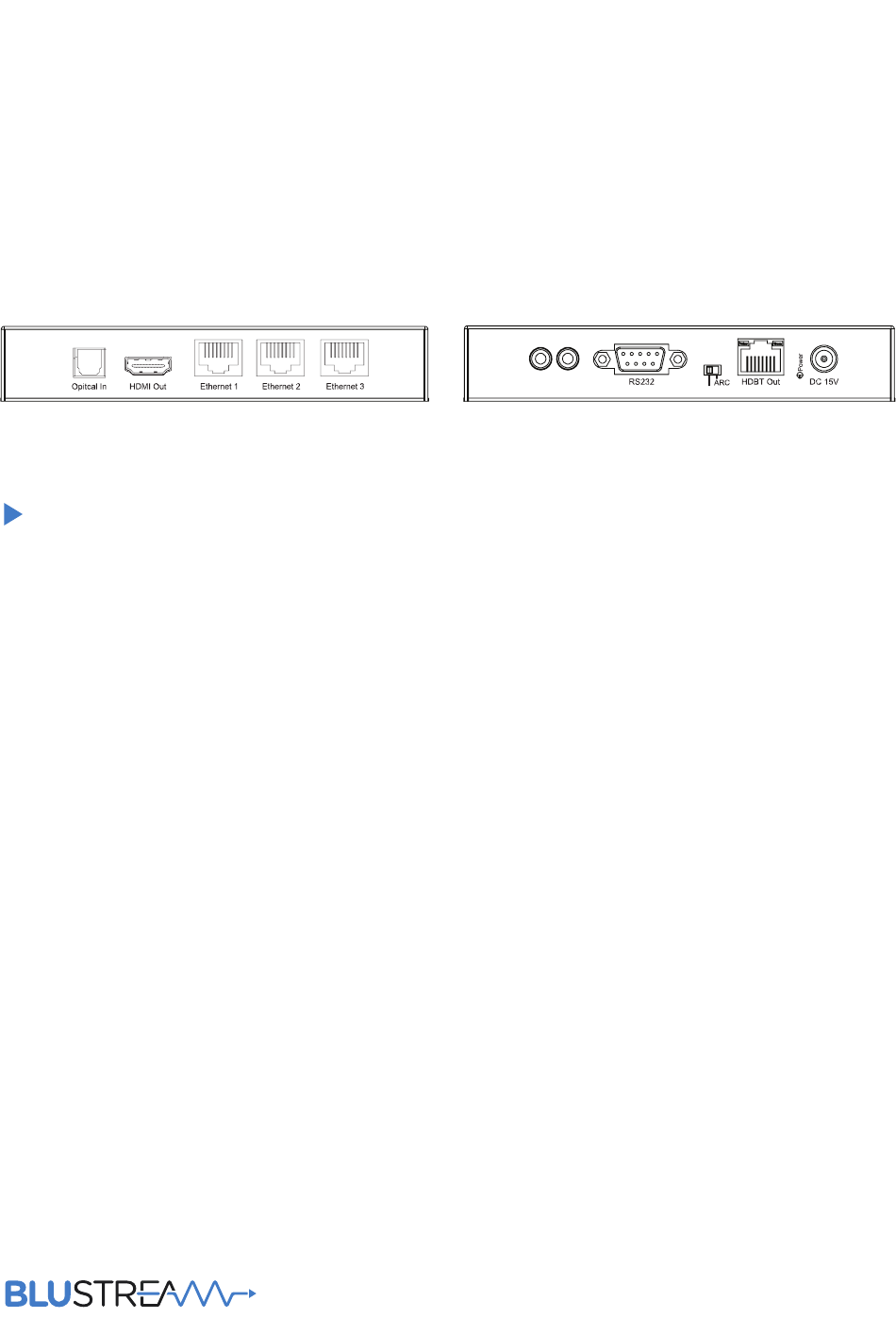

- Page 4 HDMI or Audio Return Channel from HEX100ARC-RX. Note: Audio format must be 2ch PCM. IR RX port - Connect to Blustream 5V IR Receiver or IRCAB cable (when used with third party control processor). Optical audio output - TOSLINK audio output. Connects...
- Page 5 The HDBaseT link light will be lit when a CAT cable is connected to the HDBaseT RJ45 output on the Transmitter and an active connection is achieved with the Blustream HDBaseT Receiver. Blustream Support department are on hand to assist with signal distribution issues should they arise - please email us at one of the email addresses below contact support@blustream.co.uk / support@blustream.com.au...
- Page 6 IMPORTANT: Blustream Infrared products are all 5V and NOT compatible with alternative manufacturers Infrared solu- tions. When using third party 12V IR control solutions please use supplied Blustream IRCAB cable for IR conversion. Each Blustream Matrix and HDBaseT receiver is supplied with all necessary IR hardware required and includes: IR Emitter - IR1 &...
- Page 7 HEX100ARC-KIT V2 USER MANUAL Example Schematic HEX100ARC-Kit-V2 TV AND AVR SUPPORT ARC HEX100ARC POSITION SWITCHER MODE SELECTION Transmitter Receiver LOCAL DISPLAY DISPLAY (HDBaseT) 1 SOURCE (HDMI) HDMI HEX100ARC-Tx HEX100ARC-Rx HDMI Loop Out Optical In HDMI Out Ethernet 1 Ethernet 2...
- Page 8 HEX100ARC-KIT V2 USER MANUAL Example Schematic HEX100ARC-Kit-V2 TV WITHOUT ARC, AVR WITHOUT ARC HEX100ARC POSITION SWITCHER MODE SELECTION Transmitter NON-ARC Receiver Optical LOCAL DISPLAY DISPLAY (HDBaseT) 1 SOURCE (HDMI) HEX100ARC-Tx HEX100ARC-Rx HDMI Loop Out Optical In HDMI Out Ethernet 1...
- Page 9 1 x Mounting kit • 1 x 15V/2A power supply • 1 x IRR Blustream 5V IR receiver • 1 x IRCAB Blustream IR control cable - 3.5mm-3.5mm cable • 1 x IR1 Blustream 5V IR emitter • 1 x User manual Maintenance Clean this unit with a soft, dry cloth.
- Page 10 www.blustream.com.au...
