BluStream HEX70USB-KIT Quick Reference Manual

Download this manual

Introduction

FEATURES:

• Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency

• Extends HDMI 1080p up to a distance of 70m over a single CAT cable

• Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)

• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

• Features 4x USB-Type A devices (RX) and 1x USB Type-B (TX) that support a combined data transmittion bandwidth

up to 480Mbps

• USB type-A devices support 5V 500mA output per port

• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD

Master Audio transmission

• Bi-directional IR pass-through

• Bi-directional RS-232 pass-through

• Supplied with Blustream IR receiver and emitter

• Supports bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end

• HDCP 2.2 compliant with advanced EDID management

RevA2_HEX70USB-KIT_QRG_210713.indd 1

HEX70USB-KIT

Quick Reference Guide

The HEX70USB-KIT 4K HDBaseT™ USB 2.0 extender set offers the very best in

performance and flexibility, delivering HDMI, USB 2.0 extension, Bi-directional IR

and RS-232, audio breakout and Bi-directional PoC up to lengths of 70m

www.blustream.com.au

HEX70USB-KIT

QUICK REFERENCE GUIDE

www.blustream-us.com

www.blustream.co.uk

11/08/2021 09:07

Need help?

Do you have a question about the HEX70USB-KIT and is the answer not in the manual?

Page 1 HEX70USB-KIT Quick Reference Guide Introduction The HEX70USB-KIT 4K HDBaseT™ USB 2.0 extender set offers the very best in performance and flexibility, delivering HDMI, USB 2.0 extension, Bi-directional IR and RS-232, audio breakout and Bi-directional PoC up to lengths of 70m FEATURES: •...

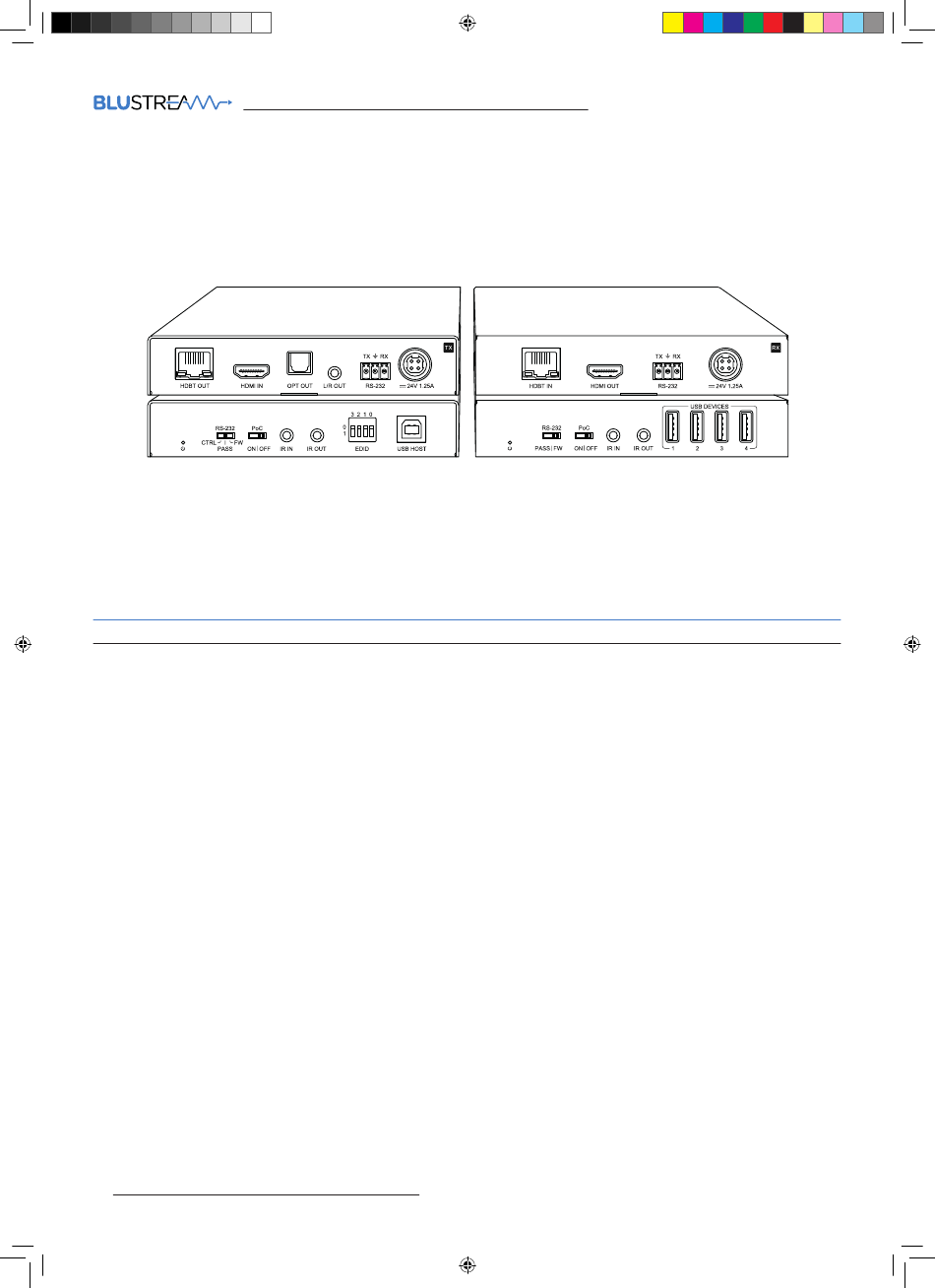

Page 2 Power over Cable (PoC) Switch (ON / OFF) - to enable / disable PoC being sent from the transmitter IR Input - connect to Blustream 5V 3.5mm IR receiver or from control processor IR Output - connect to Blustream 5V 3.5mm IR emitter...
Page 3 When installing CAT cables it is advised that you use the best possible CAT cable quality possible. HDMI distribution products will only work if used with CAT5e standard cable or above. Blustream recommends using a CAT6 (or better) cable for your installations, especially when running over longer distances, in areas of high EMI, or for 4K signal distribution.
Page 4 HEX70USB-KIT QUICK REFERENCE GUIDE Specifications HEX70USB-TX HEX70USB-RX • Video Input Connector: 1 x HDMI Type A, female • Video Input Connector: 1 x HDBaseT™ RJ45 connector • Video Output Connector: 1 x HDBaseT™ RJ45 • Video Output Connector: 1 x HDMI Type A, female connector •...
